Fried wire - help!

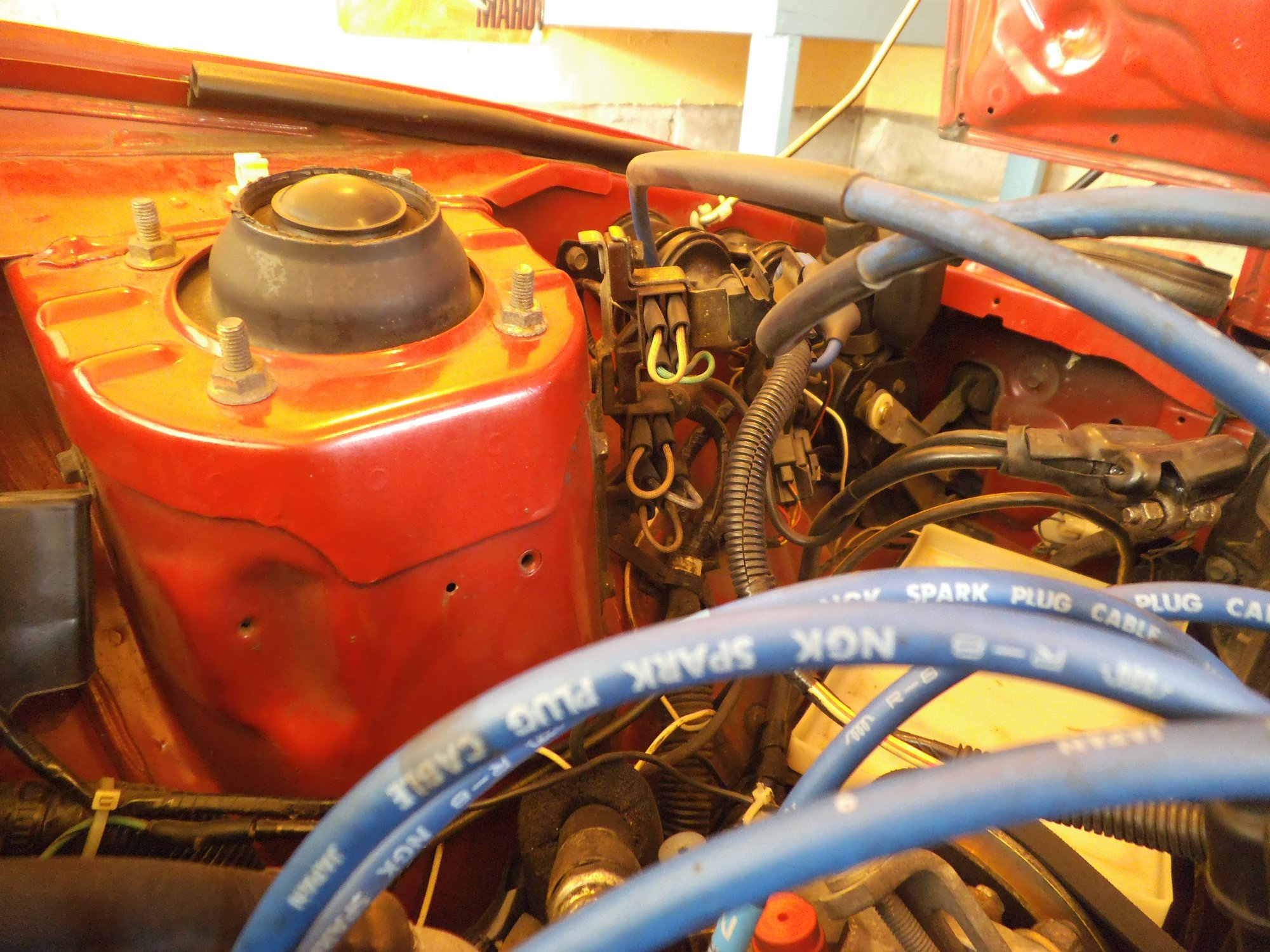

I had my battery out of my '85 GSL-SE for the winter, charged it a couple times, gave it a last charge this morning and put my battery in with the negative terminal attached first (I know, I'm a dope, I don't know why I did this). When I touched the positive lead to the positive post I got a couple sparks and one of the wires nearby burnt bright red and smoked. Now, when I hook-up my battery properly, I've got no juice. You can see the wire in this picture - it's in the middle of the picture where there are five looped wires, two above and three below, and it's the middle wire of the bottom three (the one that looks burnt). I'm going back to check my fuses, but I would really appreciate any help that I might be able to get.

Sometimes I feel like I don't deserve such a nice car.
Reply
Old May 25, 2023 | 02:21 PM
  #2
Mekhlis's Avatar
Thread Starter
Junior Member

Joined: May 2022
Posts: 13
Likes: 2
From: Calgary, Alberta
Update: The 20 amp "Engine" fuse was blown, I put in a new one and still no power.
Reply
Old May 25, 2023 | 06:40 PM
  #3
diabolical1's Avatar
Moderator
Tenured Member: 20 Years
Liked
Loved
Community Favorite
iTrader: (3)

Joined: Feb 2002
Posts: 10,998
Likes: 349
From: FL
welcome to the board.

those are your fusible links. you have probably torched your MAIN one. better that than the car, so it did it's job.

do you have a copy of the FSM? if not, you can get one here: Foxed.ca

also check these links:

https://www.rx7club.com/1st-generati...-fuse-1087516/

https://www.rx7club.com/1st-generati...stion-1134014/

https://www.rx7club.com/1st-generati...ement-1124923/

https://www.rx7club.com/1st-generati...-link-1138084/
Reply
Old May 25, 2023 | 07:01 PM
  #4
Mekhlis's Avatar
Thread Starter
Junior Member

Joined: May 2022
Posts: 13
Likes: 2
From: Calgary, Alberta
Thanks Diabolical1- you make me feel a lot better, in kind of a best-possible-result-given-the-circumstances way. I was thinking other positive thoughts like "at least I didn't start a fire" or "at least the battery didn't explode" and "what did I learn today?". I do have a Haynes manual, so I'll be reading that and those other links you included. Mek
Reply
Old Jun 13, 2023 | 07:12 PM
  #5
Mekhlis's Avatar
Thread Starter
Junior Member

Joined: May 2022
Posts: 13
Likes: 2
From: Calgary, Alberta
Good news

I got a set of fusible links from Mazdatrix, hooked-up the battery the right way and she started first time!
Reply
Old Jun 14, 2023 | 12:28 AM
  #6
diabolical1's Avatar
Moderator
Tenured Member: 20 Years
Liked
Loved
Community Favorite
iTrader: (3)

Joined: Feb 2002
Posts: 10,998
Likes: 349
From: FL
felt pretty good, didn't it?
Reply
Old Jun 14, 2023 | 02:35 AM
  #7
Mekhlis's Avatar
Thread Starter
Junior Member

Joined: May 2022
Posts: 13
Likes: 2
From: Calgary, Alberta
It did.
I've been doing this for fourteen years - taking the battery indoors for the winter - and this is the first time anything has/I have ever screwed-up. It always starts first go, with hardly any smoke.
Next on the list is a wheel alignment, then remove the hatchback struts to get them rebuilt and get an appraisal for insurance. And get the air conditioning working again. And repaint the spare. And source a windshield and tires.
