jakes rebuild with tons of pics and some 7 art
#51
rotory chicken
Thread Starter
Join Date: Mar 2011
Location: midwest
Posts: 300
Likes: 0
Received 0 Likes
on
0 Posts
Ok everyone sorry ive been gone so long! Im actually still at work. So sorry if my post is kinda crappy! Here is whats happened this far figured out the front end play and assembled everything filled up fluids. Also bought a new optima battery and set my cas timing as well and timed it using the starter and a test light! Here is a background of how everything is set up.
I have the front of the car elevated about 1 1/2 feet. Was hoping it would start like this so any leaks could be fixed easily. Bad idea?
Tried to start it and immediately had a few backfires just one pop then some turning and another. From what i understand this is normal true?
Would not start so i pulled plugs and they were very gassy. I took all plugs out took the fuel pump fuse out and cranked it on and off for a few minutes. Sounds like good compression! Reinstalled plugs and fuse tried to start. No avail it stopped the backfires and just keeps flooding! I tried deflooding a few times and it seems to want to start but never fully fires!
Here are some other details if they may help
The car has a
haltek ex6
A street port
Bigger walbro fuel pump
I think 1800 cc primary injectors 800 cc secondary
Lucky 7 pully kit that i want to replace
Omp delete im very cautious with my premix and only use idumitsu
new goopy apex all cooling rings with rotory evos seal savers new front rear seals
Knight sport turbo hybrid
i used some cheap 15-40 oil since i will be changing it after 50 miles
Using crappy ridium plugs that were in it before rebuild those will be changing at first oil change not sure where they are supposed to be gaped so i didnt change them
So if anyone can help or even simply has a idea post it and ill let you know how it turns out!
I have the front of the car elevated about 1 1/2 feet. Was hoping it would start like this so any leaks could be fixed easily. Bad idea?
Tried to start it and immediately had a few backfires just one pop then some turning and another. From what i understand this is normal true?
Would not start so i pulled plugs and they were very gassy. I took all plugs out took the fuel pump fuse out and cranked it on and off for a few minutes. Sounds like good compression! Reinstalled plugs and fuse tried to start. No avail it stopped the backfires and just keeps flooding! I tried deflooding a few times and it seems to want to start but never fully fires!
Here are some other details if they may help
The car has a
haltek ex6
A street port
Bigger walbro fuel pump
I think 1800 cc primary injectors 800 cc secondary
Lucky 7 pully kit that i want to replace
Omp delete im very cautious with my premix and only use idumitsu
new goopy apex all cooling rings with rotory evos seal savers new front rear seals
Knight sport turbo hybrid
i used some cheap 15-40 oil since i will be changing it after 50 miles
Using crappy ridium plugs that were in it before rebuild those will be changing at first oil change not sure where they are supposed to be gaped so i didnt change them
So if anyone can help or even simply has a idea post it and ill let you know how it turns out!
#52
Trunk Ornament
iTrader: (11)
I really hope it's not 1800cc primaries with 800cc secondaries. If that's the case, we've found the reason for the flooding
If not, then do the whole de-flood thing. Unplug the CAS and inject some oil in the intake. I like to use one of the vacuum ports on the passenger's side, and shoot some engine oil in it through a vacuum hose. I usually use a gear lube bottle, since it has the pointy nozzle that you can attach a vacuum hose to. Crank it over a few times, reconnect the CAS, fire in the hole.
If not, then do the whole de-flood thing. Unplug the CAS and inject some oil in the intake. I like to use one of the vacuum ports on the passenger's side, and shoot some engine oil in it through a vacuum hose. I usually use a gear lube bottle, since it has the pointy nozzle that you can attach a vacuum hose to. Crank it over a few times, reconnect the CAS, fire in the hole.
#53
rotory chicken
Thread Starter
Join Date: Mar 2011
Location: midwest
Posts: 300
Likes: 0
Received 0 Likes
on
0 Posts
hmm no luck on the acyual size of the injectors should have check while they were out !
how much oil and where exactly! my rats nest is delete !
anyone else have advice ? im sure everything was assembled correctly all seals and spings moving and in spec just crappy rotors and housings lol
come on guys give me enough things to try that i can justify a day of missed work !
how much oil and where exactly! my rats nest is delete !
anyone else have advice ? im sure everything was assembled correctly all seals and spings moving and in spec just crappy rotors and housings lol
come on guys give me enough things to try that i can justify a day of missed work !
#54
Trunk Ornament
iTrader: (11)
The vacuum nipple on the passenger's side that goes to the manifold pressure sensor works great. Usually everyone recommends a tablespoon or 2. I don't know how to measure that in squeezes of a bottle, but just use a "best guess". I've put a LOT down there before and never hurt anything. Just don't pour half the bottle down and expect the engine to spin over. You CAN hydro lock a rotary. A couple squeezes should get compression up high enough to get you going.
#56
rotory chicken
Thread Starter
Join Date: Mar 2011
Location: midwest
Posts: 300
Likes: 0
Received 0 Likes
on
0 Posts
hmmm i put a little in my boost pressure hole just a ounce or two seemed to help but i just flooded it again
i also ordered the plugs you suggested ben damn nd doesnt have anything in stock they will be here in two days
i also ordered the plugs you suggested ben damn nd doesnt have anything in stock they will be here in two days
#57
rotory chicken
Thread Starter
Join Date: Mar 2011
Location: midwest
Posts: 300
Likes: 0
Received 0 Likes
on
0 Posts
uhg i hate waiting for parts !!!!
so what else could i have done wrong one cant intall rotors incorrectly so long as the first one is set in place correctly so i dont think thats the issue
everything was to tourqe and everything is held together with woodruf keys
new sparks on the way
timing checked out
compression sounds good but i only have one compression tool and cant read it while its down there
would the front of the car being up on ramps cause a issue ?
im really sick of sitting in it listning to music and almost crying cuz the damn thing wont start !!!
so what else could i have done wrong one cant intall rotors incorrectly so long as the first one is set in place correctly so i dont think thats the issue
everything was to tourqe and everything is held together with woodruf keys
new sparks on the way
timing checked out
compression sounds good but i only have one compression tool and cant read it while its down there
would the front of the car being up on ramps cause a issue ?
im really sick of sitting in it listning to music and almost crying cuz the damn thing wont start !!!
#58
Trunk Ornament
iTrader: (11)
More oil probably. Re-verify timing is correct, check to make sure you're actually getting spark, is the tachometer moving? If you have fuel getting in the engine, spark, and you hear compression and the engine's just flooded out, you probably need to try the deflood thing again, this time adding more oil.
#63
rotory chicken
Thread Starter
Join Date: Mar 2011
Location: midwest
Posts: 300
Likes: 0
Received 0 Likes
on
0 Posts
Got home too late to pick up plugs but i did try a little more oil and a thinner viscosity and it came alot closer to starting had two backfires and alot of smoke! Hopefully the plugs recommended will do the trick ill keep everyone updated and soon i may post conversation i had with someone!
#64
rotory chicken
Thread Starter
Join Date: Mar 2011
Location: midwest
Posts: 300
Likes: 0
Received 0 Likes
on
0 Posts

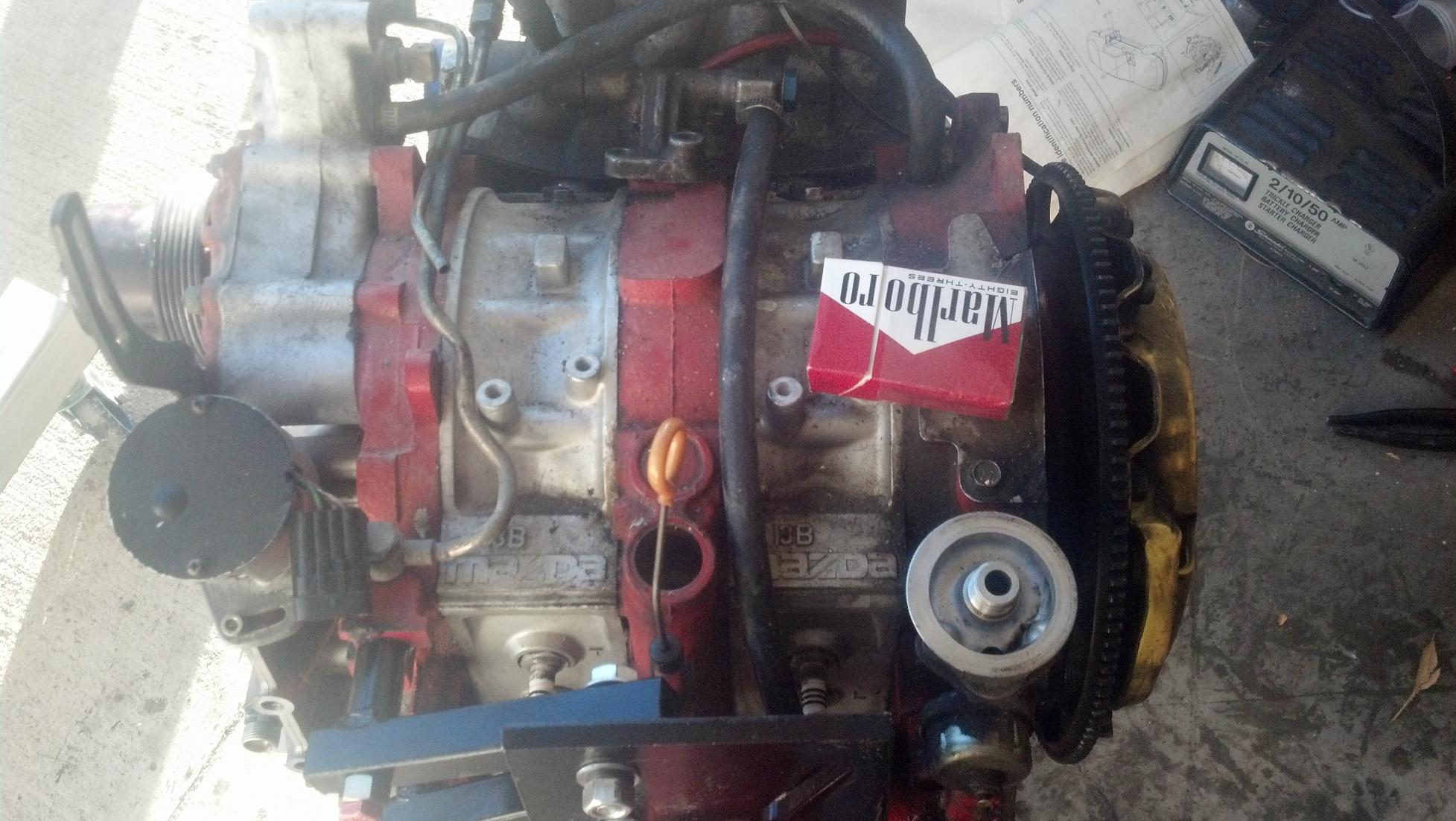

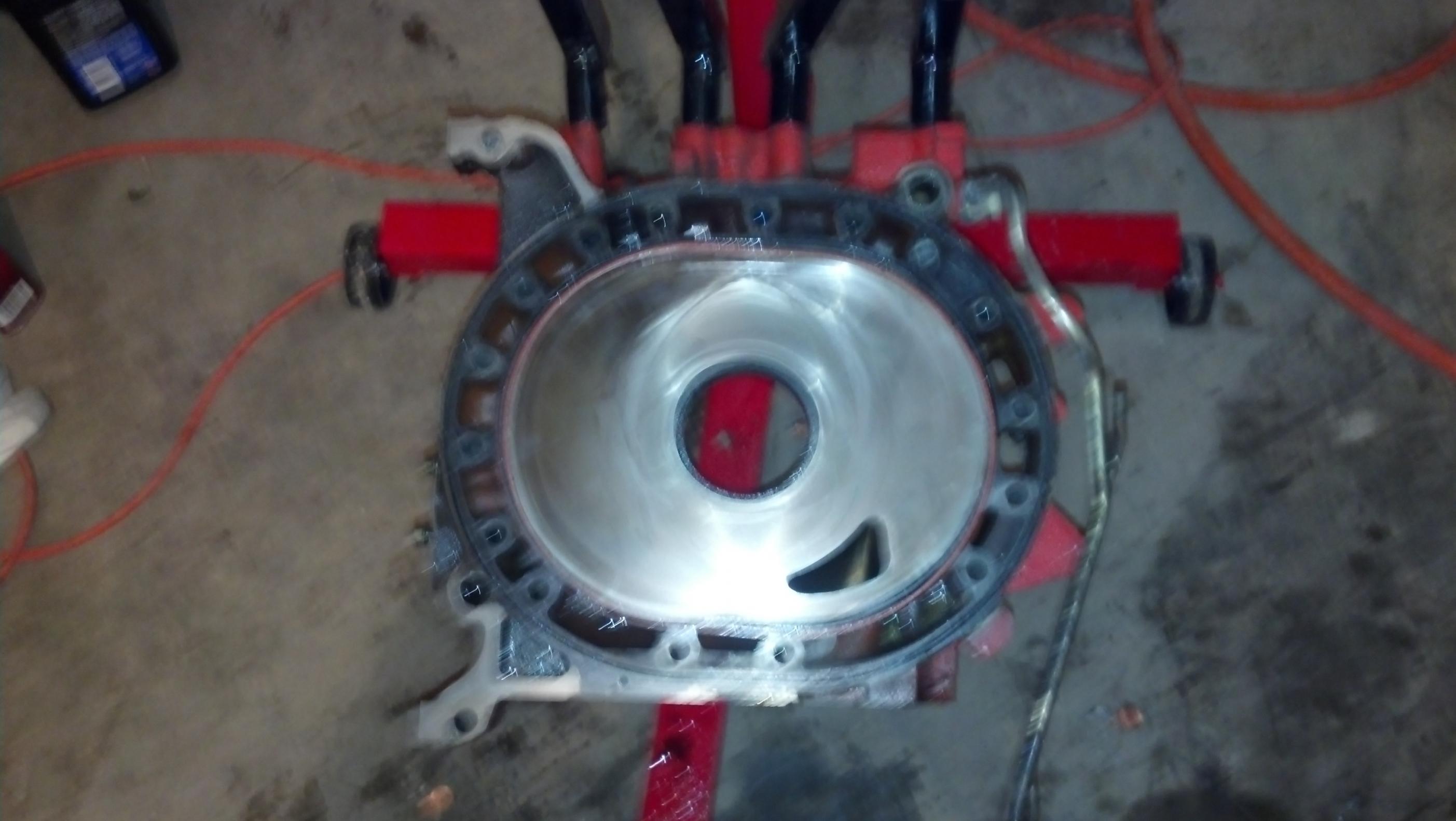

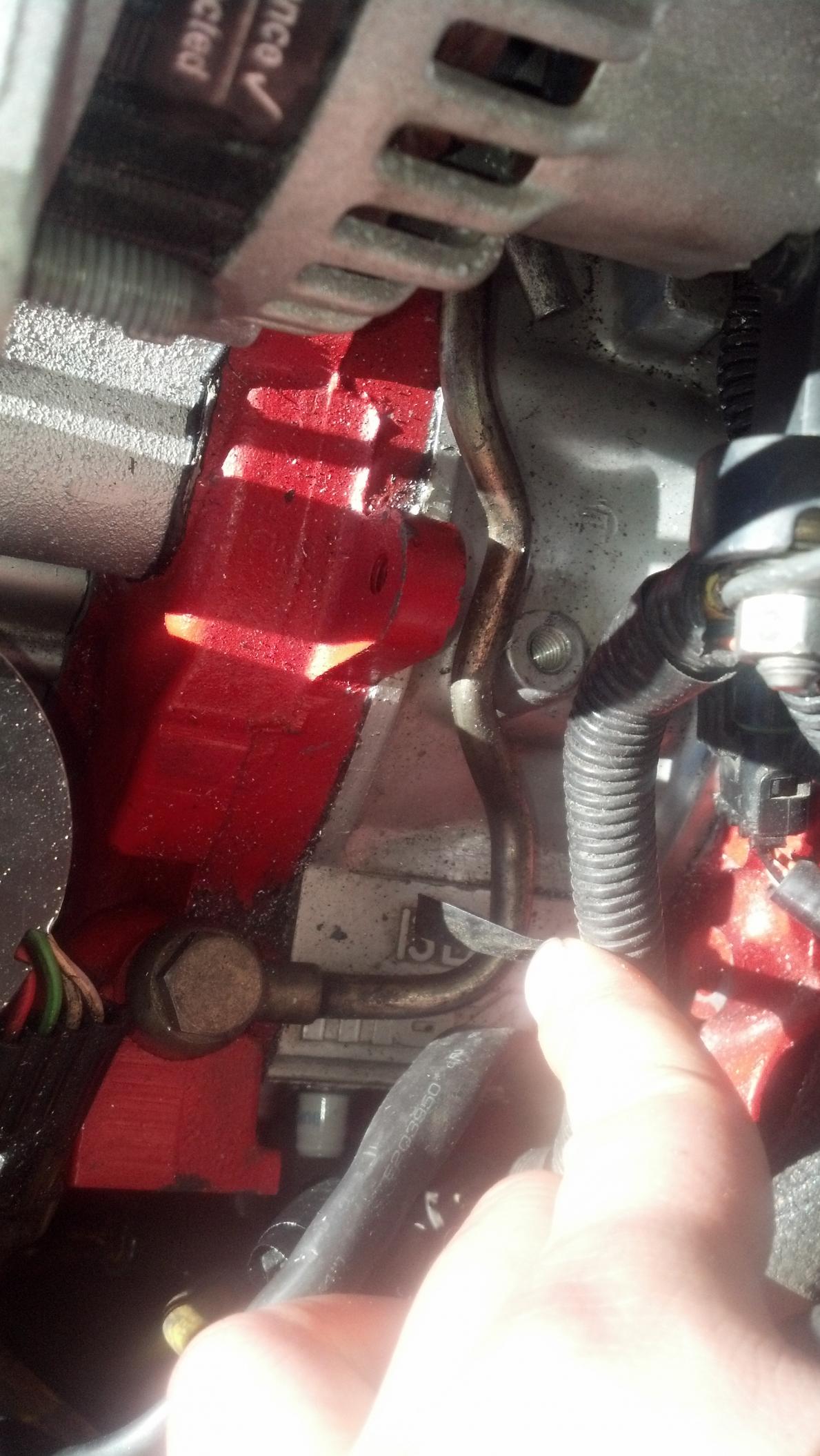

well she started if only for a few seconds then oil feed line shot all my oil out here been this i guess is a good place as any to post those picks
didnt have one of the turbo side its just a screw together fuel line style fitting
and yes guys rotory evo is the best vendor ive come accross ! he goes beyond the call to duty !!
didnt have one of the turbo side its just a screw together fuel line style fitting
and yes guys rotory evo is the best vendor ive come accross ! he goes beyond the call to duty !!
#67
rotory chicken
Thread Starter
Join Date: Mar 2011
Location: midwest
Posts: 300
Likes: 0
Received 0 Likes
on
0 Posts
okok i recieved and installed the line that was leaking thanks again been you have once again went above and beyond rotary evolution is a awesome vendor !!!
back to the car
leak has been fixed !!!!!!
messed with the timing alot !!!! for those of you that have the lucky 7 pully set its junk first off second with your cass out set the e shaft pully to the third white mark set your cas correctly and install ! this is the only spot i found that would let the car start easily . when i get the timing dead on ill be sure to inform you guys and send a few more pics to the post
here is a list of things i plan on doing my next day off
check timing
install some new crush washers (this might just wait until first oil change )
install a thermostat (i left it out for now waiting to order bonzia thermostat !)
check and tighten the tranny mounts !
back to the car
leak has been fixed !!!!!!
messed with the timing alot !!!! for those of you that have the lucky 7 pully set its junk first off second with your cass out set the e shaft pully to the third white mark set your cas correctly and install ! this is the only spot i found that would let the car start easily . when i get the timing dead on ill be sure to inform you guys and send a few more pics to the post
here is a list of things i plan on doing my next day off
check timing
install some new crush washers (this might just wait until first oil change )
install a thermostat (i left it out for now waiting to order bonzia thermostat !)
check and tighten the tranny mounts !
#68
rotory chicken
Thread Starter
Join Date: Mar 2011
Location: midwest
Posts: 300
Likes: 0
Received 0 Likes
on
0 Posts
ok so the timing isnt going so great ben told me i need to disable the timing lock on the haltek ex6 this scares me i dont want to mess up the tune so if anyone has any ideas please post !!!
maybe i can just move my timing one tooth at a time until its correct ?
can i hurt anything doing it this way ?
ive put 14 miles on it when the timing as far as i can tell was almost correct it just had a little hessitation at about 4 k i tried adjusting timing according to the manual it only made things worse
im thinking about setting it to where it was and trying a tooth in each direction to get rid of that little prob at 4 k
other then this issue my temps have stabled out its running 160 to 180f with no thermostat
just ordered bonzai thermostat to help with warm ups
going to order a few items from my fave vendor rotary evolutions !!
start with some new crush rings as i still have a few minor leaks
a cog pully kit when i get the time to measure my shaft
a shortneck oil filler
maybe some heater items
thanks again you guys especially ben !
maybe i can just move my timing one tooth at a time until its correct ?
can i hurt anything doing it this way ?
ive put 14 miles on it when the timing as far as i can tell was almost correct it just had a little hessitation at about 4 k i tried adjusting timing according to the manual it only made things worse
im thinking about setting it to where it was and trying a tooth in each direction to get rid of that little prob at 4 k
other then this issue my temps have stabled out its running 160 to 180f with no thermostat
just ordered bonzai thermostat to help with warm ups
going to order a few items from my fave vendor rotary evolutions !!
start with some new crush rings as i still have a few minor leaks
a cog pully kit when i get the time to measure my shaft
a shortneck oil filler
maybe some heater items
thanks again you guys especially ben !
#69
rotory chicken
Thread Starter
Join Date: Mar 2011
Location: midwest
Posts: 300
Likes: 0
Received 0 Likes
on
0 Posts
ok need more help i have the serial cord and a laptop with corei7 and windows 7 cant get haltek 1.26 for my ex6 to run on here dos or windows anyone know the trick ?
