jakes rebuild with tons of pics and some 7 art
ok im hoping these uploaded
i will try to upload six pics everyday that i work on it
i was having combustion leak into coolant system
so after some advice here i go on my first rebuild !

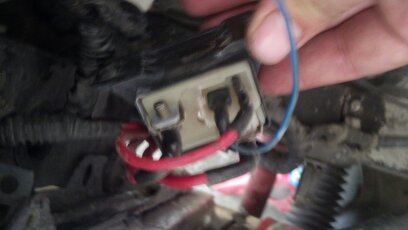

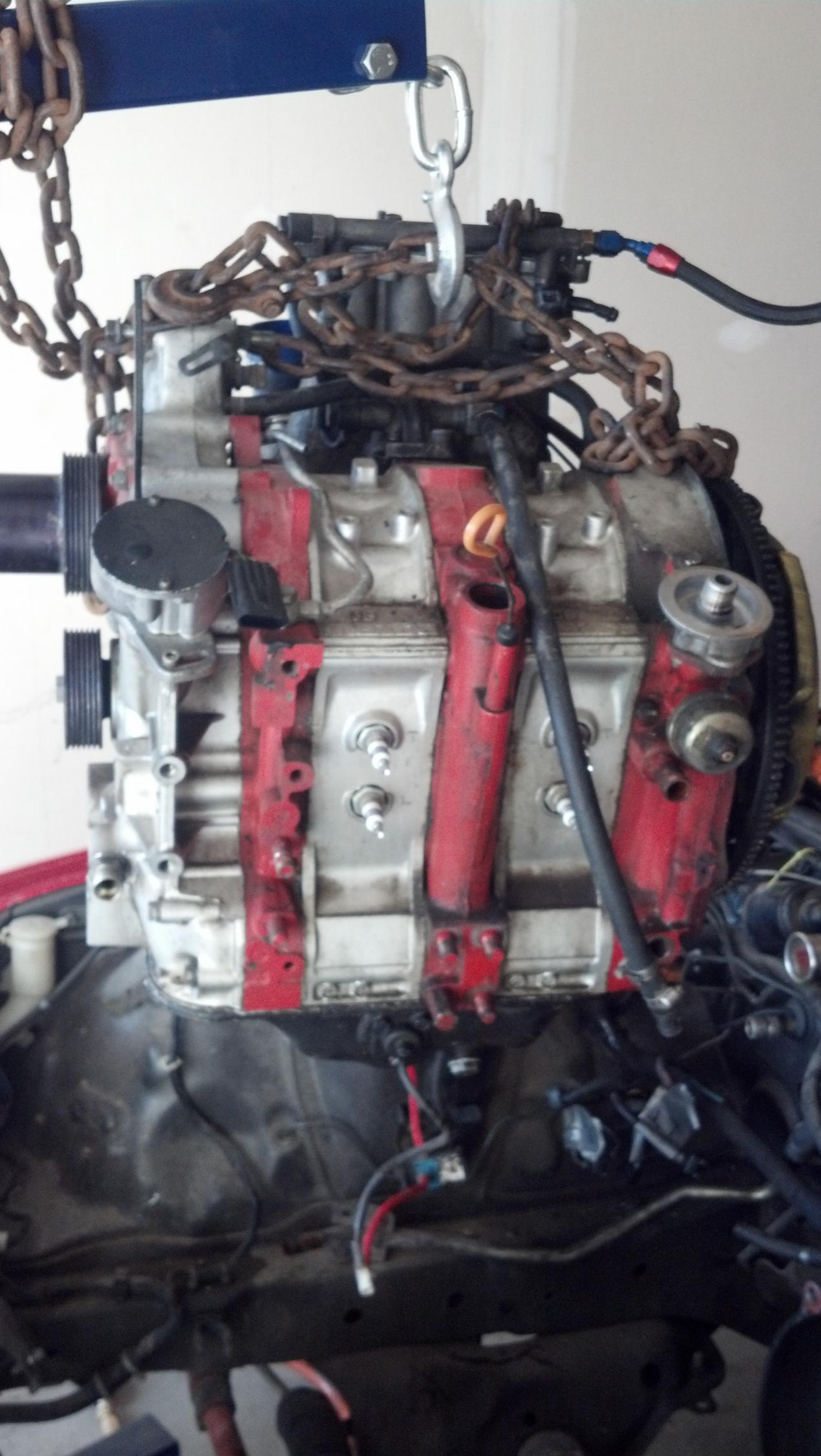

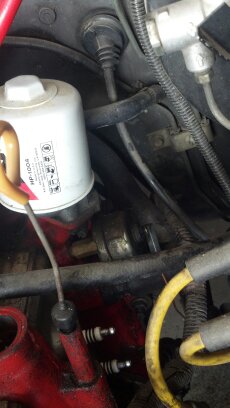

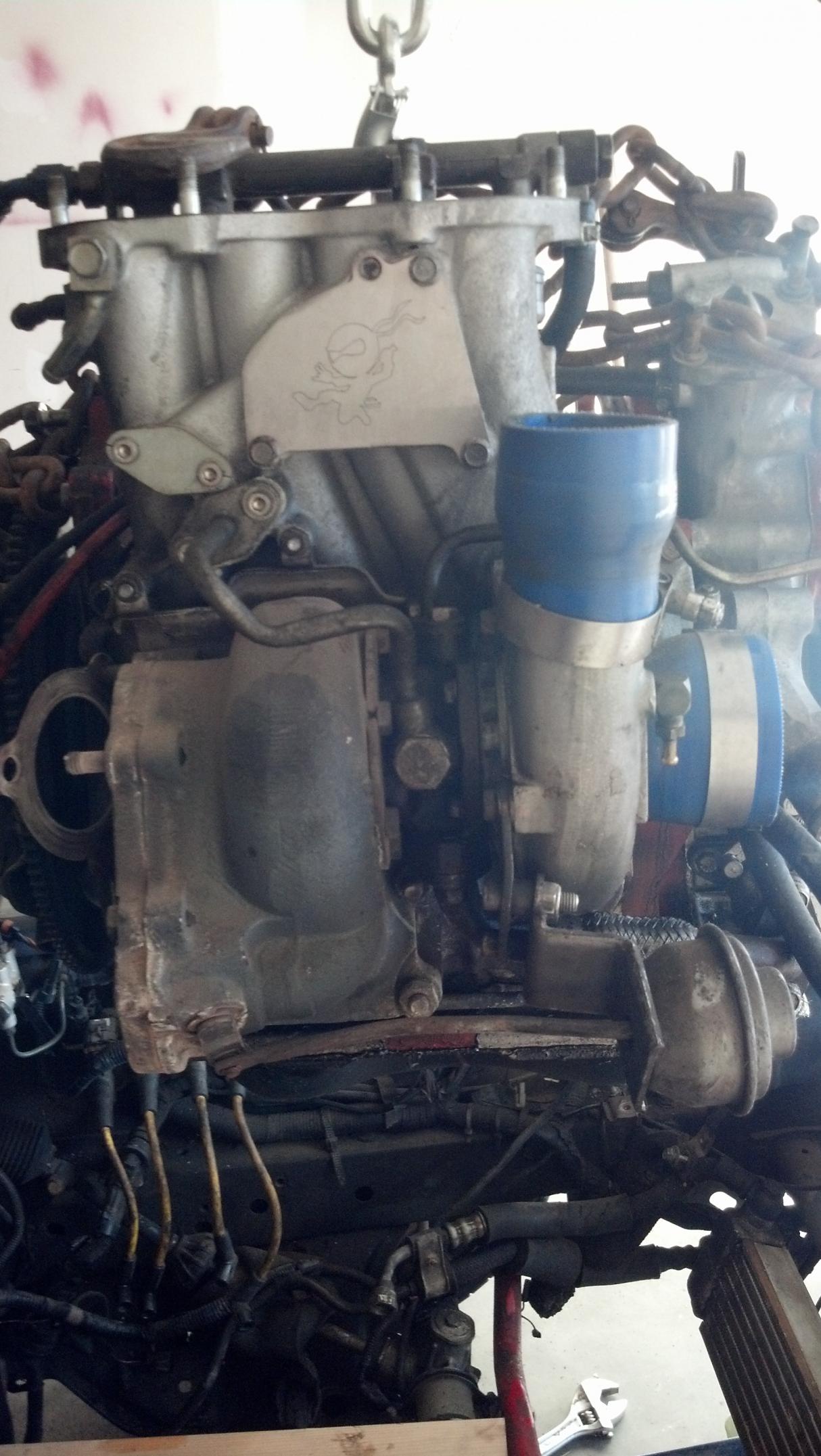

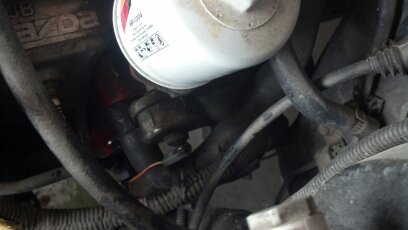

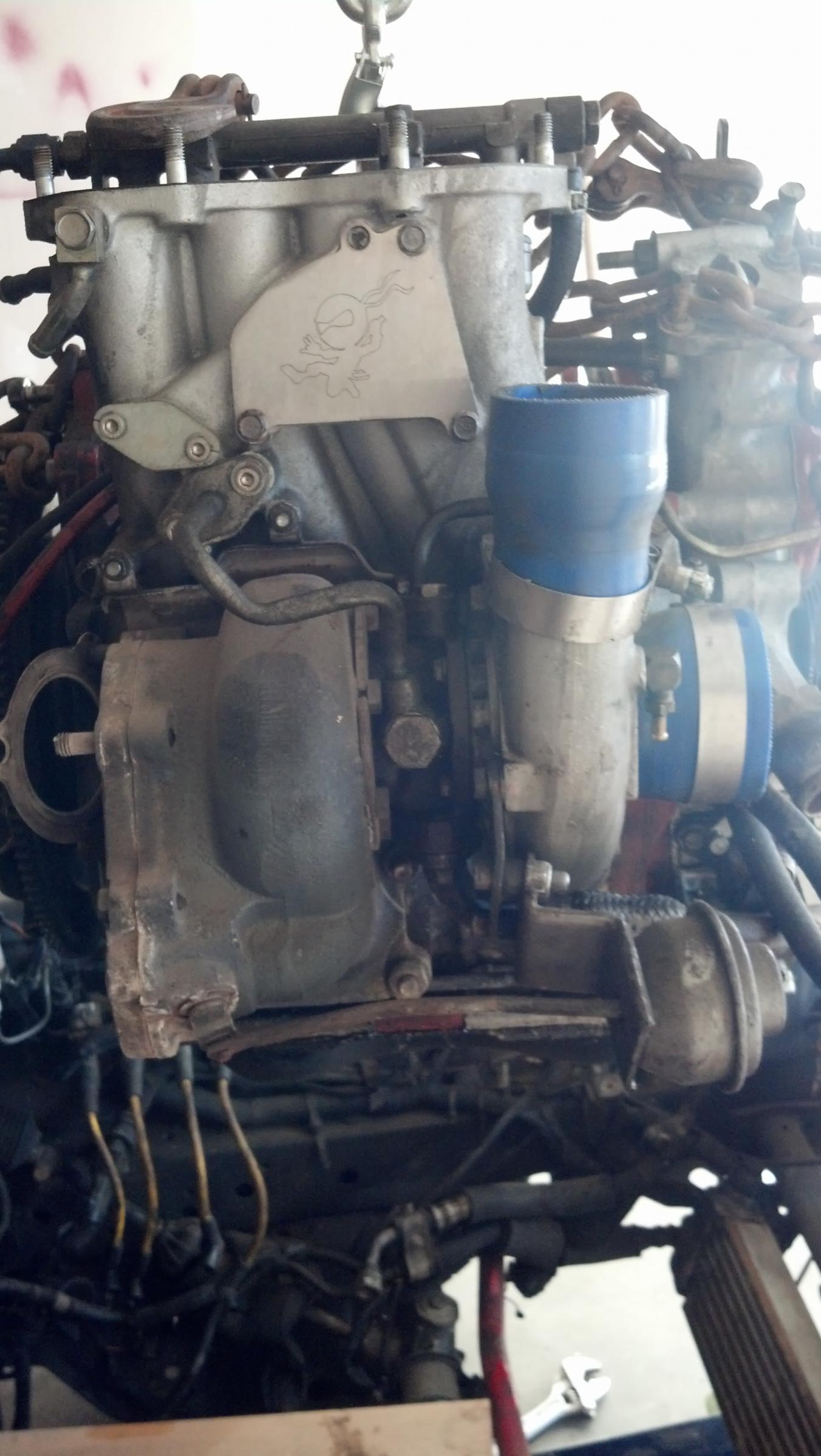

tearing down right now

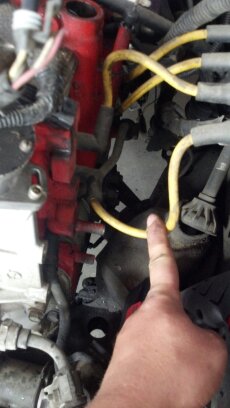

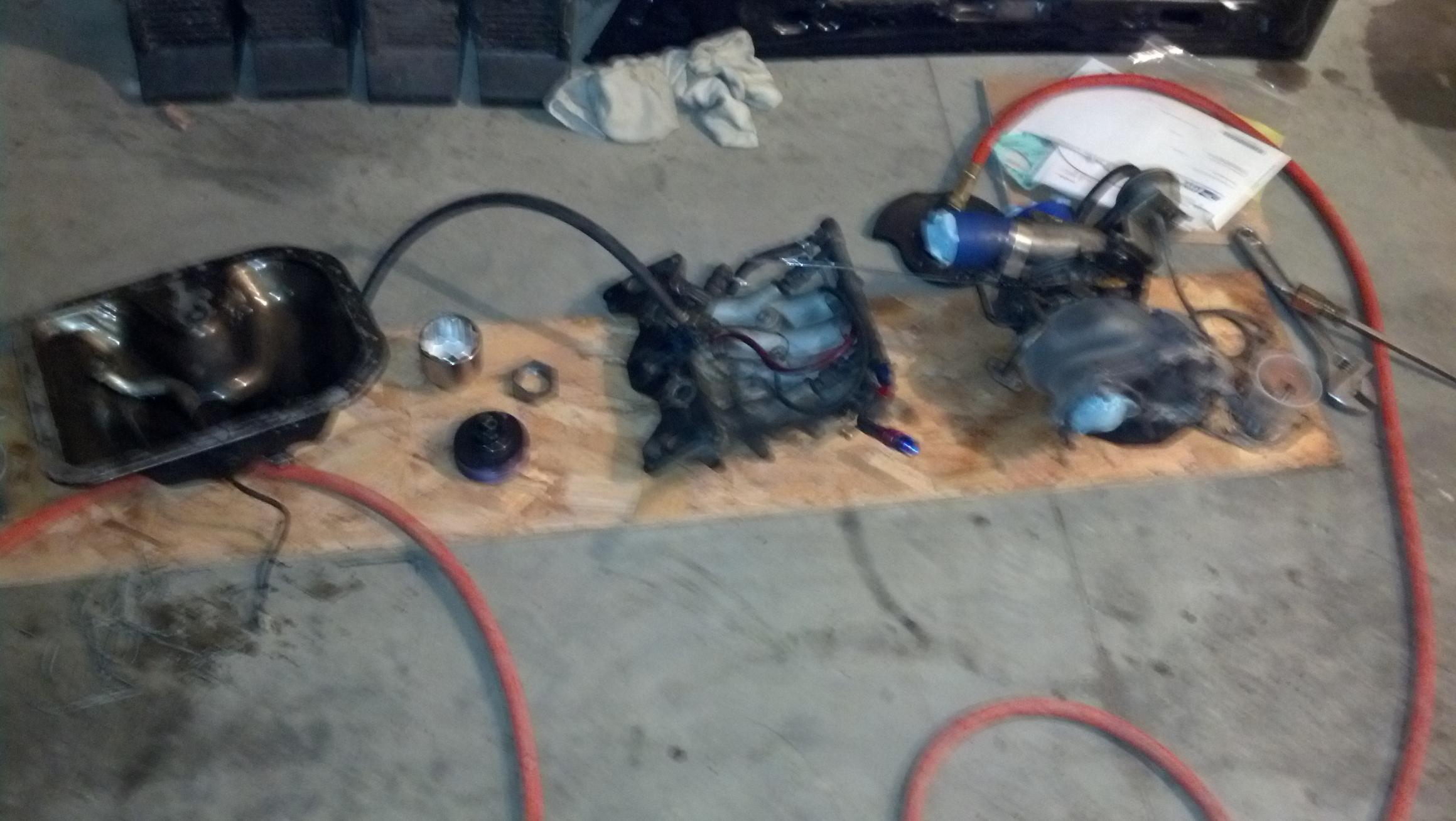

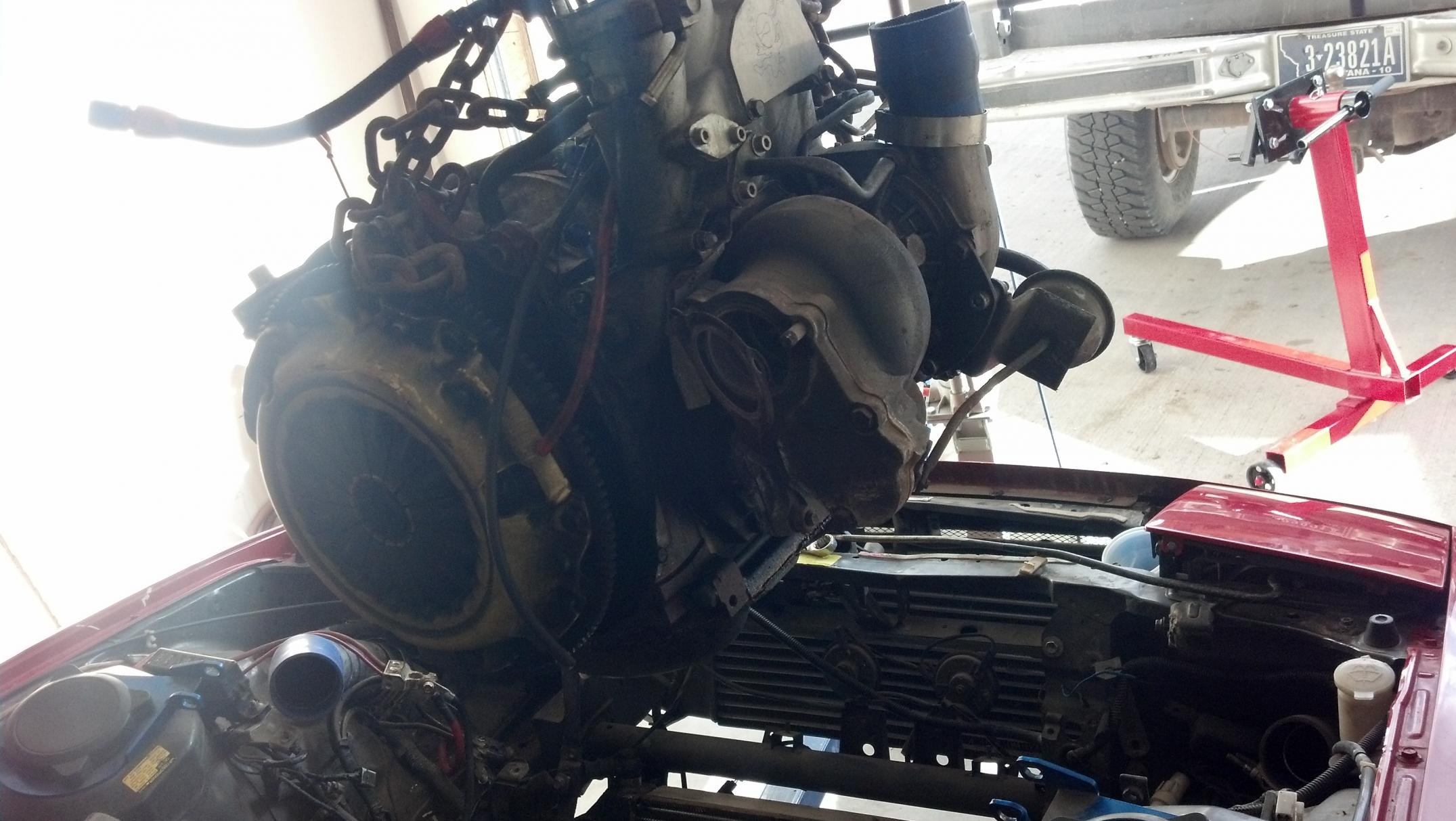

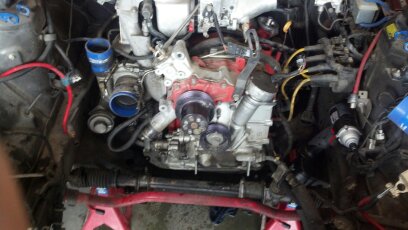

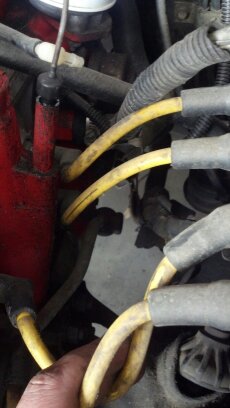

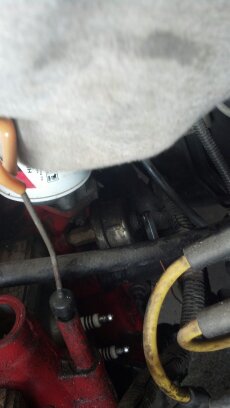

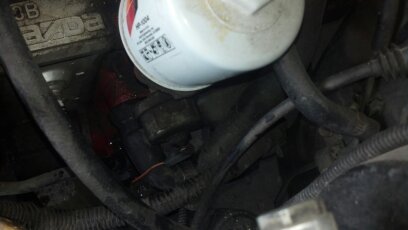

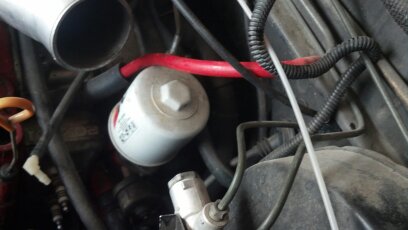

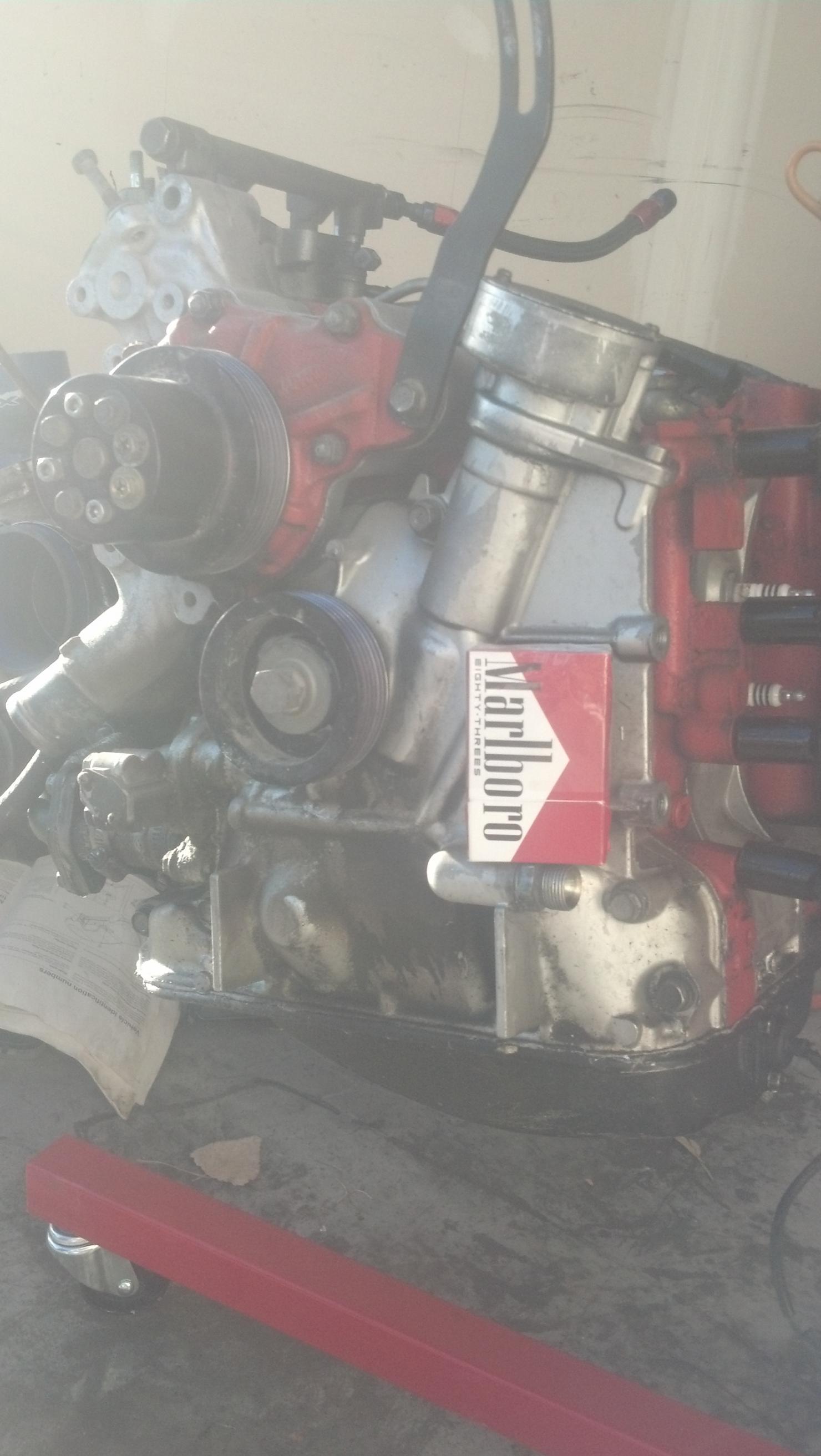

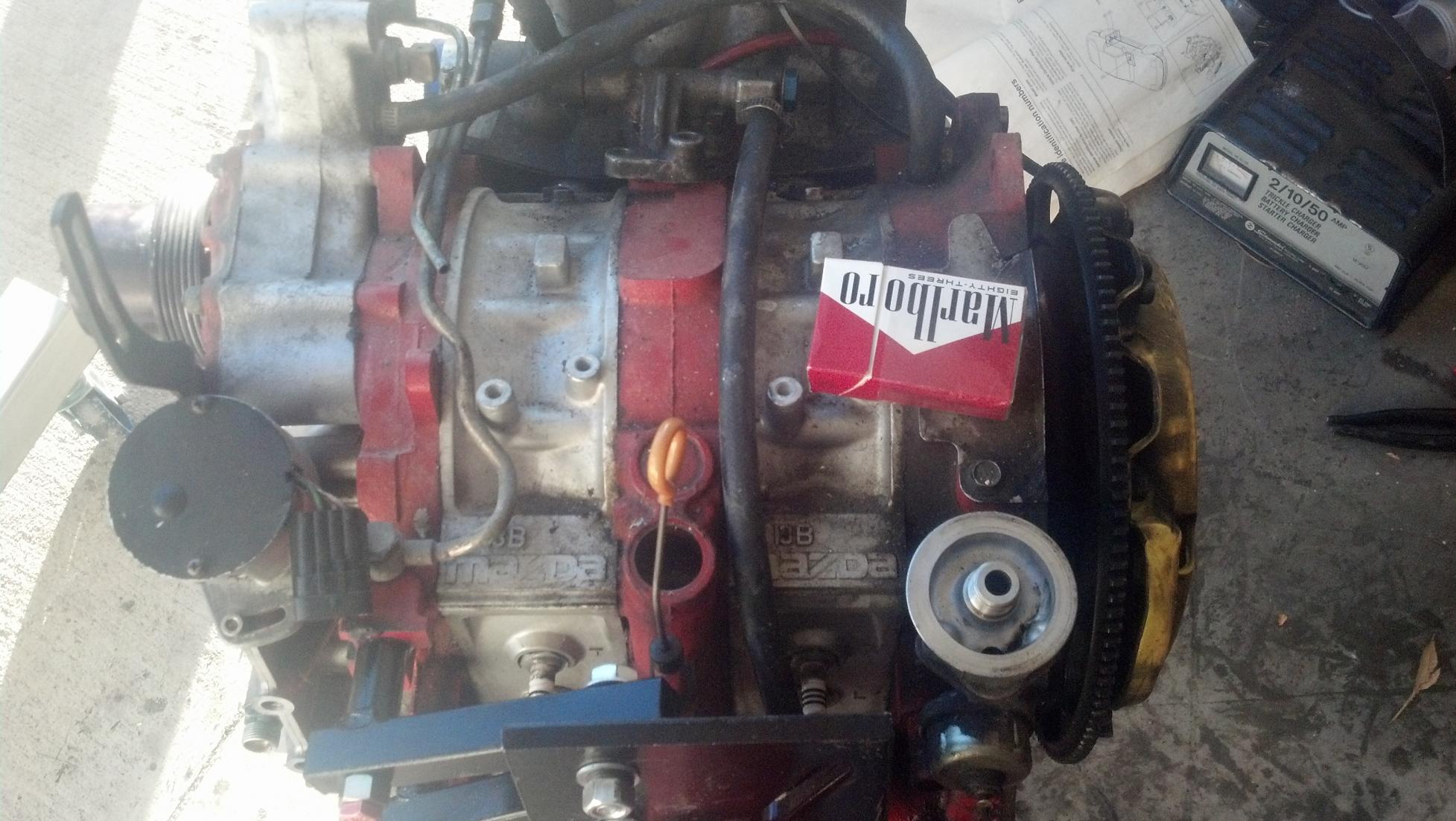

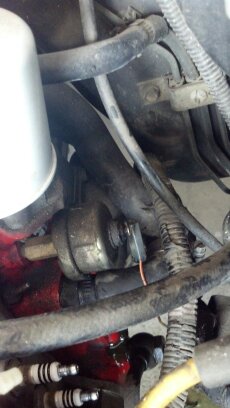

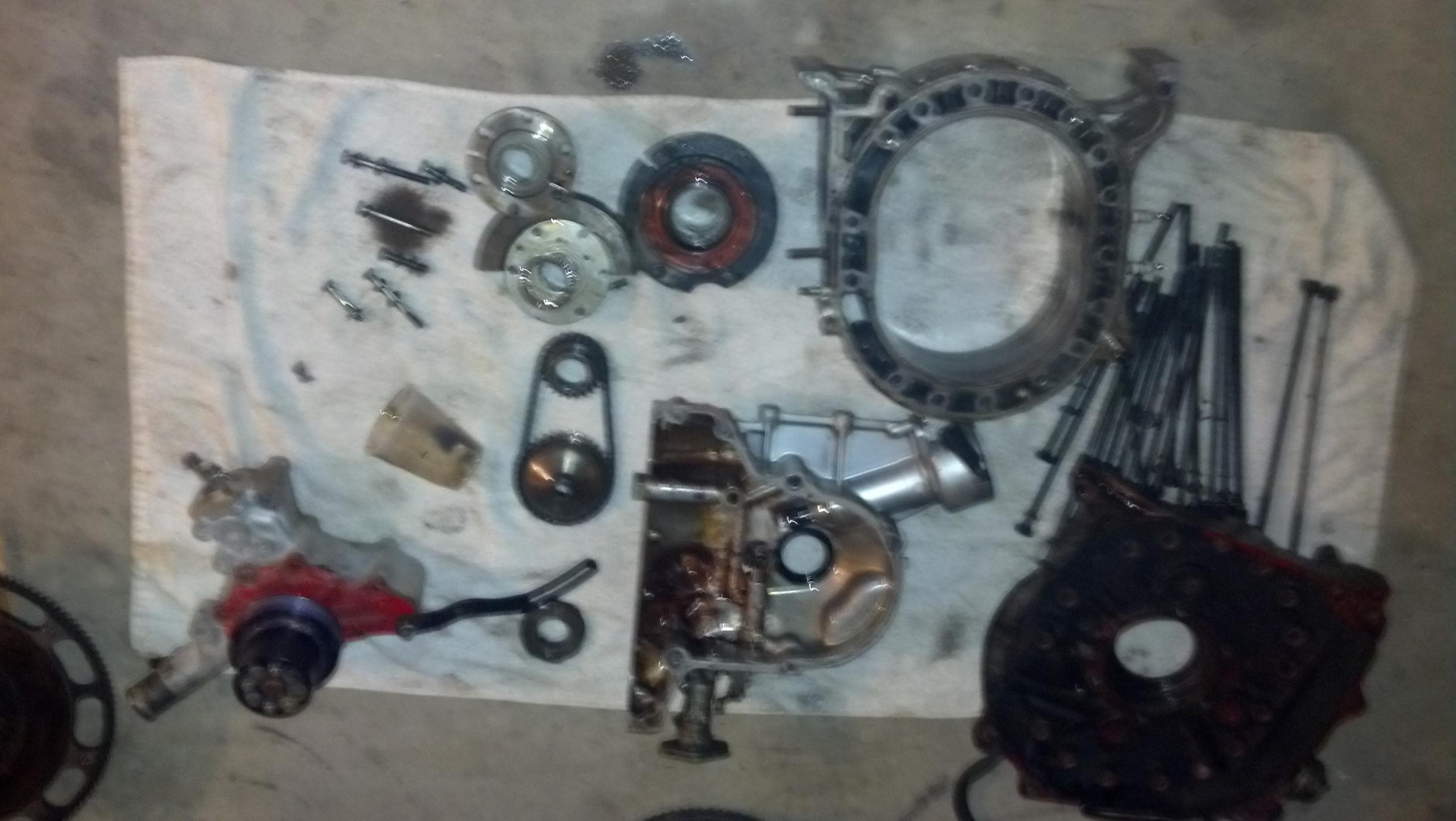

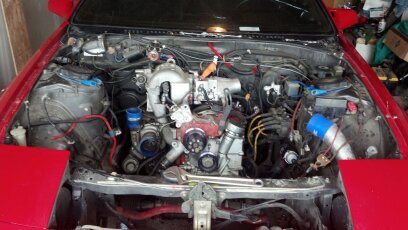

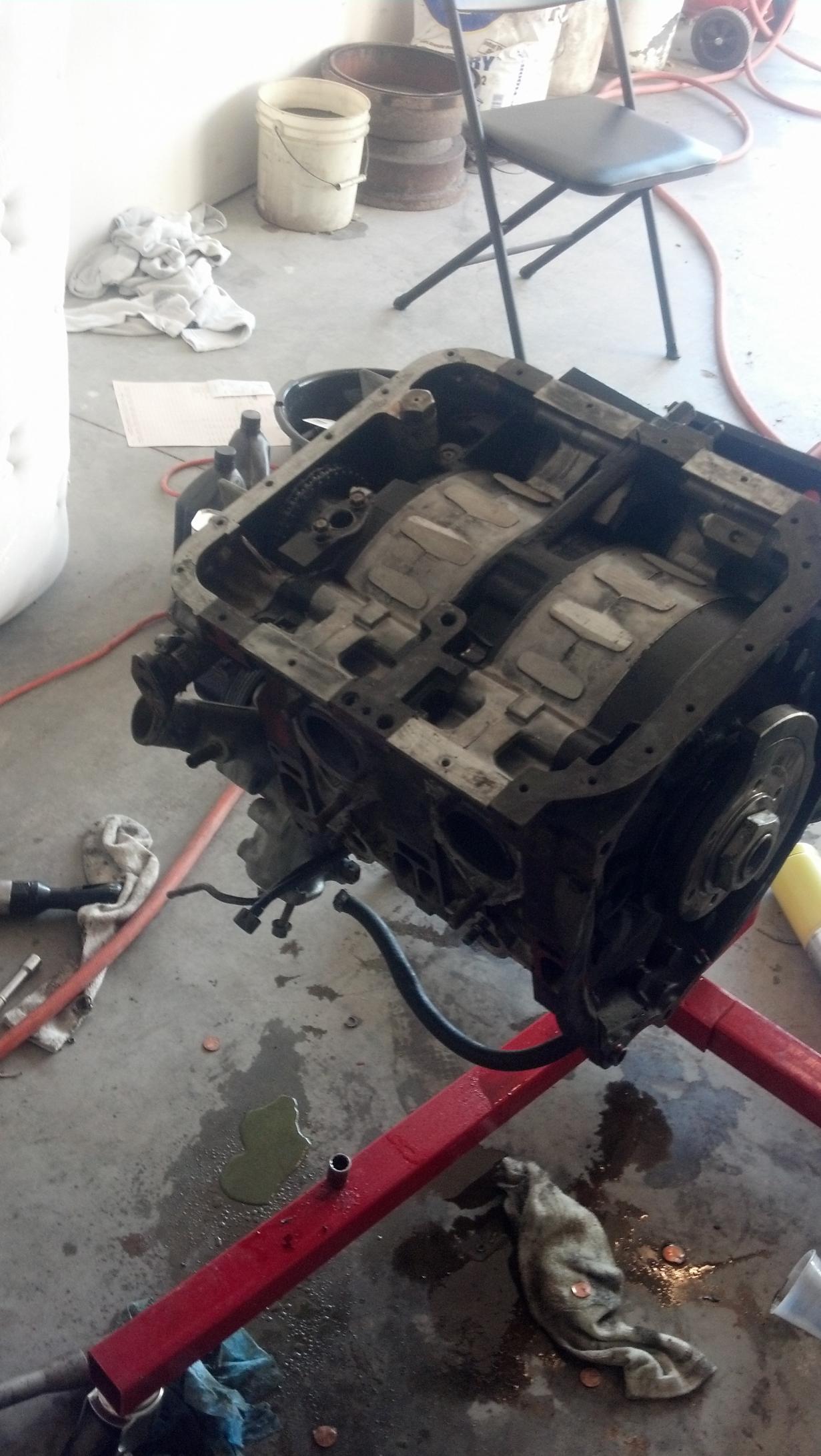

these are just reference pics
i will try to upload six pics everyday that i work on it
i was having combustion leak into coolant system
so after some advice here i go on my first rebuild !
tearing down right now
these are just reference pics
10-13-12, 12:16 AM
#5
rotory chicken
Thread Starter
Join Date: Mar 2011
Location: midwest
Posts: 300
Likes: 0
Received 0 Likes
on
0 Posts
still waiting for a few parts..... cleaned the shop a lil bit and helped with a damned audi 100. ugh i hate audi !!!
no new pics yet
decided to order the mazdatrix rebuild movie too !! ill let you guys know how good it is
no new pics yet
decided to order the mazdatrix rebuild movie too !! ill let you guys know how good it is
Trending Topics
10-20-12, 09:51 PM
#9
rotory chicken
Thread Starter
Join Date: Mar 2011
Location: midwest
Posts: 300
Likes: 0
Received 0 Likes
on
0 Posts

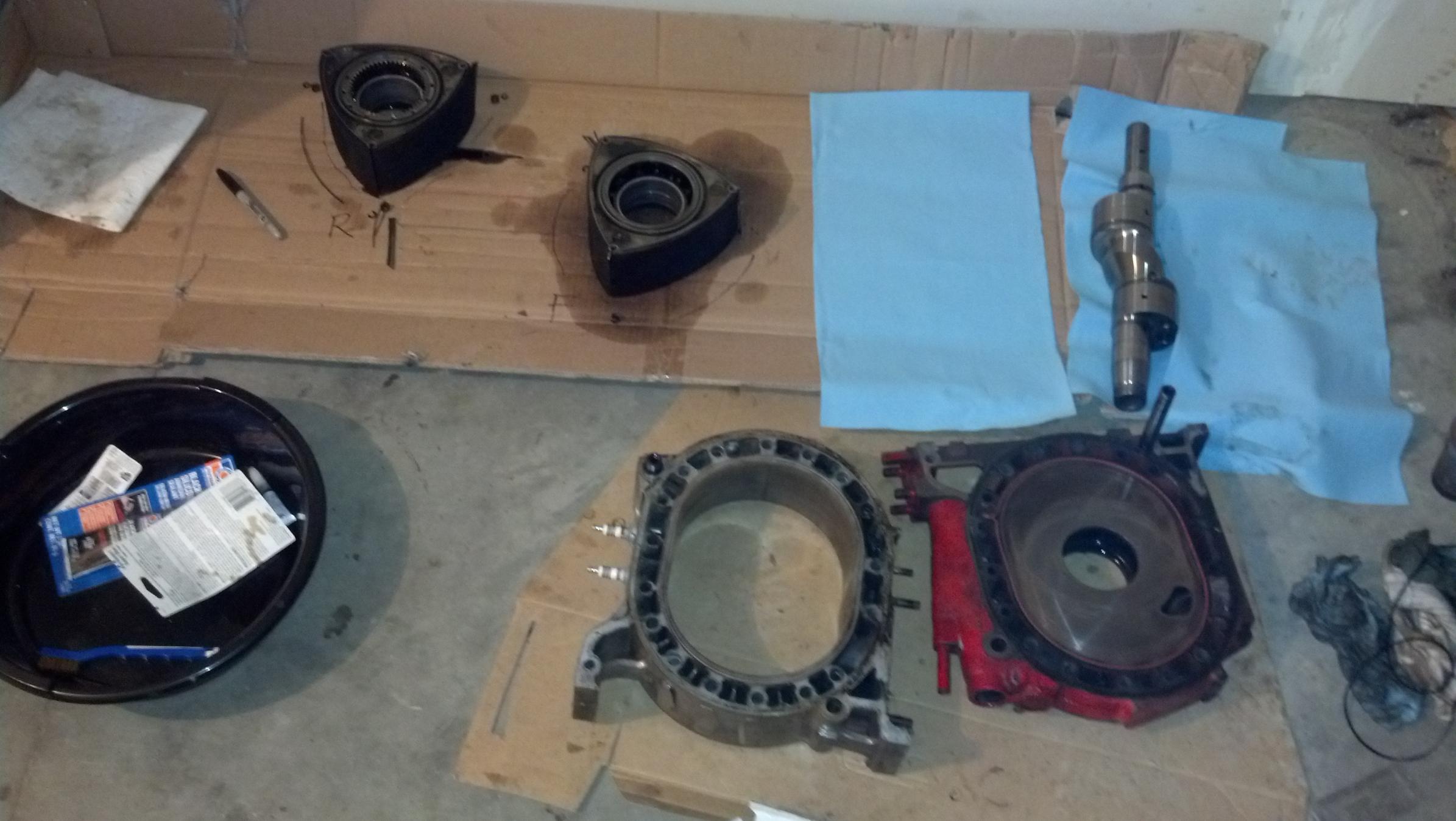

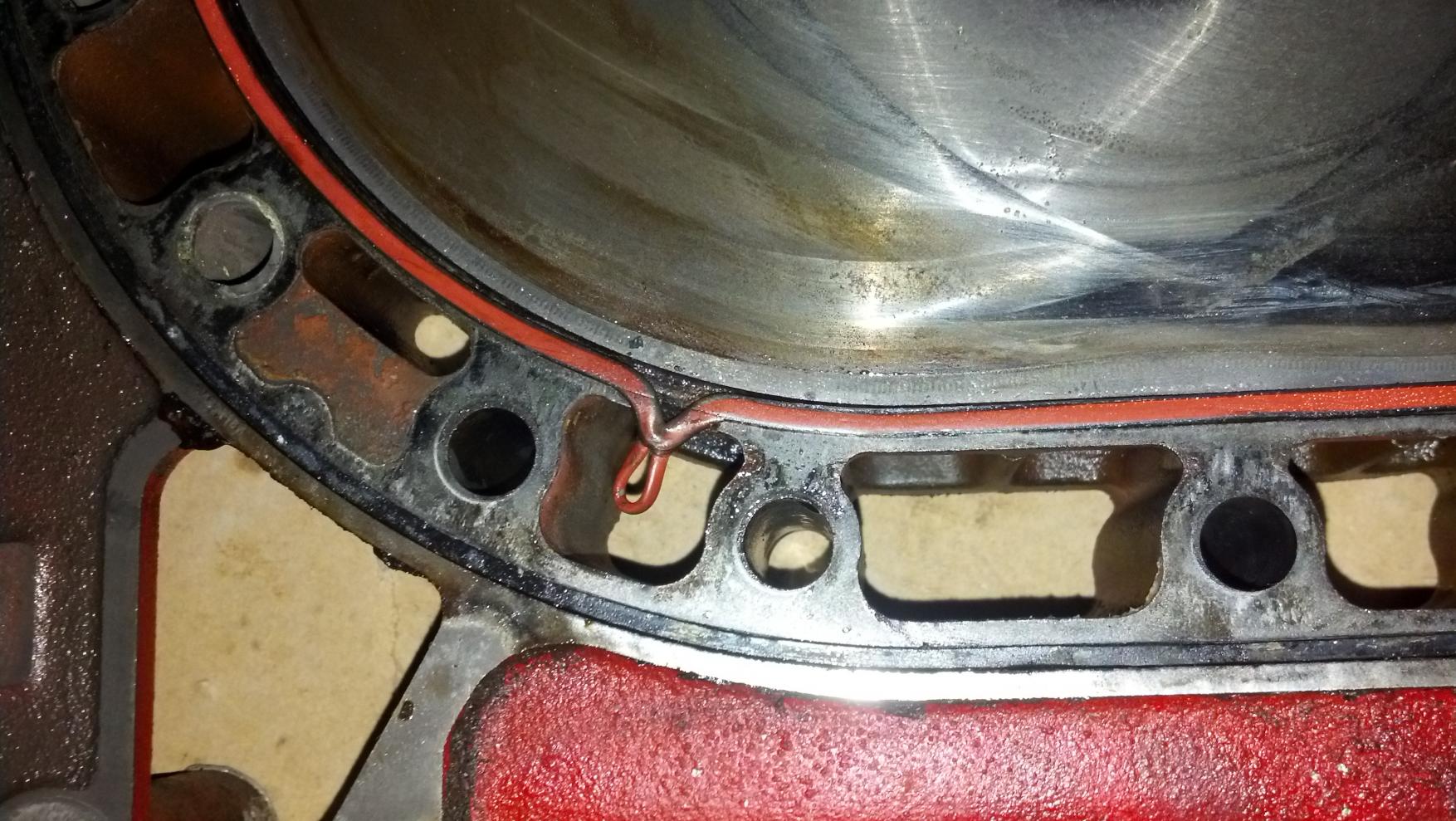

ok when you look at the pics you can see why i was leaking compression into my coolant

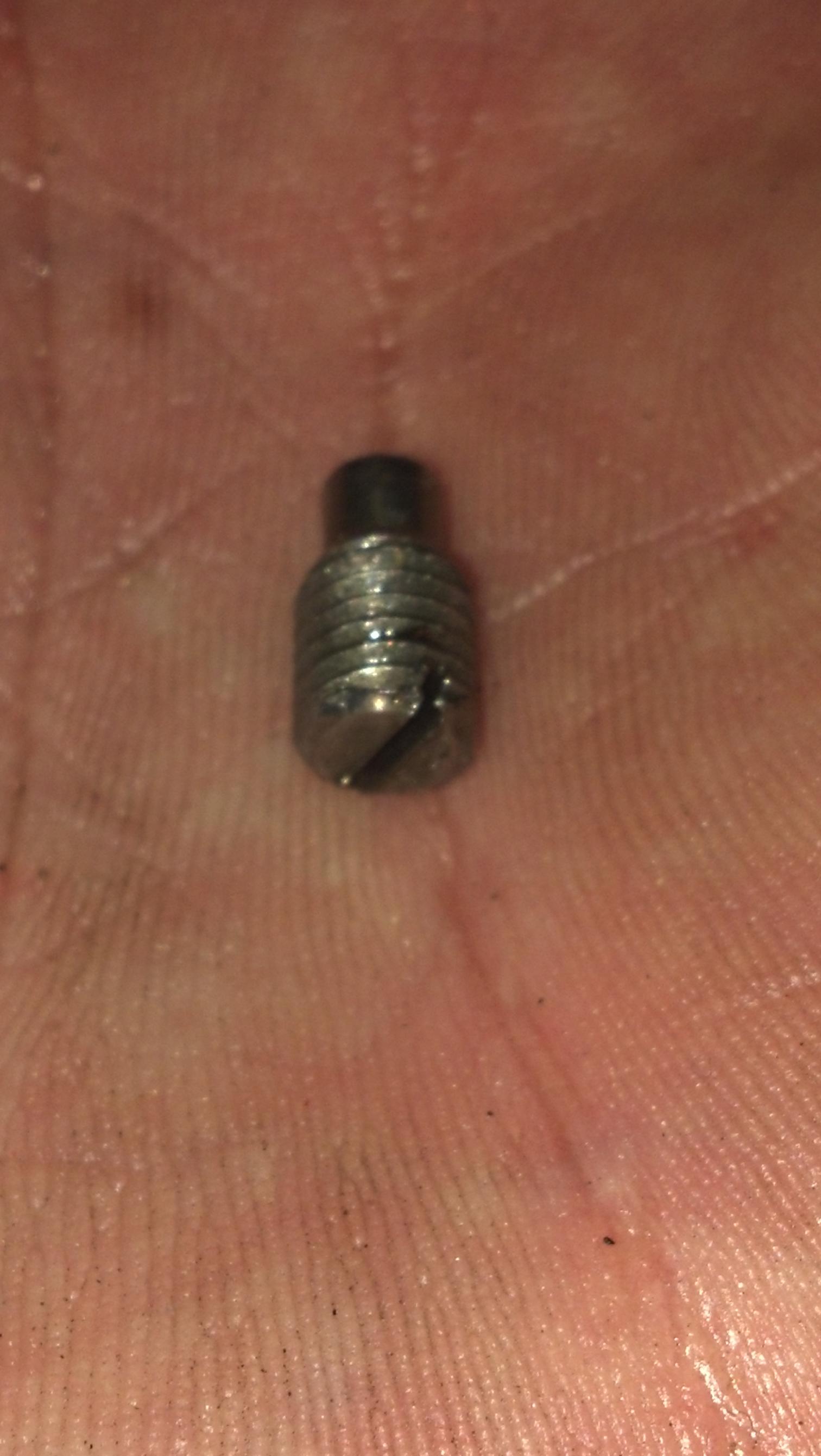

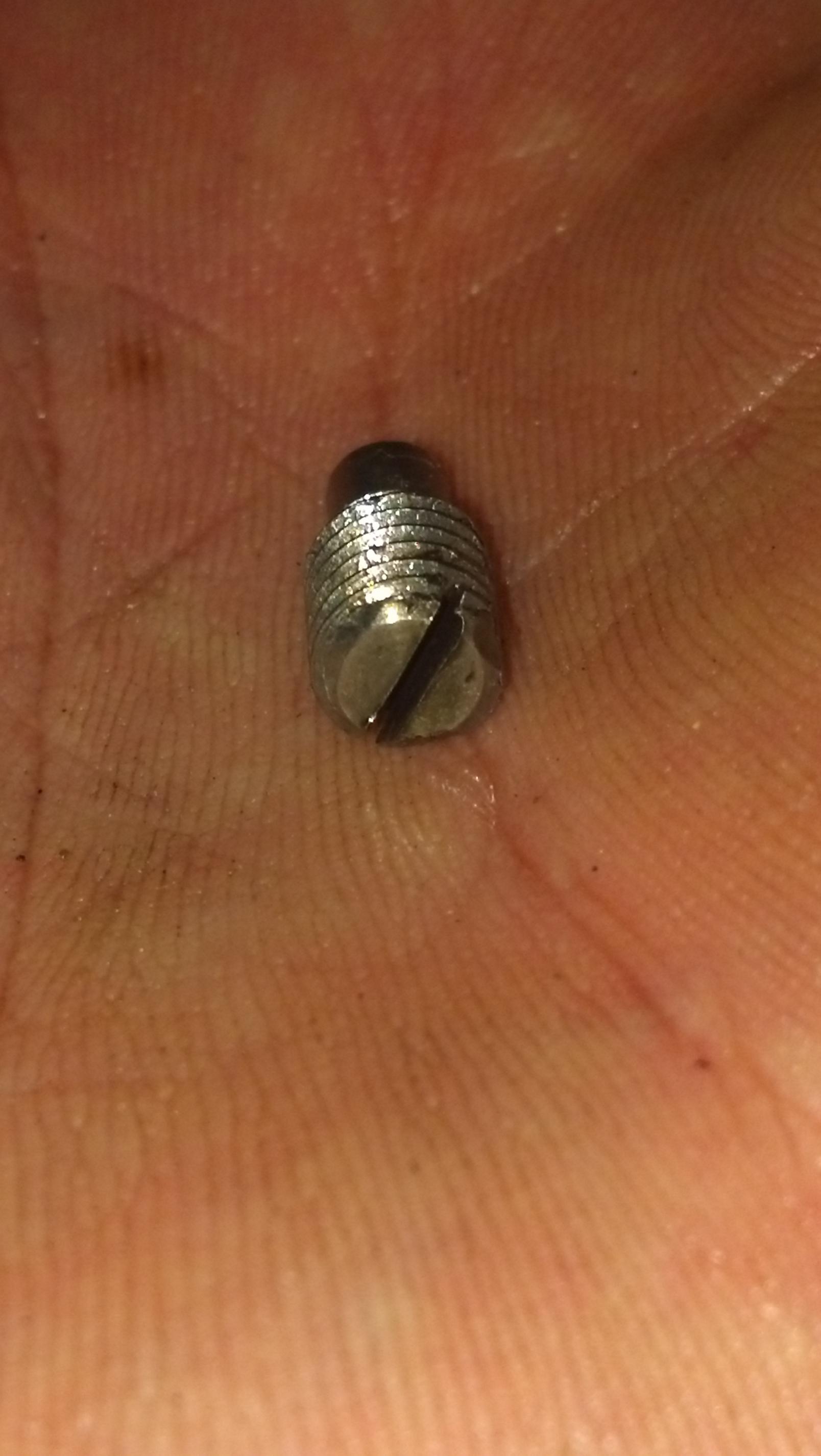

also that screw that im holding i have no idea where it goes i believe it belongs to the oil pump system. i found it behind my rear main seal !!!! wtf did they drop it in there while building it !!!!

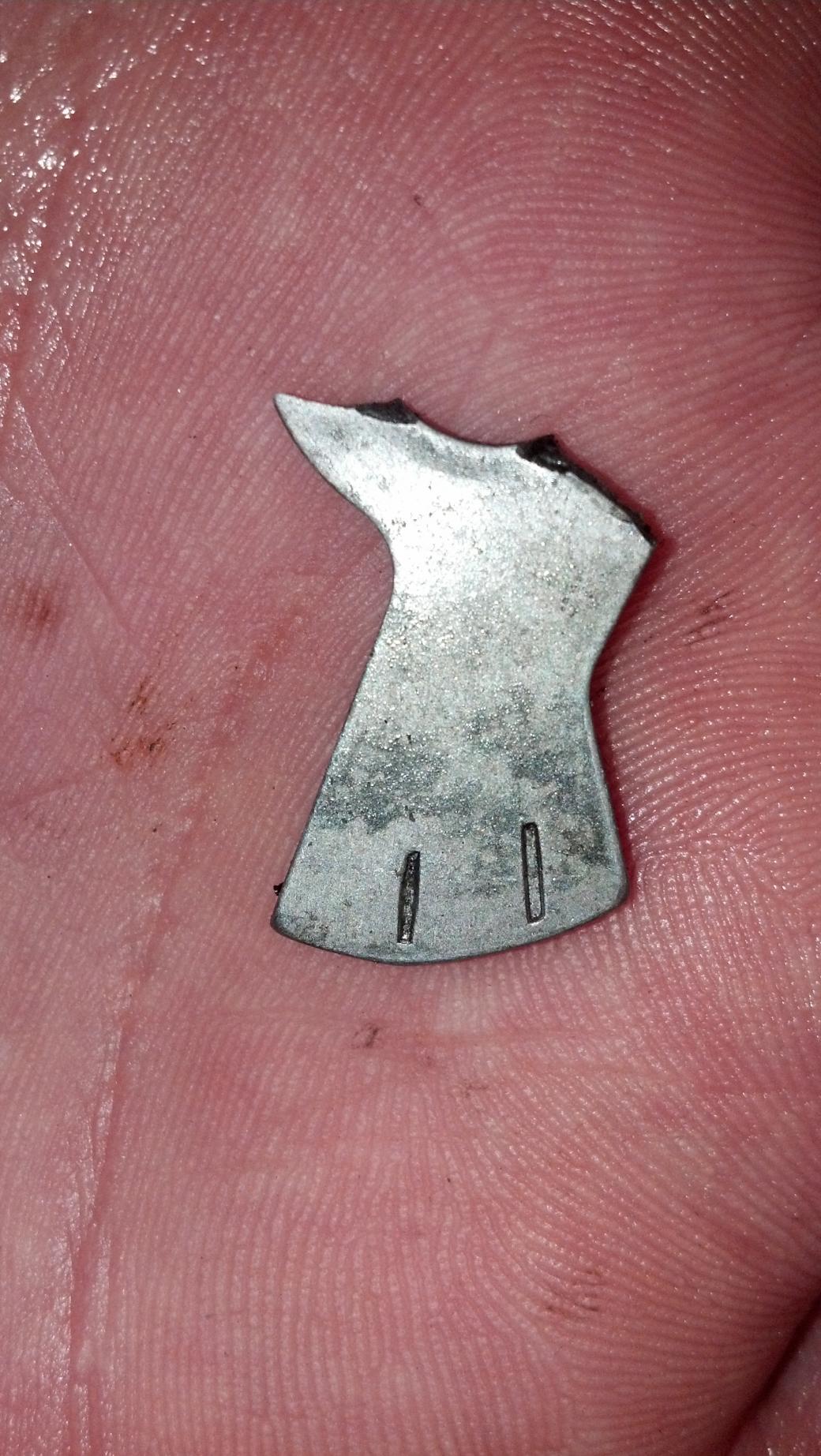

i also found another stange piece of metel in a cooling jacket i will post pics of that tommorow

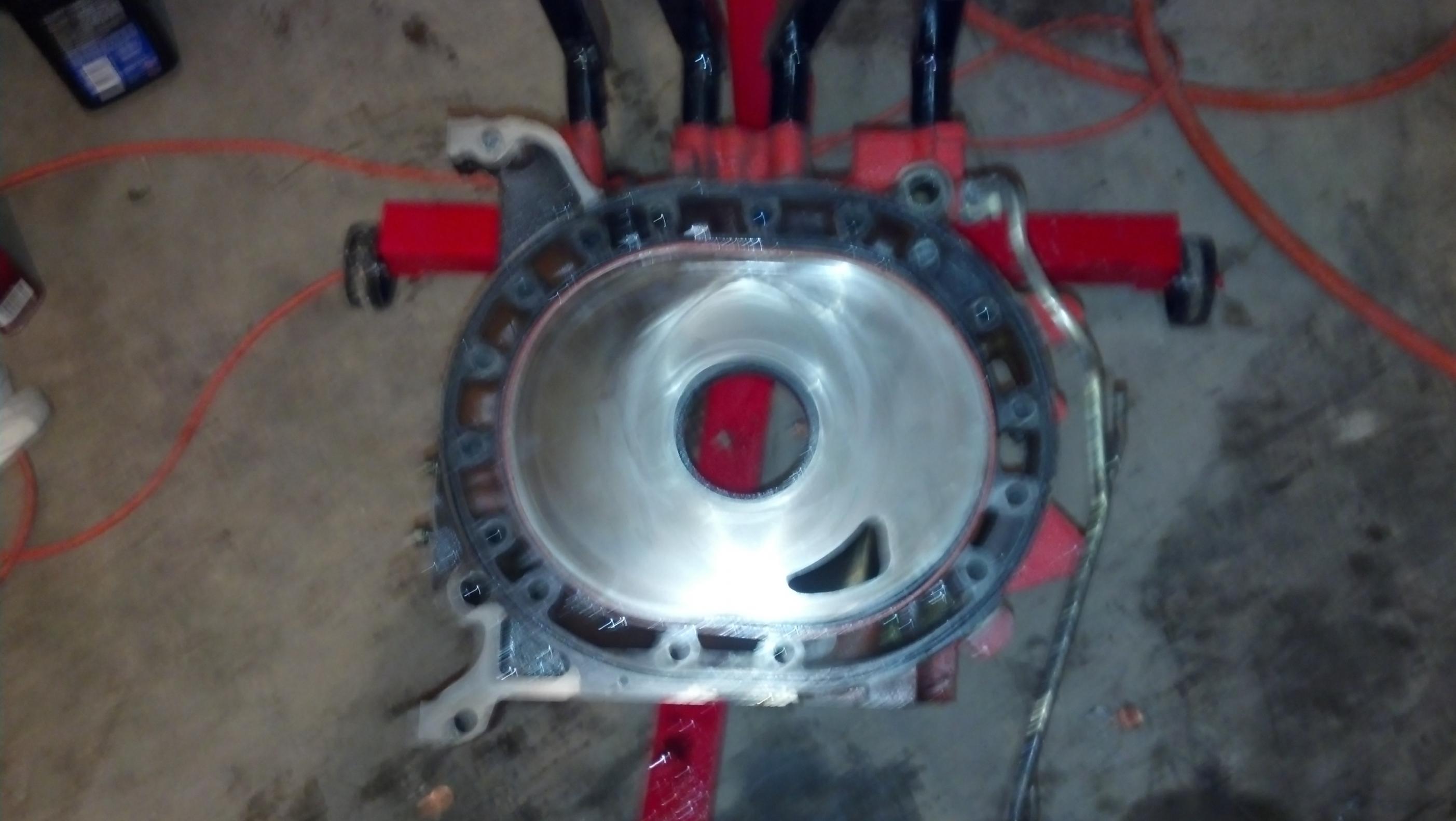

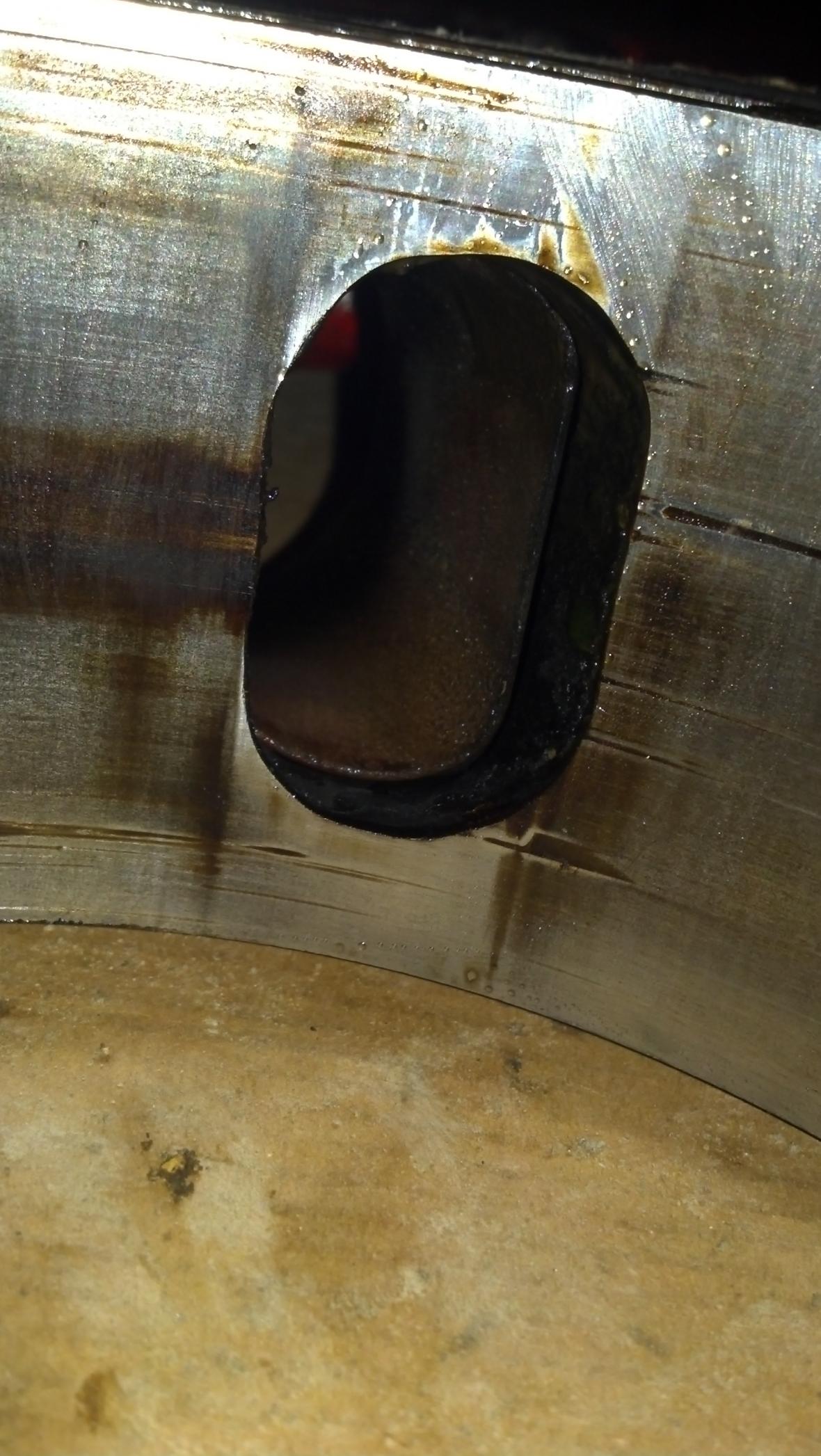

i could use advice on the housings too i will be checking to see if they are in spec soon how does the crome look ?

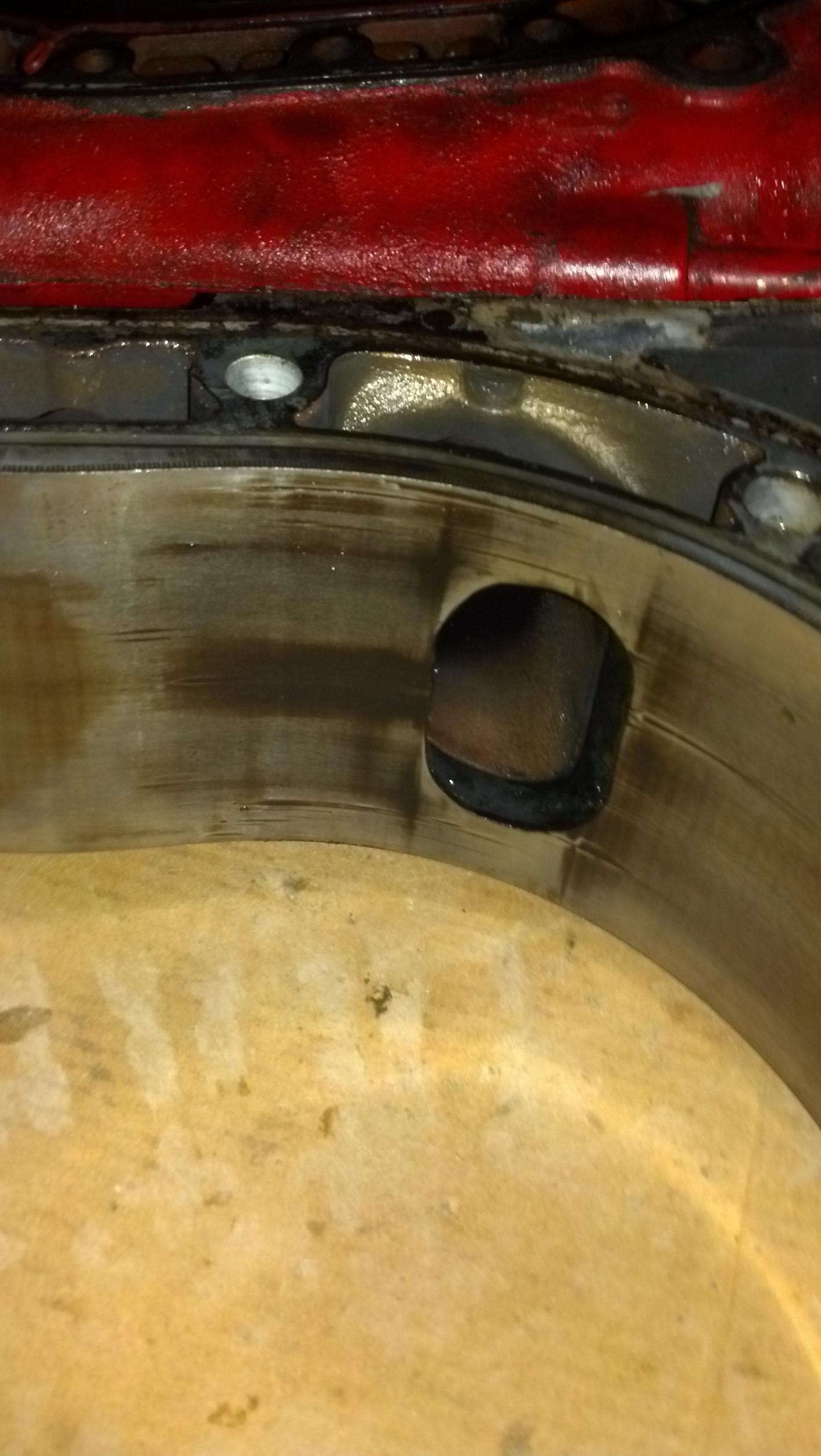

the only scoring on them is around the exaust ports .
also that screw that im holding i have no idea where it goes i believe it belongs to the oil pump system. i found it behind my rear main seal !!!! wtf did they drop it in there while building it !!!!
i also found another stange piece of metel in a cooling jacket i will post pics of that tommorow
i could use advice on the housings too i will be checking to see if they are in spec soon how does the crome look ?
the only scoring on them is around the exaust ports .
10-20-12, 10:04 PM
#10
rotory chicken
Thread Starter
Join Date: Mar 2011
Location: midwest
Posts: 300
Likes: 0
Received 0 Likes
on
0 Posts
also can you name the porting on this exguast or wtf that screw is ?
could really use advice asap i have some money to throw at this but no time also its my first rebuild so i really need advice lol
could really use advice asap i have some money to throw at this but no time also its my first rebuild so i really need advice lol
10-21-12, 07:38 AM
#12
The e-shaft oil jet is bigger with a hole in the center and a shallow notch in it. I don't know what that screw is. I don't recall seeing anything like that on this engine.
Hard to say about the housing... It could work if the gouges are near the exhaust and are light. However, when in doubt get a "new" part.
Hard to say about the housing... It could work if the gouges are near the exhaust and are light. However, when in doubt get a "new" part.
10-21-12, 12:35 PM
#14
rotory chicken
Thread Starter
Join Date: Mar 2011
Location: midwest
Posts: 300
Likes: 0
Received 0 Likes
on
0 Posts
I think its that set screw there is one missing from the oil shaft but i cant figure out how it got behind the rear main seal!!! Thats a long way from the oil shaft
10-21-12, 10:19 PM
#20
rotory chicken
Thread Starter
Join Date: Mar 2011
Location: midwest
Posts: 300
Likes: 0
Received 0 Likes
on
0 Posts

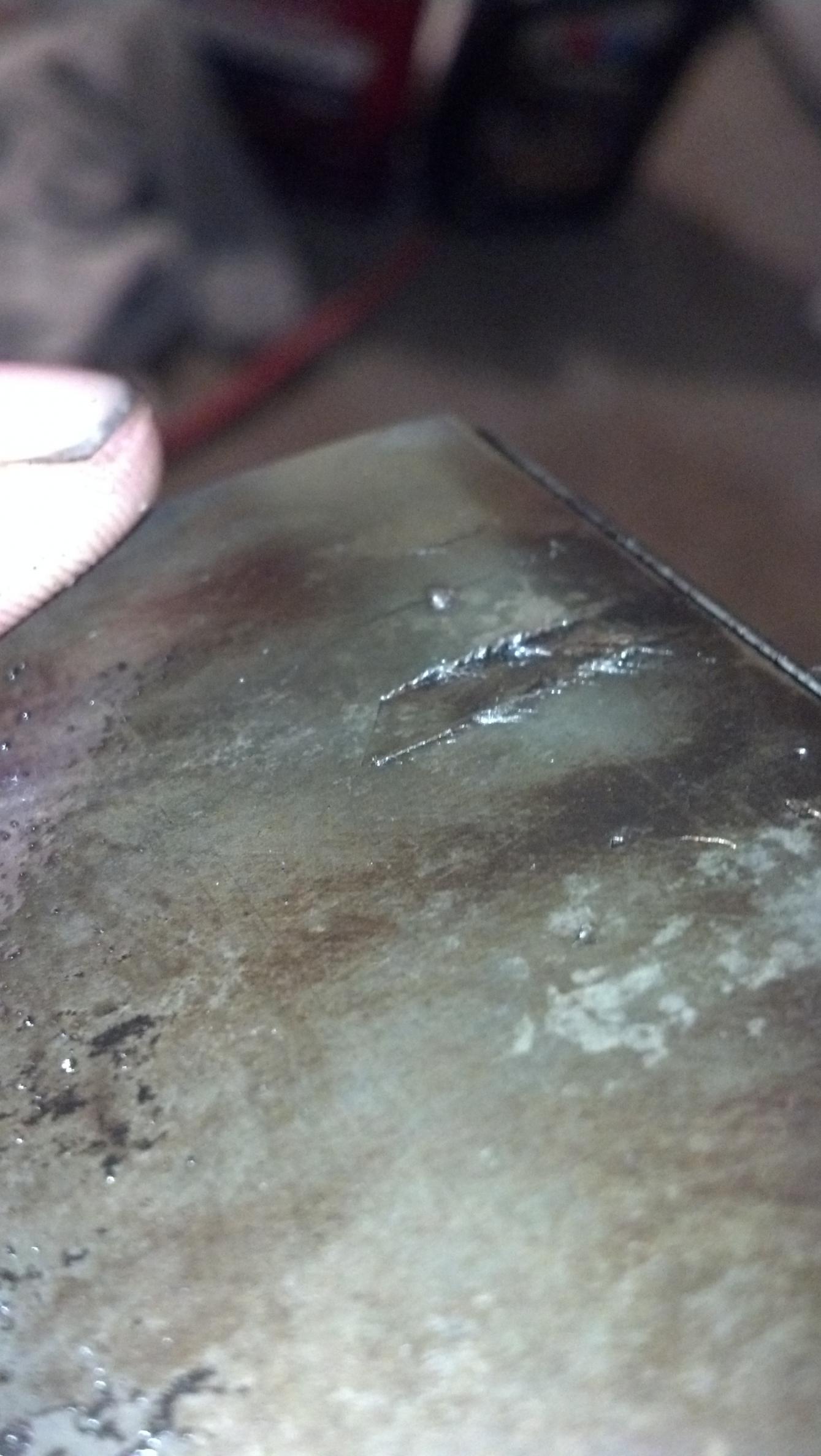

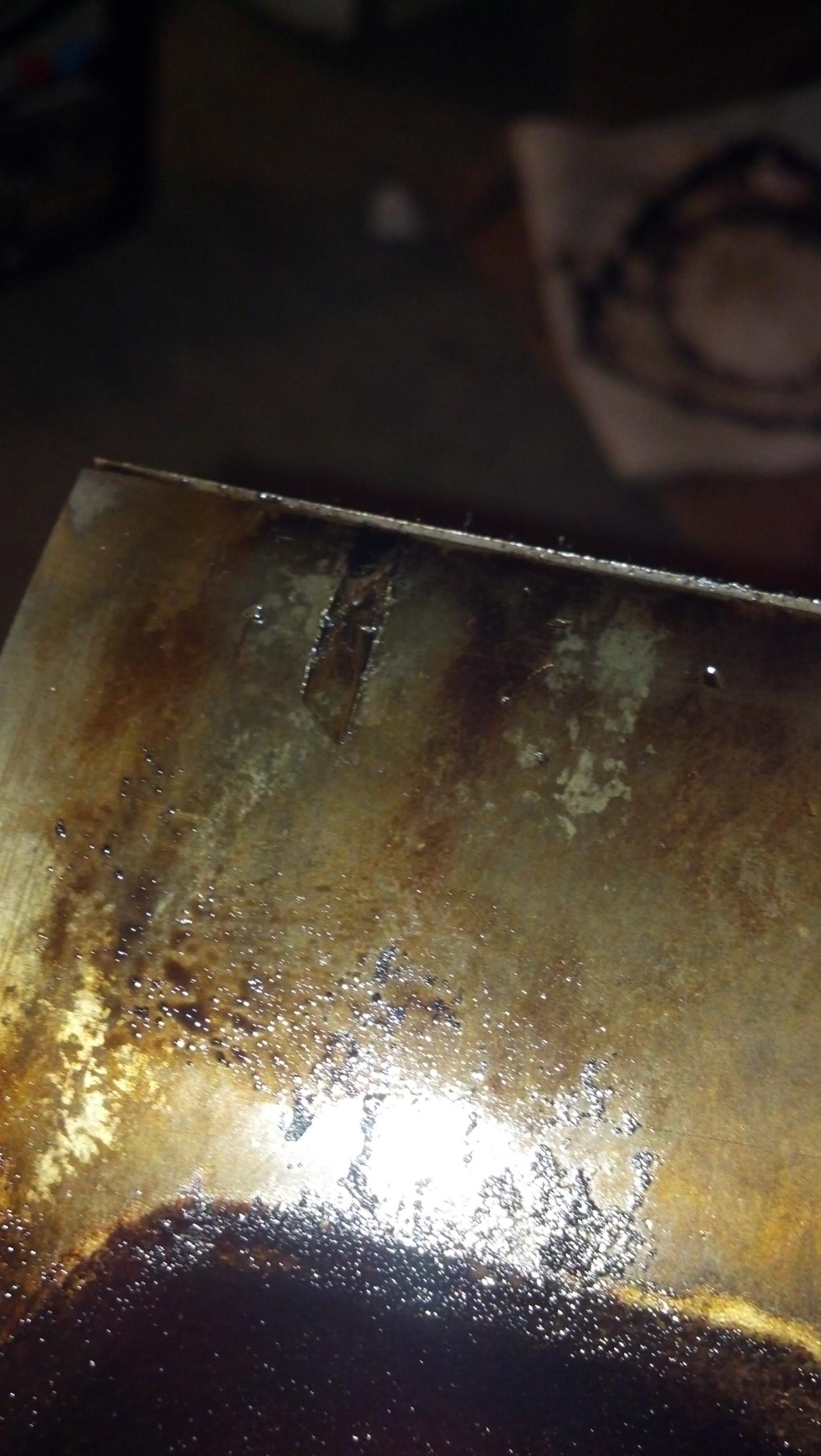

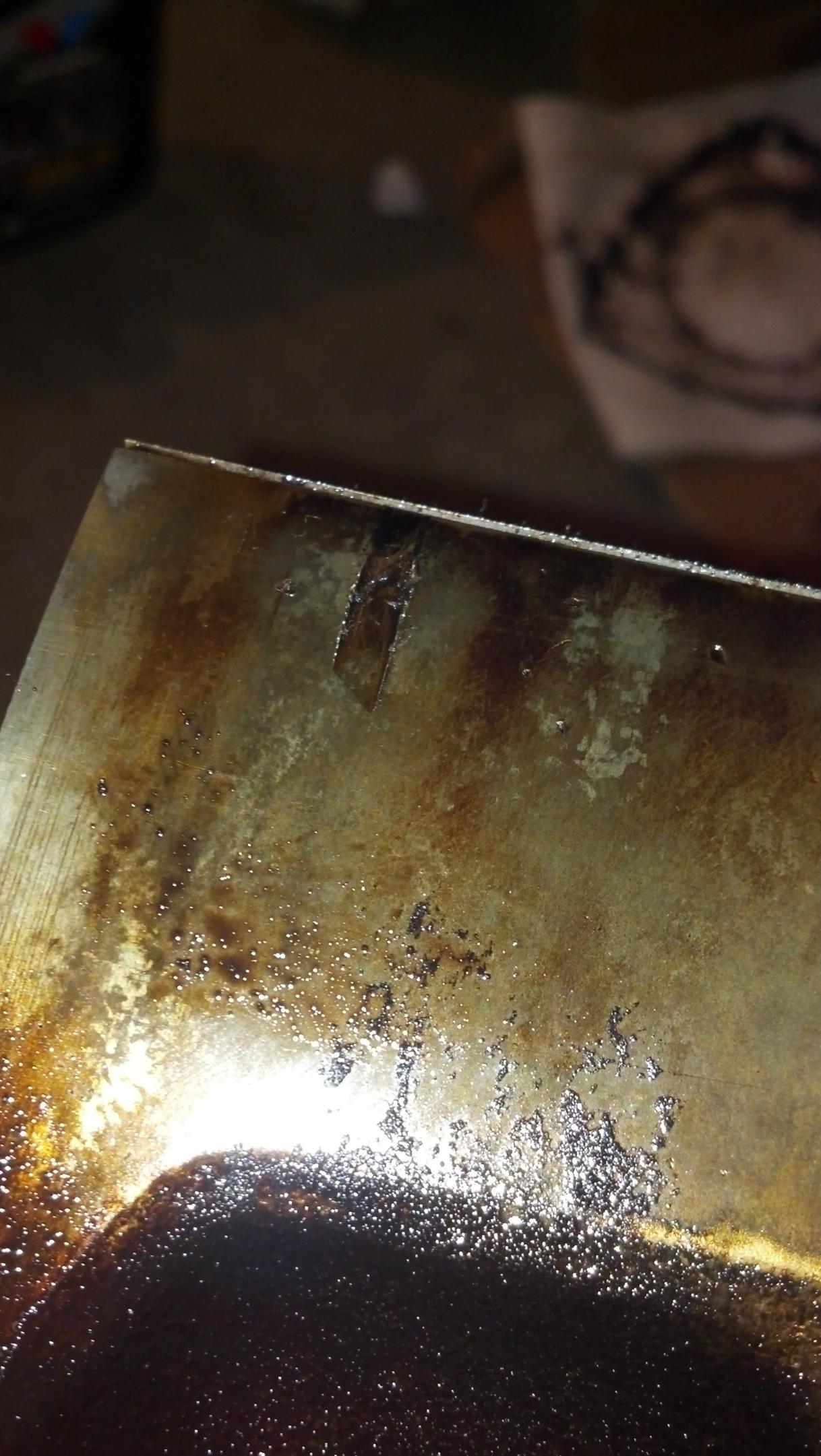

well it was abvios that it didnt belong in a cooling jacket and between that and the set screw i found behind the rear main seal
i have no faith in the company that built it in so cal ill call them in the morning and see if they will help me out
hopefully they can see where that screw had no right or way to be where it was and that hunk of metal propably led to the overheating and destruction of this motor
i have no faith in the company that built it in so cal ill call them in the morning and see if they will help me out
hopefully they can see where that screw had no right or way to be where it was and that hunk of metal propably led to the overheating and destruction of this motor
10-23-12, 08:39 AM
#21
Engine, Not Motor
iTrader: (1)
Join Date: Feb 2001
Location: London, Ontario, Canada
Posts: 29,789
Likes: 0
Received 108 Likes
on
91 Posts

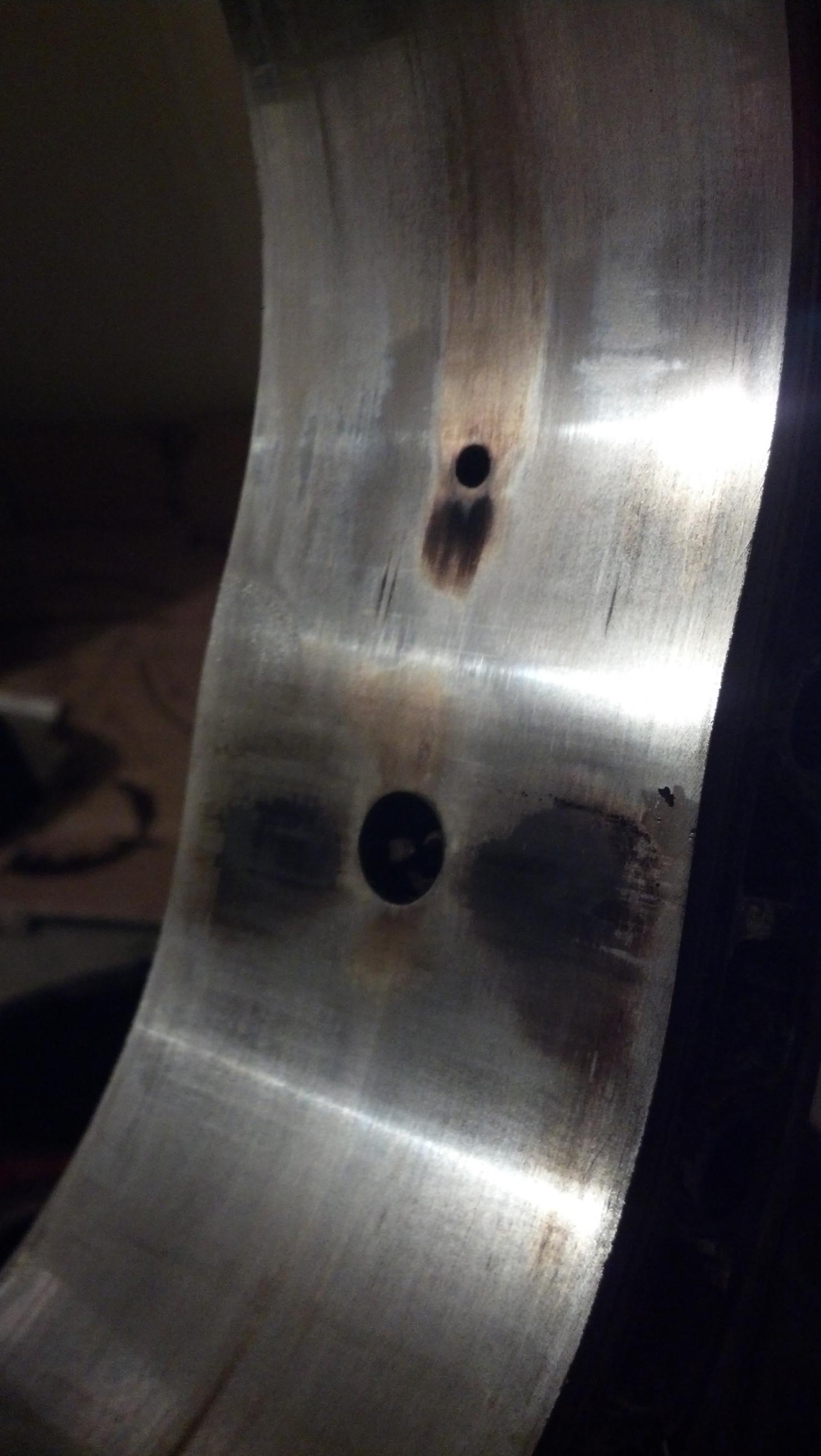

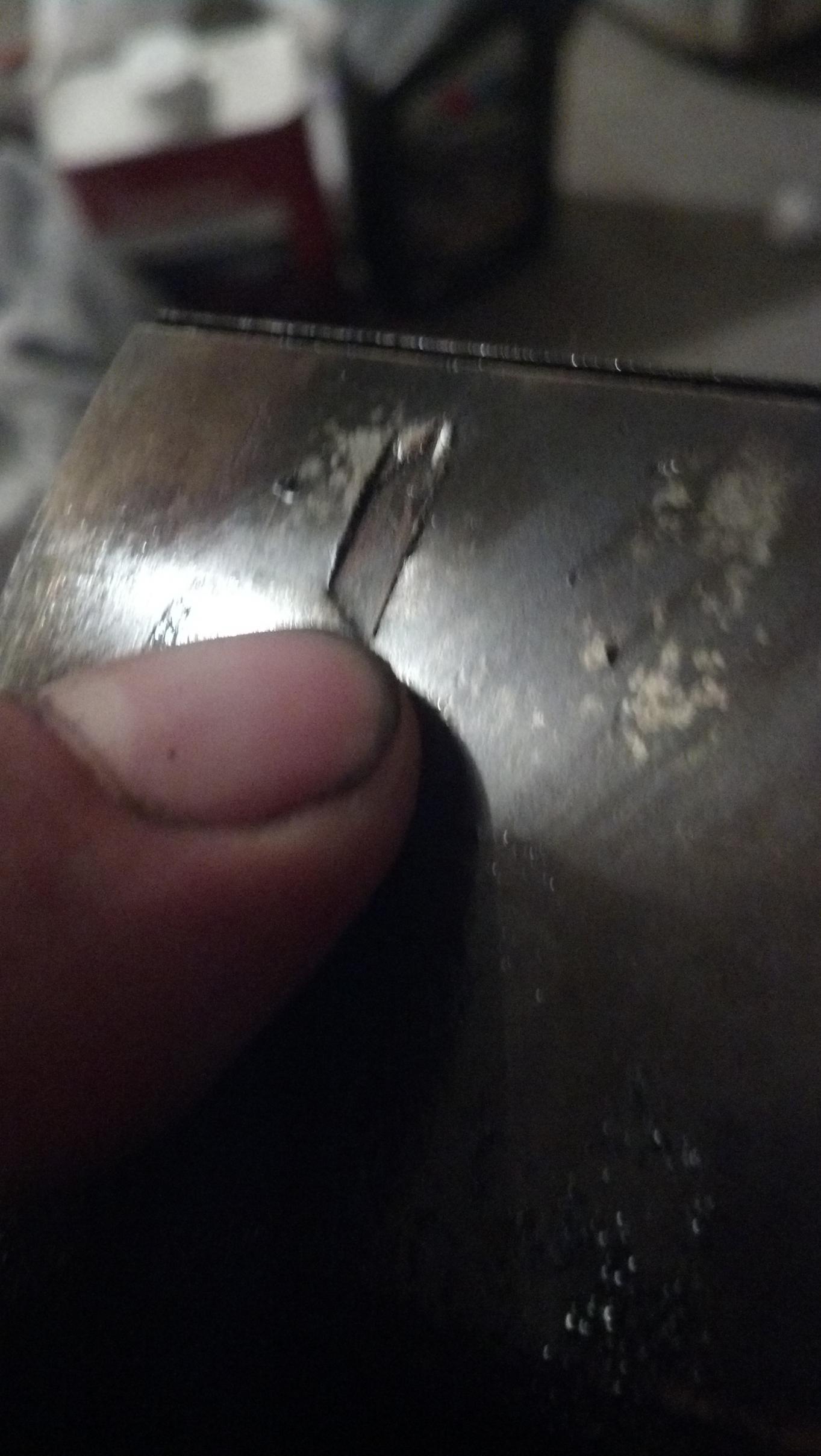

Scratching around the exhaust port is common and not really too much of an issue, as long as they aren't deep. 1MM is about the limit I would recommend. Other builders will have different opinions.
As for the damaged rotor, I'd not use it. In a stock NA, sure. Flatten out the damage with a file and go nuts. But in a turbo engine, no way. Probably fine on the stock turbo, but what happens when you decide to upgrade or jack up the boost? Hot spotting around the damage. It would suck years down the road to forget about the "fixed" rotor, install a GT35R and blow that very side of the engine because edges of that damage were running red hot. Again, every builder will have a different opinion.
