Old 03-24-17, 10:16 PM
  #526
Rare for a Reason
iTrader: (13)

Narfle's Avatar

Join Date: Nov 2002
Location: Dagobah
Posts: 5,421
Thanked 82 Times in 60 Posts
So...clean...
Narfle is offline
Old 03-25-17, 09:57 AM
  #527
Original Gangster/Rotary!

iTrader: (205)

GoodfellaFD3S's Avatar

Join Date: Mar 2001
Location: FL-->NJ/NYC again!
Posts: 29,981
Thanked 110 Times in 97 Posts
Your washer bottle cap isn't snapped in man, be careful!!

Love the way the engine bay has changed, every FD needs new wiper and coolant tanks at this stage of the game IMO.

Congrats on getting the car fired up again with a little PocoPowah
GoodfellaFD3S is offline
Old 03-25-17, 02:54 PM
  #528
SEMI-PRO
Thread Starter
iTrader: (2)

ZoomZoom's Avatar

Join Date: Feb 2001
Location: New Jersey
Posts: 2,853
Thanked 26 Times in 25 Posts
Brakes should go on today. Hope to post some before and after shots. Have some errands to run but right back at it this afternoon.

Mike
ZoomZoom is offline
Old 03-25-17, 09:26 PM
  #529
SEMI-PRO
Thread Starter
iTrader: (2)

ZoomZoom's Avatar

Join Date: Feb 2001
Location: New Jersey
Posts: 2,853
Thanked 26 Times in 25 Posts

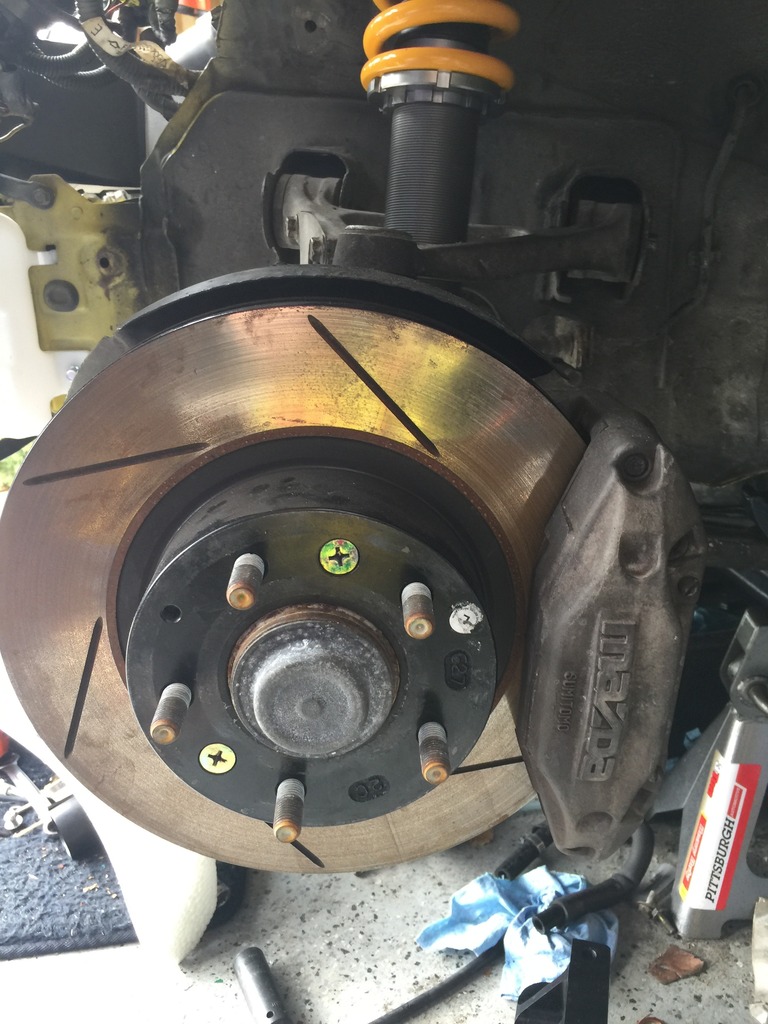

Old brakes
Name:  5BCE60C9-8AE4-4D11-B5F7-5D5223C40A5E.jpg
Views: 174
Size:  209.5 KB

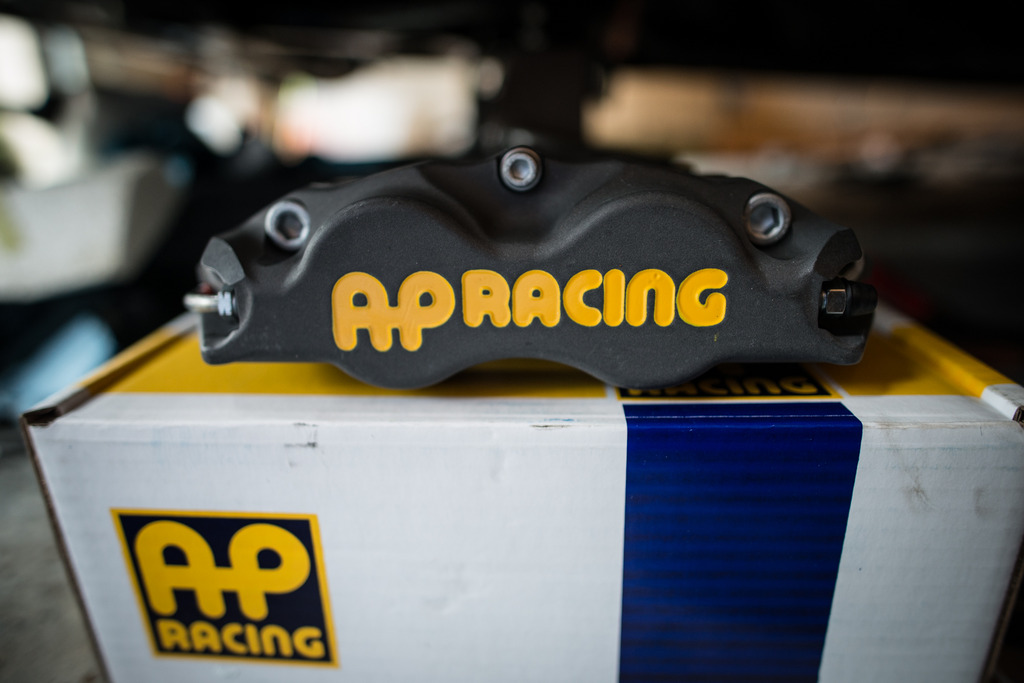

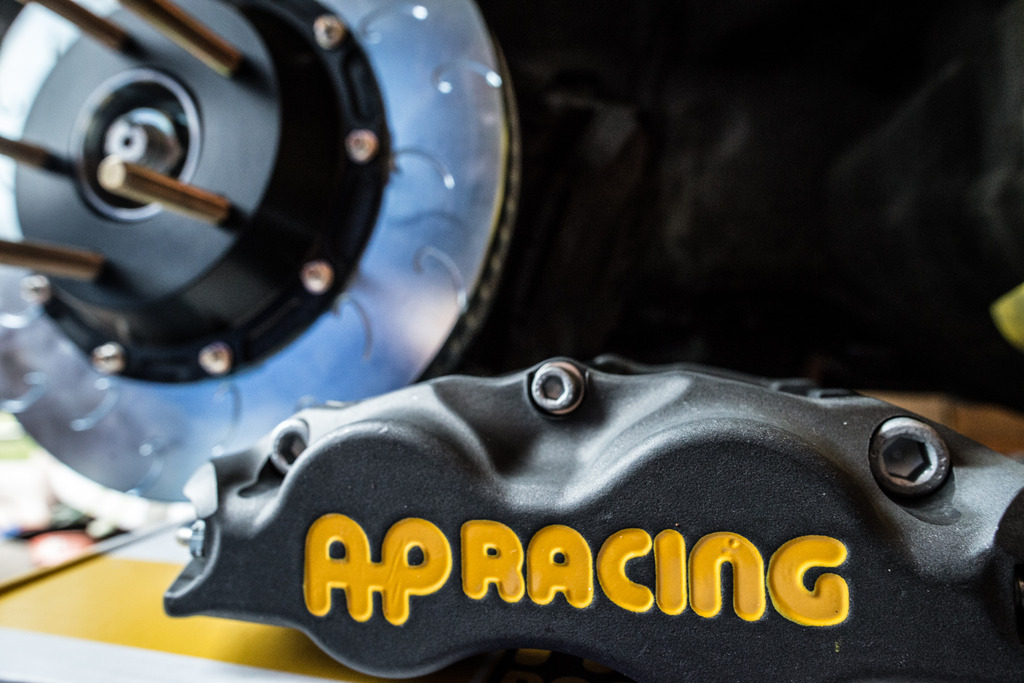

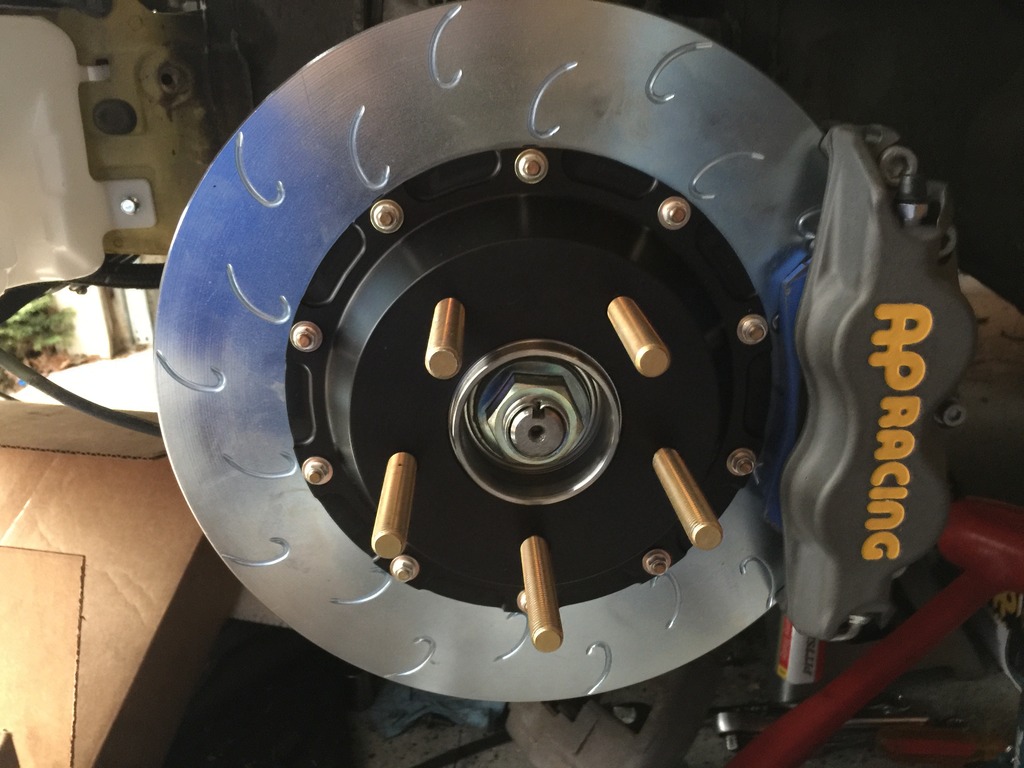

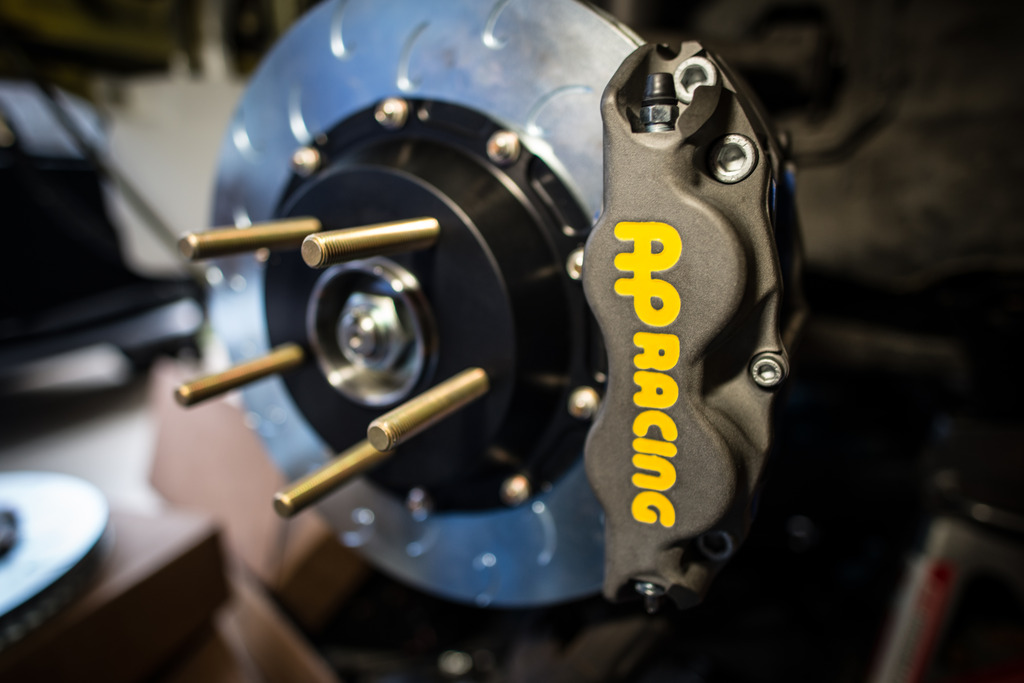

New brakes
SakeBomb AP Racing BBK with additional Zinc Coating on Rotors.
Name:  IMG_1035.jpg
Views: 174
Size:  154.9 KB
Name:  IMG_1036.jpg
Views: 171
Size:  205.1 KB
Name:  IMG_1038.jpg
Views: 176
Size:  151.2 KB
Name:  F3451871-F9BE-4BED-BD0F-65095E89B257.jpg
Views: 173
Size:  169.7 KB
ZoomZoom is offline
Old 03-25-17, 09:57 PM
  #530
Full Member

fd3sY8S's Avatar

Join Date: Jan 2016
Location: Texas
Posts: 237
Thanked 3 Times in 3 Posts
Looking really nice very clean and well done.
fd3sY8S is offline
Old 03-25-17, 10:14 PM
  #531
just dont care.
iTrader: (6)

jacobcartmill's Avatar

Join Date: Jul 2002
Location: Nashville, TN
Posts: 9,386
Thanks: 0
Thanked 0 Times in 0 Posts
Originally Posted by ZoomZoom View Post
New brakes
SakeBomb AP Racing BBK with additional Zinc Coating on Rotors.

the more you post the more i like this car

about the AP racing BBK: are you upgrading the rears as well? as much as i love to see new expensive BBKs for the front, i would hate to install them and throw the brake balance way-too-much front and render the rear brakes useless.
i see they do mention that in the description for this kit on their site.
i also wonder about the fluid volume of those calipers vs the stock calipers, does anyone know how much more/less fluid their circulate than the stock calipers?
i also wonder how the ABS deals with the much more effective front braking.
SO MANY QUESTIONS

if you're curious, here's an interesting article from Centric (they own the Stoptech brand) about brake bias with BBKs.
http://www.centricparts.com/files/Ce...erformance.pdf

^i was a product manager for brake hydraulics in a former life, so i became obsessed with this type of stuff.
jacobcartmill is offline
Old 03-25-17, 10:18 PM
  #532
Original Gangster/Rotary!

iTrader: (205)

GoodfellaFD3S's Avatar

Join Date: Mar 2001
Location: FL-->NJ/NYC again!
Posts: 29,981
Thanked 110 Times in 97 Posts
Jacob, he's got the rear setup headed his way
GoodfellaFD3S is offline
Old 03-25-17, 10:28 PM
  #533
SEMI-PRO
Thread Starter
iTrader: (2)

ZoomZoom's Avatar

Join Date: Feb 2001
Location: New Jersey
Posts: 2,853
Thanked 26 Times in 25 Posts
Originally Posted by jacobcartmill View Post
the more you post the more i like this car

about the AP racing BBK: are you upgrading the rears as well? as much as i love to see new expensive BBKs for the front, i would hate to install them and throw the brake balance way-too-much front and render the rear brakes useless.
i see they do mention that in the description for this kit on their site.
i also wonder about the fluid volume of those calipers vs the stock calipers, does anyone know how much more/less fluid their circulate than the stock calipers?
i also wonder how the ABS deals with the much more effective front braking.
SO MANY QUESTIONS

if you're curious, here's an interesting article from Centric (they own the Stoptech brand) about brake bias with BBKs.
http://www.centricparts.com/files/Ce...erformance.pdf

^i was a product manager for brake hydraulics in a former life, so i became obsessed with this type of stuff.
Yes the rear kit was also purchased. They are also J hook rotors to match and are 99 spec sized. There are adapter brackets and use the rear caliper and the E brake is retained. Also there will be a Brake Bias Asjuster so the bias can be adjusted so there won't be too much front bias.
Thanks for the input.
ZoomZoom is offline
Old 03-25-17, 10:45 PM
  #534
SEMI-PRO
Thread Starter
iTrader: (2)

ZoomZoom's Avatar

Join Date: Feb 2001
Location: New Jersey
Posts: 2,853
Thanked 26 Times in 25 Posts
This Makita Cordless 1/2" impact is a beast. It zipped off the axle nuts without issue. I picked up the 35mm socket you need at AutoZone. $19
Name:  IMG_1047.jpg
Views: 184
Size:  181.9 KB
Name:  IMG_1045.jpg
Views: 177
Size:  171.3 KB
J-Auto overnight shipped the Hubs with ARP 3.25" extended studs. I talked to Juan from J-Auto and he didn't have the studs in stock. He hustled and got them, pressed them into the hubs and overnighted the box Fedex morning delivery. It cost me over $100 for the shipping but I got them and he made it happen on very short notice. I will be buying everything he sells for the FD now. Also got the new Axle nuts.
Name:  IMG_1048.jpg
Views: 178
Size:  192.2 KB

Once you put the axle nut on to 170-210 ft lbs or there abouts... use a punch on the axle nut to help keep it from backing out. Or a screw driver. As seen here.
Name:  IMG_1046.jpg
Views: 175
Size:  211.6 KB
Another Mazda in the driveway. Picked it up last year. Wife drives it mostly. 2016 Mazda 3S Touring.
Name:  IMG_1042.jpg
Views: 177
Size:  167.5 KB
ZoomZoom is offline
Old 03-25-17, 11:34 PM
  #535
Rare for a Reason
iTrader: (13)

Narfle's Avatar

Join Date: Nov 2002
Location: Dagobah
Posts: 5,421
Thanked 82 Times in 60 Posts
Man. I take a nap, and you wrap up the front brakes. Feeling lazy.
Narfle is offline
Old 03-25-17, 11:54 PM
  #536
SEMI-PRO
Thread Starter
iTrader: (2)

ZoomZoom's Avatar

Join Date: Feb 2001
Location: New Jersey
Posts: 2,853
Thanked 26 Times in 25 Posts
Originally Posted by Narfle View Post
Man. I take a nap, and you wrap up the front brakes. Feeling lazy.
There is always tomorrow. Maybe I will do the rear brakes and set ride height while I am in there....

I was going to save doing the rears until I got the new rear bearings, extended studs, chromoly axle shafts etc. decisions, decisions.
I need to get these axles done before corner balancing and aligning the car. Once that's done I won't be touching the suspension. Yeah, probably leave the rears for now. But soon....
ZoomZoom is offline
Old 03-26-17, 10:09 AM
  #537
Lives on the Forum

iTrader: (6)

7_rocket's Avatar

Join Date: Jul 2003
Location: Toronto
Posts: 7,110
Thanked 18 Times in 16 Posts
Big money being spent. No expense spared
7_rocket is online now
Old 03-26-17, 11:46 AM
  #538
SEMI-PRO
Thread Starter
iTrader: (2)

ZoomZoom's Avatar

Join Date: Feb 2001
Location: New Jersey
Posts: 2,853
Thanked 26 Times in 25 Posts
Originally Posted by 7_rocket View Post
Big money being spent. No expense spared
I quit counting after $32k in parts.
That doesn't even include the cost of the car or my friends and I labor on it.
When this is all said and done this build will be at or near $60k Car and parts alone.

It's amazing it all added up so quickly, this was without pulling any of the drivetrain or replacing the turbo kit.

Even though the RX-7 isn't as expensive of a platform as a 911 or GT-R; you can still spend some serious money. Especially if you were paying for a shops labor. I wouldn't be surprised if some of the builds on here are near 6 figures. Easily the nice 3 rotor builds but even the 2 rotor builds like Phil Sohn's. Possibly also Farkels LS3 swap. Those are incredibly nice big dollar builds.

I wouldn't have gone this far if not for the bad influence of GoodfellaFD3S, FourtyOunce and 1CLEANCYM. Thier nice cars forced me to do this.

Also Heath at SakeBomb Garage. He hooked me up with a lot of the expensive stuff. He is a busy guy but always replied to my inquiries and got me my parts.
ZoomZoom is offline
Old 03-26-17, 01:07 PM
  #539
Lives on the Forum

iTrader: (6)

7_rocket's Avatar

Join Date: Jul 2003
Location: Toronto
Posts: 7,110
Thanked 18 Times in 16 Posts
Originally Posted by ZoomZoom View Post
I quit counting after $32k in parts.
That doesn't even include the cost of the car or my friends and I labor on it.
When this is all said and done this build will be at or near $60k Car and parts alone.

It's amazing it all added up so quickly, this was without pulling any of the drivetrain or replacing the turbo kit.

Even though the RX-7 isn't as expensive of a platform as a 911 or GT-R; you can still spend some serious money. Especially if you were paying for a shops labor. I wouldn't be surprised if some of the builds on here are near 6 figures. Easily the nice 3 rotor builds but even the 2 rotor builds like Phil Sohn's. Possibly also Farkels LS3 swap. Those are incredibly nice big dollar builds.

I wouldn't have gone this far if not for the bad influence of GoodfellaFD3S, FourtyOunce and 1CLEANCYM. Thier nice cars forced me to do this.

Also Heath at SakeBomb Garage. He hooked me up with a lot of the expensive stuff. He is a busy guy but always replied to my inquiries and got me my parts.
Agreed. It's always great to get good help and do things yourself. Can't wait to see this thing on the road.
7_rocket is online now
Old 03-26-17, 07:04 PM
  #540
SEMI-PRO
Thread Starter
iTrader: (2)

ZoomZoom's Avatar

Join Date: Feb 2001
Location: New Jersey
Posts: 2,853
Thanked 26 Times in 25 Posts
For those who have a BBK you know there is more of a likelihood of brake squeal with these kits. Pad choice but also other factors like free floating disc etc can allow some additional harmonics to start making music.

I've had this brake kit previously on another FD and it would sometimes make noise but mostly it was quiet. I used the typical solutions when installing the last kit. I used small packets of brake grease behind the brake pad but it still made noise on occasion. Friends of mine with this kit had more noise and tried several solutions without much relief.

After talking to another long time owner of this kit who tracks his car regularly; he said he was able to remedy all the brake squeal by using the stock multi-piece brake shims with the AP Racing track brake kit. So I have decided to do the same thing before hitting the road and bedding these in.
I haven't yet Hooked up the brake lines to bleed them so now is the ideal time to pull the pads back out and install the stock shims.

You don't need to buy a stock set of pads just to get the shims. You can buy the shims as just a hardware kit. Here is the part number for the factory Mazda front hardware brake pad shim kit. If you have OEM pads or buy OEM front pads; they automatically come with this hardware kit.
FDZ3-33-29Z

Kit goes for about $40.
ZoomZoom is offline
Old 03-27-17, 10:21 AM
  #541
Moderator
iTrader: (14)

FourtyOunce's Avatar

Join Date: Feb 2001
Location: Old Bridge, NJ
Posts: 1,764
Thanked 57 Times in 44 Posts
Originally Posted by ZoomZoom View Post
I wouldn't have gone this far if not for the bad influence of GoodfellaFD3S, FourtyOunce and 1CLEANCYM. Thier nice cars forced me to do this.
Momma always said be careful with who you associate with.
FourtyOunce is offline
Old 03-28-17, 10:40 PM
  #542
SEMI-PRO
Thread Starter
iTrader: (2)

ZoomZoom's Avatar

Join Date: Feb 2001
Location: New Jersey
Posts: 2,853
Thanked 26 Times in 25 Posts
DSS 300M Axle shafts, new Koyo rear wheel bearings, ARP 3.25" extended studs, Greddy Aluminum Diff cover, SakeBomb Passenger foot rest and a bunch of other misc stuff in the mail and should have by end of week.

I had to take off the CV boot anyway and one of them has a cut in it. May as well upgrade the Axle shafts while I'm in there.
ZoomZoom is offline
Old 03-28-17, 11:02 PM
  #543
Moderator
iTrader: (14)

FourtyOunce's Avatar

Join Date: Feb 2001
Location: Old Bridge, NJ
Posts: 1,764
Thanked 57 Times in 44 Posts
Don't forget the dust cap for the front hub.
FourtyOunce is offline
Old 03-29-17, 06:18 AM
  #544
SEMI-PRO
Thread Starter
iTrader: (2)

ZoomZoom's Avatar

Join Date: Feb 2001
Location: New Jersey
Posts: 2,853
Thanked 26 Times in 25 Posts
Originally Posted by FourtyOunce View Post
Don't forget the dust cap for the front hub.
Don't worry, I ordered 2 new ones this past weekend
ZoomZoom is offline
Old 03-29-17, 12:24 PM
  #545
It Just Feels Right
iTrader: (10)

TomU's Avatar

Join Date: Feb 2014
Location: Arlington, VA
Posts: 1,516
Thanked 38 Times in 37 Posts
Originally Posted by ZoomZoom View Post
I was going to save doing the rears until I got the new rear bearings, extended studs, chromoly axle shafts etc. decisions, decisions.
I need to get these axles done before corner balancing and aligning the car. Once that's done I won't be touching the suspension. Yeah, probably leave the rears for now. But soon....
Replacing the rear bearings is a real PITA

Originally Posted by ZoomZoom View Post
I quit counting after $32k in parts.
That doesn't even include the cost of the car or my friends and I labor on it.
When this is all said and done this build will be at or near $60k Car and parts alone.

It's amazing it all added up so quickly, this was without pulling any of the drivetrain or replacing the turbo kit.
and there's all that titanium hardware
TomU is offline
Old 03-29-17, 01:03 PM
  #546
SEMI-PRO
Thread Starter
iTrader: (2)

ZoomZoom's Avatar

Join Date: Feb 2001
Location: New Jersey
Posts: 2,853
Thanked 26 Times in 25 Posts
Originally Posted by TomU View Post
Replacing the rear bearings is a real PITA



and there's all that titanium hardware
I heard that too; and dirty. I may get a Tyvec suit so I'm not covered in grease.
Titanium Hardware didn't break the budget too bad. Such a nice day today. I'm watching the clock so I can rush home and work on the FD.
Name:  07C6EEA6-51BA-467E-8127-F5035531AAFD.jpg
Views: 178
Size:  13.8 KB
ZoomZoom is offline
Old 03-29-17, 01:22 PM
  #547
Rare for a Reason
iTrader: (13)

Narfle's Avatar

Join Date: Nov 2002
Location: Dagobah
Posts: 5,421
Thanked 82 Times in 60 Posts
I need to get on the titanium hardware train. The OEM stuff is just as expensive....
Narfle is offline
Old 03-29-17, 02:08 PM
  #548
Moderator
iTrader: (12)

Join Date: Apr 2013
Posts: 1,117
Thanked 39 Times in 35 Posts
Originally Posted by ZoomZoom View Post
I'm watching the clock so I can rush home and work on the FD.
I know the feeling. It's sunny and 72 in Nashville right now.

Let's chat cars to help pass the time.

you should bring the car down to DGRR on April 26th through April 30th. You could caravan down with IRP.
Johnny Kommavongsa is online now
Old 03-29-17, 02:20 PM
  #549
SEMI-PRO
Thread Starter
iTrader: (2)

ZoomZoom's Avatar

Join Date: Feb 2001
Location: New Jersey
Posts: 2,853
Thanked 26 Times in 25 Posts
Originally Posted by Narfle View Post
I need to get on the titanium hardware train. The OEM stuff is just as expensive....
It really is and after starting to buy the stock hardware in bulk I realized it's just cheap Zinc coated mind steel and will be oxidizing, then rusting again in a few years. Replacing it with stainless is ok for some things but stainless is weaker than mild steel so don't use it on any load bearing parts. Titanium onnthe other hand won't rust and is lighter and twice as strong as the original hardware... and basically close in price to the Mazda junk.
ZoomZoom is offline
Old 03-29-17, 02:24 PM
  #550
SEMI-PRO
Thread Starter
iTrader: (2)

ZoomZoom's Avatar

Join Date: Feb 2001
Location: New Jersey
Posts: 2,853
Thanked 26 Times in 25 Posts
Originally Posted by Johnny Kommavongsa View Post
I know the feeling. It's sunny and 72 in Nashville right now.

Let's chat cars to help pass the time.

you should bring the car down to DGRR on April 26th through April 30th. You could caravan down with IRP.
I try not to drive the FD outside of my AAA Plus towing range lol.
But if I had a hauler I would consider it and just drive the car while I was there.
Maybe next year when GoodfellaFD3S can make it up from Florida and meet up at DDGR. Will have to see what life has to offer next year at this time before I can commit.

Mike
ZoomZoom is offline

Thread Tools
Search this Thread

Contact Us Archive Advertising Cookie Policy Privacy Statement Terms of Service

© 2019 MH Sub I, LLC dba Internet Brands

We are a participant in the Amazon Services LLC Associates Program, an affiliate advertising program designed to provide a means for us to earn fees by linking to Amazon.com and affiliated sites.
