Old 03-01-17, 09:43 AM
  #501
Eats, Sleeps, Dreams Rotary
iTrader: (9)

RCCAZ 1's Avatar

Join Date: Jun 2002
Location: Phoenix, AZ
Posts: 3,284
Thanked 27 Times in 26 Posts
Solved it on mine by removing the silly long aluminum power steering cooler line and replacing it with a simple connection to and from a small inexpensive tranny cooler. Works like a champ and greatly reduces complexity.
RCCAZ 1 is offline
Old 03-03-17, 01:31 PM
  #502
SEMI-PRO
Thread Starter
iTrader: (2)

ZoomZoom's Avatar

Join Date: Feb 2001
Location: New Jersey
Posts: 2,864
Thanked 29 Times in 27 Posts

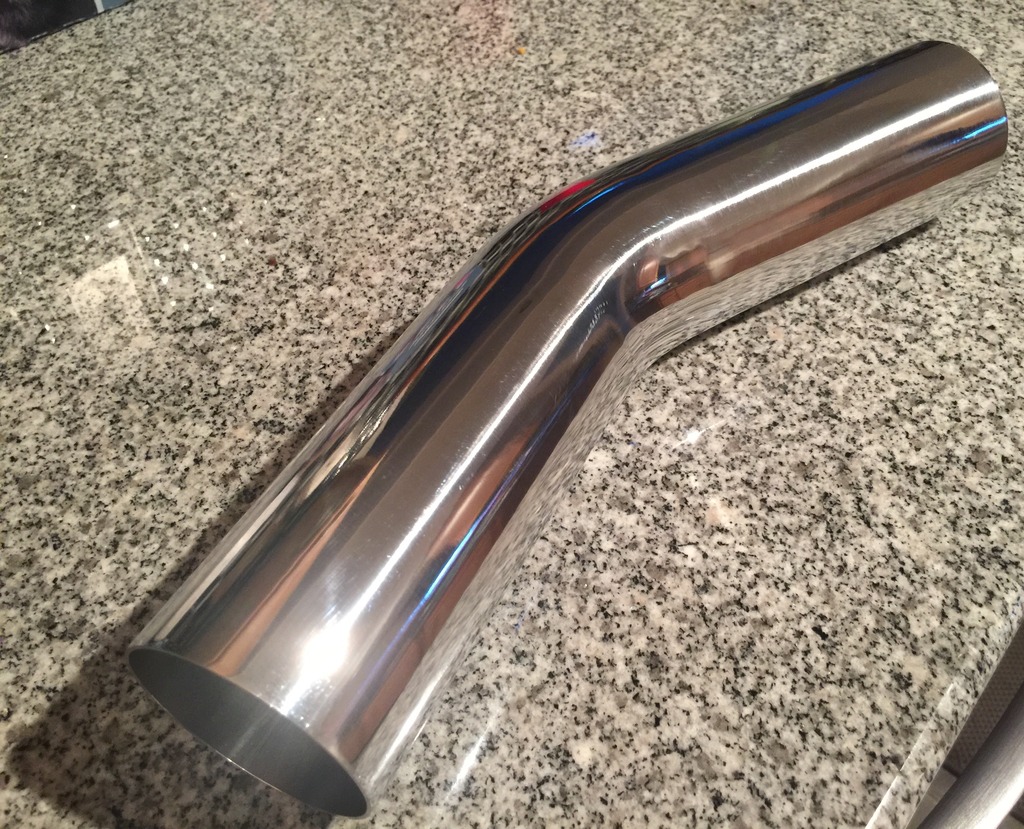

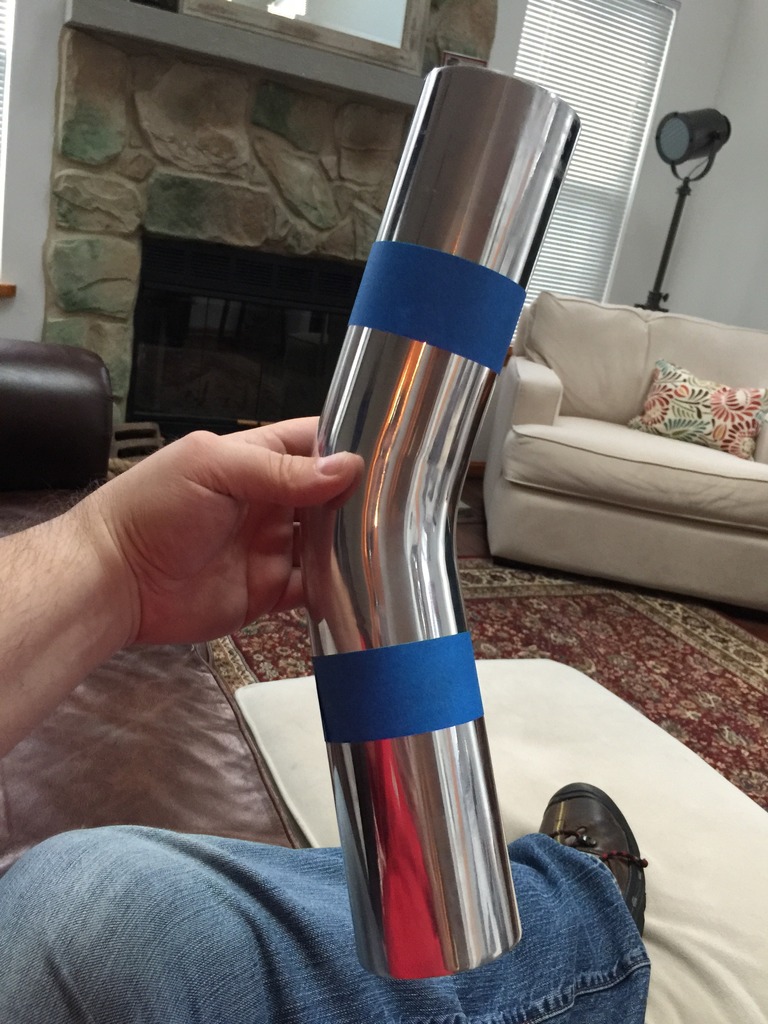

The hot side pipe doesn't line up straight across between the turbo and Intercooler. So I am going to swap out the straight pipe for a 30 degree bend. I measured out the fitment and I will cut the pipe to fit. After test fitting it I will send it to get powder coated
Name:  D4A443FC-40AD-42DE-9AB1-A4204576512E.jpg
Views: 174
Size:  348.9 KB
Name:  EA36F53E-9F04-4C96-8A3F-A7D7AFD36F22.jpg
Views: 174
Size:  216.8 KB
ZoomZoom is offline
Old 03-03-17, 01:34 PM
  #503
Moderator
iTrader: (14)

FourtyOunce's Avatar

Join Date: Feb 2001
Location: Old Bridge, NJ
Posts: 1,775
Thanked 58 Times in 44 Posts
Pipe in hand, work boots on white leather ottoman ....

Are you planning to cut the pipe on that nice rug?
FourtyOunce is offline
Old 03-03-17, 01:43 PM
  #504
SEMI-PRO
Thread Starter
iTrader: (2)

ZoomZoom's Avatar

Join Date: Feb 2001
Location: New Jersey
Posts: 2,864
Thanked 29 Times in 27 Posts
Originally Posted by FourtyOunce View Post
Pipe in hand, work boots on white leather ottoman ....

Are you planning to cut the pipe on that nice rug?
I was thinking of using a nice Kitchen Aid can opener to see if it would cut it... no one needs to know...
ZoomZoom is offline
Old 03-03-17, 03:42 PM
  #505
Original Gangster/Rotary!

iTrader: (205)

GoodfellaFD3S's Avatar

Join Date: Mar 2001
Location: FL-->NJ/NYC again!
Posts: 29,983
Thanked 112 Times in 99 Posts
The wife's sink needs more TB's being scrubbed in it..... sending some over soon
GoodfellaFD3S is offline
Old 03-06-17, 06:12 AM
  #506
SEMI-PRO
Thread Starter
iTrader: (2)

ZoomZoom's Avatar

Join Date: Feb 2001
Location: New Jersey
Posts: 2,864
Thanked 29 Times in 27 Posts
Cut up some Intercooler pipe with a Rotozip saw. Using a multi use blade it got through 3 of the 4 cuts and the blade was finished. It was a used blade so I figured I would order one specific for metal. It arrived yesterday and it got about half way through a cut and stopped. Useless. I ended up finishing it with a Dremel. Was a little slow but it got it done. I still have some sheet metal I need to cut so I will be looking for alternatives.
Also this saw made a nasty cut. Look at the Burrs it left. Hit those with a file and cleaned up the cuts
Name:  C7C156F3-34ED-4074-AF56-07008C6F0496.jpg
Views: 172
Size:  170.9 KB
Name:  1F5DCBA5-29F2-4533-8596-621B46ED4536.jpg
Views: 174
Size:  98.4 KB
Name:  2CCB622D-2BA0-4BA8-BDBB-8429F2D689A4.jpg
Views: 171
Size:  135.7 KB
Name:  656FB7D8-7AEB-4821-BDF1-5E774F090B3E.jpg
Views: 172
Size:  322.8 KB
Name:  FD05F2B4-F446-475E-B0AA-5F1202BAC92A.jpg
Views: 172
Size:  187.6 KB
Name:  81597647-6861-435F-8645-42C523C571CE.jpg
Views: 169
Size:  152.1 KB
Name:  B6862BDD-2A89-4B53-B714-A7267EABD053.jpg
Views: 175
Size:  183.7 KB
Name:  A1F7A83B-B13A-4AE2-96CB-BF4C987B0965.jpg
Views: 176
Size:  182.6 KB
Name:  8B9C4189-DA9A-48F8-87F9-DF7002E9A9B5.jpg
Views: 173
Size:  187.2 KB
ZoomZoom is offline
Old 03-06-17, 06:19 AM
  #507
SEMI-PRO
Thread Starter
iTrader: (2)

ZoomZoom's Avatar

Join Date: Feb 2001
Location: New Jersey
Posts: 2,864
Thanked 29 Times in 27 Posts
The 30 degree pipe bend replaces the straight 6" pipe. The 30 degree is cut to 7"
Which fits better also.
Name:  A4513C53-13CA-4927-AE44-908811F6671B.jpg
Views: 184
Size:  241.5 KB

Making an Intake as well.
Name:  69A8278C-954B-4B53-95CA-058CA0B80703.jpg
Views: 173
Size:  240.3 KB
Might make some more cuts to the Intake pipe for more ideal fitment but it will work the way it is. I am also cutting an LRB Speed Radiator cooling panel to fit around the Vmount. Once I template that for the fitment I want I will cut the panel and then get everything powdercoated.
I'm still waiting on the Brakes and headlights from SakeBomb so I have time to sort out a few things. I removed the Downpipe to remove the old wrap and wrap it in new DEI Onyx wrap. I wrapped it dry so I may remove it and do it again wet so it stretches and fits tighter.
ZoomZoom is offline
Old 03-06-17, 06:31 AM
  #508
SEMI-PRO
Thread Starter
iTrader: (2)

ZoomZoom's Avatar

Join Date: Feb 2001
Location: New Jersey
Posts: 2,864
Thanked 29 Times in 27 Posts
Downpipe had an old wrap on it that was coming loose.
Name:  D6EA12CF-A954-4DD6-9A25-95AD584E14DD.jpg
Views: 173
Size:  274.4 KB
Name:  4770FC5C-C09C-4E73-BDB1-C1C411050BE4.jpg
Views: 175
Size:  329.8 KB
Name:  CDC7FAA3-F6C4-4D48-AE7C-4C6234103103.jpg
Views: 175
Size:  259.5 KB
The manifold is wrapped but looks to be holding up better so I will leave that alone. Just wrapping the areas that needed redone. Plus the black works better with the engine bay. I'm not sure how excited I am about taking this black wrap off and doing it again wet. My shirt was sparkling when I was done the first time that I looked like Neil Diamond in Concert.
Name:  F9D5C4D8-C263-4474-A4F6-A010B2390179.jpg
Views: 171
Size:  188.1 KB
Name:  ECCBADA0-081C-4387-A3B4-4B3A22377356.jpg
Views: 172
Size:  233.2 KB
Btw here is the cut I was thinking of shaping up a bit better on the Intake. The coupler covers it but....
Name:  CD55F385-53BA-4EA0-9A07-D2A92A46F09E.jpg
Views: 174
Size:  167.8 KB
ZoomZoom is offline
Old 03-06-17, 06:43 AM
  #509
SEMI-PRO
Thread Starter
iTrader: (2)

ZoomZoom's Avatar

Join Date: Feb 2001
Location: New Jersey
Posts: 2,864
Thanked 29 Times in 27 Posts
Another look at the Intake progress.
Name:  7E143F15-DF31-4BE6-9380-1946ABB79AE3.jpg
Views: 175
Size:  236.2 KB
Picked up a nicer Elbow for the Turbo to hot side IC pipe. This will for better than that Upgr8 Janky one I was using for fitment purposes. Just needs cut to fit
Name:  9E447173-2FAE-42A1-B521-78792057524F.jpg
Views: 171
Size:  205.4 KB
Also picked up some better fluid for the coming brake swap. I've used the blue in the past this is the same stuff but it's amber. They have always sold both. Made it easier to bleed Brakes when you had the choice of both colors. You could alternate between the amber and blue so when you bled your brakes you knew exactly when you got to the newer fluid during the bleed. I've liked this fluid for the reason that the wet boiling point isnt far below the dry boiling point unlike most performance brake fluids. This makes it perform best over its life than the more expensive fluids that only perform best the day you change it.
Name:  16389F32-6F1D-4025-BEE9-588D46059F56.jpg
Views: 175
Size:  211.3 KB
ZoomZoom is offline
Old 03-06-17, 10:02 AM
  #510
Moderator
iTrader: (12)

Join Date: Apr 2013
Posts: 1,139
Thanked 40 Times in 36 Posts
Nice progress.
Johnny Kommavongsa is offline
Old 03-06-17, 11:01 AM
  #511
needs more track time
iTrader: (14)

gracer7-rx7's Avatar

Join Date: Mar 2006
Location: Bay Area CA
Posts: 7,812
Thanked 12 Times in 11 Posts
that looks like it was chewed on by rabid vampire

Originally Posted by ZoomZoom View Post
Cut up some Intercooler pipe with a Rotozip saw. Using a multi use blade it got through 3 of the 4 cuts and the blade was finished. It was a used blade so I figured I would order one specific for metal. It arrived yesterday and it got about half way through a cut and stopped. Useless. I ended up finishing it with a Dremel. Was a little slow but it got it done. I still have some sheet metal I need to cut so I will be looking for alternatives.
Also this saw made a nasty cut. Look at the Burrs it left. Hit those with a file and cleaned up the cuts
gracer7-rx7 is offline
Old 03-06-17, 11:18 AM
  #512
SEMI-PRO
Thread Starter
iTrader: (2)

ZoomZoom's Avatar

Join Date: Feb 2001
Location: New Jersey
Posts: 2,864
Thanked 29 Times in 27 Posts
Yes it was an ugly cut. My next cuts will be using a friends Scroll
Saw. I want to cut a better angle on the Intake pipe and then cut out my radiator cooling panel. It will be very much like 1cleanCYM's Radiator cooling panel in his build thread. It's going to look about 90% the same. Let's see if I can keep from screwing it up. Will work on that this week.
ZoomZoom is offline
Old 03-06-17, 11:39 AM
  #513
just dont care.
iTrader: (6)

jacobcartmill's Avatar

Join Date: Jul 2002
Location: Nashville, TN
Posts: 9,386
Thanks: 0
Thanked 0 Times in 0 Posts
investing in a small bandsaw made my life much much easier when trying to cut most things.
jacobcartmill is offline
Old 03-06-17, 11:51 AM
  #514
Boilermaker!
iTrader: (111)

ZE Power MX6's Avatar

Join Date: Nov 2002
Location: Chicago, IL
Posts: 2,368
Thanked 17 Times in 16 Posts
I had good luck cutting 3" metal pipe with a grinder and diamond wheel.
ZE Power MX6 is offline
Old 03-16-17, 10:44 PM
  #515
Senior Member

fd3sY8S's Avatar

Join Date: Jan 2016
Location: Texas
Posts: 259
Thanked 4 Times in 4 Posts
TX

Originally Posted by ZoomZoom View Post
Passed 40k views. Hopefully this thread has helped some folks forward their own builds or just do a project or two on their own cars.
Dropped off the parts this morning and picked up my Compressor housing from JP3 Motorsports
https://www.facebook.com/JP3Motorsports/



Double checked the GT35R outlet size for the 90 reducer coupler I need to order.
Yep it's 2.5 inches.
Though I may put mine together with shiny pipes and polished elbow, looking at your build has me convinced I need to powder coat the SMIC, some of the pipes and possibly sand or bead blast the elbow to match the original "texture" of the stock look. Good job on your project.
fd3sY8S is offline
The Following User Says Thank You to fd3sY8S For This Useful Post:
ZoomZoom (04-29-18)
Old 03-17-17, 11:41 AM
  #516
SEMI-PRO
Thread Starter
iTrader: (2)

ZoomZoom's Avatar

Join Date: Feb 2001
Location: New Jersey
Posts: 2,864
Thanked 29 Times in 27 Posts
Thanks, the inspiration is contagious!
I've been busy with work as the weather turned bad. This week I was working 12 and 16 hour days. It's been cold and waiting for parts to arrive. I had the AP Racing brake rotors Zinc coated before having Sakebomb ship them. It's added a couple weeks of delay but they should be in the mail as of today.

The headlights are at least 3 weeks out and last of the Intake and Intercooler pipes are at the powdercoater. If weather is good next weekend the car may be back together and running including the new brakes. This late winter storm set me back even if I wasn't waiting on parts.
ZoomZoom is offline
Old 03-17-17, 03:34 PM
  #517
Lives on the Forum
iTrader: (8)

ptrhahn's Avatar

Join Date: Feb 2002
Location: Arlington, VA
Posts: 8,491
Thanked 19 Times in 18 Posts
Looking Good!

Does anyone make polished bead-rolled intercooler piping to order? I needed to cobble something up for my hotside to Greedy connection too. All I'd need is a custom-length straight pipe.
ptrhahn is offline
Old 03-17-17, 09:10 PM
  #518
SEMI-PRO
Thread Starter
iTrader: (2)

ZoomZoom's Avatar

Join Date: Feb 2001
Location: New Jersey
Posts: 2,864
Thanked 29 Times in 27 Posts
Originally Posted by ptrhahn View Post
Looking Good!

Does anyone make polished bead-rolled intercooler piping to order? I needed to cobble something up for my hotside to Greedy connection too. All I'd need is a custom-length straight pipe.
You can bead roll ends yourself. YouTube has some good videos.

This one is nice.

Or go ultra cheap DIY
ZoomZoom is offline
Old 03-19-17, 08:47 AM
  #519
Moderator
iTrader: (12)

Join Date: Apr 2013
Posts: 1,139
Thanked 40 Times in 36 Posts
^ very cool. Thxs for sharing
Johnny Kommavongsa is offline
Old 03-19-17, 03:02 PM
  #520
Senior Member
iTrader: (7)

Erix7rew's Avatar

Join Date: Oct 2008
Location: Victoriaville
Posts: 374
Thanks: 0
Thanked 0 Times in 0 Posts

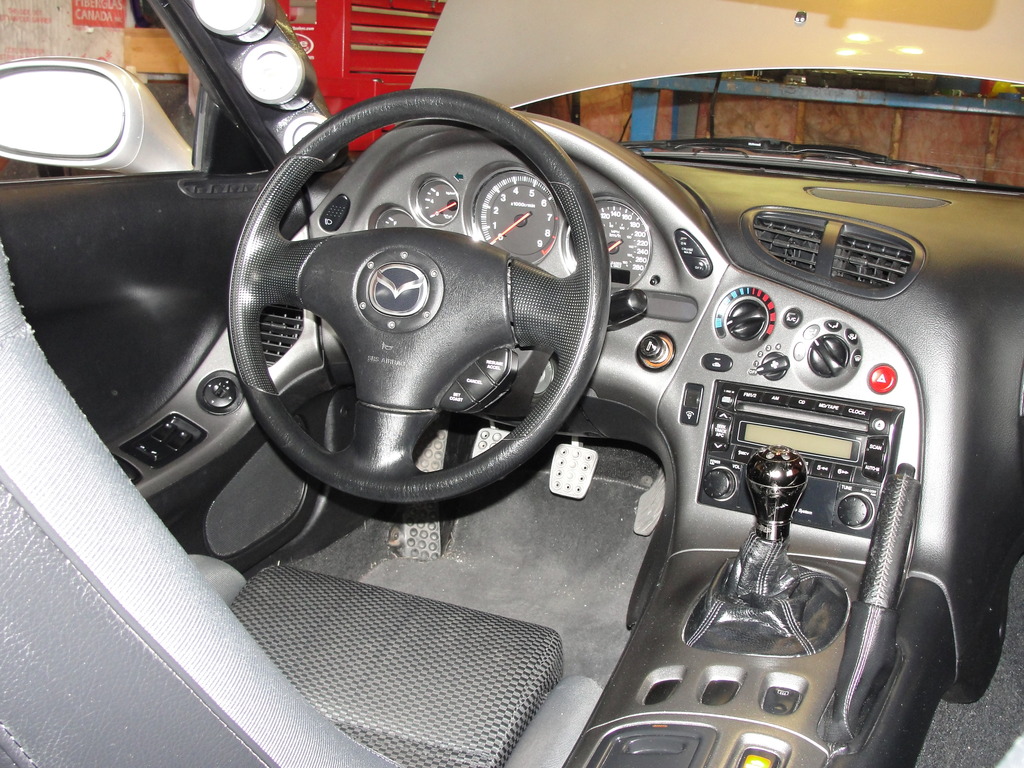

Very nice build! FYI i use a Protege 5 steering wheel with cruise control and i rewire it to fit the FD. You will have to reuse the resistance in the stock FD cruise control button and swap it on the Protege cruise control button.

Name:  DSC01922_zpsz8yaoilj.jpg
Views: 172
Size:  305.9 KB
Erix7rew is offline
Old 03-20-17, 01:55 PM
  #521
SEMI-PRO
Thread Starter
iTrader: (2)

ZoomZoom's Avatar

Join Date: Feb 2001
Location: New Jersey
Posts: 2,864
Thanked 29 Times in 27 Posts
That's a good Tip on the Cruise Control. I just ended up removing mine. Not much use for it here in NJ.
ZoomZoom is offline
Old 03-24-17, 08:49 PM
  #522
SEMI-PRO
Thread Starter
iTrader: (2)

ZoomZoom's Avatar

Join Date: Feb 2001
Location: New Jersey
Posts: 2,864
Thanked 29 Times in 27 Posts
Name:  IMG_1030.jpg
Views: 179
Size:  107.9 KB
ZoomZoom is offline
Old 03-24-17, 08:54 PM
  #523
SEMI-PRO
Thread Starter
iTrader: (2)

ZoomZoom's Avatar

Join Date: Feb 2001
Location: New Jersey
Posts: 2,864
Thanked 29 Times in 27 Posts
Yep, it starts. But not before trying to figure out why it would only click over. Jason realized the powdercoating was isolating the ground for the starter.
Then it would start. Bled the clutch, put on most of the hose clamps and vacuum lines. Big help from Jason (1cleanCYM) today. He showed up after work and fixed a fuel leak, found the ground problem.

Now it runs.

Last edited by ZoomZoom; 03-25-17 at 01:53 PM. Reason: Forum is out its mind and doing strange things
ZoomZoom is offline
Old 03-24-17, 08:57 PM
  #524
SEMI-PRO
Thread Starter
iTrader: (2)

ZoomZoom's Avatar

Join Date: Feb 2001
Location: New Jersey
Posts: 2,864
Thanked 29 Times in 27 Posts

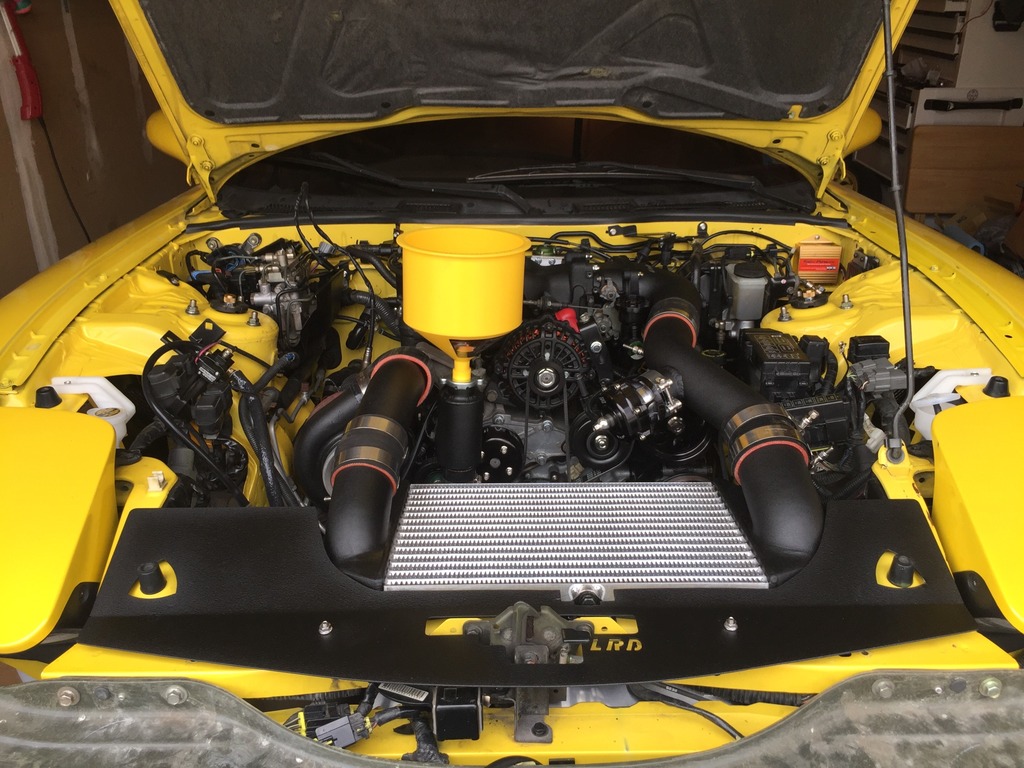

Missing some hose clamps for now. Need to put nose on and install the BBK... but it's almost done.

Name:  IMG_1034.jpg
Views: 180
Size:  242.1 KB
ZoomZoom is offline
Old 03-24-17, 09:01 PM
  #525
Rotary Freak
iTrader: (12)

moehler's Avatar

Join Date: Mar 2003
Location: South Jersey
Posts: 2,288
Thanks: 0
Thanked 20 Times in 16 Posts
Looks great, congrats!
moehler is offline
