Build Threads The place to discuss complete builds

RX7 Series 6 Single Turbo project

Old 06-13-16, 03:51 AM
  #151
Senior Member
Thread Starter

RuffRx7's Avatar

Join Date: May 2013
Location: Johannesburg, South Africa
Posts: 301
Likes: 0
Received 0 Likes on 0 Posts
My welder has not had power for the last week due to a faulty cable in his area so nothing more has been done with the Downpipe but manifold is completed and looking great, will pick it up when I get time and install, just need to drill out the turbo housing to fit a boost line for the wastegate.

My Apexi PFC is here in Johannesburg, just waiting for it to arrive at the post office and then I have all my pieces to go for my tune, finally!!!

Finished up my AN6 line for my turbo feed this weekend, dam its not as easy as it looks to do these fittings, especially for the first time, hands are trashed.

Name:  IMG_6656_zpsqauljqw7.jpg
Views: 11
Size:  186.1 KB

Name:  IMG_6657_zpsy6wrzttx.jpg
Views: 10
Size:  109.0 KB

Last edited by RuffRx7; 06-13-16 at 08:44 AM.
RuffRx7 is offline
Old 06-13-16, 02:00 PM
  #152
Original Gangster/Rotary!

iTrader: (206)

GoodfellaFD3S's Avatar

Join Date: Mar 2001
Location: FL-->NJ/NYC again!
Posts: 29,999
Received 136 Likes on 109 Posts
Not to be a downer, and I realize you're out in SA so probably not tons of rotary support, but have some questions for you.....

Do you have access to the wheel sizes for that turbo? what kind of boost response are you hoping for? Based on the size of that turbine housing, will probably not be a super responsive setup.

What brand wastegate? chinese/knock-off stuff is ok in some cases, but IMO be careful with the wastegate..... assuming that's what it is

consider swapping the blue hose out for real-deal reinforced coolant line from for your AST tank setup--- definitely be more reliable and long lasting. Again, assuming that's standard blue silicone tubing like you'd see for a BOV or boost gauge etc.

Just trying to help
GoodfellaFD3S is offline
Old 06-15-16, 01:08 AM
  #153
Senior Member
Thread Starter

RuffRx7's Avatar

Join Date: May 2013
Location: Johannesburg, South Africa
Posts: 301
Likes: 0
Received 0 Likes on 0 Posts
Originally Posted by GoodfellaFD3S View Post
Not to be a downer, and I realize you're out in SA so probably not tons of rotary support, but have some questions for you.....

Do you have access to the wheel sizes for that turbo? what kind of boost response are you hoping for? Based on the size of that turbine housing, will probably not be a super responsive setup.

What brand wastegate? chinese/knock-off stuff is ok in some cases, but IMO be careful with the wastegate..... assuming that's what it is

consider swapping the blue hose out for real-deal reinforced coolant line from for your AST tank setup--- definitely be more reliable and long lasting. Again, assuming that's standard blue silicone tubing like you'd see for a BOV or boost gauge etc.

Just trying to help
No problem man, always grateful for help in any form.
The wheel size for the turbo is Turbine Inducer / Exducer (mm): 87.40 / 77.00, Compressor Inducer /Exducer (MM): 68.70 / 97.80. Not sure if that is correct.
The exhaust housing is 1.05 and is twin scroll as well as my manifold so shouldn't be too laggy, remember I have lightened rotors so will rev up faster.
This turbo has been tried on some rotaries here and starts boosting at around 2600rpm and is at full boost at 5000rpm so should be fine for what I need the car for, not looking for huge numbers.
The wastegate is also a tried and tested unit and is brand new and will be perfect for my application as I will only be running at 1bar max boost.
Will keep an eye on my silicone hoses, I still have the stock lines and they are in good condition so will check them and see how they holding up, thanks for the heads up.
RuffRx7 is offline
Old 07-14-16, 05:44 AM
  #154
Senior Member
Thread Starter

RuffRx7's Avatar

Join Date: May 2013
Location: Johannesburg, South Africa
Posts: 301
Likes: 0
Received 0 Likes on 0 Posts
So not much of an update, did a quick spray paint job on the windscreen plastic just to see how it would turn out and it came out great.
Sprayed it in satin black and did 2 coats.

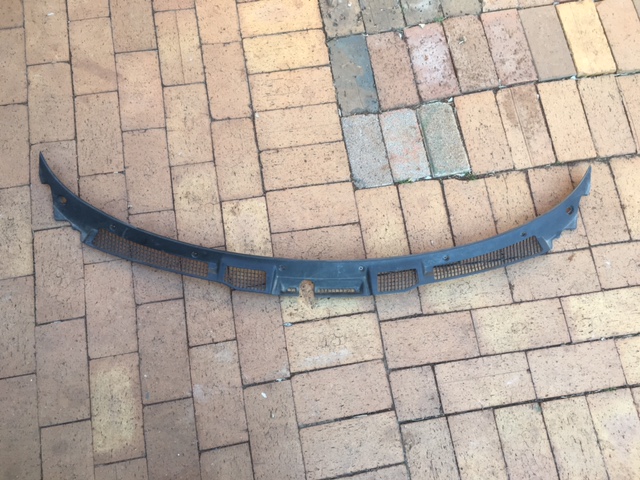

Before
Name:  FullSizeRender_zpsycatalja.jpg
Views: 13
Size:  158.3 KB

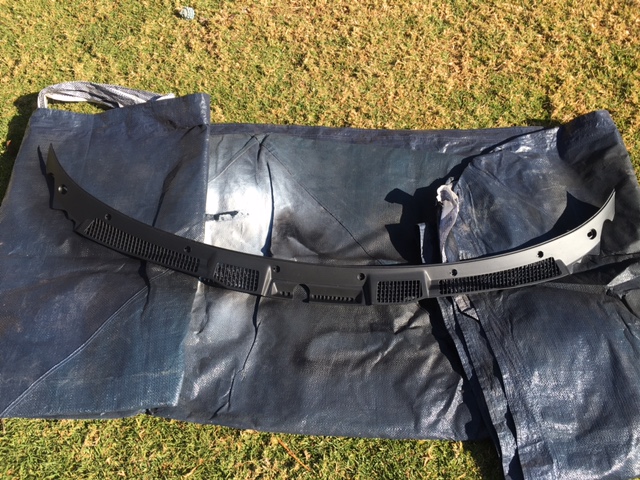

After

Name:  IMG_6732_zpsigtwwkzc.jpg
Views: 8
Size:  185.4 KB
RuffRx7 is offline
Old 07-19-16, 07:05 AM
  #155
Senior Member
Thread Starter

RuffRx7's Avatar

Join Date: May 2013
Location: Johannesburg, South Africa
Posts: 301
Likes: 0
Received 0 Likes on 0 Posts
So managed to spray some stuff this weekend and also moved from the Apexi PFc to the Microtech LT8s as the Apexi has very few tuners here in SA, the mircotech has more guys that can tune with it so better option to use.

Here are some before and after pics of the spray job.

Before

Name:  IMG_6756_zpsnnvbf8lk.jpg
Views: 9
Size:  136.2 KB

Name:  IMG_6757_zpscqqqfsmp.jpg
Views: 14
Size:  137.3 KB


After

Name:  IMG_6759_zpsm57lh8wr.jpg
Views: 22
Size:  145.5 KB

Name:  IMG_6760_zpsauj89cxy.jpg
Views: 9
Size:  181.6 KB

I also made a cover for my dash speaker hole as the OEM one just crumbled when I took it out.

Name:  IMG_6762_zpshaz7gyaa.jpg
Views: 16
Size:  63.3 KB

Here are the pics of the stock ECU with the Microtech mounted to the back which fits perfect on the stock mounting of the standard ECU, I also painted and vinyl wrapped the stock ECU just for good measure.

Name:  IMG_6769_zpskepvrgdj.jpg
Views: 10
Size:  97.0 KB

Name:  IMG_6768_zps3vvrrm2t.jpg
Views: 10
Size:  108.8 KB

Last edited by RuffRx7; 07-19-16 at 07:11 AM.
RuffRx7 is offline
