The Monsterbox 4 Rotor
#1402
yes sir, chip is a god
This, right?
http://www.youtube.com/embed/pnSdMd4XXzQ
Soooo sick. About time someone figured out an alternative to epoxy.
Oh, and if you don't subscriber to Chips Motorsports on YouTube, it's a nice rabbit hole to fall down:
https://www.youtube.com/c/chipsmotorsportsllc
http://www.youtube.com/embed/pnSdMd4XXzQ
Soooo sick. About time someone figured out an alternative to epoxy.
Oh, and if you don't subscriber to Chips Motorsports on YouTube, it's a nice rabbit hole to fall down:
https://www.youtube.com/c/chipsmotorsportsllc
#1403
Anyway, for some positives,
All in all, we did well. Assembled a car from ground up, paint/body, wiring, engine, tuning etc in under 1.5 years and drove the nuts off of it at 900hp. A few hiccups in the process, but well expected considering there's only been a handful of peripheral ported turbo cars and very little data.
Now for a little motivation for the week. We will come back, utilizing everything that can be learned from the past, and with this dinosaur-eater monstrosity, shoot for 1200rwhp at 20psi
Engine should hopefully be completed in next few weeks. Internal oil pump will be deleted and trap doors will be added to the pan, so only the external pump will be required. Oil pressure will be increased another 10psi. Walker Morgan will be modifying the manifold to fit Gary (our new name for the turbo). New exhaust, and debating mechanical fuel pump for 1k+ on e85.
A pic of the new GTX Gen2 mounted
All in all, we did well. Assembled a car from ground up, paint/body, wiring, engine, tuning etc in under 1.5 years and drove the nuts off of it at 900hp. A few hiccups in the process, but well expected considering there's only been a handful of peripheral ported turbo cars and very little data.
Now for a little motivation for the week. We will come back, utilizing everything that can be learned from the past, and with this dinosaur-eater monstrosity, shoot for 1200rwhp at 20psi
Engine should hopefully be completed in next few weeks. Internal oil pump will be deleted and trap doors will be added to the pan, so only the external pump will be required. Oil pressure will be increased another 10psi. Walker Morgan will be modifying the manifold to fit Gary (our new name for the turbo). New exhaust, and debating mechanical fuel pump for 1k+ on e85.
A pic of the new GTX Gen2 mounted
Last edited by Monsterbox; 02-07-18 at 09:29 AM.
#1406
OMG a Chupacabra!
iTrader: (26)
Whenever I hear a pro tell me that I’ll make sure to write that down.
I personally enjoy taking cars apart
besides ive moved on to the rx8 chassis. Far superior for what I’d be using it for. My buddy Damian is helping me set it up (he’s semi-pro... )
Anyways, good luck with the build. Chip is one of the best. I’ve sent a bunch of my parts to him.
-Nick
I personally enjoy taking cars apart
besides ive moved on to the rx8 chassis. Far superior for what I’d be using it for. My buddy Damian is helping me set it up (he’s semi-pro... )
Anyways, good luck with the build. Chip is one of the best. I’ve sent a bunch of my parts to him.
-Nick
#1410
Thank you to everyone who has supported this buid from day 1. Everything happens for a reason and for every set back there's an opportunity to look at bright side and go bigger and better. The push continues. The same process from the beginning. Thanks again
#1412
Banned. I got OWNED!!!
Whenever I hear a pro tell me that I’ll make sure to write that down.
I personally enjoy taking cars apart
besides ive moved on to the rx8 chassis. Far superior for what I’d be using it for. My buddy Damian is helping me set it up (he’s semi-pro... )
Anyways, good luck with the build. Chip is one of the best. I’ve sent a bunch of my parts to him.
-Nick
David, keep hustlin' brother. You're an inspiration to so many of us and have put EVERYTHING into this build while asking nothing in return.
#1416
Sent the oil pump off today to peterson to have direct drive 3/8 hex installed on the rear.
Talking with Weldon, Waterman, and Aeromotive to find the perfect fitting pump for the application.
The things are incredible. I didn't want to run one before, just because I never figured we'd need this much fuel. But the BSFC of this engine is almost 0.85 and with e85 it will easily be over 1.0. The smallest aeromotive mechanical flows over 9 gallons per minute at 5k (when its half speed of crank shaft). Thats over 360 gallons per hour! 1, 363 liters per hour. Yes One-thousand, three hundred and sixty three liters per hour at 100psi!! Thats f*ck all fuel
Plan is to set this thing up for e85 and 30psi
Last edited by Monsterbox; 02-09-18 at 09:10 AM.
#1421

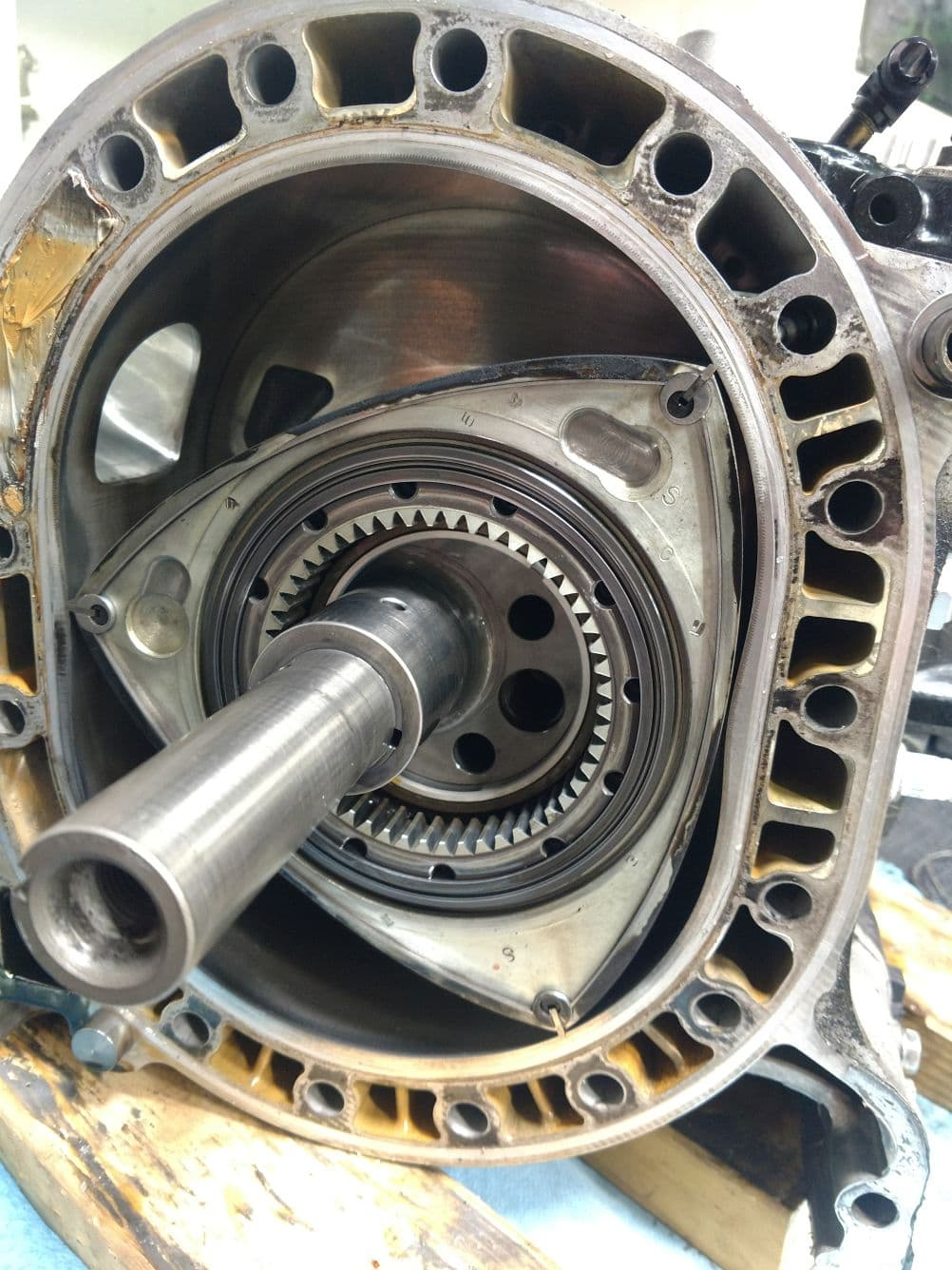

Few pics from the tear down. Housings and irons and etc don't look too bad. But you can see from the markings/scratching on the rotors and irons that the have been contacting the plates. I'm glad we caught this now and not later which would eventually have required alot more work. Thankfully the bearings/e-shaft look good.
Housings are now off to Chip Ursu for his new badass witchcraft
Rotational assembly will be on the way soon for clearance, lightening, and balancing so that this contact doesn't happen again.
He's also measuring the crank shaft. Reportedly there was no end-play on the dial gauge when the motor was torn down. And there's reports that some of these cranks may have issues with lobe angle. Getting it checked to be sure. Triple-check everything, and take no one's word on anything when you're messing with this kind of intricacy and cost
Shout out to Zachariah Richardson, Zebbi King Turner, CLR, Chip Ursu, and Abel Ibbirah for the suggestions and helping steer this in the right direction. And thanks to everyone in here.
and once again to all the pretenders and haters please comment, we love you
Housings are now off to Chip Ursu for his new badass witchcraft
Rotational assembly will be on the way soon for clearance, lightening, and balancing so that this contact doesn't happen again.
He's also measuring the crank shaft. Reportedly there was no end-play on the dial gauge when the motor was torn down. And there's reports that some of these cranks may have issues with lobe angle. Getting it checked to be sure. Triple-check everything, and take no one's word on anything when you're messing with this kind of intricacy and cost
Shout out to Zachariah Richardson, Zebbi King Turner, CLR, Chip Ursu, and Abel Ibbirah for the suggestions and helping steer this in the right direction. And thanks to everyone in here.
and once again to all the pretenders and haters please comment, we love you
