93' black touring
#101
I'm just going to go with the 14mm donut o rings. That style served me well for years and everything snugs up well on this. I just wish these places had better instructions. The only thing I can think of is maybe the height of my tail is slightly different because I have the light version vs the normal version but maybe the instructions were never updated. Who knows. But even putting the injectors in the adapter with the smaller o rings before trying the rail itself, they just didn't feel like they seated great. Not something I'll take a chance with.
The following users liked this post:
rotaryextreme (06-18-23)
#105
Tomsn16 to the rescue!!! 94' Gas tank incoming.

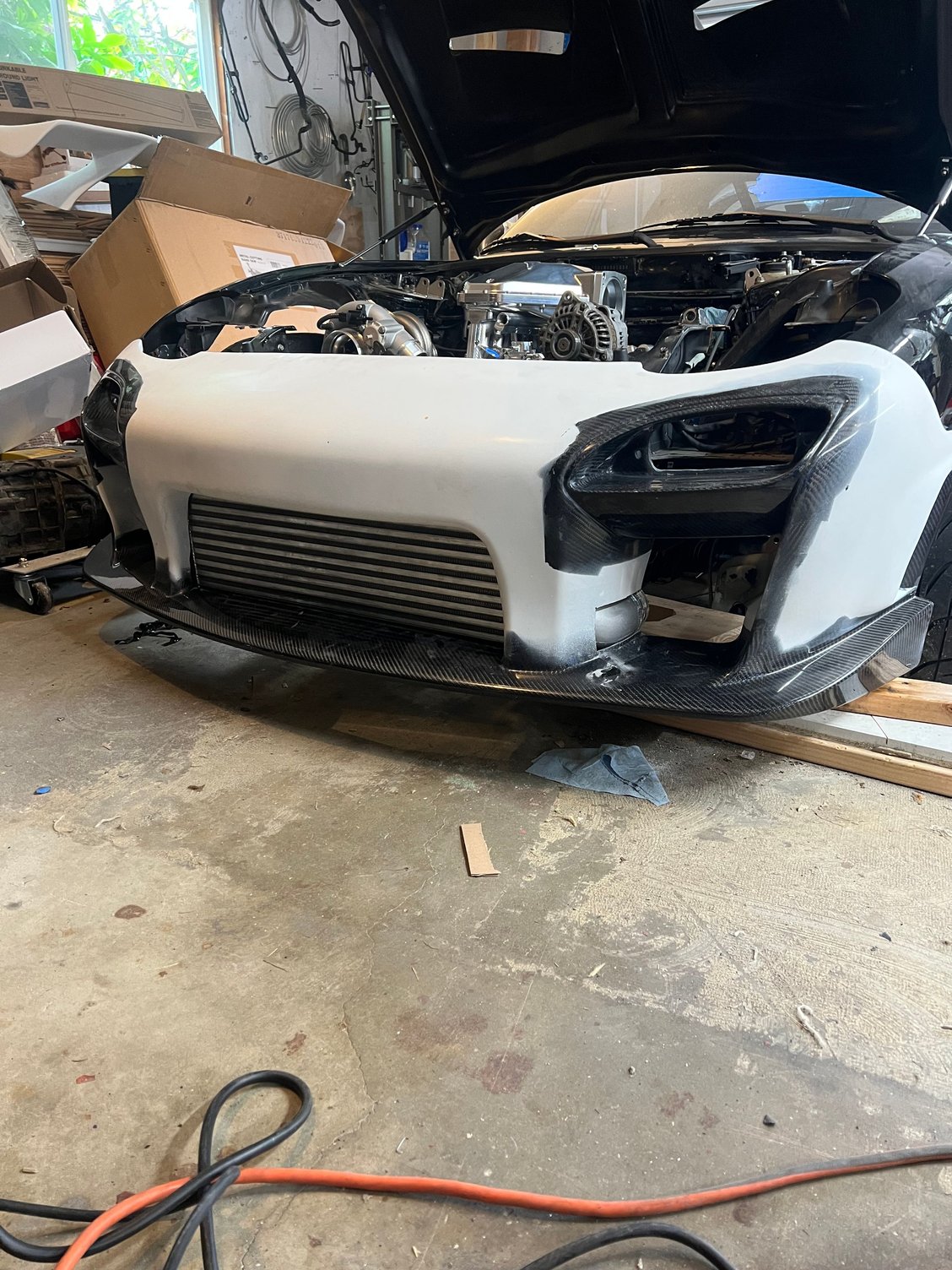

also, made some progress on the intercooler for the 3 rotor. Reworked the end tank, added mounting standoffs on top, now I can work on fitting the bumper and no longer need the jack underneath the intercooler. Once it’s set, I’ll make some stronger brackets on the sides.
also, made some progress on the intercooler for the 3 rotor. Reworked the end tank, added mounting standoffs on top, now I can work on fitting the bumper and no longer need the jack underneath the intercooler. Once it’s set, I’ll make some stronger brackets on the sides.
Last edited by TwinCharged RX7; 06-18-23 at 05:56 PM.
The following users liked this post:
estevan62274 (06-19-23)
#106
Eats, Sleeps, Dreams Rotary
iTrader: (2)
That gas tank, OMG. How did it get like that???
That front end look sick!!
I love seeing all the different set-ups portraying the different personalities here on the forum.
That front end look sick!!
I love seeing all the different set-ups portraying the different personalities here on the forum.
The following users liked this post:
estevan62274 (06-19-23)
#107
The car had sat since 2007 or so. I think some of this time it was outside. Must have gotten moisture in the tank and just gotten really bad over time. Im near Seattle and the car was out on an island in puget sound. Maybe being near salt water did it. Idk if you saw the earlier picture, but the engine bay had surface rust all over it. Under car isn't bad, but will eventually get a clean up. Im just glad tomsn16 had a tank waiting for me
The following users liked this post:
rotaryextreme (06-19-23)
#108
Oh snap. headershield wrapped, jet hot coated, knightsport dual tube downpipe came in today. Spent way to much on this but it will last forever now haha.

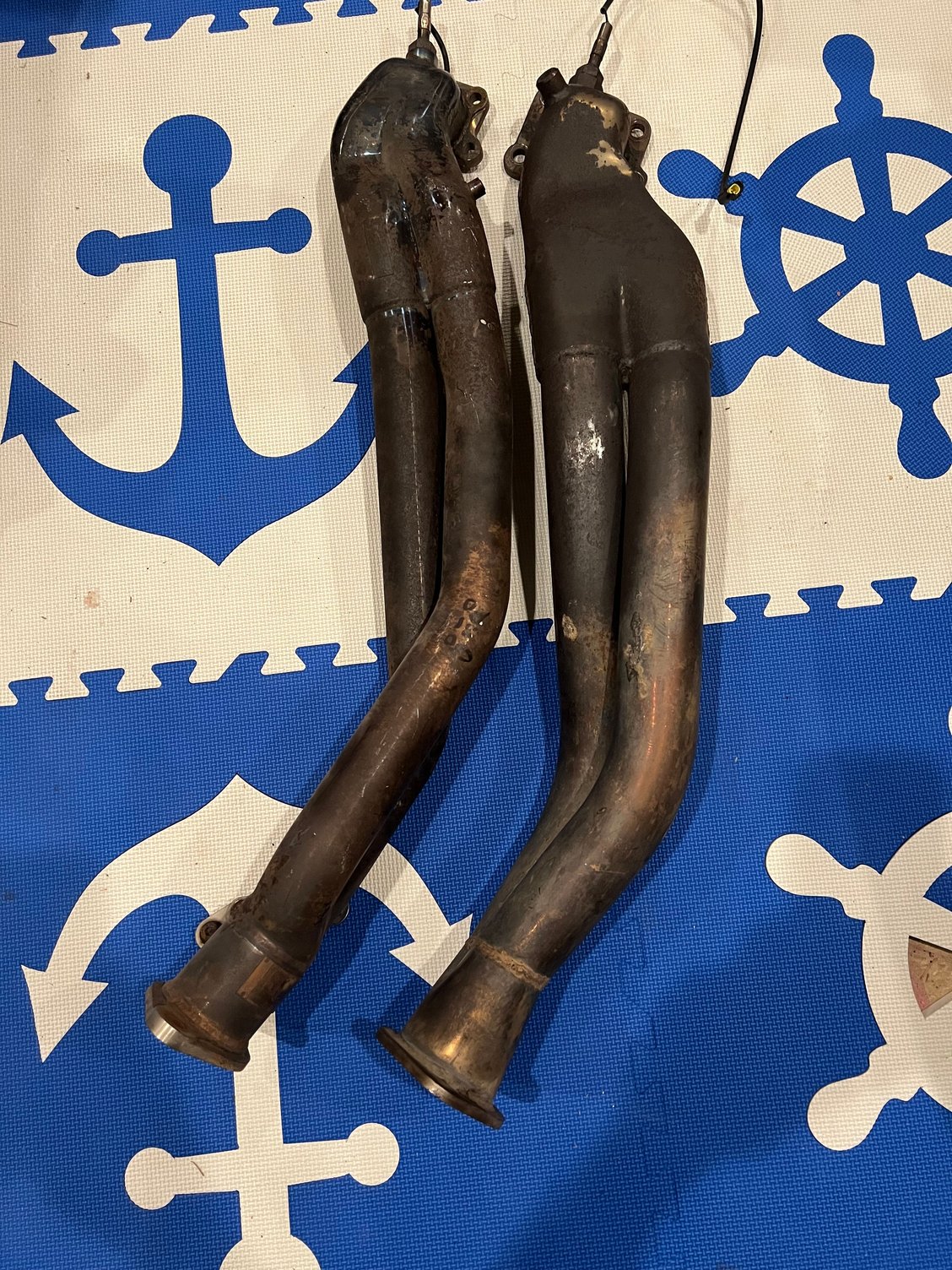

When it arrived from Japan (knightsports on the right, autoexe on the left)
After laser cleaning (knightsports on the bottom), was then sent to JetHot for 2000 degree coating. Then had a bung welded on for an O2 sensor at the bottom near where it connects to the midpipe. Will block off the other bungs near the turbo.

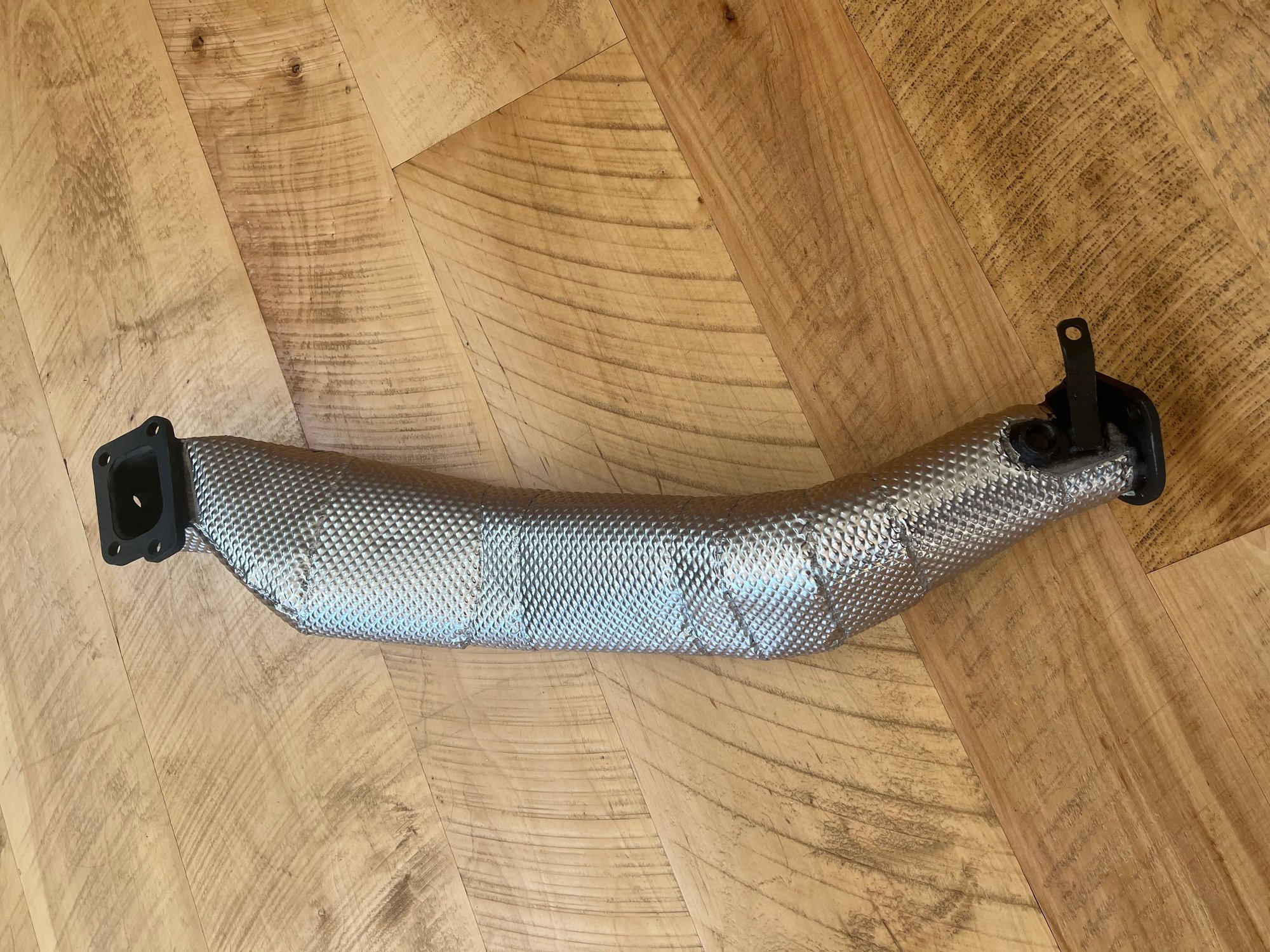

Went from JetHot to Headershield, so I don’t have a picture of it with just JetHot, but you can see the black parts.
Really nice how they seal up the edges
New O2 bung
When it arrived from Japan (knightsports on the right, autoexe on the left)
After laser cleaning (knightsports on the bottom), was then sent to JetHot for 2000 degree coating. Then had a bung welded on for an O2 sensor at the bottom near where it connects to the midpipe. Will block off the other bungs near the turbo.
Went from JetHot to Headershield, so I don’t have a picture of it with just JetHot, but you can see the black parts.
Really nice how they seal up the edges
New O2 bung
Last edited by TwinCharged RX7; 06-23-23 at 06:02 PM.
The following 4 users liked this post by TwinCharged RX7:
#111
Eats, Sleeps, Dreams Rotary
iTrader: (2)
I'm just going to try and run the Denso OMP and associated oil injectors and jets for that time period.
These downpipes look amazing.
If I was not going single I would probably go Dale's route with the same downpipe you guys have and try that modified Y-pipe for the twins.
#112
Yeah. I'm going to try my hand at modifying the 99spec Y pipe like Dale's. I've been practicing welding but don't actually weld on car parts yet as there is a chance I'd destroy them haha. But I feel like the Y pipe mod should be a good place to try it out on. Much better than a $600 intercooler core.
The following users liked this post:
DaleClark (06-29-23)
#116
Eats, Sleeps, Dreams Rotary
iTrader: (2)
I talked to another engine builder (MO at Palm Tree Rotary), and he confirmed that the newer oil injectors (check valves) with the smaller orifice fail at a higher rate. He said some have even been DOA.
He also mentioned the newer jets and spacers are fine to use with the older style larger orifice oil injectors from the early models..
If the spacer is a rubber seal then maybe some of the clogged brass jets are from over tightened oil injectors smashing the seal causing it to fail prematurely?
So yeah, Denso Omp, older injectors and inspect the rubber spacers if you have them on your engine. I will inspect mine when I swap to the older style oil injectors to be safe.
Easy Peasy.
Just found this!!!!! http://www.ausrotary.com/viewtopic.php?t=251518
He also mentioned the newer jets and spacers are fine to use with the older style larger orifice oil injectors from the early models..
If the spacer is a rubber seal then maybe some of the clogged brass jets are from over tightened oil injectors smashing the seal causing it to fail prematurely?
So yeah, Denso Omp, older injectors and inspect the rubber spacers if you have them on your engine. I will inspect mine when I swap to the older style oil injectors to be safe.
Easy Peasy.
Just found this!!!!! http://www.ausrotary.com/viewtopic.php?t=251518
Last edited by rotaryextreme; 06-29-23 at 08:34 AM.
#117

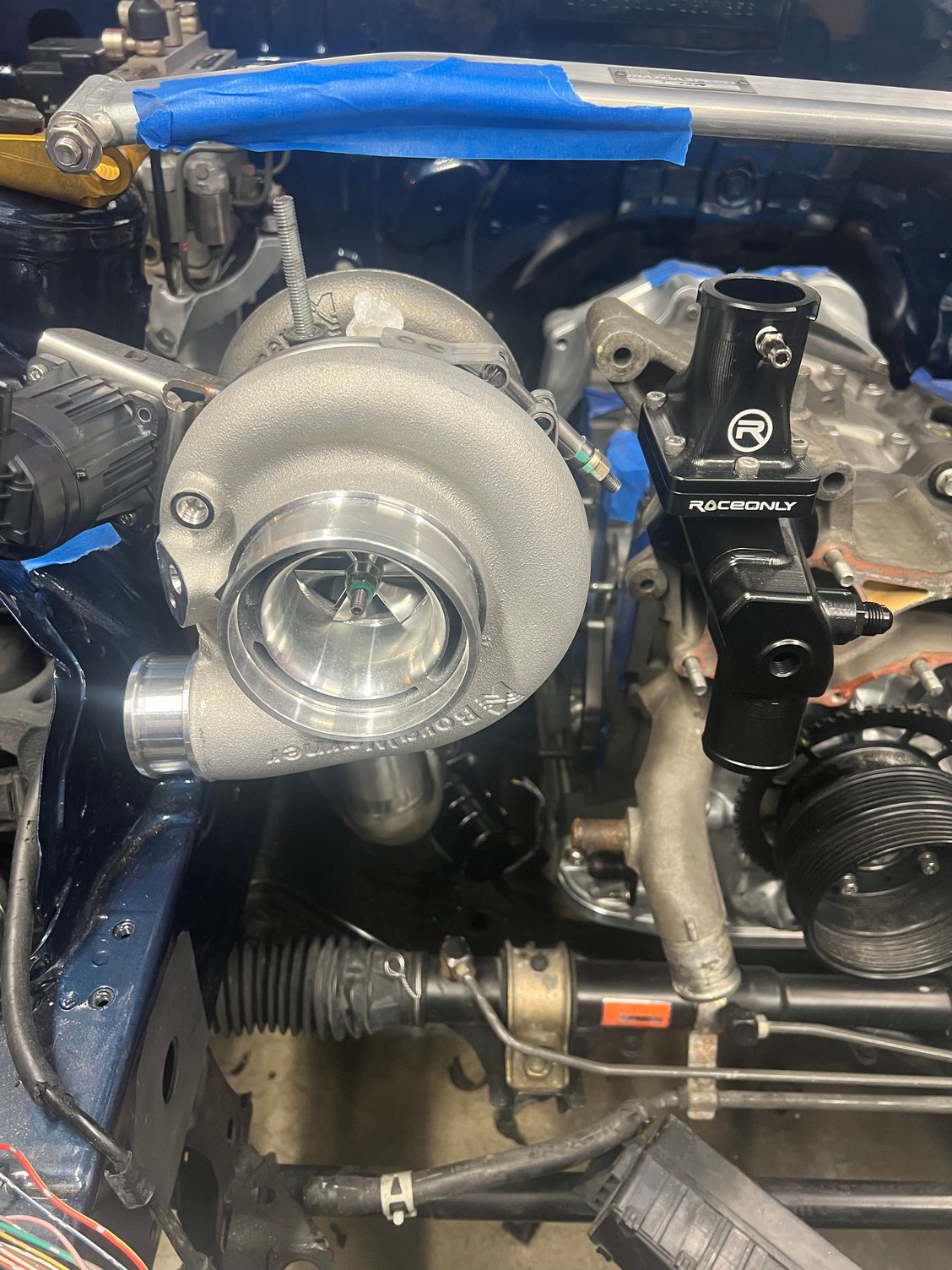

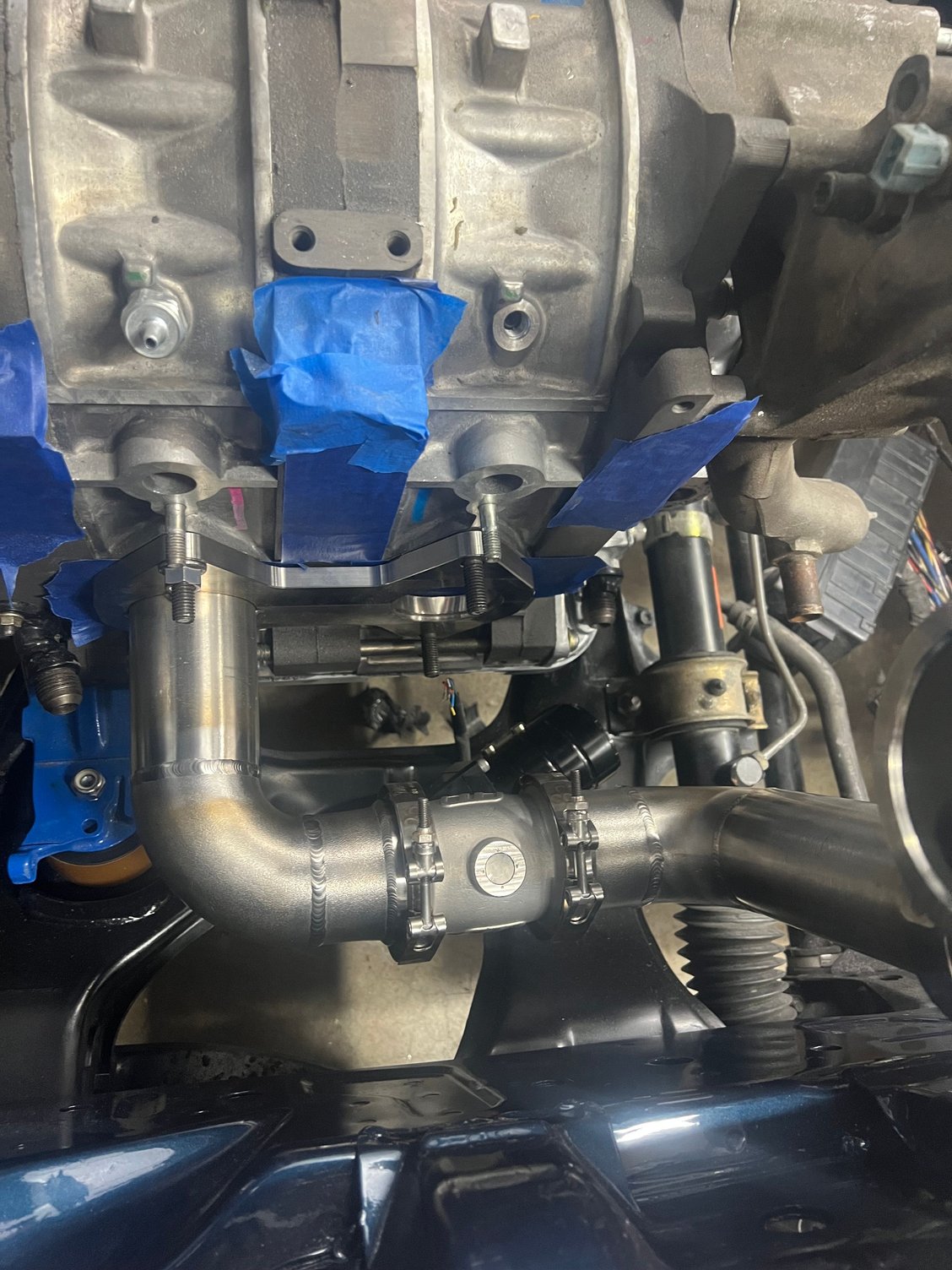

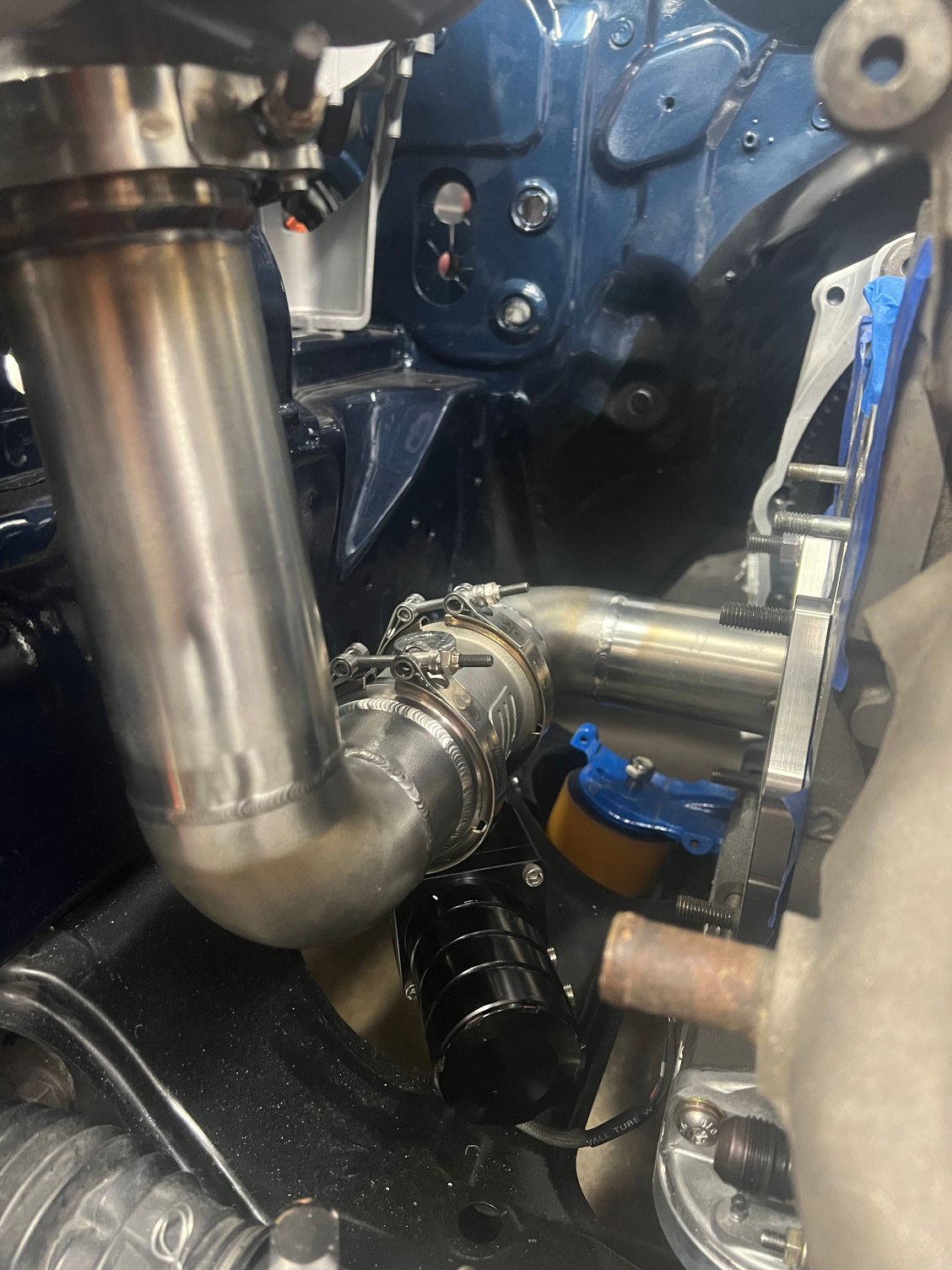

A little progress on the blue FD sequential twin turbo setup. Secondary turbo is in place, now I can figure out the final location for the primary turbo. Aesthetically I want them lined up closely next to each other. However, I won’t know for sure if that will work until I get it mocked up better which is why getting the secondary turbos location finalized was a critical first step. The primary turbo needs to be able to sit high enough for the oil drain to work properly, but I quickly run out of room when factoring in the wastegate actuators, coolant, and oil lines for both turbos.
The following 3 users liked this post by TwinCharged RX7:
#118
Eats, Sleeps, Dreams Rotary
iTrader: (2)
Wow. Looks crazy cool. When this is done it belongs in a FF scene where they open the engine bays.!!!! So sick!!!! I think you can register it on a site where cars for movies are pulled from.
The following users liked this post:
estevan62274 (07-12-23)
The following users liked this post:
rotaryextreme (07-12-23)
#121
Gas tank process. A big thanks to @tomsn16 for the replacement tank and awesome shipping as usual. if anyone wants the old tank to send off to a refurbishment place just PM me. I think it can be saved as the outside is still really solid.

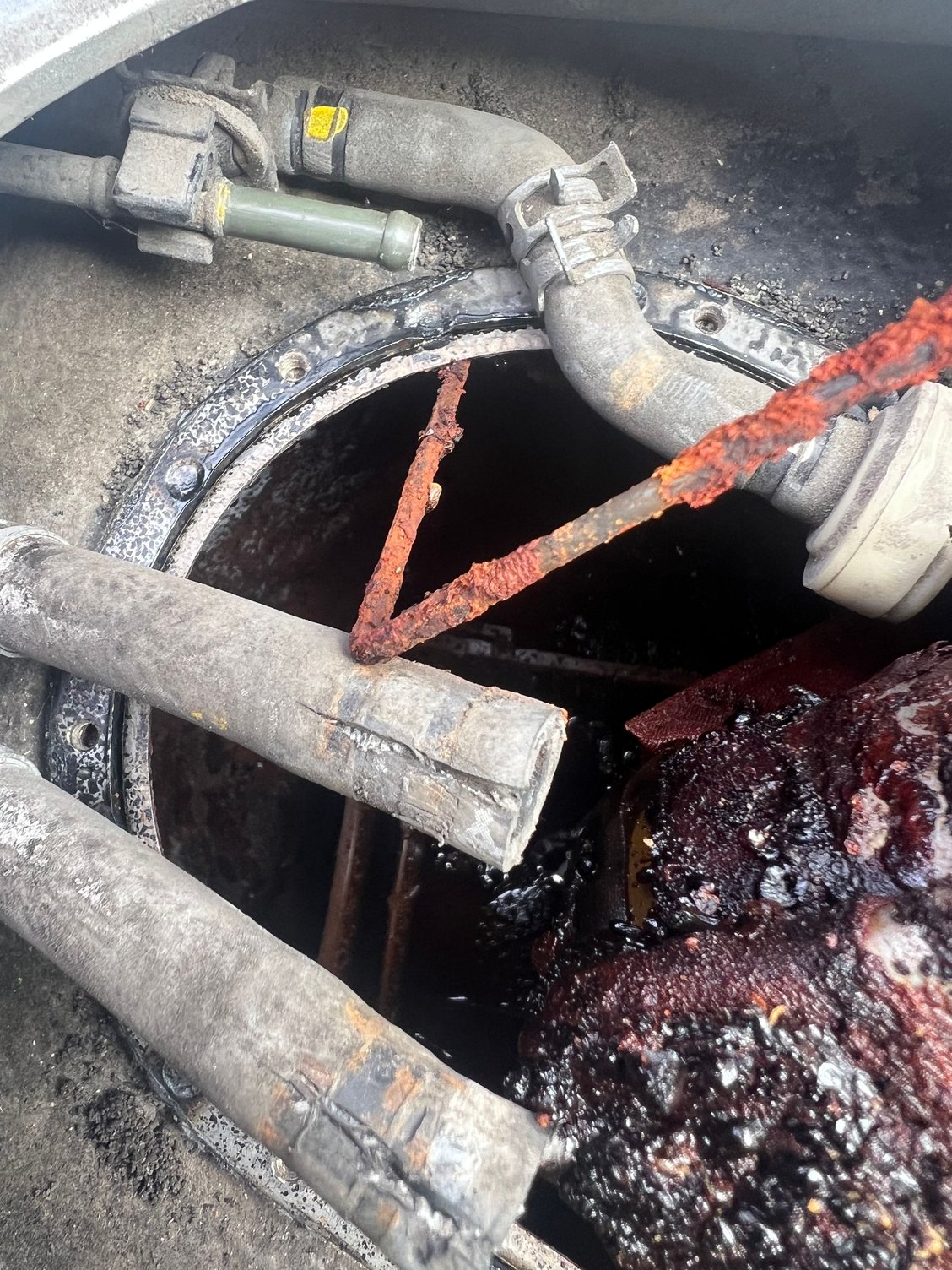

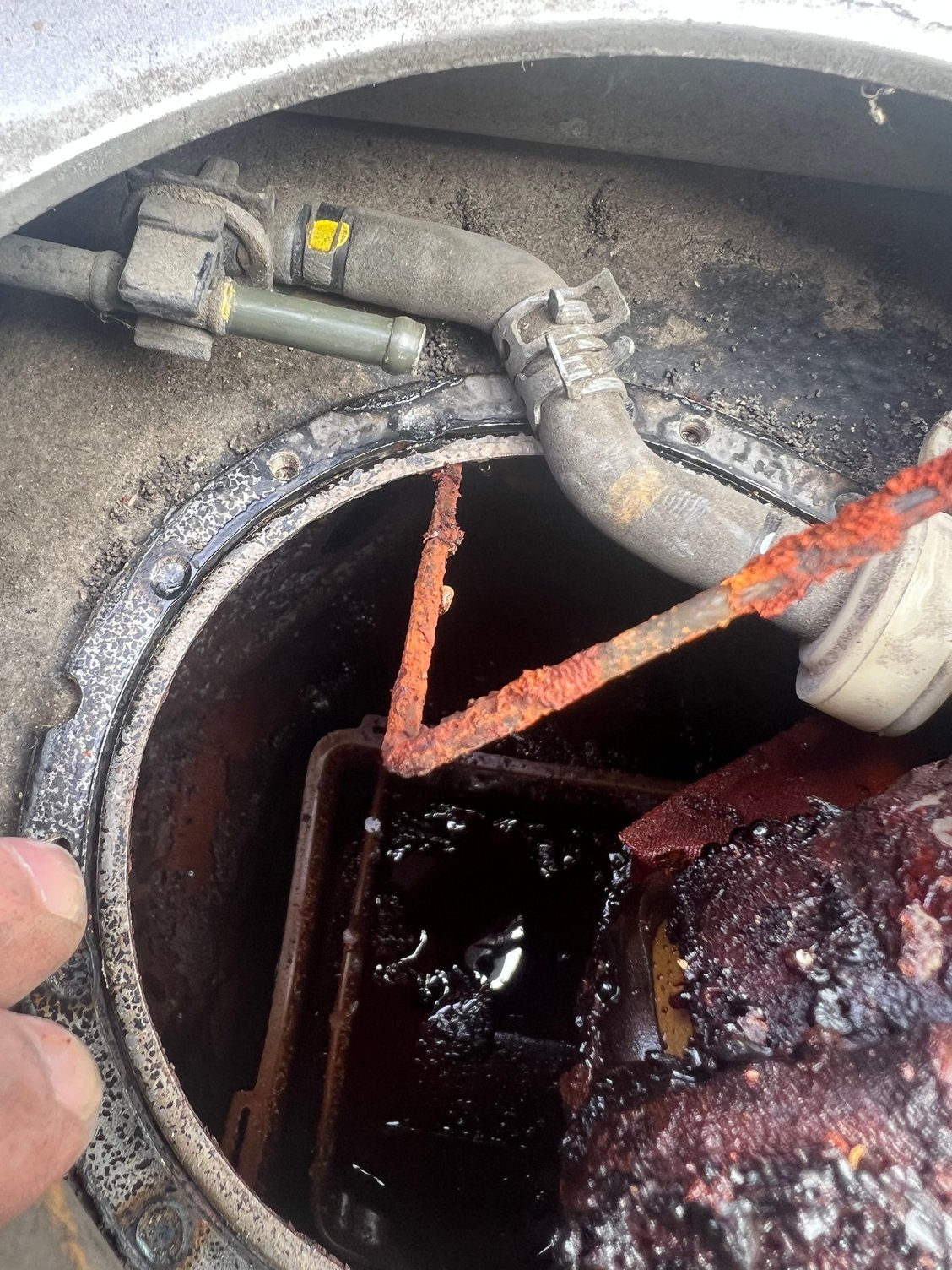

Reminder of why the gas tank swap is needed.

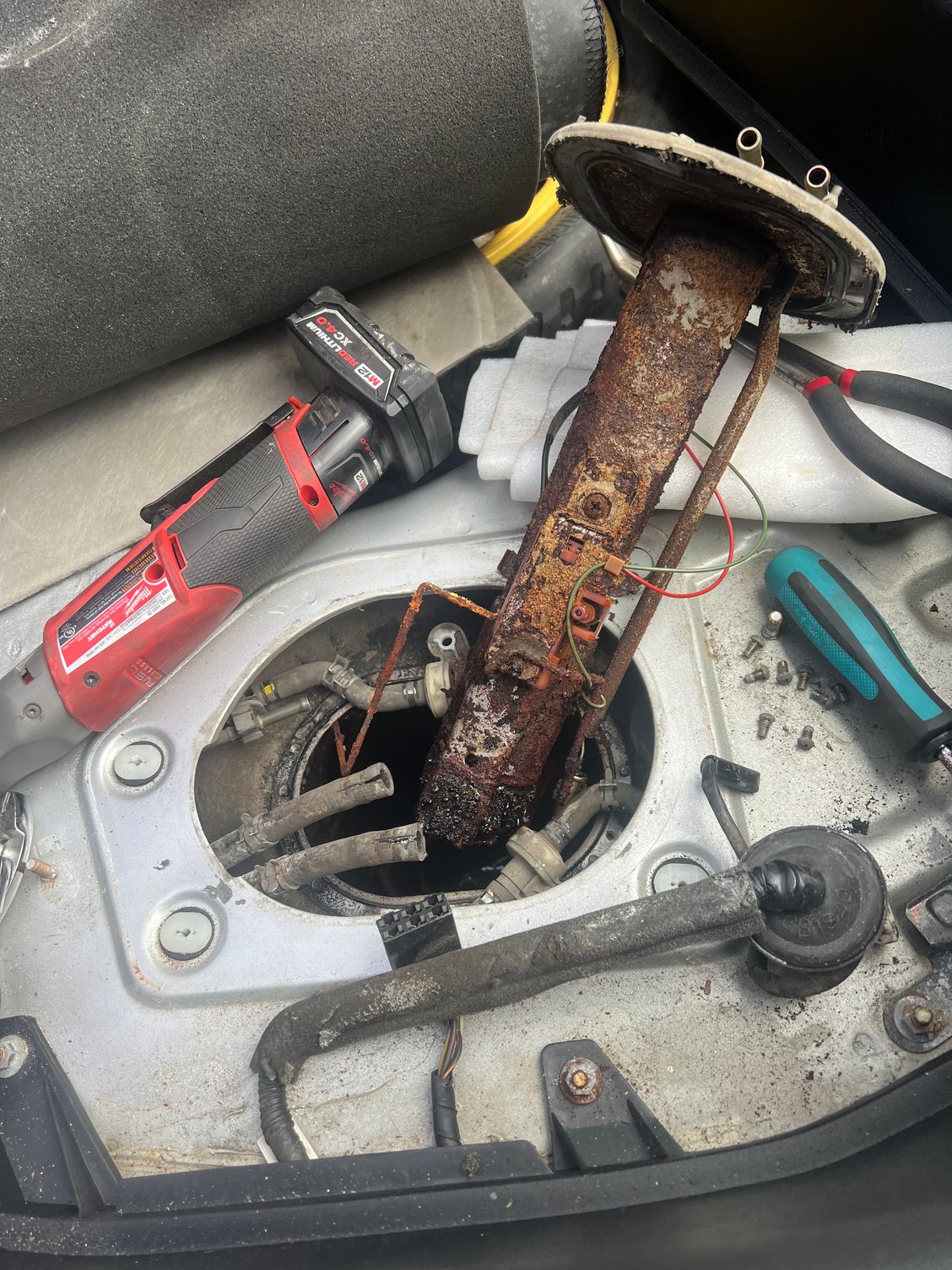

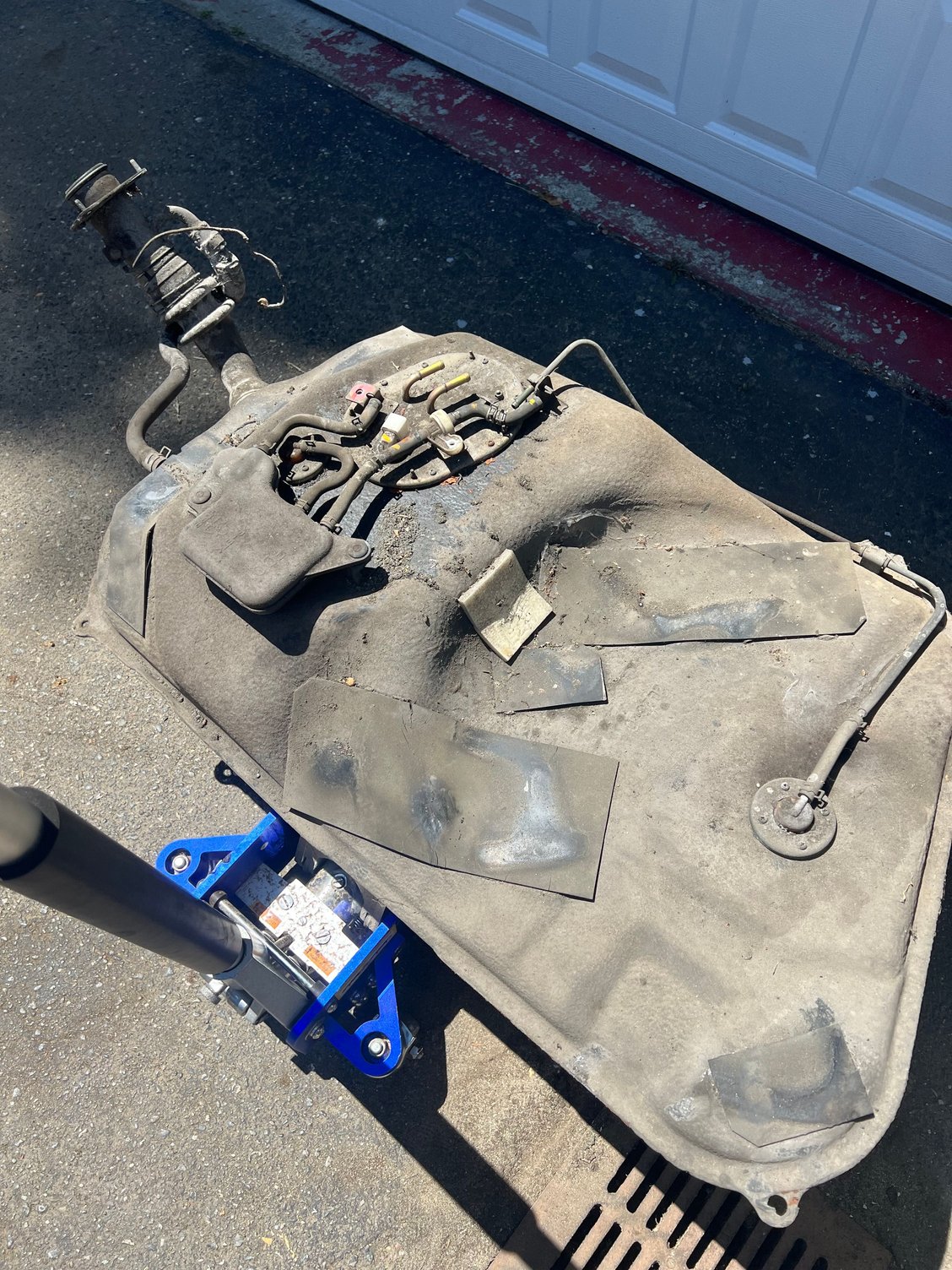

Old tank

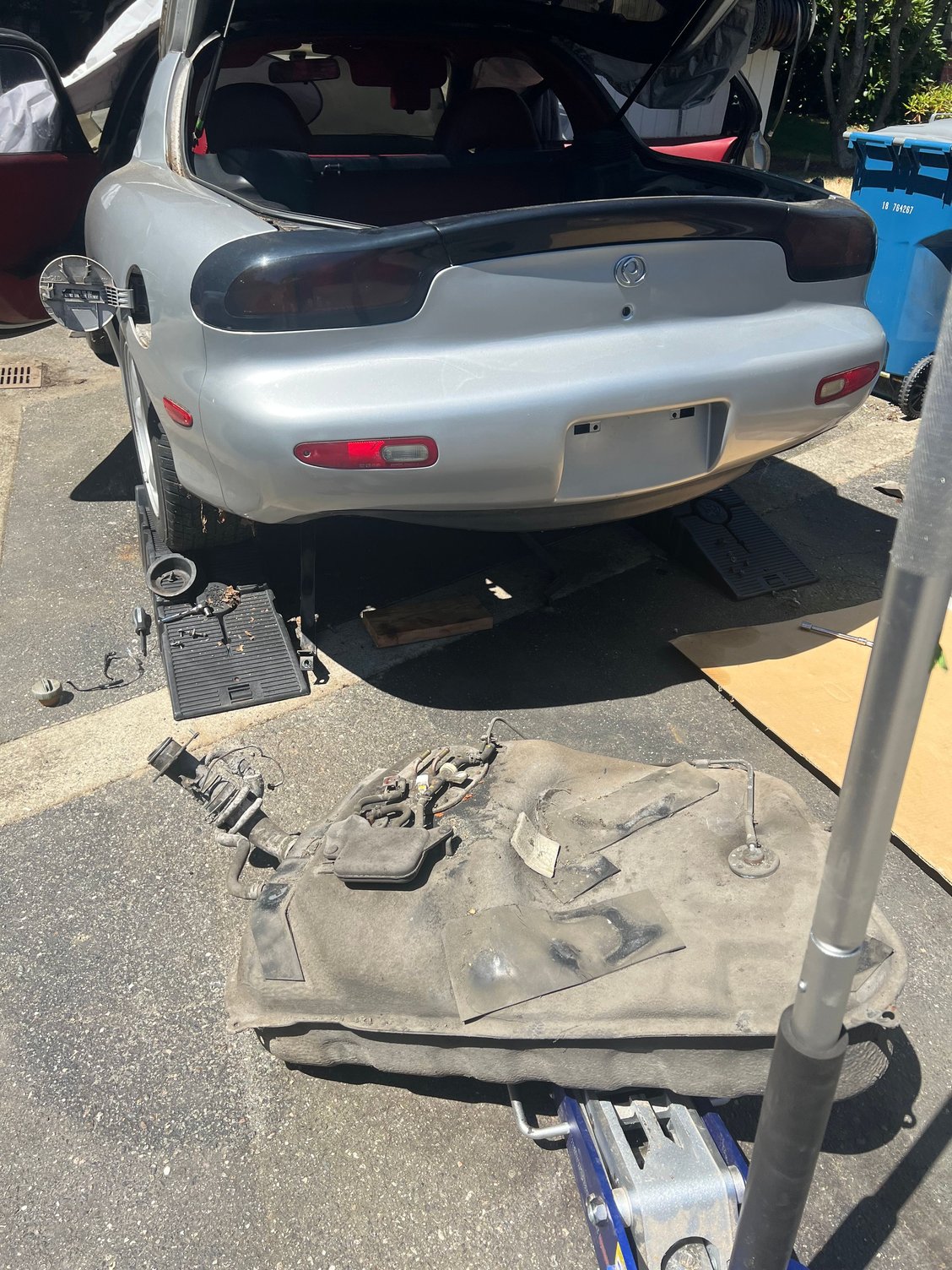

Out with the old
No rust! The first pleasant surprise on this car (expect lots of surprises on cars that sit for 15 years). Although it looks like a leaky diff.
Old tank

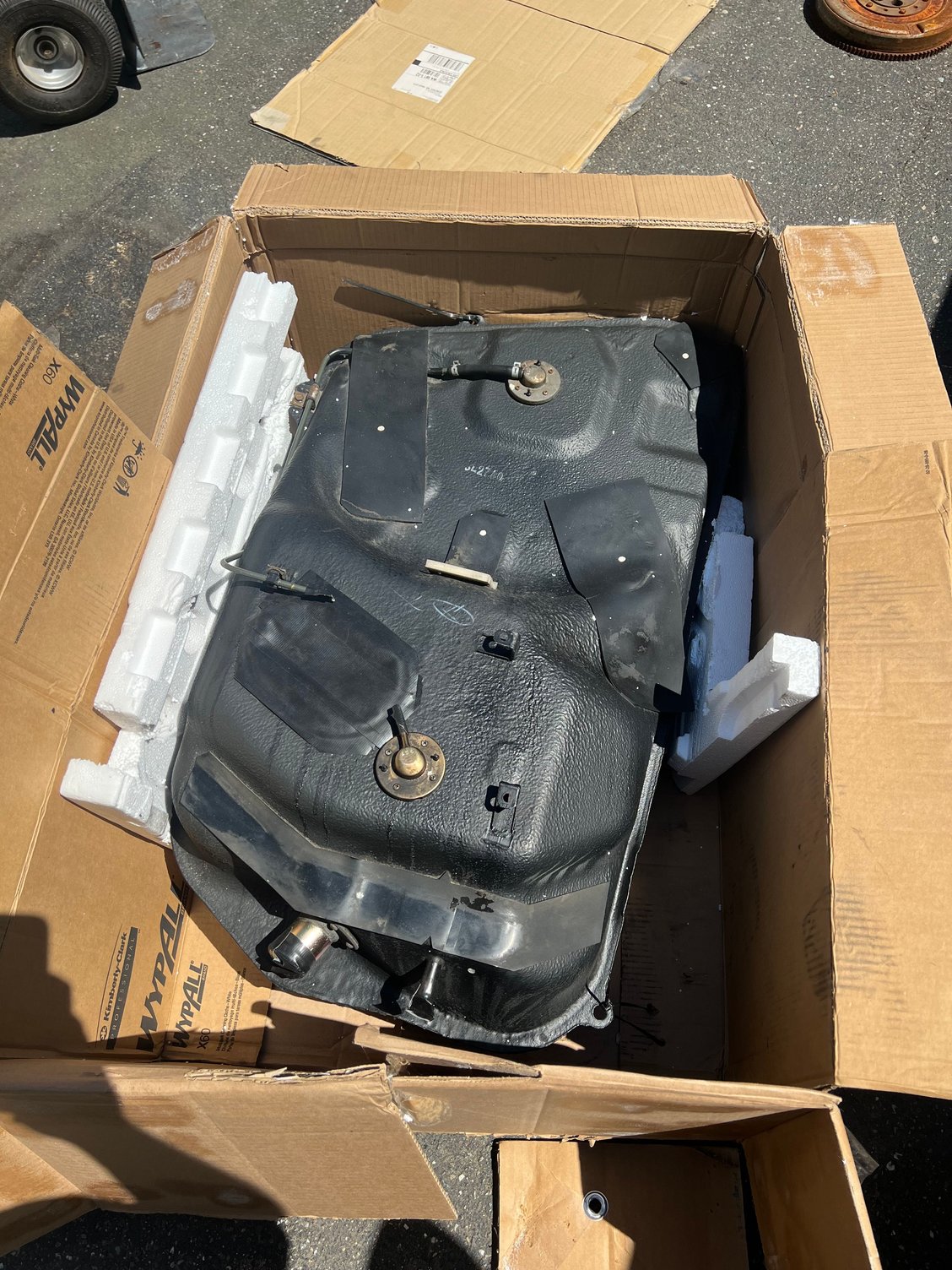

New (to me) tank

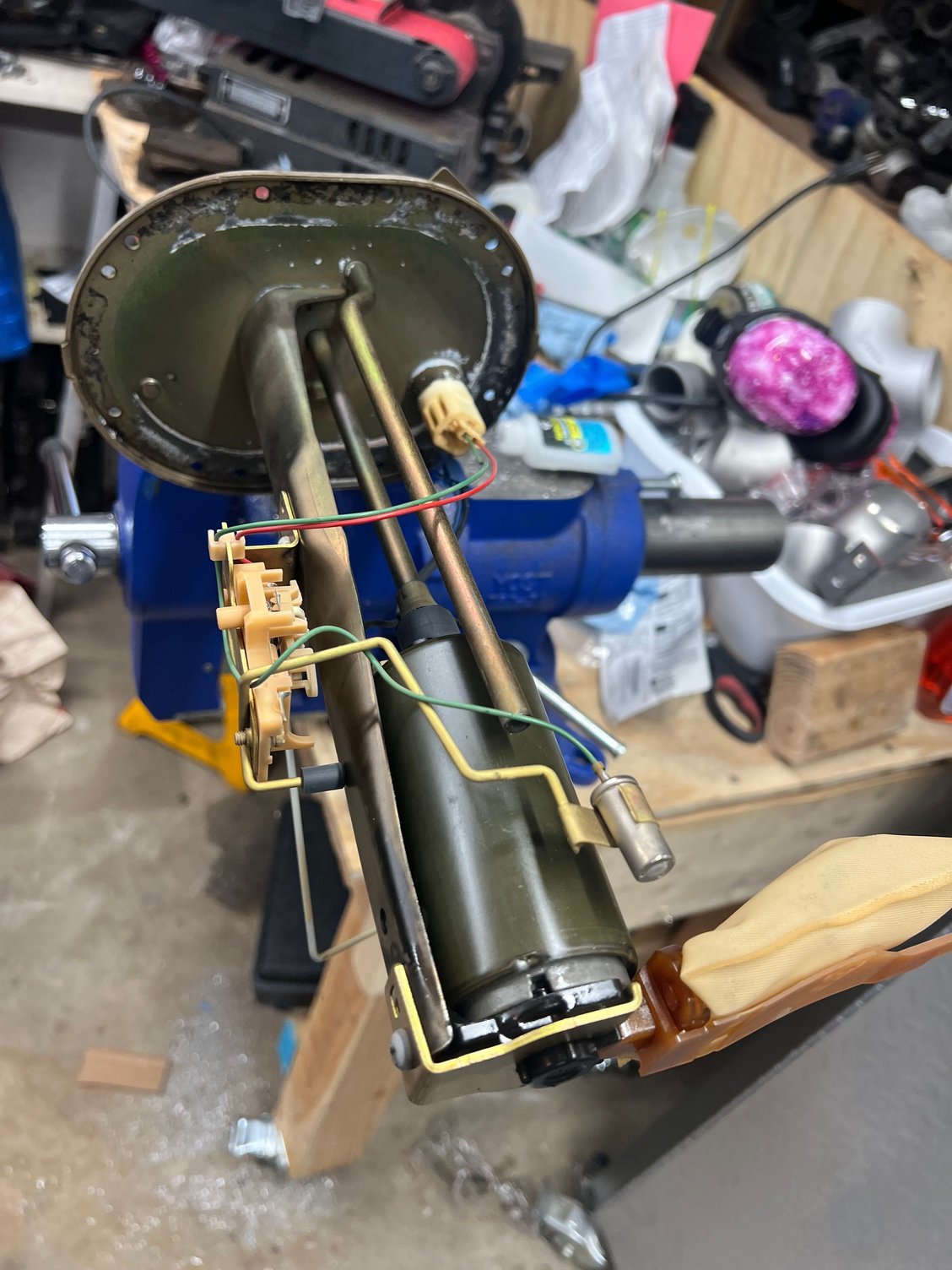

Replace my fuel hangar I stole from my blue car. Glad that one has a nice and clean gas tank. Original fuel pump as well.

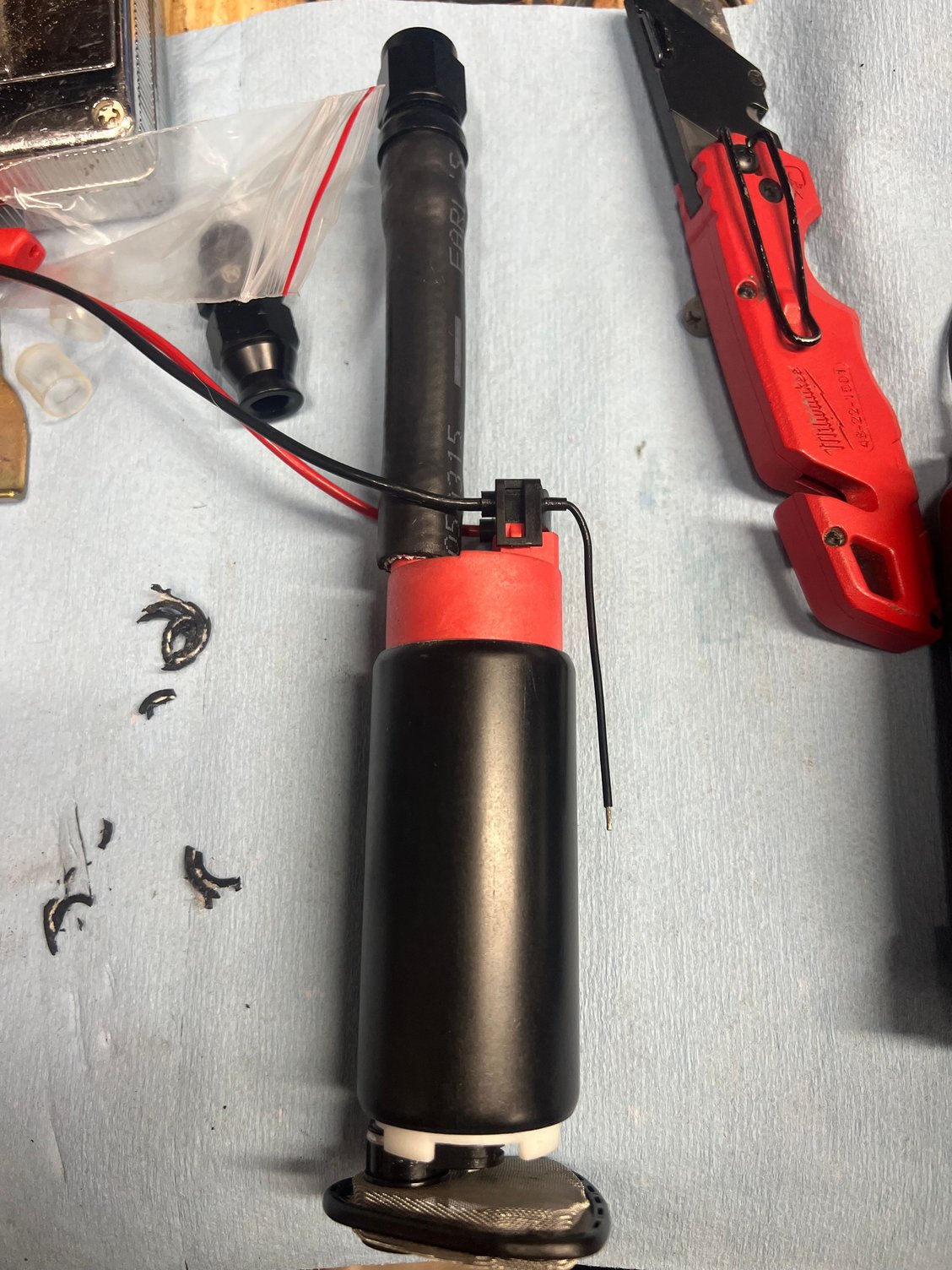

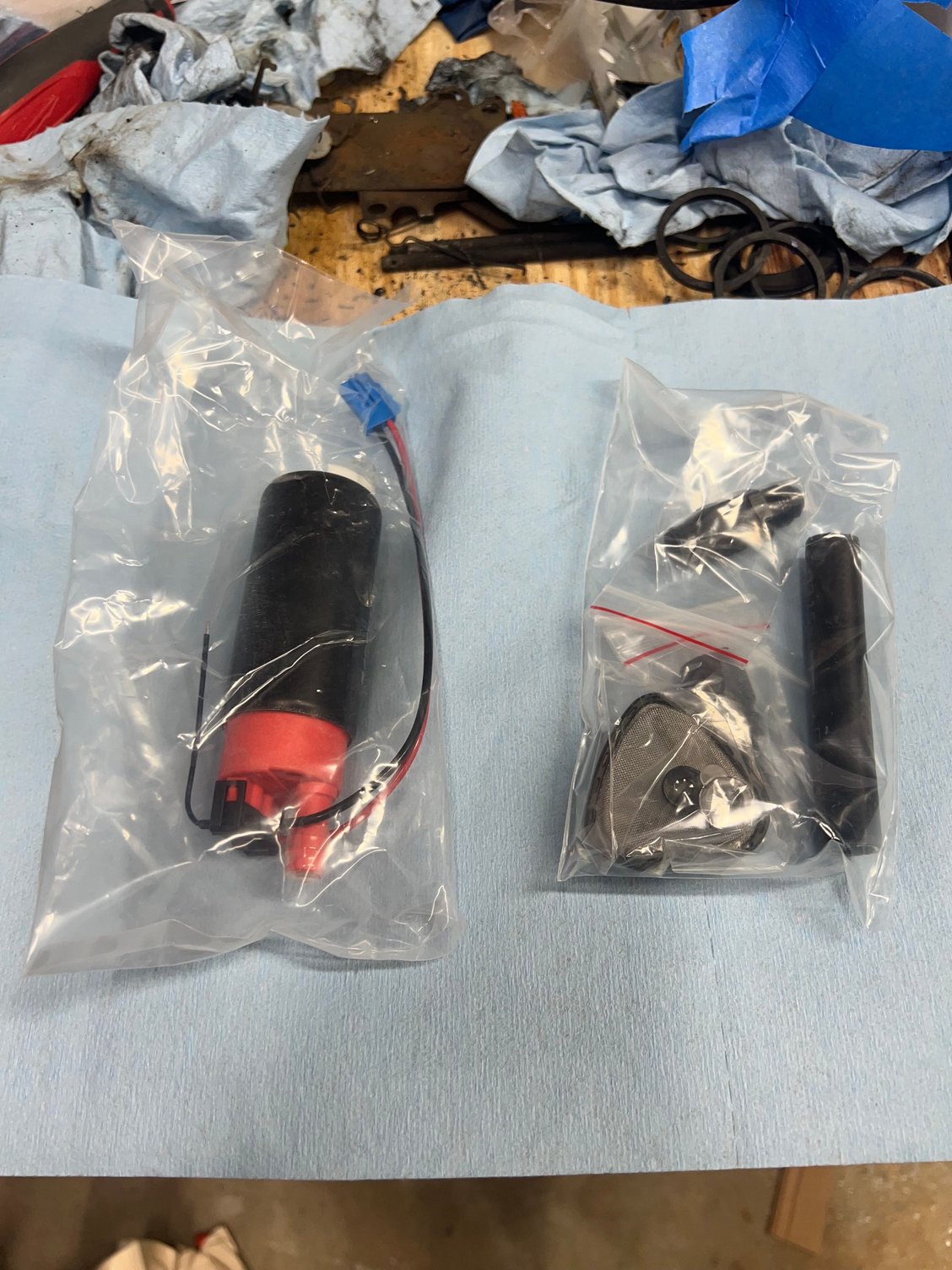

RaceOnly fuel pump upgraded. Good for 400ish hp
Getting it ready
Reminder of why the gas tank swap is needed.
Old tank
Out with the old
No rust! The first pleasant surprise on this car (expect lots of surprises on cars that sit for 15 years). Although it looks like a leaky diff.
Old tank
New (to me) tank
Replace my fuel hangar I stole from my blue car. Glad that one has a nice and clean gas tank. Original fuel pump as well.
RaceOnly fuel pump upgraded. Good for 400ish hp
Getting it ready
The following 3 users liked this post by TwinCharged RX7:
#123
Originally Posted by rotaryextreme
I like that screen on the bottom of the fuel pump, is the mesh fine enough to catch small debris that could affect the injector nozzle?
