New Product: FD3s Power FC Commander Holder (94-95 Only)
#1
New Product: FD3s Power FC Commander Holder (94-95 Only)

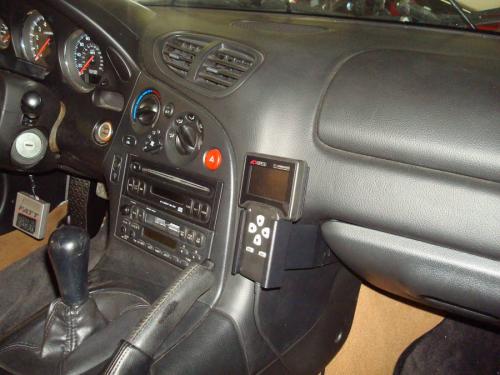

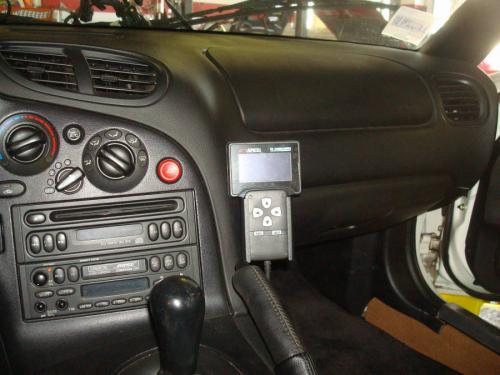

Finally sat down and designed a PFC Commander Holder that will fit LHD 94-95 FD3s Mazda RX-7.
Our Commander Holder will securely mount the APEXi Power FC Commander allowing the driver to safely view the display screen.
Aluminum construction with black powder coat finish to match interior.
Installs in the glove box with supplied hardware.
FD3s Commander Holder
Our Commander Holder will securely mount the APEXi Power FC Commander allowing the driver to safely view the display screen.
Aluminum construction with black powder coat finish to match interior.
Installs in the glove box with supplied hardware.
FD3s Commander Holder
#2
Installation instructions 94-95 Commander Holder Installation Instaructions

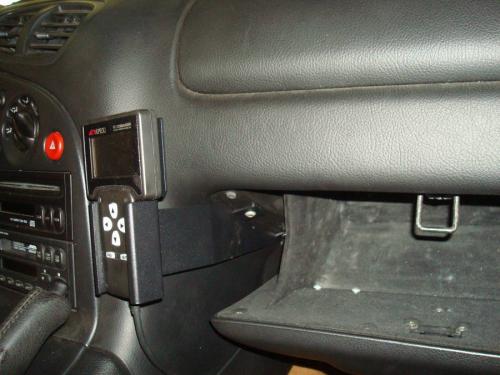

Lower glove box
Position holder so that it does not interfere with switch assemble and install self tapping screw in lower hole
Use 3/16" Bit to drill upper hole and 1/8" Allen wrench to install supplied bolt. Install spring nut on the bolt on the back side of the dash panel.
Reinstall glove box.
Lower glove box
Position holder so that it does not interfere with switch assemble and install self tapping screw in lower hole
Use 3/16" Bit to drill upper hole and 1/8" Allen wrench to install supplied bolt. Install spring nut on the bolt on the back side of the dash panel.
Reinstall glove box.
#6
Without seeing it could not tell you what you did incorrectly. The hardware is not thick enough to keep the glove box open, so I can only guess that you did not mount it in the correct position, either too high/low or not close enough to the dash.
