Where does these connector go?
03-20-13, 05:41 PM
#1
Where does these connector go?
I've done some research and even used many references but couldnt figure out where these connectors goes.
I've used FRONT ENGINE HARNESS trying to figure out the connector but was unable to. Maybe I am missing something.

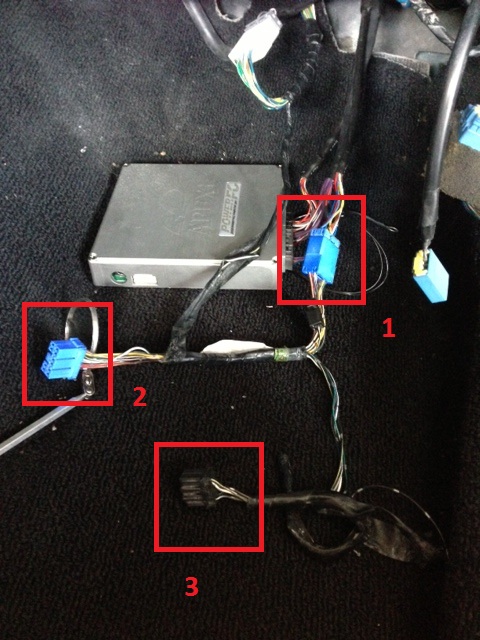

In this picture, connector #1 is from Engine harness which connected to the female side from Connector #2 harness. Where does connector #2 goes? It seem like it is an extension from connector #1. Please advice.
How about connector #3? Where does that go? I tried comparing the harness from HERE picture #1 and #4 but couldnt figure it out. Please advice.
Thanks in advance!
-AzEKnightz
I've used FRONT ENGINE HARNESS trying to figure out the connector but was unable to. Maybe I am missing something.
In this picture, connector #1 is from Engine harness which connected to the female side from Connector #2 harness. Where does connector #2 goes? It seem like it is an extension from connector #1. Please advice.
How about connector #3? Where does that go? I tried comparing the harness from HERE picture #1 and #4 but couldnt figure it out. Please advice.
Thanks in advance!
-AzEKnightz
03-20-13, 08:16 PM
#2
iirc that was the fan control harness that was added as part of a factory recall when the fd's use to "catch on fire". the dealers added this along with new fuel hoses. this was incorporated into newer harness. # 3 was plugged into a small black relay box. i still have this on my fd. i can take pics if you need. this relay would turn on the fans after you park and turn off the car.
03-20-13, 08:21 PM
#3
iirc that was the fan control harness that was added as part of a factory recall when the fd's use to "catch on fire". the dealers added this along with new fuel hoses. this was incorporated into newer harness. # 3 was plugged into a small black relay box. i still have this on my fd. i can take pics if you need. this relay would turn on the fans after you park and turn off the car.
So for connector #2, where does that go?
-AzEKnightz
03-21-13, 10:14 AM
#6
After reading your statement above, your answer was that #2 plugs into the ECU which takes place of #1. correct?

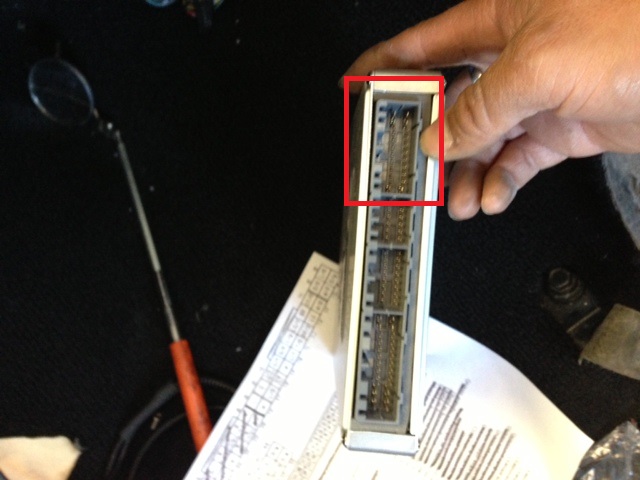

When you say ECU, did you mean the stock computer? Because I currently have a BNIB PFC and none of the connect in the rear looks correct to fit #2 connector.
-AzEKnightz
When you say ECU, did you mean the stock computer? Because I currently have a BNIB PFC and none of the connect in the rear looks correct to fit #2 connector.
-AzEKnightz
03-21-13, 04:26 PM
#7
Keep in mind the fan relay harness was also changed as part of the recall and may not be mutually exclusive of the patch harness. This changed the way the fans are powered and controllled in order to allow the fans to run with the key off.
There should be a complete schematic of the fan mod wiring somewhere on the forum. Some of the changes may have been incorporated into later production, iirc.
There should be a complete schematic of the fan mod wiring somewhere on the forum. Some of the changes may have been incorporated into later production, iirc.
Trending Topics
03-21-13, 05:50 PM
#8
After some extensive search and checking my custom single turbo harness...

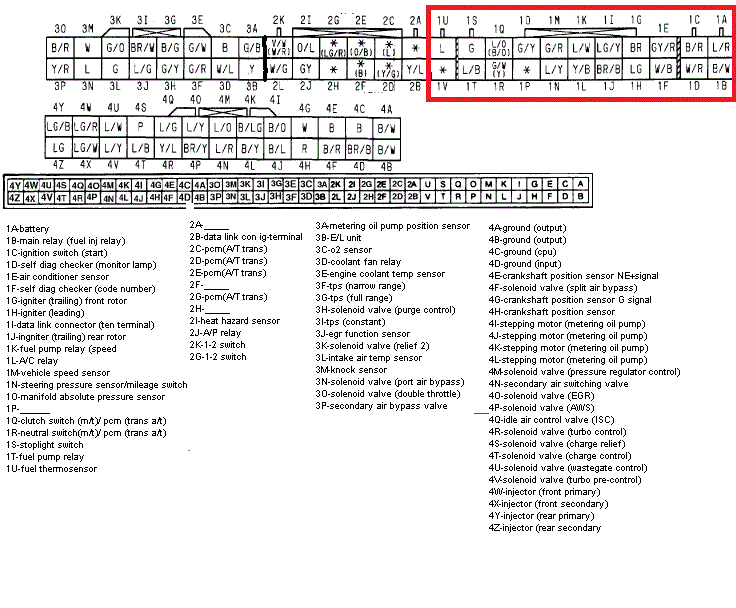

I found out I am missing this connector:
My question is: Which branch of harness should this connector be coming from?
According to the pin-out, I am assuming this connector should be coming from branch #1 here? Since the pin-out is pointing towards the battery, fuel pump relay etc etc.
Please advice. Thank you.
-Eric
I found out I am missing this connector:
My question is: Which branch of harness should this connector be coming from?
According to the pin-out, I am assuming this connector should be coming from branch #1 here? Since the pin-out is pointing towards the battery, fuel pump relay etc etc.
Please advice. Thank you.
-Eric
03-21-13, 05:56 PM
#9
After reviewing the harness connectors from Branch #1 shown above. The missing connector I need is not from that branch. However, I still couldnt figure out if it was suppose to be from Branch #4. If so, why isn't it here:

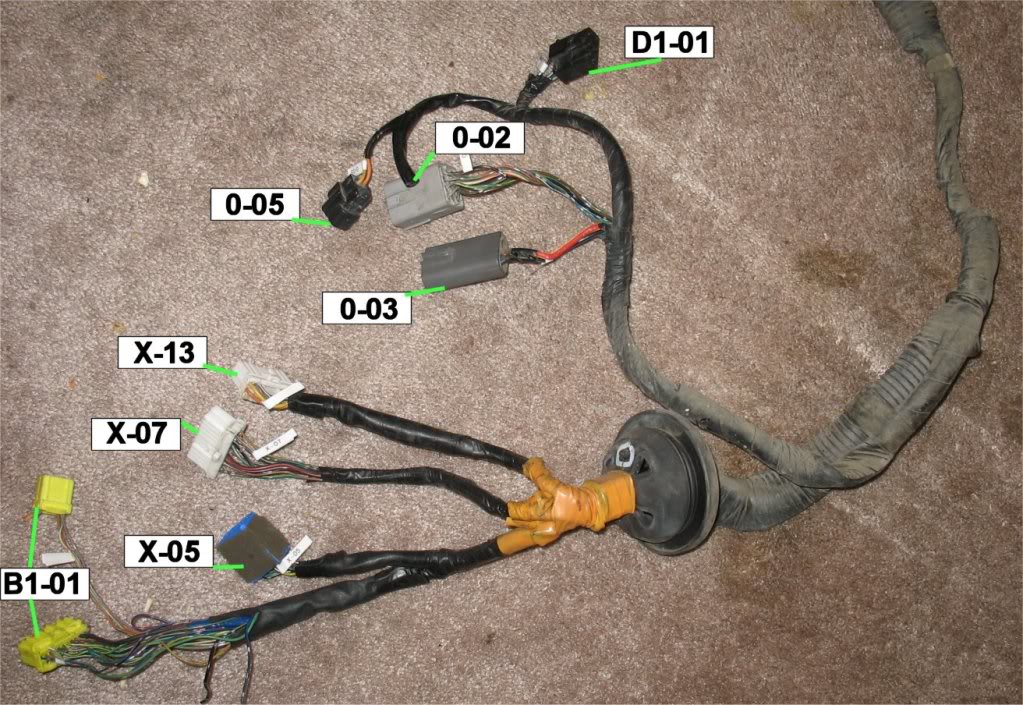

Block (4)
B1-01 – ECU #1
X-05 – Connector Between Front & Emission
X-07 – Connector Between Front & Dash
X-13 – Connector Between Front & Floor
0-03 – ABS Hydraulic Unit
0-05 - RF ABS Wheel Speed Sensor
0-02 – ABS Hydraulic Unit
D1-01 – Wiper Motor
-Eric
Block (4)
B1-01 – ECU #1
X-05 – Connector Between Front & Emission
X-07 – Connector Between Front & Dash
X-13 – Connector Between Front & Floor
0-03 – ABS Hydraulic Unit
0-05 - RF ABS Wheel Speed Sensor
0-02 – ABS Hydraulic Unit
D1-01 – Wiper Motor
-Eric
