Two weeks ago, I posted asking for this information and I was basically told it didn't exist and to read the electrical manual. Last weekend I took the time to make the images I was looking for. I figured that people, like me, looking to scale down their front harnesses could benefit from actual pictures of the connectors and spatial perspective of where they are located on the harness.

Having this would have saved me hours of work and is a great supplement to use with the electrical manual availible here:
http://foxed.ca/foxed/index.php?page=rx7manual#thirdgen
Hope it will help you guys out too



First image just gives you an overview of the harness. Block 1 and 4 are mostly the interior connectors that enter the cabin through the firewall on the drivers side (block 1) and the passenger side (block 4)



Block (1)

A1-03 – Starter Cut Relay
F1-01 – Hazard / Flasher Unit
X-09 – Connector Between Front & Air Bag
X-03 – Ignition Switch
X-04 – Combination Switch
J4-04 – Theft-Deterrent Control System - Option Switch
X-08 – Connector Between Front & Dash
X-10 – Connector Between Front & Rear
J4-01 - CPU #2
A1-04 - Starter Interlock Switch
JB-04 - Drivers Side Joint Box - Front Harness
JB-06 - Drivers Side Joint Box - Front Harness
X-06 – Connector Between Front & Instrument Panel
0-04 - LF ABS Wheel Speed Sensor
B1-09 – Igniter
B1-10 – AC Condenser
B1-05 - Fuel Pump Resistor
Q-04 – Cruise Control Actuator
C1-11 – Brake Fluid Level Sensor



Block (2)

X-02 – Relay Fuse Box
X-01 – Main Fuse Block
X-12 – Connector Between Front & Engine
E3-02 – LH Front Turn Signal
E1-03 – LH Retractable Headlight Actuator
F3-05 – LH Horn
E1-06 – LH Headlight
E1-11 – Foglight harness
E3-04 – LH Front Side Marker Light
D1-02 – Washer Motor
G-04 – A/C Refrigerant Pressure Switch
JC-01 - LH Joint Connector / Ground



Block (3)

B2-02 – Cooling Fan Relay #2
B2-01 – Cooling Fan Relay #1
E3-03 – RH Front Turn Signal
B2-03 – Cooling Fan Relay #3
E1-04 – RH Retractable Headlight Actuator
B2-04 – Cooling Fan Relay #4
J4-05 - Theft-Deterrent Control System - Hood Switch
B2-06 – Cooling Fan Motor #2
B2-05 – Cooling Fan Motor #1
F3-06 – RH Horn
JC-02 - RH Joint Connector / Ground
E1-07 – RH Headlight
E3-05 - RH Front Side Marker Light



Block (4)

B1-01 – ECU #1
X-05 – Connector Between Front & Emission
X-07 – Connector Between Front & Dash
X-13 – Connector Between Front & Floor
0-03 – ABS Hydraulic Unit
0-05 - RF ABS Wheel Speed Sensor
0-02 – ABS Hydraulic Unit
D1-01 – Wiper Motor



Lane

muibubbles

iTrader: (36)

awesomeeeee post! will use this in the future!

catch-22

iTrader: (2)

Sticky FTW.

mibad

Nice!

DaleClark

iTrader: (55)

EXCELLENT job. Really like the clear annotations!

Dale

Sgtblue

iTrader: (16)

Nicely done. Thanks.

sbnrx7

iTrader: (4)

Awsome. I know that took a lot of time to put together. Thanks from all.

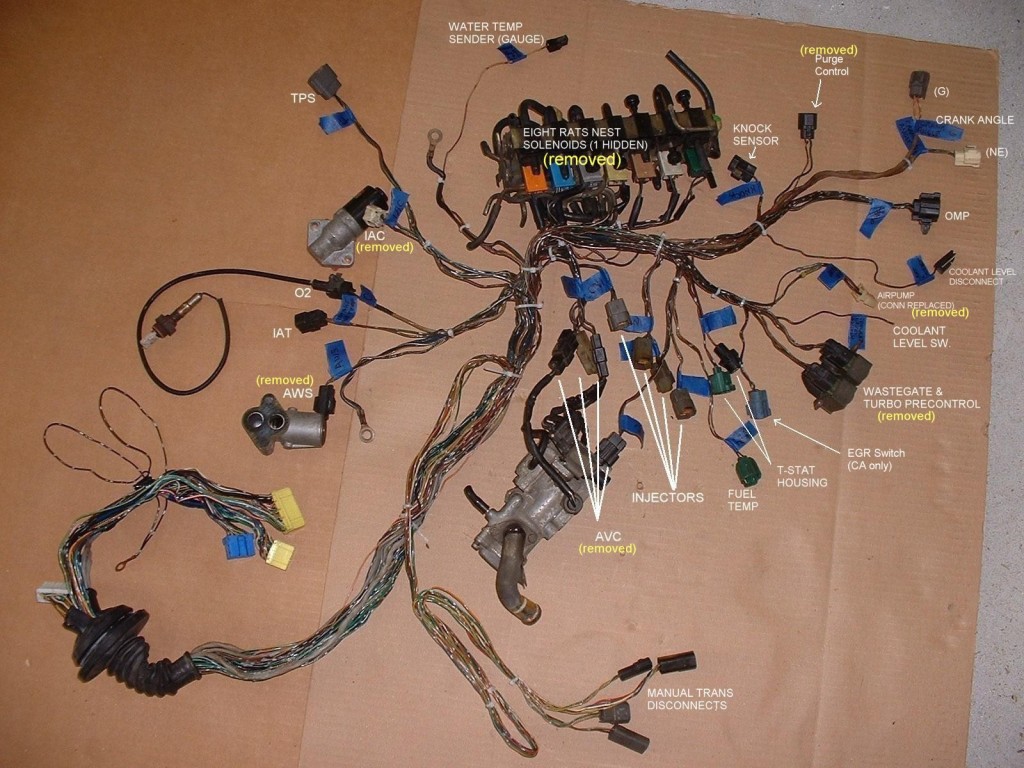

Here is a pic of the emission harness that another forum member did for us. If someone could post a pic of the engine harness this thread would be complete and fantastic for all. One stop shopping.



Steve

grimple1

iTrader: (1)

^^ that is the engine harness.

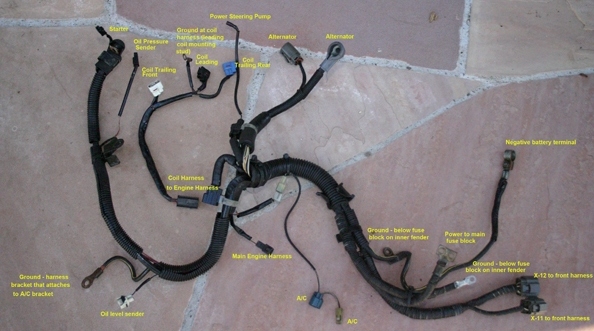

Here's the Battery Harness.



Here's the coil harness diagram:


Maybe I'll do the dash in a few days. Since it's one of the last.

sbnrx7

iTrader: (4)

Grimple1,
Check the FSM. It refers to the harness I posted as the "Emission Harness (EM)" and yours as the "Engine Harness (E)" not the battery harness. The OP covered the "Front Harness (F)". I just wanted to keep the names as they are referred to in the FSM to limit confusion. Ref page Z-7 in the 94' Wiring Diagram manual.

Steve.

Gringo Grande

iTrader: (97)

Need larger version of the battery harness or whatever it is! Can't make out the text! =)

Toyotarx7

iTrader: (13)

GREAT JOB!!!!!! this is handy!

grimple1

iTrader: (1)

fair enough. I've seldom heard anyone refer to it as the "emission harness". Everyone just naturally calls it the "engine harness" (even when purchasing a new one from the dealership).

milano maroon

iTrader: (1)

Several people have asked for a larger version of the Engine Harness. When I originally posted it I thought I was at the file size limit but I'll see what I can do to make it easier to read. I'll post it to this thread.

Jeff

SE\/EN

iTrader: (3)

This could have also saved me hours at one point!! Great to have available for quick refrence.

hwnd

iTrader: (4)

good work

gracer7-rx7

iTrader: (16)

added to the FAQ

gracer7-rx7

iTrader: (16)

uploading photos in case things on photo bucket change....

gracer7-rx7

iTrader: (16)

more

HalfSpec

iTrader: (14)

Thank you gentlemen. I'm happy that my work is FAQ worthy

hwnd

iTrader: (4)

A very valid next step should/could be to create the connectors/shapes in Visio and draft up some basic harness-designs with basic modifications (removed emissions, etc).

sbnrx7

iTrader: (4)

I just wanted to add this since there was some confusion with the harness names.

milano maroon

iTrader: (1)

I redid the lettering, hopefully it is more readable now.


Jeff

ArmitageGVR4

iTrader: (13)

Very good info, thanks for putting this up! If only I had access to this a few weeks ago when I was wiring my motor :P

HalfSpec

iTrader: (14)

Since we're not allowed to edit posts..... Here are two corrections:

Block (1)
B1-10 – Condenser (NOT AC Condenser like I listed above)

Block (2)
E1-05 - Headlight Relay (Missing above)

Sorry about that
Lane

billyboy

Still curious about this particular one - auto variant - should be in sector "3".

https://www.rx7club.com/showthread.p...ight=connector

Know it's been mentioned on here before too!
