Stock ECU for timing only with Carb
04-26-14, 09:56 PM
#1
Stock ECU for timing only with Carb
Has anyone else here done this before? I am ballin' on a budget here and need some information. I already found the ignition base map so I more or less know that it will run fine as N/A just wondering if I need to install resistors on any connectors to keep the ECU from flipping out.
Any help would be greatly appreciated.

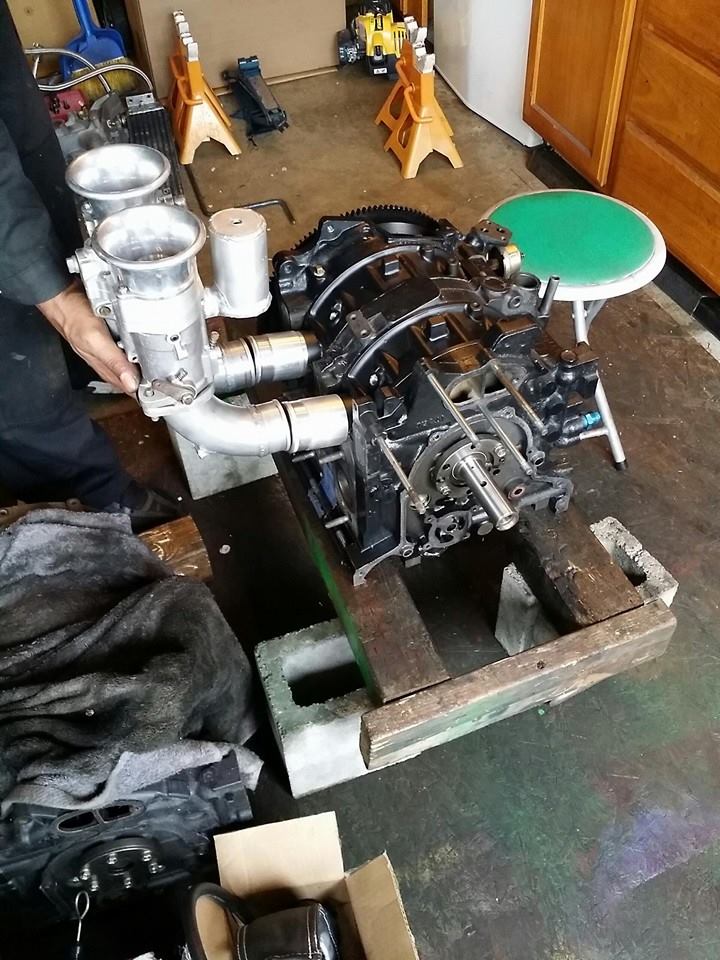

BTW, It is for a Peripheral Port powered N/A FD.
Any help would be greatly appreciated.
BTW, It is for a Peripheral Port powered N/A FD.
04-27-14, 01:27 PM
#2
Moderator
iTrader: (3)
Join Date: Mar 2001
Location: https://www2.mazda.com/en/100th/
Posts: 30,844
Received 2,605 Likes
on
1,848 Posts
i just got finished putting an REW and stock ecu into my FC, and the ECU made me wire up almost everything before it didn't have a fuel cut...
i would just buy a bunch of 15ohm resistors, or build a rack for all the solenoids/stuff you aren't using, so that they can all stay electrically plugged in, that way the ECU is happy, and you shouldn't have to worry about it.
if you did a resistor pack it could be made to be pretty small
i would just buy a bunch of 15ohm resistors, or build a rack for all the solenoids/stuff you aren't using, so that they can all stay electrically plugged in, that way the ECU is happy, and you shouldn't have to worry about it.
if you did a resistor pack it could be made to be pretty small
04-27-14, 05:09 PM
#3
Thanks for the input! Since I am not using the fuel side of the computer at all it should not have too many issues. I know it has a good OMP and I am connecting Knock sensor, temp sensor and switch (still using the stock wiring for the fans) I'll post up results.
Thanks again.
Thanks again.
04-27-14, 11:16 PM
#4
Moderator
iTrader: (3)
Join Date: Mar 2001
Location: https://www2.mazda.com/en/100th/
Posts: 30,844
Received 2,605 Likes
on
1,848 Posts
well who knows what timing does when it hits fuel cut? i'm really early in my testing but even the EGT management is very different between the FC and the FD, and its only like ~10 wires, i'd hook everything up.
the bonus is that the CEL will actually still work
the bonus is that the CEL will actually still work
04-28-14, 12:02 AM
#5
probably mainly need the omp, map, iat, coolent temp, tps, and cas connected for it to operate the timing portion properly( or close to it). perhaps the knock sensor as well.
when i was running the fd na , i had pretty much the whole solenoid rack unplugged, and it was throwing 9 different codes and seemed to run fine.
you could probably eliminate several of the sensors if they failsafe unplugged to a desireable setting
when i was running the fd na , i had pretty much the whole solenoid rack unplugged, and it was throwing 9 different codes and seemed to run fine.
you could probably eliminate several of the sensors if they failsafe unplugged to a desireable setting
Trending Topics
04-29-14, 11:35 AM
#9
Moderator
iTrader: (3)
Join Date: Mar 2001
Location: https://www2.mazda.com/en/100th/
Posts: 30,844
Received 2,605 Likes
on
1,848 Posts
fan speed 1, is with 1 relay powering both fan motors.
fan speed 2, there is 1 relay for each motor
and then the high is 4 relays for each motor.
04-29-14, 11:37 AM
#10
Moderator
iTrader: (3)
Join Date: Mar 2001
Location: https://www2.mazda.com/en/100th/
Posts: 30,844
Received 2,605 Likes
on
1,848 Posts
probably mainly need the omp, map, iat, coolent temp, tps, and cas connected for it to operate the timing portion properly( or close to it). perhaps the knock sensor as well.
when i was running the fd na , i had pretty much the whole solenoid rack unplugged, and it was throwing 9 different codes and seemed to run fine.
you could probably eliminate several of the sensors if they failsafe unplugged to a desireable setting
when i was running the fd na , i had pretty much the whole solenoid rack unplugged, and it was throwing 9 different codes and seemed to run fine.
you could probably eliminate several of the sensors if they failsafe unplugged to a desireable setting
05-01-14, 11:40 AM
#16
Moderator
iTrader: (3)
Join Date: Mar 2001
Location: https://www2.mazda.com/en/100th/
Posts: 30,844
Received 2,605 Likes
on
1,848 Posts
keep in mind that the P port is going to make 50hp MORE than the REW.
05-05-14, 11:11 AM
#18

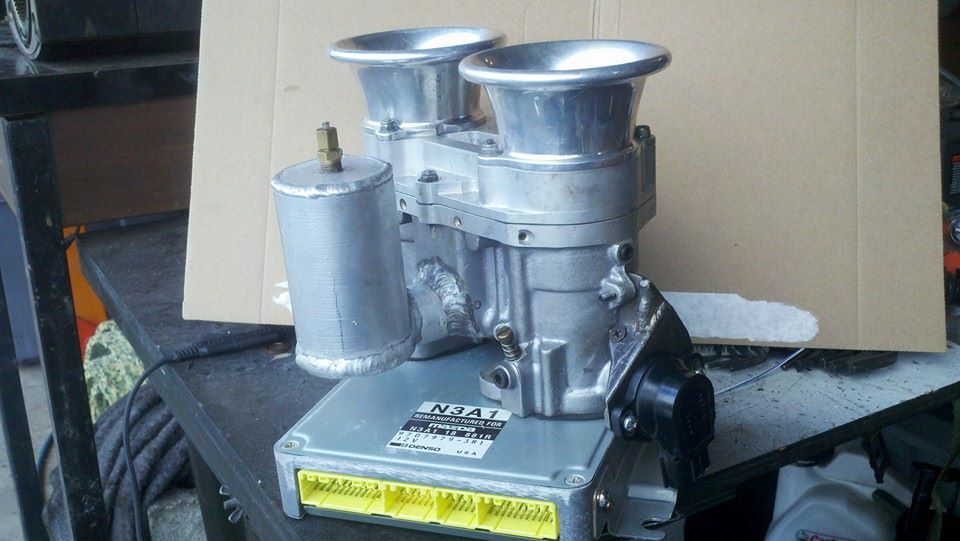

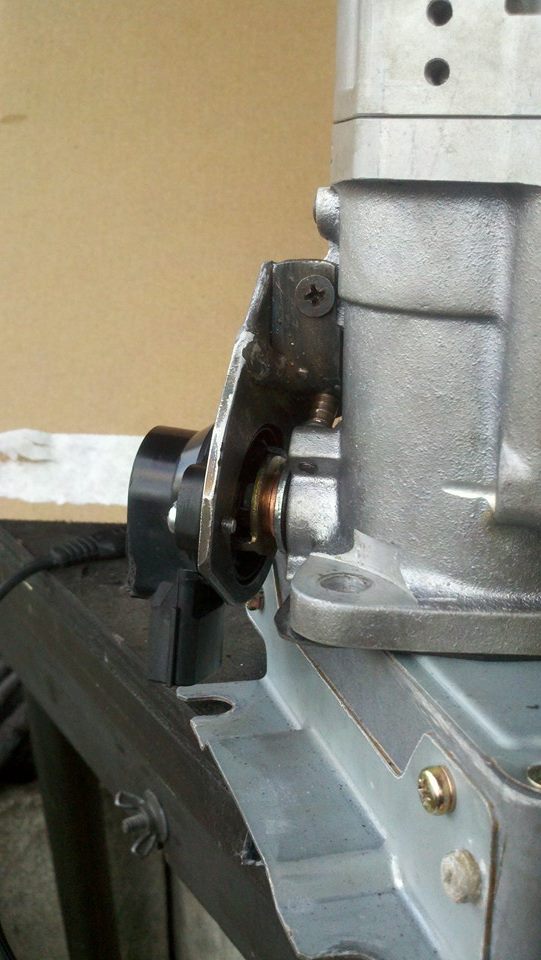

Well an update on this. I am almost done fabricating the TPS mount and will have more to report soon.
As for timing, at idle, 1800rpm it sits right at 18*BTDC. As soon as I give it throttle it drops to TDC which keeps it from reving over 3500, once it senses vacuum again then it goes back to 18*BTDC.
I will continue to play with this and keep you guys and gals informed.
As for timing, at idle, 1800rpm it sits right at 18*BTDC. As soon as I give it throttle it drops to TDC which keeps it from reving over 3500, once it senses vacuum again then it goes back to 18*BTDC.
I will continue to play with this and keep you guys and gals informed.
05-05-14, 07:12 PM
#19
Moderator
iTrader: (3)
Join Date: Mar 2001
Location: https://www2.mazda.com/en/100th/
Posts: 30,844
Received 2,605 Likes
on
1,848 Posts
Well an update on this. I am almost done fabricating the TPS mount and will have more to report soon.
As for timing, at idle, 1800rpm it sits right at 18*BTDC. As soon as I give it throttle it drops to TDC which keeps it from reving over 3500, once it senses vacuum again then it goes back to 18*BTDC.
I will continue to play with this and keep you guys and gals informed.
As for timing, at idle, 1800rpm it sits right at 18*BTDC. As soon as I give it throttle it drops to TDC which keeps it from reving over 3500, once it senses vacuum again then it goes back to 18*BTDC.
I will continue to play with this and keep you guys and gals informed.
05-20-14, 09:59 AM
#21
Well I got everything working and the car runs great.
I do have one issue with the car after a very hard braking event. I jammed on the brakes pretty hard and it started to sound like it was flooding. If I revi it up past 5k it runs perfect but would not hold an idle. I messed with it yesterday and could not get a signal on my leading spark plug wires. So I put 2 different wires on there and a clean set of plugs, the ones I removed had a bit of fuel on them. Now I was getting signal off the wire for my timing light from the L2 spark plug but not L1, Car fired right up with NO PROBLEMS! I ran it for about 5 minutes and shut it off. Tried to start it 2 hours later and the same thing. Has anyone else had fowling problems similar to this before?
I do have one issue with the car after a very hard braking event. I jammed on the brakes pretty hard and it started to sound like it was flooding. If I revi it up past 5k it runs perfect but would not hold an idle. I messed with it yesterday and could not get a signal on my leading spark plug wires. So I put 2 different wires on there and a clean set of plugs, the ones I removed had a bit of fuel on them. Now I was getting signal off the wire for my timing light from the L2 spark plug but not L1, Car fired right up with NO PROBLEMS! I ran it for about 5 minutes and shut it off. Tried to start it 2 hours later and the same thing. Has anyone else had fowling problems similar to this before?
Last edited by ArmyOfOne; 05-20-14 at 10:00 AM. Reason: spelling :(
