hey everyone i got my first rotary the other week and when i was servicing it i realized the previous owner put a sandwich plate on the oil filter housing for oil pressure and temp and my stock height oil filters wont fit, can anyone give me the part number for a short oil filter to run until i get a oil filter relocation kit? right now i got a piaa filter but i cant find the part number on it



Assuming you didn’t buy a car without an oil filter, so what’s on there now?

It’s hard to imagine a smaller filter than the OEM size…..



The shop in Japan that was servicing my car before I imported it was using R-Magic oil filters which are shorter than the factory filters but I used a Factory filter and it still fit with the pedestal. I don't know if mine would be thinner than yours. You can see the filter height difference in my thread here Restoration Thread



it had a piaa z6 oil filter on it but i was looking it up and its the same size as a oem one. it looks like the pro tec replacement i got is actually like 1/2" taller than oem



This is the oil filter that was being used, they do not have part numbers on them but you can source them from a few shops, not sure if anybody in the states sells them thought. Shipping from Japan does not take long and isn't reall that expensive either from what I have found R-Magic Racing Energy Oil Filter 6pc Set - M20XP1.5 68Dx65Hmm - RHDJapan



Post a picture of it. I live in Japan, I can probably go to the store an match it up.



take the old one to the store and match it up- easy- i have a pedestal also.



mobil m108a with the pedestal from banzai racing to eliminate the sandwich plate and retain your sensors



i appreciate it but shipping would be killer



When I get home I will look at the part numbers for you. I have some tall and short mazda filters. I had the same issue with a sandwich plate.



just change the filter pedestal and eliminate the sandwich, many options are available



Thanks for the info, I will check it.

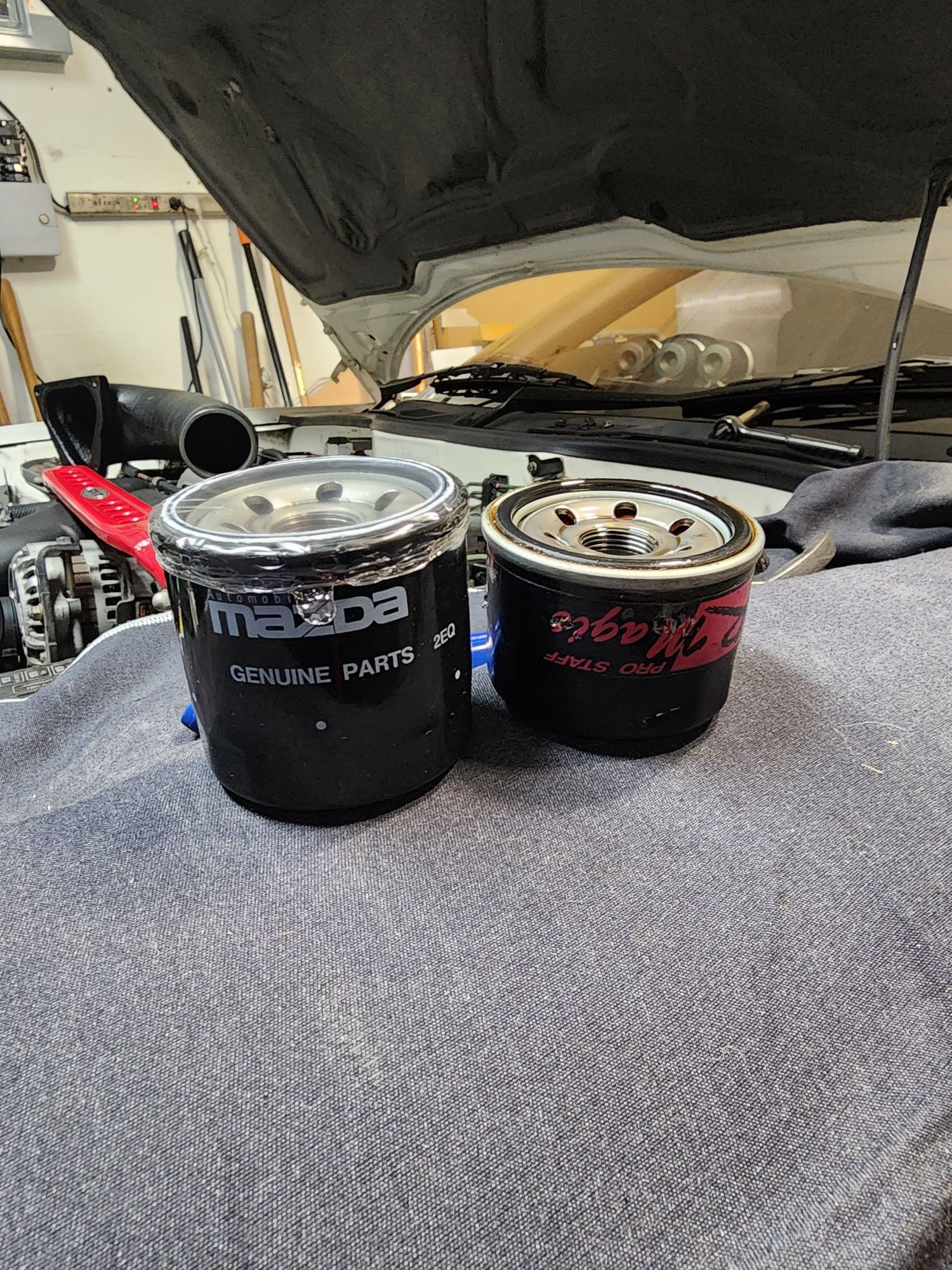

This is the OEM next to the R-Magic, OEM still cleared (barely) with the adapter on


The R Magic filter is shorter than factory, most likely because of the raised pedestal for the oil pressure and temp sensors

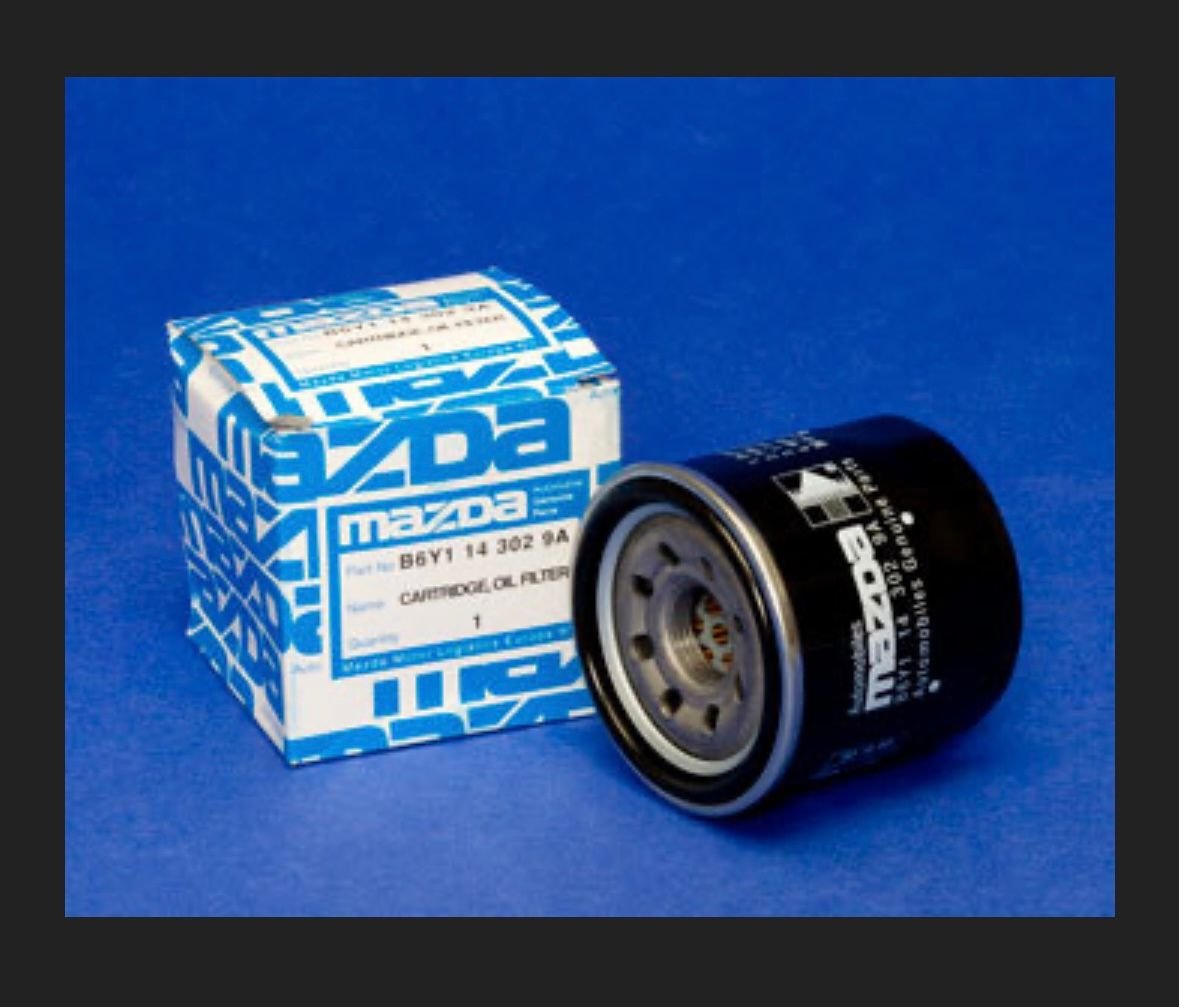

Sorry I got busy here are the pics.



hope this helps
