Only boosting to 7 psi
#1
Junior Member
Thread Starter
Only boosting to 7 psi
Hi all
The issue I've been having is the boost pattern is 7-5-7 instead of the typical 10-8-10. I also notice a distinctive lack of power too. I've seen a similar thread detailing the same issue I'm having, and the possible solutions being missing pills in the pre control and wastegate vacuum hoses, or that the precontrol and wastegate solenoid electrical connectors are crossed, however I'm having trouble with locating these as I'm new to the rotary engine. I've had a look at the vacuum line diagrams but still have been unable to make sense of any of it.
The previous owner said it was a sticky 2nd turbo actuator, however from my own research this doesn't seem to be correct.
I've attached 4 images, the first 2 being of what I believe is a solenoid that looks to have had the wire almost frayed through (which i'm wondering if it's one of the trouble solenoids in question), and the 3rd being of what I think are the 2 hoses, but even after consulting the vacuum diagram am still unsure.
Any help would be greatly appreciated.
Thanks
Michael
Zoomed out view for context in engine bay
Frayed solenoid

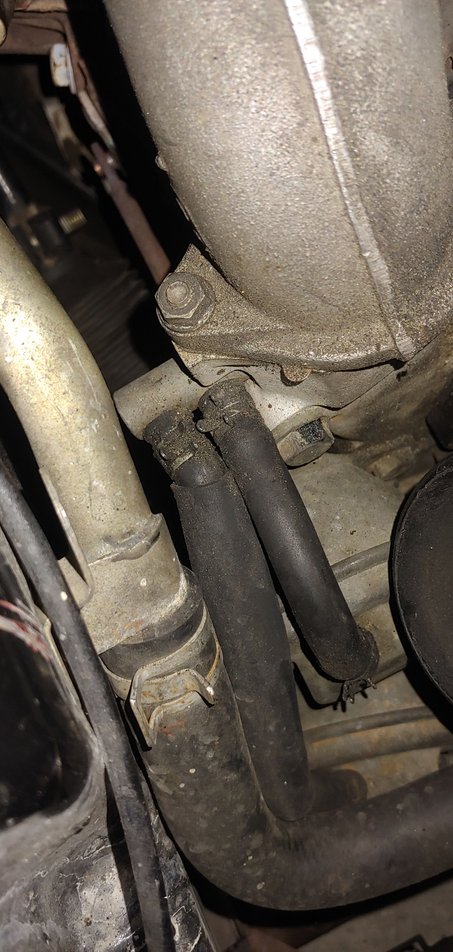

Pre control and Wastegate vacuum hoses?
The issue I've been having is the boost pattern is 7-5-7 instead of the typical 10-8-10. I also notice a distinctive lack of power too. I've seen a similar thread detailing the same issue I'm having, and the possible solutions being missing pills in the pre control and wastegate vacuum hoses, or that the precontrol and wastegate solenoid electrical connectors are crossed, however I'm having trouble with locating these as I'm new to the rotary engine. I've had a look at the vacuum line diagrams but still have been unable to make sense of any of it.
The previous owner said it was a sticky 2nd turbo actuator, however from my own research this doesn't seem to be correct.
I've attached 4 images, the first 2 being of what I believe is a solenoid that looks to have had the wire almost frayed through (which i'm wondering if it's one of the trouble solenoids in question), and the 3rd being of what I think are the 2 hoses, but even after consulting the vacuum diagram am still unsure.
Any help would be greatly appreciated.
Thanks
Michael
Zoomed out view for context in engine bay
Frayed solenoid
Pre control and Wastegate vacuum hoses?
#2
Junior Member
Thread Starter
Update: I've found the pre control and waste gate solenoids and looks like they're on the correct way. Now I'm just guessing that the pills are missing in the hoses. I've yet to find out where I can find these hoses and where the pills would be located inside them. Would they be up towards the solenoids or down towards the actuators? Thanks.
#3
Full Member
iTrader: (2)
This should help.
https://www.rx7club.com/3rd-generati...-turbo-749702/
The restrictor pills are on the wastegate and pre-control actuators in front of the turbo assembly (see above thread for better views). I believe your third picture shows them. Pinch the line. You should be able to feel it get harder where the restrictor pill is in them.
That first "solenoid" is your stock O2 sensor, btw.
https://www.rx7club.com/3rd-generati...-turbo-749702/
The restrictor pills are on the wastegate and pre-control actuators in front of the turbo assembly (see above thread for better views). I believe your third picture shows them. Pinch the line. You should be able to feel it get harder where the restrictor pill is in them.
That first "solenoid" is your stock O2 sensor, btw.
Last edited by JSpek92; 03-26-20 at 01:34 AM.
The following users liked this post:
Myaanz (03-26-20)
#4
Full Member
Any relevant mods to the car? Are you still on stock ECU?
#5
RX-7 Bad Ass
iTrader: (55)
If you are getting 7-5-7 the general turbo control is working like it should be. You'd have a big lack of secondary boost if the control system was at fault.
Either missing pills (which I doubt, those look like stock hoses), you have a decent sized boost leak (which is quite possible) or you have a badly cracked turbine housing around the wastegate.
+1 on what mods are on the car. I can see you have the 96+ Y-pipe on the car so that eliminates one major source for a boost leak.
Dale
Either missing pills (which I doubt, those look like stock hoses), you have a decent sized boost leak (which is quite possible) or you have a badly cracked turbine housing around the wastegate.
+1 on what mods are on the car. I can see you have the 96+ Y-pipe on the car so that eliminates one major source for a boost leak.
Dale
#6
Top of the food chain!!!
iTrader: (1)
I'm with Dale. The fact that there's still a boost "crossover" as the second turbo comes online tells us that the turbo actuators are working.
I'd look for boost leaks. The fact that 7psi is your max across the RPM band seems like you have a leak that simply doesn't hold any more than that.
I'd look for boost leaks. The fact that 7psi is your max across the RPM band seems like you have a leak that simply doesn't hold any more than that.
#7
Junior Member
Thread Starter
Engine was rebuilt by a reputable shop about 7000km ago. Adrenalinr full exhaust, stock ECU and that's about it really. Everything else is stock. Has 95k kms on the clock.
Trending Topics
#10
Junior Member
Thread Starter
Just took off both the pre control and waste gate hoses as shown in 3rd photo, and no pills in either of them. Exhaust is 3inch and has what looks to be stock cat towards the engine side of the exhaust.
#11
Junior Member
Thread Starter
Excuse my ignorance, but the y pipe is the section of piping the goes to the top of the turbos correct? Where could I locate this rubber connector?
#14
RX-7 Bad Ass
iTrader: (55)
Your car doesn't have that rubber connector. You have the later 96+ Y-pipe that bolts together instead of having a rubber coupler.
You may not have the pills in there since you have a stock ECU and a fairly open exhaust. With the pills you'd probably be running too much boost on the stock ECU. They may have removed them on purpose.
Dale
You may not have the pills in there since you have a stock ECU and a fairly open exhaust. With the pills you'd probably be running too much boost on the stock ECU. They may have removed them on purpose.
Dale
#15
Junior Member
Thread Starter
Your car doesn't have that rubber connector. You have the later 96+ Y-pipe that bolts together instead of having a rubber coupler.
You may not have the pills in there since you have a stock ECU and a fairly open exhaust. With the pills you'd probably be running too much boost on the stock ECU. They may have removed them on purpose.
Dale
You may not have the pills in there since you have a stock ECU and a fairly open exhaust. With the pills you'd probably be running too much boost on the stock ECU. They may have removed them on purpose.
Dale
#16
RX-7 Bad Ass
iTrader: (55)
You can, but I would be VERY careful. Stock ECU you wan to to go to 10psi MAX. Any more than that and you need an aftermarket ECU.
Dale
Dale
#17
Junior Member
Thread Starter
#18
RX-7 Bad Ass
iTrader: (55)
Yep. Most likely that's going to be it, you may also want to work with the shop that put everything together and verify their thinking about removing the pills. That sounds logical, though.
Dale
Dale
#19
TANSTAFL
iTrader: (13)
They don't simply replace the pills. You attach them between the compressor nipple and actuator, then block off the second nipple of the actuator. Don't just put a cheap rubber cap on the second nipple - it will rupture and you will overboost.
You will need one MBC for the precontrol. That will adjust your primary boost up to 4500 rpm. A second MBC for wastegate that will control your boost to redline.
I ran dual Hallman MBCs for years. They work, but you do give up some performance. There are nuances to the stock boost control system and solenoid duty cycling that provide better response and more consistency.
#20
Junior Member
Thread Starter
It's commonly called a MBC for manual boost controller. The Hallman ones aren't actually that cheap.
They don't simply replace the pills. You attach them between the compressor nipple and actuator, then block off the second nipple of the actuator. Don't just put a cheap rubber cap on the second nipple - it will rupture and you will overboost.
You will need one MBC for the precontrol. That will adjust your primary boost up to 4500 rpm. A second MBC for wastegate that will control your boost to redline.
I ran dual Hallman MBCs for years. They work, but you do give up some performance. There are nuances to the stock boost control system and solenoid duty cycling that provide better response and more consistency.
They don't simply replace the pills. You attach them between the compressor nipple and actuator, then block off the second nipple of the actuator. Don't just put a cheap rubber cap on the second nipple - it will rupture and you will overboost.
You will need one MBC for the precontrol. That will adjust your primary boost up to 4500 rpm. A second MBC for wastegate that will control your boost to redline.
I ran dual Hallman MBCs for years. They work, but you do give up some performance. There are nuances to the stock boost control system and solenoid duty cycling that provide better response and more consistency.
#21
TANSTAFL
iTrader: (13)
Oh yeah I thought you meant you were going to try MBCs first. Yeah the pills will be a good start.
You can put carb jets in there or make your own. From a couple of sources:
Wastegate (shorter hose TOP) - 0.064in (Drill # 52)
Precontrol (longer hose BOTTOM) - 0.059in (Drill # 53)
Stock Wastegate Pill is about .062"
Stock Turbo Pre-Control is about .058"
There's a lot of talk about playing with pill bores. I would leave that alone personally. I am running stock pills with many mods and two boost settings in PFC. They work fine for me.
You can put carb jets in there or make your own. From a couple of sources:
Wastegate (shorter hose TOP) - 0.064in (Drill # 52)
Precontrol (longer hose BOTTOM) - 0.059in (Drill # 53)
Stock Wastegate Pill is about .062"
Stock Turbo Pre-Control is about .058"
There's a lot of talk about playing with pill bores. I would leave that alone personally. I am running stock pills with many mods and two boost settings in PFC. They work fine for me.
