Turbo boost issue, any advice?
#1
Senior Member
Thread Starter
Turbo boost issue, any advice?
I've had a heck of a time diagnosing this problem.
When I apply WOT, i will hit 0psi, and then it will slowly rise to around 5psi. When I hit 4500 rpm, the secondary turbos cause my boost to rise to about 10psi, but it is extremely shaky, bounces back and forth between 8 and 10 psi. I'm assuming this is a leak, but I'm not sure where to check.
I have silicon couplers for all of my large diameter pipes, and I have screw hose clamps on all but the ABV (BOV). The BOV fittings seem tight with the stock hose clamps.
I do believe I hear air leaking when I engage the secondary turbos, but obviously I have no idea where to look if this is indeed a leak...
Any ideas of where I should check first without ripping apart this engine.
Oh, and I replaced all of my vacuum hoses with silicon hoses around 7 years ago. They 'seem' to be holding up just fine, so I don't think I need to remove my manifold and look at the rats nest...
When I apply WOT, i will hit 0psi, and then it will slowly rise to around 5psi. When I hit 4500 rpm, the secondary turbos cause my boost to rise to about 10psi, but it is extremely shaky, bounces back and forth between 8 and 10 psi. I'm assuming this is a leak, but I'm not sure where to check.
I have silicon couplers for all of my large diameter pipes, and I have screw hose clamps on all but the ABV (BOV). The BOV fittings seem tight with the stock hose clamps.
I do believe I hear air leaking when I engage the secondary turbos, but obviously I have no idea where to look if this is indeed a leak...
Any ideas of where I should check first without ripping apart this engine.
Oh, and I replaced all of my vacuum hoses with silicon hoses around 7 years ago. They 'seem' to be holding up just fine, so I don't think I need to remove my manifold and look at the rats nest...
Last edited by Androidmj; 05-05-12 at 11:56 AM. Reason: new info
#2
Senior Member
Thread Starter
One more thing...
I have/am going though the boost test from autosportracetech.com.
The second step says to remove the double throttle actuator vacuum line and that there should be no vacuum present? When I remove this, my vacuum on my boost gauge does not change at all.
I have/am going though the boost test from autosportracetech.com.
The second step says to remove the double throttle actuator vacuum line and that there should be no vacuum present? When I remove this, my vacuum on my boost gauge does not change at all.
#3
Full Member
iTrader: (5)
no boost gauge needed
precontrol/wastegate solenoids may be done. bad precontrol could be dumping exhaust into the second turbo before the primary is pumping 10psi. wastegate solenoid could be having trouble during duty control.
check the wire colors to make sure the right plugs are on the right solenoids.
they all have the same B/W wire, but check the other one.
Y/L is turbo control vacuum. bolted to acv behind the precontrol/wastegate solenoids
L/Y is Precontrol
L/W is Wastegate (also has a white dot on the connector and solenoid)
#6
Senior Member
Thread Starter

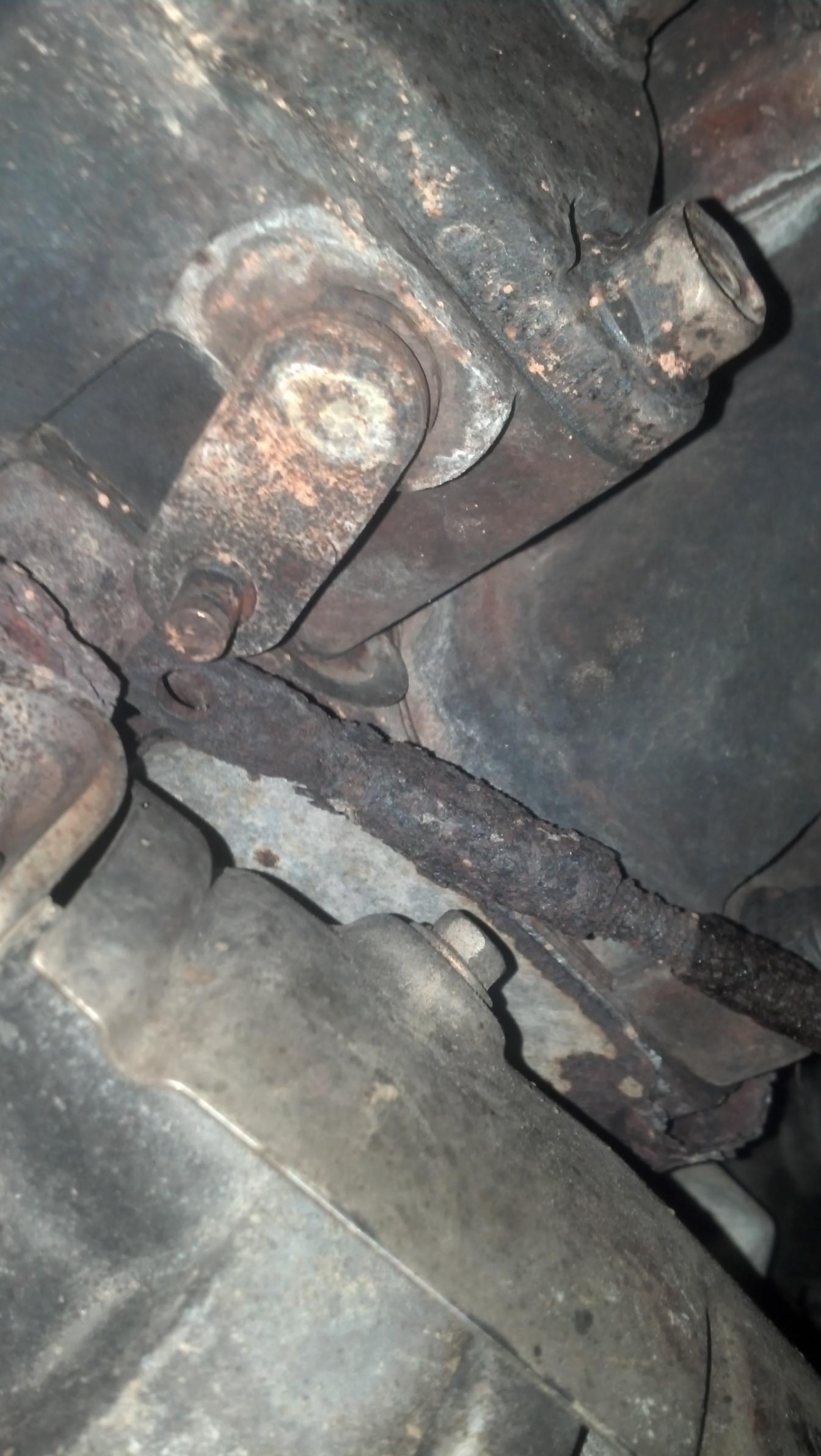

Ok found the problem with the primary turbo...the actuator rod came off. Now my secondary turbo sounds soundssounds like i have a boost leak. Solid boost until 4500 rpm then falls to 5psi and sounds like air is leaking. Hopefully ill have it all worked out tomorrow.
Last edited by Androidmj; 05-05-12 at 09:03 PM. Reason: sparkling
#7
Full Member
iTrader: (5)
i tapped in to the hose that goes from rats nest to the pipes behind the air pump with a tee fitting. then hooked it up to my boost gauge and went for a drive.
when cold- the gauge read 0psi. when i got to 4500, the gauge switched to vacuum.
when hot (problem temp)- the gauge read 0psi. at 4500, it didnt switch to vacuum like it was supposed to.
i also jacked up the car and verified that the actuator worked with both vacuum and pressure separately.
Trending Topics
#8
Senior Member
Thread Starter
i recently had this problem. the turbo control solenoid had gone bad. lucky for me it only acted up when it was hot so i could diagnose it easily.
i tapped in to the hose that goes from rats nest to the pipes behind the air pump with a tee fitting. then hooked it up to my boost gauge and went for a drive.
when cold- the gauge read 0psi. when i got to 4500, the gauge switched to vacuum.
when hot (problem temp)- the gauge read 0psi. at 4500, it didnt switch to vacuum like it was supposed to.
i also jacked up the car and verified that the actuator worked with both vacuum and pressure separately.
i tapped in to the hose that goes from rats nest to the pipes behind the air pump with a tee fitting. then hooked it up to my boost gauge and went for a drive.
when cold- the gauge read 0psi. when i got to 4500, the gauge switched to vacuum.
when hot (problem temp)- the gauge read 0psi. at 4500, it didnt switch to vacuum like it was supposed to.
i also jacked up the car and verified that the actuator worked with both vacuum and pressure separately.
#9
Senior Member
Thread Starter
I completed this test from http://www.autosportracetech.com/RX-...g.htm#Pressure
"A simple test for the Charge Control Actuator is to start the engine and let it idle, the actuator rod will be pulled in. Stop the engine and remove the hose from Chamber A and the actuator rod will be out, see also Boost Test Step 5."
When my car shuts off, the rod pushes out immediately before I can remove the hose from chamber A.
Does this help diagnose my issue?
"A simple test for the Charge Control Actuator is to start the engine and let it idle, the actuator rod will be pulled in. Stop the engine and remove the hose from Chamber A and the actuator rod will be out, see also Boost Test Step 5."
When my car shuts off, the rod pushes out immediately before I can remove the hose from chamber A.
Does this help diagnose my issue?
#10
Full Member
iTrader: (5)
So when you hit 4500rpm, your boost dropped to almost 0psi? I'm struggling to fix this. I boost great with the primary, but when the secondary is supposed to go on, it drops down to between 0 and 5psi. I also hear a high pitched sound when I let off the gas above 4500, and a POP out of my exhaust (probably from unburned fuel because the turbos are not providing enough air).
this will let you test drive and determine whether the solenoid is working properly.
When you do this, you will not read actual boost pressure in the manifold because the hose is not going to the manifold.
this is testing the Vacuum System for leaks. Not the CCA.
CLICK ON BOOST STEP 5 and see its not testing the CCA.
since the CCA is actuating, it is probably not the issue. you can KOKO test it and see it move each time. that is the test for CCA
Last edited by nismosilvia270r; 05-06-12 at 04:19 PM.
#12
Full Member
iTrader: (5)
I boost great with the primary, but when the secondary is supposed to go on, it drops down to between 0 and 5psi. I also hear a high pitched sound when I let off the gas above 4500, and a POP out of my exhaust (probably from unburned fuel because the turbos are not providing enough air).
the CCA relies on the pressure produced by the secondary turbo. if the turbo control actuator does not turn on the secondary turbo all the way, then there is not enough pressure to equal the primary boost and the CCA will not work.
start with the turbo control solenoid/actuator by doing that test i show above
#13
Senior Member
Thread Starter
although it may seem like a CCA issue because the pressure drops off after the switch, it is not.
the CCA relies on the pressure produced by the secondary turbo. if the turbo control actuator does not turn on the secondary turbo all the way, then there is not enough pressure to equal the primary boost and the CCA will not work.
start with the turbo control solenoid/actuator by doing that test i show above
the CCA relies on the pressure produced by the secondary turbo. if the turbo control actuator does not turn on the secondary turbo all the way, then there is not enough pressure to equal the primary boost and the CCA will not work.
start with the turbo control solenoid/actuator by doing that test i show above
#14
Senior Member
Thread Starter
Ok, tried several things to no avail.
I replaced the turbo control solenoid, the second turbo control solenoid, and the charge control solenoid.
When I switch over to my secondary, or go WOT above 4500 rpm, I get 2psi, and when I let off the gas I hear a 1 second sound that sounds like someone rolling their R in spanish for 1 second. or perhaps the turbo winding down.
Does this mean my secondary turbo is shot, or that the turbo actuator is not opening? Any ideas?
I replaced the turbo control solenoid, the second turbo control solenoid, and the charge control solenoid.
When I switch over to my secondary, or go WOT above 4500 rpm, I get 2psi, and when I let off the gas I hear a 1 second sound that sounds like someone rolling their R in spanish for 1 second. or perhaps the turbo winding down.
Does this mean my secondary turbo is shot, or that the turbo actuator is not opening? Any ideas?
#16
Senior Member
Thread Starter
#18
Full Member
Join Date: Mar 2007
Location: Varberg, Sweden
Posts: 119
Likes: 0
Received 0 Likes
on
0 Posts
Did you solve the problem? Was your secondary turbo toast? If the nut came loose you will have plenty of aluminum in the intercooler and have to replace it.
I have the same problem that you describe. Gonna check my turbo control actuator and solenoid.
I have the same problem that you describe. Gonna check my turbo control actuator and solenoid.
