One possible fix for the 'click/click/start' problem: remove oem security relay

3rd Generation Specific (1993-2002) 1993-2002 Discussion including performance modifications and Technical Support Sections.

One possible fix for the 'click/click/start' problem: remove oem security relay

Old 08-01-10, 02:05 AM
  #76
Senior Member

rousu's Avatar

Join Date: Dec 2002
Location: Redmond WA
Posts: 306
Liked 0 Times in 0 Posts
Pettit seems to have fixed things

Originally Posted by rousu View Post
After years of the zoom, click-zoom, click-click-zoom, click-click-...-click-zoom problem, in a context wherein it always finally started, I finally got a no-start away from home, late at night.

The mechanic found a loose connection of the wire that attaches to the starter solenoid, and claims to have it fixed. It will be interesting to see if the same old problem recurs, or whether the bad connection was a part of the resistance drop that was causing the problem.

Another tid-bit: The Pettit racing relay that some report fixes the problem is now $39, if you don't want to assemble your own relay.

cheers
The broken wire was a new problem, and the click, click nothing, click start phenomenon started up again. So I put in the Pettit relay. It has been over a month, and every turn of the key has resulted in the starter engaging since the relay was installed. I am hoping this continues, but I'm happy for now.
rousu is offline
Old 09-22-10, 01:49 PM
  #77
BDC
BDC Motorsports
10 Year Member

BDC's Avatar

Join Date: Jun 2002
Location: Grand Prairie, TX
Posts: 3,667
Likes: 0
Liked 1 Time in 1 Post
Just wanted to give some input that this relay bypass solved a starting problem on a customer's car. Thanks Rich and Brent.

B
BDC is offline
Old 03-03-11, 09:00 PM
  #78
Full Member
iTrader: (3)

Join Date: Dec 2010
Location: West Palm Beach
Posts: 139
Likes: 0
Liked 0 Times in 0 Posts
I'm trying this the second I get home!!!

Originally Posted by BDC View Post
Just wanted to give some input that this relay bypass solved a starting problem on a customer's car. Thanks Rich and Brent.

B
Still_Ridin_Clean is offline
Old 04-26-11, 08:14 PM
  #79
DGRR 2017 4/26-4/30, 2017
iTrader: (13)

Herblenny's Avatar

Join Date: Nov 2001
Location: Alabama
Posts: 13,597
Likes: 0
Liked 1 Time in 1 Post
Like!
Herblenny is offline
Old 04-26-11, 08:36 PM
  #80
Senior Member
15 Year Member
iTrader: (10)

Join Date: Feb 2001
Location: CO
Posts: 259
Likes: 0
Liked 0 Times in 0 Posts
Anybody know how to completely disable the stock security system? Mine goes off intermittently when I unlock the doors and I'd just as well get rid of it.
Ryan95 is offline
Old 04-26-11, 08:37 PM
  #81
Planning my come back
10 Year Member
iTrader: (7)

MR_Rick's Avatar

Join Date: Feb 2003
Location: El Centro, Ca.
Posts: 3,393
Likes: 0
Liked 0 Times in 0 Posts
Forgo about this thread. Got to do this some time.
MR_Rick is offline
Old 05-24-11, 09:28 PM
  #82
Rotary Freak
iTrader: (20)

Rx7aholic's Avatar

Join Date: Feb 2001
Location: Morris Plains, NJ USA
Posts: 1,866
Likes: 0
Liked 1 Time in 1 Post
Ok i made my own relay boster however i don't know how pettit wires goes, does anyone have the pettit wiring guide on how to installed it to the starter?
Rx7aholic is offline
Old 05-25-11, 06:35 AM
  #83
iTrader: (7)

JdmRX's Avatar

Join Date: Dec 2008
Location: Philadelphia
Posts: 198
Likes: 0
Liked 0 Times in 0 Posts
I just installed the odyssey pc-1200 battery and the click/ start problem went away for me, guessing it did since it has 1200 cranking amps.....
JdmRX is offline
Old 05-25-11, 01:39 PM
  #84
wannaspeed.com
10 Year Member
iTrader: (23)

Dudemaaanownsanrx7's Avatar

Join Date: Feb 2003
Location: Texas
Posts: 2,802
Likes: 0
Liked 1 Time in 1 Post
Name:  starterbooster.jpg
Views: 734
Size:  32.9 KB

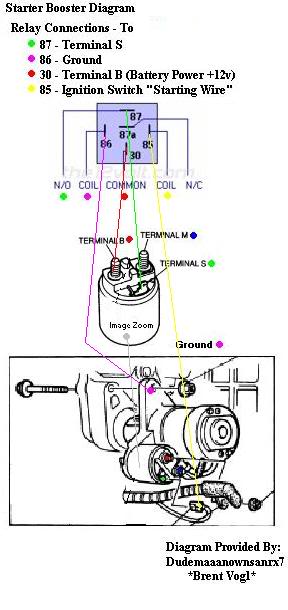

Name:  starterbooster2.jpg
Views: 703
Size:  32.3 KB
Dudemaaanownsanrx7 is offline
Old 05-26-11, 12:26 PM
  #85
NizzleMania Productions
5 Year Member
iTrader: (5)

MrNizzles's Avatar

Join Date: Jun 2007
Location: California
Posts: 685
Likes: 0
Liked 0 Times in 0 Posts
!Subscribed!

I have the jumper relay AND starter booster, but not installed yet, tho I don't have any starting issues. Starts cranking right away, tho it may take a couple secs before engine fires up.

And to (GoodFella) what was the part number of that fastener that Ray mentioned. I will add that to my next order from him. thnx.
MrNizzles is offline
Old 05-28-11, 01:00 AM
  #86
Newbie

Join Date: Nov 2008
Location: Beaverton, OR
Posts: 2
Likes: 0
Liked 0 Times in 0 Posts
Thank you so much for posting this! I had a main relay overnighted that I was able to cancel in time.
I have someone coming from a 4 hour drive away to buy my FD tomorrow and I was freaking out. Most of the posts on here say "low compression". I wonder how many unfortunate guys re-built/ replaced their motor or various other parts like I almost did. Thanks again for saving me the $$$$
vinylsignguy is offline
Old 05-31-11, 01:18 PM
  #87
Rotary Enthusiast
10 Year Member
iTrader: (5)

tom94RX-7's Avatar

Join Date: Apr 2005
Location: Pittsburgh, PA
Posts: 1,489
Likes: 0
Liked 1 Time in 1 Post
I just fixed the click click start problem on my car by using a jumper wire before the big clutch switch. I already had the security relay bypassed with a jumper wire, and I had the clutch switch locked in with a zip tie so my car would start with a remote starter and not have to push in the clutch. So apparently that clutch switch doesn't flow enough juice through it, now that switch is bypassed with a jumper wire and the starter works great now first try everytime so far today. Before I did this it was still clicking twice and usually working on the 3rd try, then after doing this it works everytime even when the battery voltage was dropping down to 11.6, it was 11.9 when i first started messing with it today.
tom94RX-7 is offline
Old 05-31-11, 01:19 PM
  #88
Rotary Enthusiast
10 Year Member
iTrader: (5)

tom94RX-7's Avatar

Join Date: Apr 2005
Location: Pittsburgh, PA
Posts: 1,489
Likes: 0
Liked 1 Time in 1 Post
Originally Posted by Ryan95 View Post
Anybody know how to completely disable the stock security system? Mine goes off intermittently when I unlock the doors and I'd just as well get rid of it.
I think if you disconnect the wires going to the hood latch switch for the alarm, the alarm won't work at all.
tom94RX-7 is offline
Old 10-31-11, 12:19 PM
  #89
1 of 187 ever made

pabloroto's Avatar

Join Date: Jun 2011
Location: Canada
Posts: 8
Likes: 0
Liked 0 Times in 0 Posts
It took me ten minutes to do this procedure.
Now my car starts every-time! I followed what it said to do and it is working perfectly! I am thinking of taking this to my local dealer who has no clue so they can read this.
pabloroto is offline
Old 11-08-11, 08:08 PM
  #90
Original Gangster/Rotary!

Thread Starter
iTrader: (205)

GoodfellaFD3S's Avatar

Join Date: Mar 2001
Location: FL-->NJ/NYC again!
Posts: 29,988
Liked 124 Times in 103 Posts
Just performed this simple mod on a buddy's FD and it worked like a charm
GoodfellaFD3S is offline
Old 11-08-11, 08:14 PM
  #91
Cav Scout
5 Year Member
iTrader: (4)

MazdaSpeedDan's Avatar

Join Date: Jul 2005
Location: Indiana
Posts: 1,091
Likes: 0
Liked 0 Times in 0 Posts
It worked for me for about 2 weeks then for some reason the problem came back. It seems like if I leave anything on after the car is off it wont work, but if I shut the radio and turn the fans off before I shut the car down it will work just fine.
MazdaSpeedDan is offline
Old 11-08-11, 08:26 PM
  #92
Rotary Enthusiast
10 Year Member
iTrader: (5)

tom94RX-7's Avatar

Join Date: Apr 2005
Location: Pittsburgh, PA
Posts: 1,489
Likes: 0
Liked 1 Time in 1 Post
Ya sometimes there is no clicks and sometimes there are 3 before it works. It comes down to the battery voltage for mine I think.
tom94RX-7 is offline
Old 11-08-11, 09:04 PM
  #93
Rotary Addict
iTrader: (2)

silver93rx7r1's Avatar

Join Date: Nov 2005
Location: Reading, Pa
Posts: 359
Liked 3 Times in 3 Posts
I might try to get a relay this weekend and wire up a starter booster too, because I am damn sick and tired of the click click start. I am always paranoid that one of these times I'm gonna get stranded somewhere cause my car won't start!

What gauge wire have you guys used when wiring up the relays?
silver93rx7r1 is offline
Old 11-08-11, 11:57 PM
  #94
roti
15 Year Member
iTrader: (3)

Join Date: May 2001
Location: Upstate NY for the moment
Posts: 105
Likes: 0
Liked 0 Times in 0 Posts
no click

I think almost every post on here people experience the click click...start. One other person described the no click no click then start. I've had to jump it a few times, other times it just starts, others it does'nt. Did the Pettit relay with no help. I have a Miata battery relocated to the inside.

I guess I will also try to jump this relay when I get it back. Currently about to go single.

I also did the cluth switch fix. What a pain.
galognu is offline
Old 11-14-11, 02:45 PM
  #95
Senior Member
10 Year Member
iTrader: (3)

Join Date: Feb 2004
Location: california
Posts: 339
Likes: 0
Liked 0 Times in 0 Posts
Originally Posted by DaleClark View Post
Glad this got bumped up. Here's the part numbers and such I used for my starter booster realy.

These were ordered from Allied Electronics -

Relay - G8JN-1C6T-F-DC12 about $7

Socket - BR05-SR PW5-1 about $8

The relay is a high quality Omron relay, and the socket is also very high quality. The socket already has the wires connected and terminated.

The bottom of the relay has a "skirt" that the socket fits up into. There's a rubber seal in there. Also, where the wires enter the socket are all sealed with rubber seals. No way that moisture and water will get in there and corrode the relay or terminals.

I mounted the relay to the driver's side frame rail. You can use the instructions for the Pettit starter booster as a guide to which wire goes where. I used high quality connectors everywhere, I think they were all gold plated, I got them from the parts store.

There is a middle wire in the socket that isn't used, I cut that wire off close to the socket and dabbed a little RTV in there. It's still weather tight with the cut wire, but that's how I roll .

When you install it, make sure there's enough slack on the wires for the engine to move if you mount it to the frame of the car. If it's too tight, the engine torquing can yank on the wires and break them over time.

My intention was to do this ONCE, not have some cheapie Ebay relay that would last a year before the contacts corroded. The price on the weathertight relay is very reasonable and it's easy to assemble and get going. This has totally solved my click-click-start problem.

I still think running a smaller than stock battery can contribute to the problem. Everything else on my car is as good as possible for a healthy electrical system.

Dale
Ordered these parts last week and built/installed the booster over the weekend. They didnt have the socket with pigtails so I got the regular WP socket and wired it up myself. I made the wires long enough so that the relay mounts in the engine bay. So far as of today I got no embarrassing clicks thank god.

The alarm relay by-pass did not work for me.

Thanks guys.
grego7 is offline
Old 11-17-11, 02:03 AM
  #96
Full Member
iTrader: (8)

JonnyQuestions's Avatar

Join Date: Jul 2011
Location: Las Vegas
Posts: 146
Likes: 0
Liked 0 Times in 0 Posts
So glad I read this. I thought I just had a low compression motor
JonnyQuestions is offline
Old 11-17-11, 04:46 PM
  #97
Rotary Addict
iTrader: (2)

silver93rx7r1's Avatar

Join Date: Nov 2005
Location: Reading, Pa
Posts: 359
Liked 3 Times in 3 Posts
Originally Posted by grego7 View Post
Ordered these parts last week and built/installed the booster over the weekend. They didnt have the socket with pigtails so I got the regular WP socket and wired it up myself. I made the wires long enough so that the relay mounts in the engine bay. So far as of today I got no embarrassing clicks thank god.

The alarm relay by-pass did not work for me.

Thanks guys.
What gauge wire did you use when wiring this up?
silver93rx7r1 is offline
Old 11-17-11, 05:49 PM
  #98
Rotary Enthusiast
5 Year Member
iTrader: (1)

Join Date: May 2003
Location: Dallas
Posts: 1,464
Likes: 0
Liked 0 Times in 0 Posts
interesting
this just happened to me today
does jumping that relay cause the door alarm to no longer work?
potatochobit is offline
Old 11-17-11, 09:01 PM
  #99
Senior Member
10 Year Member
iTrader: (3)

Join Date: Feb 2004
Location: california
Posts: 339
Likes: 0
Liked 0 Times in 0 Posts
I used 14 for power & ground and 16 for signal. Works so good now and starts with authority.
grego7 is offline
Old 11-18-11, 06:54 AM
  #100
Rotary Addict
iTrader: (2)

silver93rx7r1's Avatar

Join Date: Nov 2005
Location: Reading, Pa
Posts: 359
Liked 3 Times in 3 Posts
Originally Posted by grego7 View Post
I used 14 for power & ground and 16 for signal. Works so good now and starts with authority.
Thanks. I'm hoping to do this soon. Glad to hear this worked for you.
silver93rx7r1 is offline
