ejmack1

And does anyone have any pictures of that area?

66-4D0 = ?
18-66OB = ?

RE Suzuki

I asked for a "clutch switch" at a dealer and they gave me "66-4D0"

ejmack1

so is this what is basically used only for the cruise control?

Bad_Karma7

Clutch switch is the 18-66OB.

DaleClark

iTrader: (55)

The 66-4D0 is the switch that keeps you from starting the engine without pushing the clutch down. The other one is the one used by cruise control, the idle system, etc.

Dale

ejmack1

ok so it sounds like Bad Karma is right... if 66-4D0 is the switch that keeps you from starting the engine....

66-4D0 = Clutch Interlock
18-66OB = Clutch Switch

Correct?

DaleClark

iTrader: (55)

You got it. If you want, just do like I've done on countless FC's - bypass the interlock switch. Just jumper the connector and you're good to go. It's actually pretty handy if you're working on the car, since you can just lean in the window and start the car without getting in the car. Of course, you'll always have to check if the car is in gear or not.

Dale

ejmack1

its been like that for the past 2 years

1234rotor

iTrader: (1)

Yeah, I need a new clutch switch to fix my idle problem...it is soooo annoying.

FDjunkie

Here's a picture of the clutch pedal area. The red jumper wire was being used to temporarily bypass the starter-interlock switch.

Balefire

Bump. What part did I break next to my clutch pedal that I can't start my car? Thanks

SpinningDorito

iTrader: (2)

It looks like your clutch switch on the left is missing the rubber plunger, but I don't think that is the interlock switch that keeps your car from starting.

DaleClark

iTrader: (55)

Yep, you are missing the rubber bumper for the switch on the left. That is the one that will prevent starting the car.

Get some stick-on rubber chair feet from the hardware store, that will fix it.

Dale

Balefire

Any idea what part no this is?

SpinningDorito

iTrader: (2)

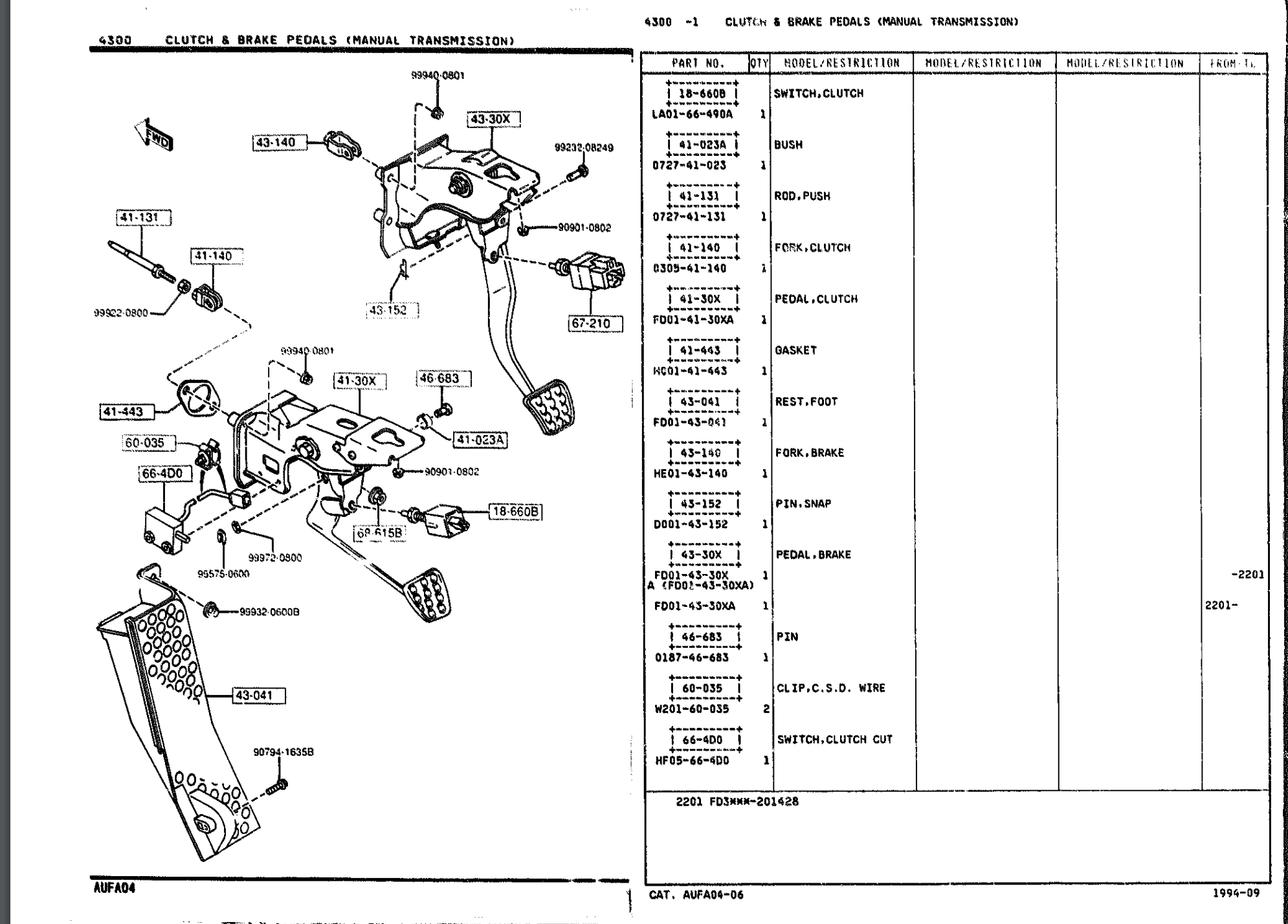

Should be hf05-66-4d0 if I am reading the fiche right, looks to be discontinued though.

Billy7

iTrader: (7)

Try Nissan Part # 46584S0100. It works for the Brake Light switch and the clutch switch. Perfect fitment!

Balefire

​​​​​​
Thx for the tip. Chair foot pad worked great as a temporary solution. Now on the hunt for a more permanent solution...
