Oil fill neck nipple?
#1
Oil fill neck nipple?
Today I went to remove the stock PCV valve from the oil filler neck and notice the other nipple that points straight down is not hooked up. Can any one please post a picture to where it suppose to hook up to? I know from reading it goes to the primary turbo inlet but where along the way does it connect to the inlet. So a picture would be great thanks
#3
ROTARY PUNX
iTrader: (9)

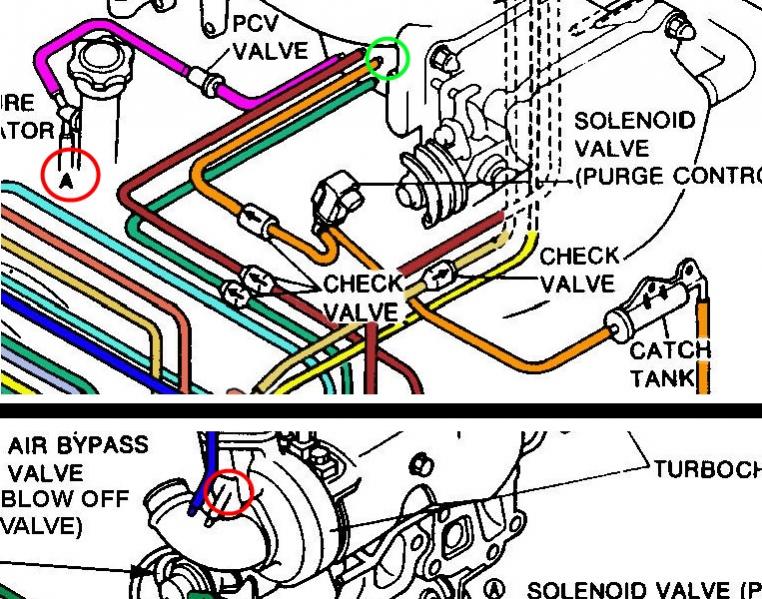

There is a metal vac line beneath the lower nipple you mention. That metal line has an output near secondary turbo. Should have a vac line running into the turbo inlet.
My setup.. I removed the PCV valve (capped it off), capped off the lower nipple, and ran the PCV nipple to a vented oil catch can.
My setup.. I removed the PCV valve (capped it off), capped off the lower nipple, and ran the PCV nipple to a vented oil catch can.
#4
There is a metal vac line beneath the lower nipple you mention. That metal line has an output near secondary turbo. Should have a vac line running into the turbo inlet.
My setup.. I removed the PCV valve (capped it off), capped off the lower nipple, and ran the PCV nipple to a vented oil catch can.
My setup.. I removed the PCV valve (capped it off), capped off the lower nipple, and ran the PCV nipple to a vented oil catch can.

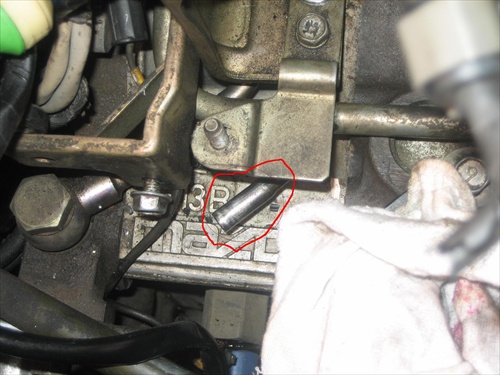

So is that metal line that goes to the turbo inlet in the pic i posted?
#5
On A Boat
iTrader: (16)
Yep, a hose goes from the filler neck to the metal line you have shown. Which the metal line leads out to another hose near the bottom of the thermostat housing (where all the other vacuum hoses are going down) and the hose connects to the primary turbo inlet elbow (you can trace the two lines up from the elbow and see the other end of the metal pipe). Does that make sense? My car is currently getting tuned so can't take a pic at the moment.
Or as Jonny listed if you wanted you could route it to a catch can or even get a long hose and run it to spray on the ground. I just keep mine hooked up to the primary turbo inlet elbow.
-Justin
Or as Jonny listed if you wanted you could route it to a catch can or even get a long hose and run it to spray on the ground. I just keep mine hooked up to the primary turbo inlet elbow.
-Justin
#6
Yep, a hose goes from the filler neck to the metal line you have shown. Which the metal line leads out to another hose near the bottom of the thermostat housing (where all the other vacuum hoses are going down) and the hose connects to the primary turbo inlet elbow (you can trace the two lines up from the elbow and see the other end of the metal pipe). Does that make sense? My car is currently getting tuned so can't take a pic at the moment.
Or as Jonny listed if you wanted you could route it to a catch can or even get a long hose and run it to spray on the ground. I just keep mine hooked up to the primary turbo inlet elbow.
-Justin
Or as Jonny listed if you wanted you could route it to a catch can or even get a long hose and run it to spray on the ground. I just keep mine hooked up to the primary turbo inlet elbow.
-Justin
Trending Topics
#8
#10
Thanks I got it. The line between the main turbo inlet and the metal line had a small pin hole and that’s why it wasn’t holding vacuum. I applied vacuum threw the hose that connects to the bottom nipple and plugged the hose that connects to the turbo inlet. I replaced the hose at the turbo inlet and now it holds vacuum.
#11
On A Boat
iTrader: (16)
just making sure here, it came across as a little confusing. you have it all reconnected right? as in you have the line and hose going from the lower nipple on the oil filler neck and connected to the primary turbo inlet elbow, correct? Just making sure, cause you mentioned capping it off and wasn't sure if you meant just for the test or what. cause the lower nipple has to have a way to vent so nothing should be capped off on that side of the fill neck. it should be routed to the primary inlet or to a catch can, should not be capped off.
#12
just making sure here, it came across as a little confusing. you have it all reconnected right? as in you have the line and hose going from the lower nipple on the oil filler neck and connected to the primary turbo inlet elbow, correct? Just making sure, cause you mentioned capping it off and wasn't sure if you meant just for the test or what. cause the lower nipple has to have a way to vent so nothing should be capped off on that side of the fill neck. it should be routed to the primary inlet or to a catch can, should not be capped off.
#13
Demit I just broke the nipple on my primary turbo inlet elbow. Now i am looking to buy one let me know if you have one of a low milage engine so it is not so brittle? Pics to existanzrx7@hotmail.com let me kown how much shipped? THnaks
