J-spec intermediate housing failure
01-31-08, 06:04 AM
#1
J-spec intermediate housing failure
We see lots of j-specs with your typical coolant seal retaining wall failure and blown apex seals but I felt this one was worth mentioning.
In this case the customer bought the engine and installed it, only to find that when he was filling it up with coolant it overflowed out the dipstick hole.

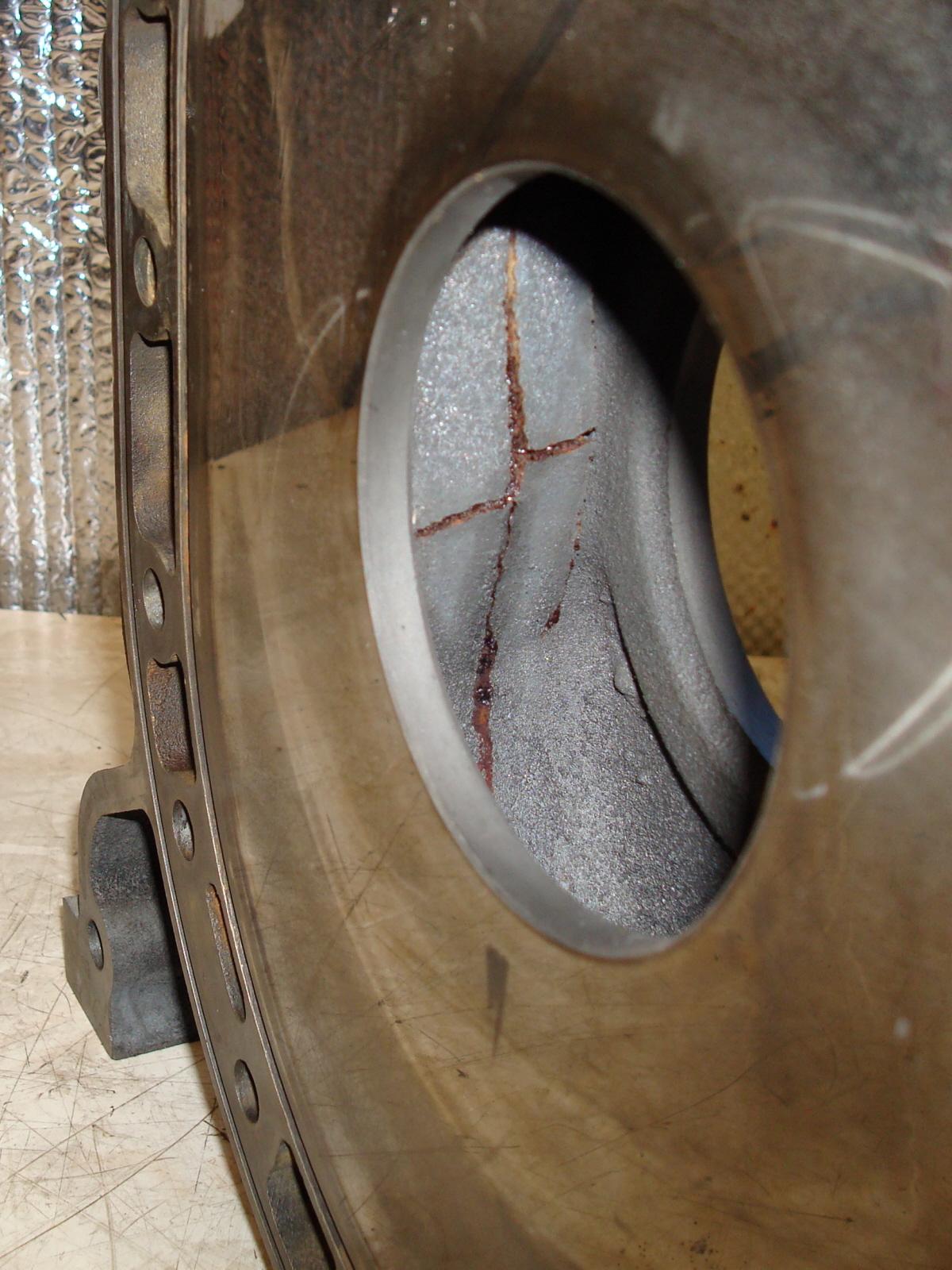

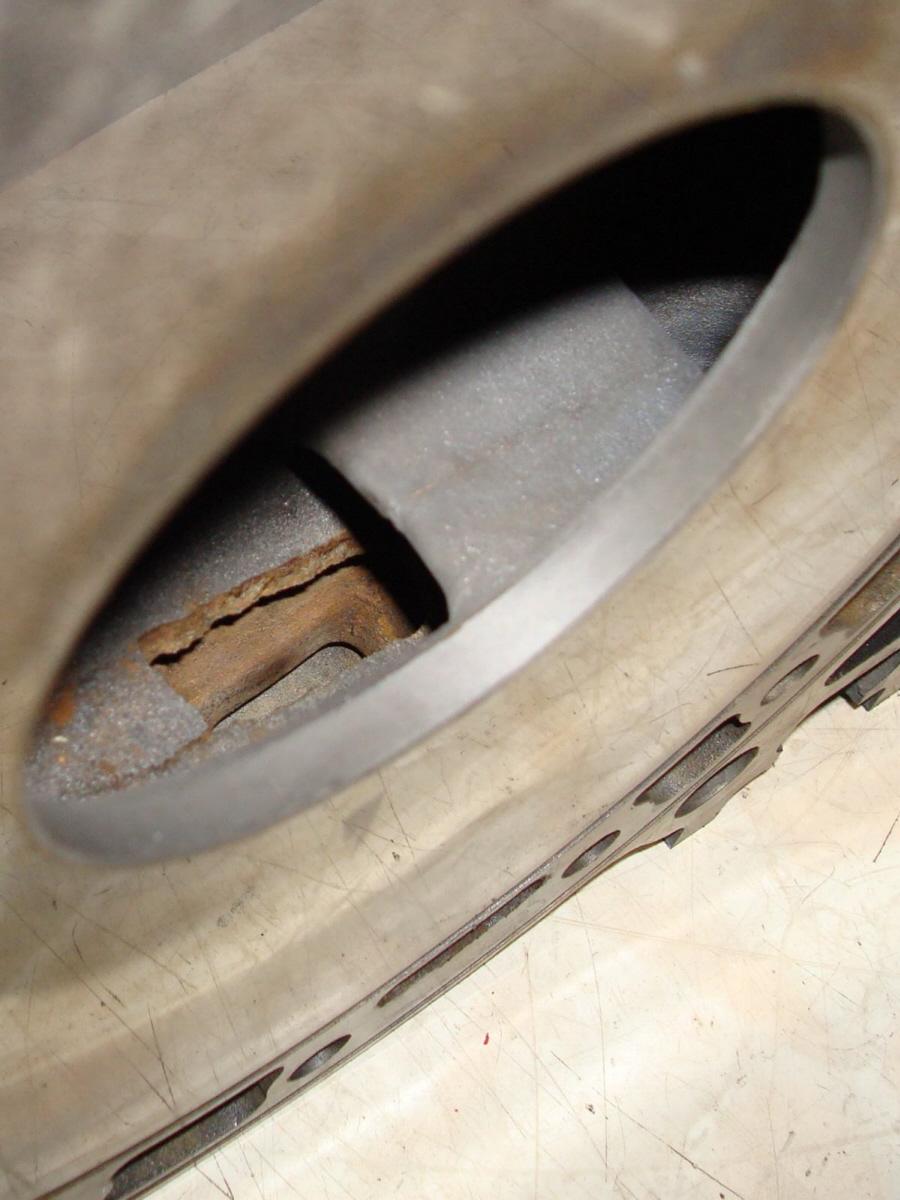

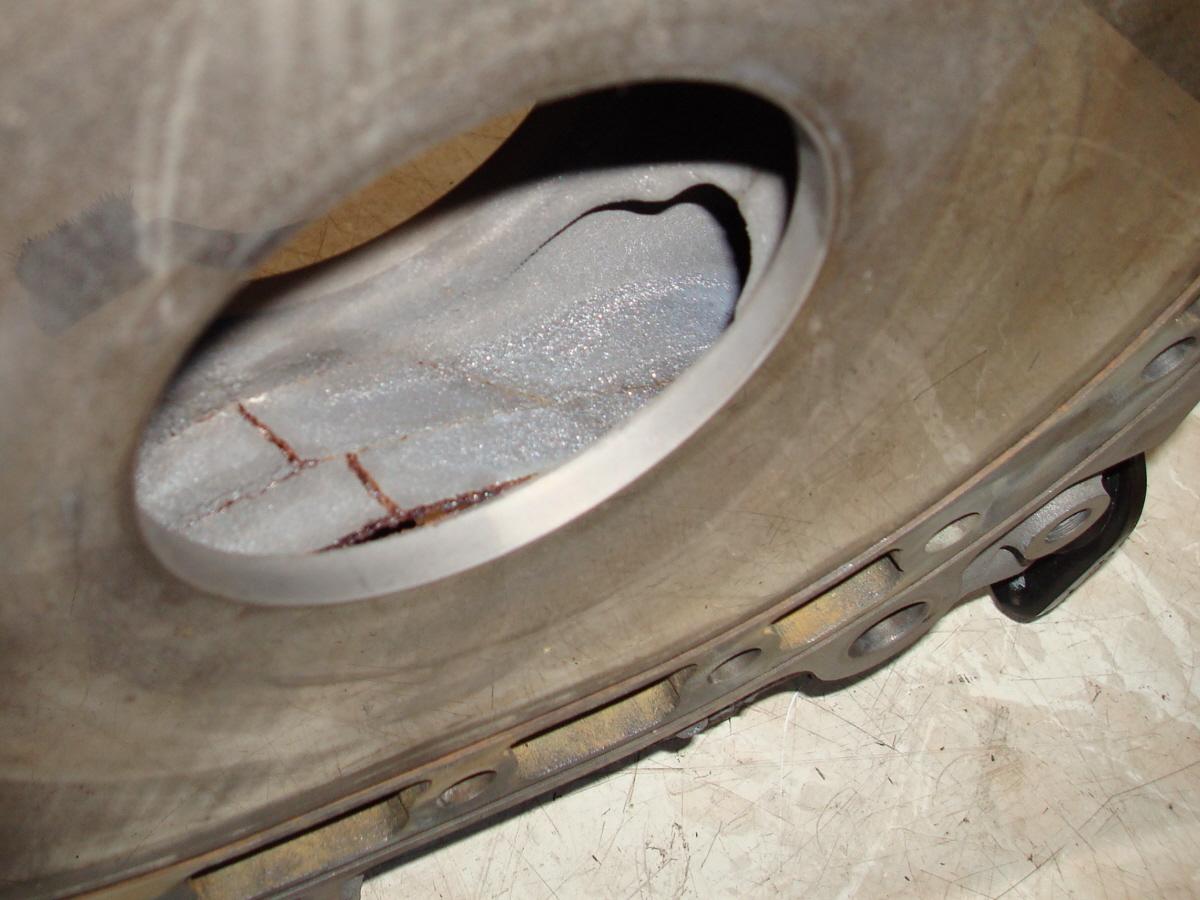

In the pics you see that the wall has collapsed on the intermediate plate allowing coolant to flood the oil pan. We can only speculate that the engine sat with water in it that froze. However all the freezeplugs are intact.
Just another reason to rebuild those "30K mile, tested, gauranteed" J-spec engines prior to installation.
In this case the customer bought the engine and installed it, only to find that when he was filling it up with coolant it overflowed out the dipstick hole.
In the pics you see that the wall has collapsed on the intermediate plate allowing coolant to flood the oil pan. We can only speculate that the engine sat with water in it that froze. However all the freezeplugs are intact.
Just another reason to rebuild those "30K mile, tested, gauranteed" J-spec engines prior to installation.
Trending Topics
02-01-08, 01:47 PM
#11
2/4 wheel cornering fiend
02-01-08, 02:21 PM
#13
registered user
iTrader: (1)
Join Date: Jan 2006
Location: San Diego
Posts: 2,469
Likes: 0
Received 0 Likes
on
0 Posts
Ive installed a couple right off the boat, but I compression check the motor first on my garage floor, and pressure check the cooling system overnight before event tearing the engine down, which is actually very easy to do.
And finally I check out the apex seals and rotor faces carefully through the exhaust port.
I then tore both engines down to the block and replaced vacuum hoes, broken solenoids, etc, before re assembling the engine and installing.
Both of mine where 13b-re's and both looked like they really did have 30K miles, the wiring harness where soft and supple like new, and had compression over 100PSI
Another 13b-re (know in my car) that I pulled apart, looked like it had 5K miles, all of the apex seals where within like new spec I replaced only the apex seal and corner seal springs and put the engine together with the seals that came out of it
I would never put an engine in without doing all of the steps I mentioned above.
And finally I check out the apex seals and rotor faces carefully through the exhaust port.
I then tore both engines down to the block and replaced vacuum hoes, broken solenoids, etc, before re assembling the engine and installing.
Both of mine where 13b-re's and both looked like they really did have 30K miles, the wiring harness where soft and supple like new, and had compression over 100PSI
Another 13b-re (know in my car) that I pulled apart, looked like it had 5K miles, all of the apex seals where within like new spec I replaced only the apex seal and corner seal springs and put the engine together with the seals that came out of it
I would never put an engine in without doing all of the steps I mentioned above.
09-17-10, 01:22 PM
#14
Instead of starting a new thread I figured I would just add to this one.

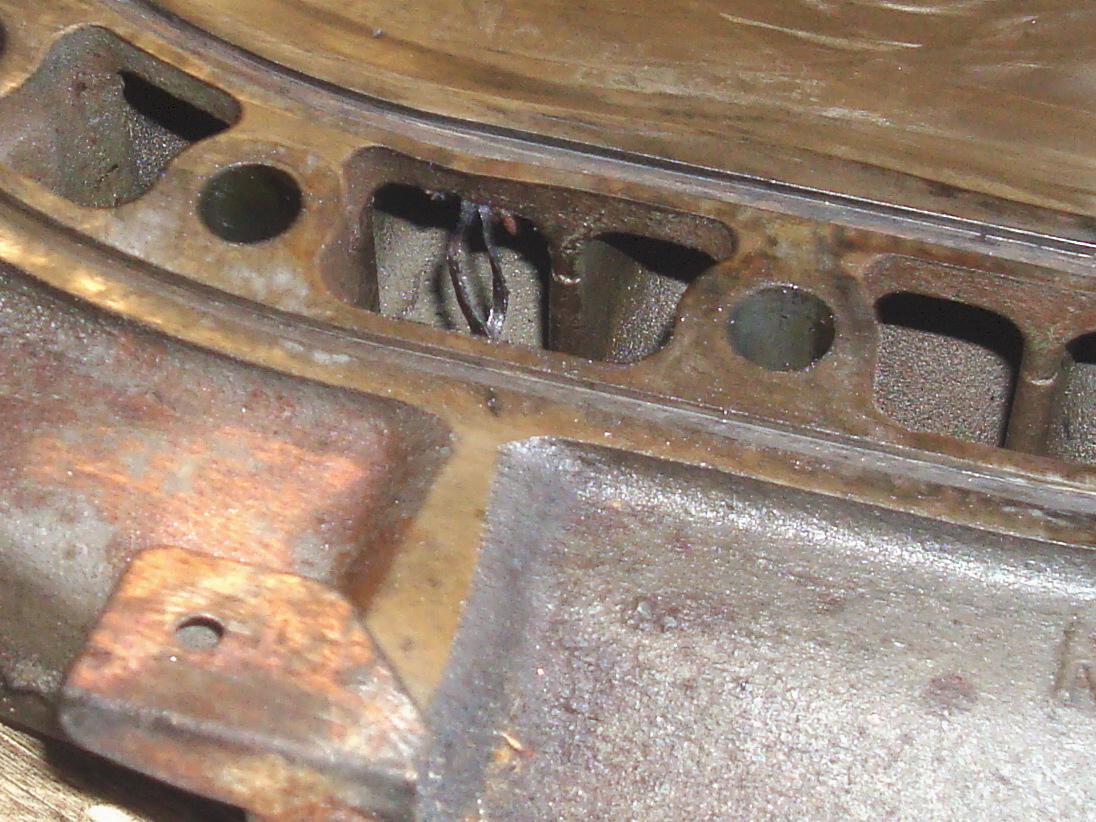

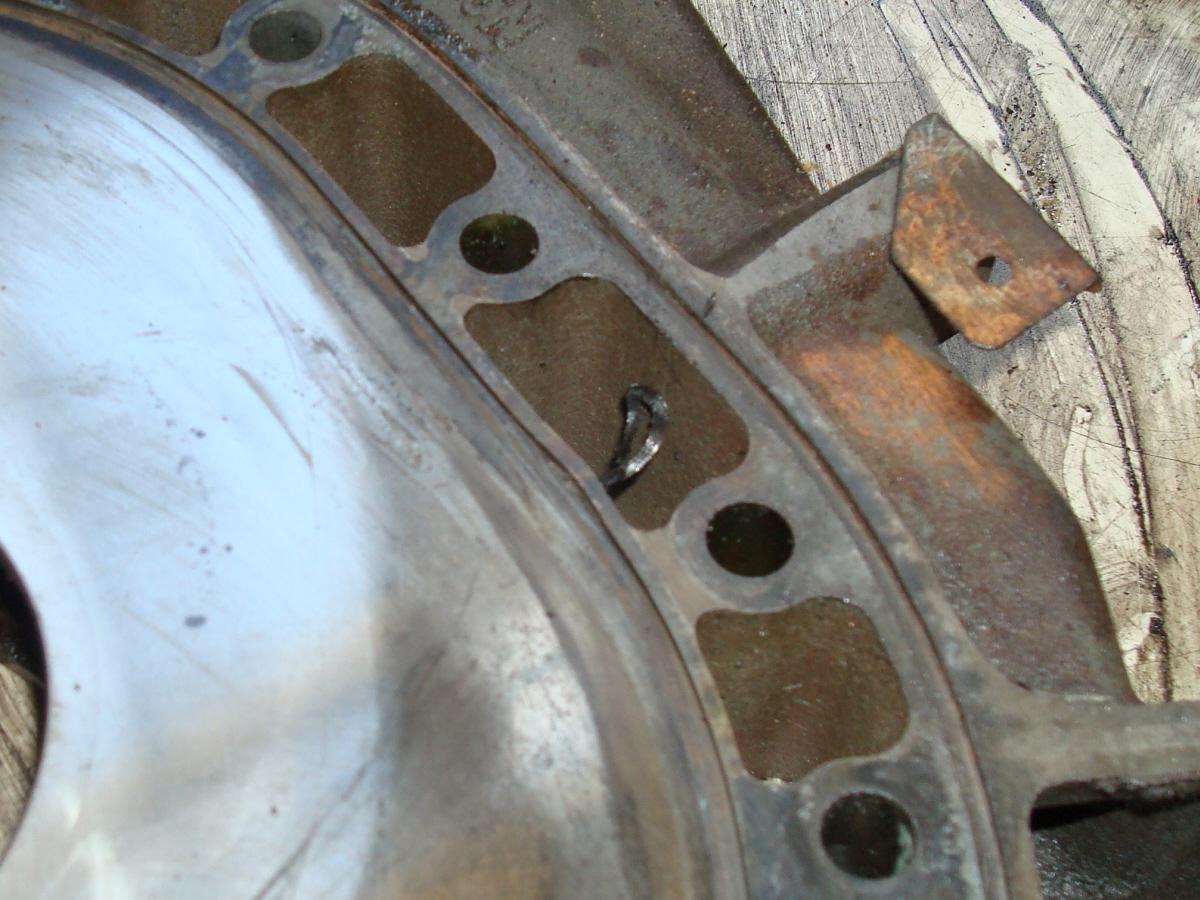

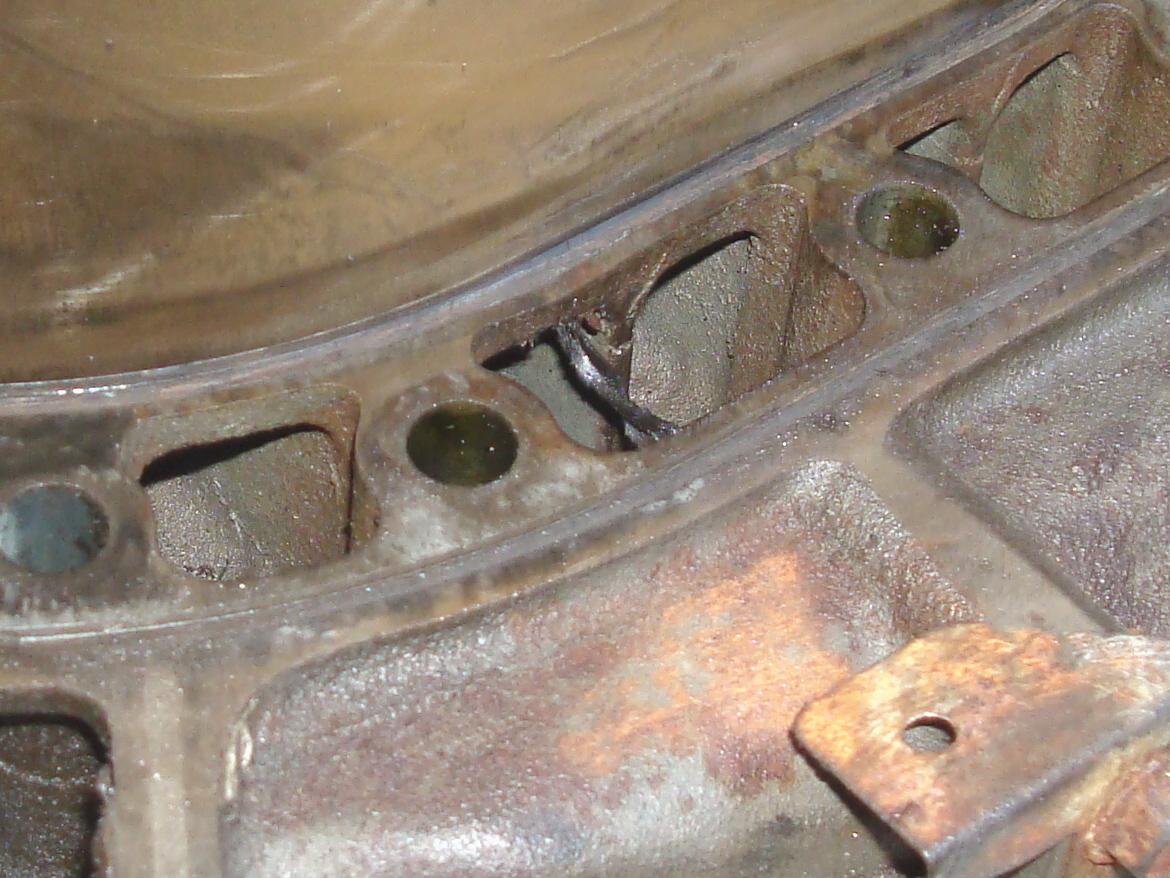

Here is the most recent engine to arrive with a different type of coolant seal failure on the intermediate plate. Instead of the wall being broken and the seal dropping into the channel, this one developed a crack behind the seal, which allowed the seal into the coolant channel. To the untrained eye this iron could look OK.
Here is the most recent engine to arrive with a different type of coolant seal failure on the intermediate plate. Instead of the wall being broken and the seal dropping into the channel, this one developed a crack behind the seal, which allowed the seal into the coolant channel. To the untrained eye this iron could look OK.
09-18-10, 09:37 AM
#16
Weird Cat Man
Those first pics are some gnarly ones. Never seen that type of damage posted on here.
The second set, I have seen. Those types of failures can be tough to spot (this one is easy though).
Thanks for posting!
The second set, I have seen. Those types of failures can be tough to spot (this one is easy though).
Thanks for posting!
