Help. New Build Wont Start.
#1
Help. New Build Wont Start.
http://www.facebook.com/v/1945060340470
Dont know if that will work.
My car wont start and run. I ran the first time i had it turned over... it reved upto 5k on its OWN and was continuing to build so I shut it down. After that point i cant get it to run on anything except starter fluid. I pulled the primaries and have fuel when starting... I just put new gaskets on uim lim and tb... Im just going strait into the TB. The intercooler piping isnt hooked into the loop. The engine is spinning and has compression by ear... I dont have any tools for checking it. I have spark from the plug wires.. sounds like its starving for fuel... I have a FPR installed at 45lbs i think its hard to adjust before i get it running its a new fpr... The Oil Pressure Sending Unit was taken out and replaced with an after market just curious if that causes it to not run. Plenty of questions can be asked. The map tracer mode on my pfc is just showing a bar at the bottom of the screen no moment im supposing thats from no start. I dont know what to tell people so please ask questions Im a newb.
Dont know if that will work.
My car wont start and run. I ran the first time i had it turned over... it reved upto 5k on its OWN and was continuing to build so I shut it down. After that point i cant get it to run on anything except starter fluid. I pulled the primaries and have fuel when starting... I just put new gaskets on uim lim and tb... Im just going strait into the TB. The intercooler piping isnt hooked into the loop. The engine is spinning and has compression by ear... I dont have any tools for checking it. I have spark from the plug wires.. sounds like its starving for fuel... I have a FPR installed at 45lbs i think its hard to adjust before i get it running its a new fpr... The Oil Pressure Sending Unit was taken out and replaced with an after market just curious if that causes it to not run. Plenty of questions can be asked. The map tracer mode on my pfc is just showing a bar at the bottom of the screen no moment im supposing thats from no start. I dont know what to tell people so please ask questions Im a newb.
#5
REPU Garage
iTrader: (17)
Join Date: Jun 2007
Location: Northern Colorado
Posts: 623
Likes: 0
Received 0 Likes
on
0 Posts

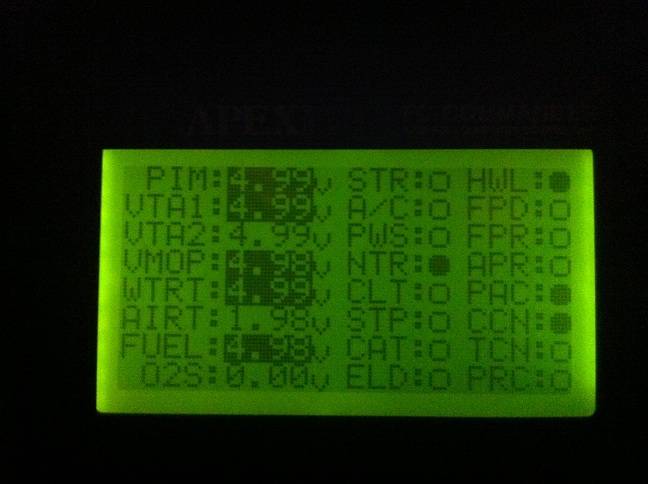

It doesn't look like any your sensors are hooked up, except your IAT sensor. PIM is your MAP sensor and is very critical, as well at VTA1 and 2, those are your TPS high and low range sensors. I would double check sensor connections and your harness continuity.
Trending Topics
#10
SSS-TUTUTU
iTrader: (7)
thats a huge problem
anything on the left side highlighted with 4.99 volts means not connected. dont assume since the plug to the sensor is good, that its sending a signal to the ecu and the ecu is recieving it. also everything on the left, besides fuel/o2 are sensors needed to start the car.
makes sure the BLUE connector above the ECU is plugged in, its seperate from the ecu plugs that go into the ecu itsself.
You also need to pick up a powerfc manual and go through it and learn it, stuff like this is critical when you dont have support elsewhere.
the solid black circles indicate "on", open circles indicate "off".
anything on the left side highlighted with 4.99 volts means not connected. dont assume since the plug to the sensor is good, that its sending a signal to the ecu and the ecu is recieving it. also everything on the left, besides fuel/o2 are sensors needed to start the car.
makes sure the BLUE connector above the ECU is plugged in, its seperate from the ecu plugs that go into the ecu itsself.
You also need to pick up a powerfc manual and go through it and learn it, stuff like this is critical when you dont have support elsewhere.
the solid black circles indicate "on", open circles indicate "off".
Last edited by ILoveJDM; 05-10-11 at 10:40 PM.
#11
I found a pfc manual and im pulling my harness apart now... I think my friend tucked my ground wires instead of making sure they were connected possibly causes my entire sensor setup to not send back signal.
Thank you... ill update when my sensors are all showing reasonable voltages and then if the car isnt running at that point ill rant some more for help
Thank you... ill update when my sensors are all showing reasonable voltages and then if the car isnt running at that point ill rant some more for help
