Help locating gas tank ground.
#1
Full Member
Thread Starter
Help locating gas tank ground.
So I pulled my tank out, cleaned it, did a bunch of other stuff and now that I put it back together I cant figure out where the ground goes thats located on the driver side near the fill neck, its attached to the frame and then the other side is a flat tab with a screw hole.
Thank you
Helo
Thank you
Helo
#2
Moderator
iTrader: (3)
Join Date: Mar 2001
Location: https://www2.mazda.com/en/100th/
Posts: 30,835
Received 2,603 Likes
on
1,847 Posts

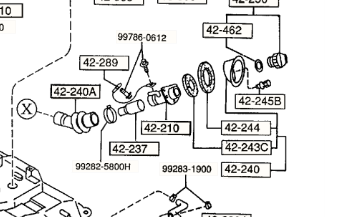

attached is the pic from the Parts Catalog, its tiny, but its something
The following users liked this post:
Tyler Twerdun (04-03-20)
The following users liked this post:
Tyler Twerdun (04-03-20)
#4
Racecar - Formula 2000
Assuming that the attached end is already bolted to the frame, from the orientation shown in the picture, it looks like it should attach to somewhere on the top side of the filler neck, near its top. So it might have to be attached before the tank is all the way in.
If that's the case, there should be an empty hole (or a hole with the loose bolt in it) where it attaches near the top of the neck.
If that's the case, there should be an empty hole (or a hole with the loose bolt in it) where it attaches near the top of the neck.
Last edited by DaveW; 04-03-20 at 12:26 PM.
The following users liked this post:
Tyler Twerdun (04-03-20)
#5
Full Member
Thread Starter
hmmm yeah it looks like its on the filler neck, ill have to see if I can attach it without dropping the tank again. Its still attached to the frame.
#6
It Just Feels Right
iTrader: (11)
It's been a while and i'm too lazy to pull off the cover, so i'll guess
You say the the ground wire that's shown at the top of the picture is connected to the frame (not shown in the picture)? If so, just connect the other end to the one of the screws that connects the filler neck. All i believe that does is provide a ground for any static electricity generated filling your gas tank
You say the the ground wire that's shown at the top of the picture is connected to the frame (not shown in the picture)? If so, just connect the other end to the one of the screws that connects the filler neck. All i believe that does is provide a ground for any static electricity generated filling your gas tank
#7
Racecar - Formula 2000
It's been a while and i'm too lazy to pull off the cover, so i'll guess
You say the the ground wire that's shown at the top of the picture is connected to the frame (not shown in the picture)? If so, just connect the other end to the one of the screws that connects the filler neck. All i believe that does is provide a ground for any static electricity generated filling your gas tank
You say the the ground wire that's shown at the top of the picture is connected to the frame (not shown in the picture)? If so, just connect the other end to the one of the screws that connects the filler neck. All i believe that does is provide a ground for any static electricity generated filling your gas tank
Last edited by DaveW; 04-03-20 at 05:53 PM.
The following users liked this post:
Tyler Twerdun (04-04-20)
Trending Topics
#8
Full Member
Thread Starter
This makes sense, ill have to drop the tank slightly to get back to the top of the neck. I know what you mean by the metal collar being isolated at the top
#9
Full Member
Thread Starter
So for those that are curious, if you go in through the rear driver side wheel well you can see the ground very easily. The tab it mount too is on the far side of the fill neck so you have to blindly attach it, but a socket and rachet got in there and it was easy to put back on. Much easier then dropping the tank again imo.
#10
Racecar - Formula 2000
So for those that are curious, if you go in through the rear driver side wheel well you can see the ground very easily. The tab it mount too is on the far side of the fill neck so you have to blindly attach it, but a socket and rachet got in there and it was easy to put back on. Much easier then dropping the tank again imo...
