>>Damian , can you tell me exactly the part number of the 25w resistors that you used ?
dood, did you read the post? (hehehe) I listed the sites where you can pick my exact resitors right above the pictures of the resistors. BUT I WOULD NOT BUY THOSE NOW!!!
instead buy the better aluminum ones like steve kan and others have suggested, here is a page where you can buy them:
http://www.mouser.com/?No=60&handler...SField&N=71014
they are aluminum housed, 25watt, (1% error) in a bunch of different ohms settings, you can get 4 or 6 or whatever. they are military grade and have better (stronger) leads than the sand block style ones I posted above.
>>With 2 pumps in stock tank are you planning to run ?
not 2, just one, the one that was in the car when i purchased it, it supposedly a RP Hi Flow fuel pump. rememebr, im not running much boost (12-15 psi) so this entire fuel setup is overkill, but i wanted a large safety margin, and now i have it :-) along with the ability to get freaky and turn the boost up to make 550 RWHP if I want (hahaha)
dood, did you read the post? (hehehe) I listed the sites where you can pick my exact resitors right above the pictures of the resistors. BUT I WOULD NOT BUY THOSE NOW!!!
instead buy the better aluminum ones like steve kan and others have suggested, here is a page where you can buy them:
http://www.mouser.com/?No=60&handler...SField&N=71014
they are aluminum housed, 25watt, (1% error) in a bunch of different ohms settings, you can get 4 or 6 or whatever. they are military grade and have better (stronger) leads than the sand block style ones I posted above.
>>With 2 pumps in stock tank are you planning to run ?
not 2, just one, the one that was in the car when i purchased it, it supposedly a RP Hi Flow fuel pump. rememebr, im not running much boost (12-15 psi) so this entire fuel setup is overkill, but i wanted a large safety margin, and now i have it :-) along with the ability to get freaky and turn the boost up to make 550 RWHP if I want (hahaha)
#52
I can haz rotary?
iTrader: (1)
Originally Posted by damian
>>Damian , can you tell me exactly the part number of the 25w resistors that you used ?
dood, did you read the post? (hehehe) I listed the sites where you can pick my exact resitors right above the pictures of the resistors. BUT I WOULD NOT BUY THOSE NOW!!!
instead buy the better aluminum ones like steve kan and others have suggested, here is a page where you can buy them:
http://www.mouser.com/?No=60&handler...SField&N=71014
they are aluminum housed, 25watt, (1% error) in a bunch of different ohms settings, you can get 4 or 6 or whatever. they are military grade and have better (stronger) leads than the sand block style ones I posted above.
dood, did you read the post? (hehehe) I listed the sites where you can pick my exact resitors right above the pictures of the resistors. BUT I WOULD NOT BUY THOSE NOW!!!
instead buy the better aluminum ones like steve kan and others have suggested, here is a page where you can buy them:
http://www.mouser.com/?No=60&handler...SField&N=71014
they are aluminum housed, 25watt, (1% error) in a bunch of different ohms settings, you can get 4 or 6 or whatever. they are military grade and have better (stronger) leads than the sand block style ones I posted above.
#54
Rotary Freak
Join Date: Mar 2003
Location: GLENDALE, CA
Posts: 2,274
Likes: 0
Received 0 Likes
on
0 Posts
yep, we thought you made a mistake on the ohm's and i didnt get it when David was explaining it to me but we figured it out.. there are some variations.. so dont just go and buy the one everyone has..
also, i have a question for you damian because im at this step in my single install, where did you route your oil injector lines to?? some people cap it where no vaccume go into it and some run it to the intake... what did you do?? Thanks!
Great writeup!!
also, i have a question for you damian because im at this step in my single install, where did you route your oil injector lines to?? some people cap it where no vaccume go into it and some run it to the intake... what did you do?? Thanks!
Great writeup!!
#56
Rotary Freak
Join Date: Mar 2003
Location: GLENDALE, CA
Posts: 2,274
Likes: 0
Received 0 Likes
on
0 Posts
dam
oh, i also have 1600's inm trying to install but i have noticed that the pfc doesnt go taht high. i know the datalogit does but do you set the secondaries to 1600 or 1680??
Thanks!!
oh, i also have 1600's inm trying to install but i have noticed that the pfc doesnt go taht high. i know the datalogit does but do you set the secondaries to 1600 or 1680??
Thanks!!
#57
bow leggin'
iTrader: (25)
for the oil injector question, I ran the braided lines to the injectors. Instead of running a vac. line to the intake, I just put a breather filter on the top where the vacuum lines would go. It's basically doing the same thing except without all the vac lines. The filter I used was actually from the 3-way solenoids in the rats nest. You should have some left over after removing all that crap.
#58
Originally Posted by rzograbian
dam
oh, i also have 1600's inm trying to install but i have noticed that the pfc doesnt go taht high. i know the datalogit does but do you set the secondaries to 1600 or 1680??
Thanks!!
oh, i also have 1600's inm trying to install but i have noticed that the pfc doesnt go taht high. i know the datalogit does but do you set the secondaries to 1600 or 1680??
Thanks!!
https://www.rx7club.com/showthread.p...light=injector
#59
Originally Posted by Jesuscookies
To everyone doing this upgrade. Make sure that you are checking and double checking the Ohm readings on your indiviual injectors. There is variance between runs, and brands. I have the 160LB injectors (same as Damian), But came up with a different OMH reading of 4.8 OHM. Damian's came in at 2.8OHM, I believe.
Im planning to use 861 prim and 1680cc sec with keith rails , lines etc ...
Is correct to order : 4 resistors 25w ( 1 error ) with 4.8 ohm for all injectors ?
#61
I can haz rotary?
iTrader: (1)
Originally Posted by sevenin7
jesus and damian
Im planning to use 861 prim and 1680cc sec with keith rails , lines etc ...
Is correct to order : 4 resistors 25w ( 1 error ) with 4.8 ohm for all injectors ?
Im planning to use 861 prim and 1680cc sec with keith rails , lines etc ...
Is correct to order : 4 resistors 25w ( 1 error ) with 4.8 ohm for all injectors ?
#62
Rotary Freak
Join Date: Mar 2003
Location: GLENDALE, CA
Posts: 2,274
Likes: 0
Received 0 Likes
on
0 Posts
ok, so i measured my injectors and got 4.8.. the same as David (jesuscookies) did.. so i will need 3 ohm resistors at 25 watts?? or 10 watt's?? is the ohm's even correct?? im confused
#66
Rotary Enthusiast
It doesn't matter from which direction you have the flow. I think Damian did this for easier connections as the lines are longer and don't need to be bent as much. If you go to the link I posted below, you will see some of the problems I encountered by going from the front to the rear ... Shorter lines, sharper bends and some creative plumbing.
But I prefer having the line split before the rails for incoming and then going to the FPR. That way the flow is equalized more in both rails.

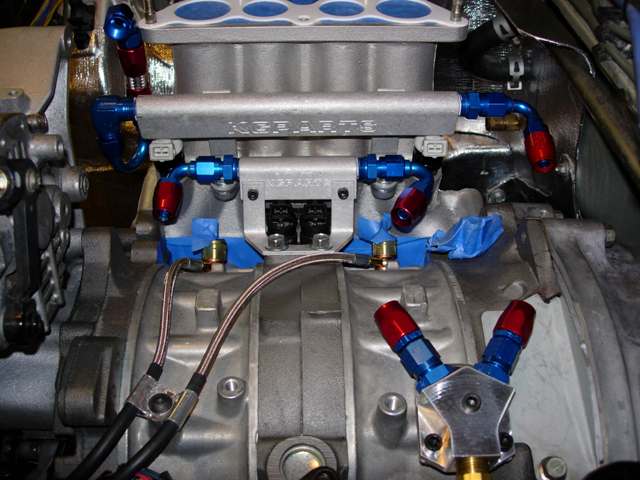

Here's a pic of the setup before the lines:
More pictures here:
https://www.rx7club.com/showthread.p...3&page=2&pp=40
But I prefer having the line split before the rails for incoming and then going to the FPR. That way the flow is equalized more in both rails.
Here's a pic of the setup before the lines:
More pictures here:
https://www.rx7club.com/showthread.p...3&page=2&pp=40
Last edited by atihun; 02-26-06 at 10:38 AM.
#70
Rotary Enthusiast
Originally Posted by Indian
Thats funny, My setup frpm kgparts was for a series setup....... I'm I missing something here?
.................................................. .....
.................................................. .....
It's a lot easier to do a series setup (like stock) as it involves less lines and fittings; some people don't think it matters which route you configure.
#72
Rotary Enthusiast
Originally Posted by BackyardSog
So how are you plugging that in to the three hardlines that come from the pump??
Hard line 2 - from FPR to tank
Hard line 3 - from charcoal canister to the UIM
The third line should only carry vapor so it doesn't need to be a braided line.
#73
Originally Posted by jim kutschke
Damian, Or anybody...Is there a reason why the change in the fuel delivery from the rear of the rails to the front, the pictures show fuel comes in from the front and your diagram shows fuel in from the rear, Can I do one or the other?
#74
Rotary Enthusiast
Damian,
Did you ever install the FJO injector driver? I'm trying to figure out the best location to mount mine; so far it looks like I'll make a bracket and mount it on the backside of the UIM.
Attila
Did you ever install the FJO injector driver? I'm trying to figure out the best location to mount mine; so far it looks like I'll make a bracket and mount it on the backside of the UIM.
Attila
#75
Originally Posted by atihun
Damian,
Did you ever install the FJO injector driver? I'm trying to figure out the best location to mount mine; so far it looks like I'll make a bracket and mount it on the backside of the UIM.
Attila
Did you ever install the FJO injector driver? I'm trying to figure out the best location to mount mine; so far it looks like I'll make a bracket and mount it on the backside of the UIM.
Attila
I plan on installing it soon, I was going to install it inside the cabin of the car, tapping the wires close to the harness ecu connections that go to the injectors. I will probably put it back behind the glove box somwhere or in the ecu area. I know that its built tough and can take heat, vibration, and dirt or whatever, but I think by tapping it in at the ecu connection point it will save all the wiring mess that would be under the uim if I tap it right at the injecors. The wires they provide are long though, so there are a couple of options for mounting.
