CA Fd revival project- coolant

So i just bought this 94 manual trans touring fd
The guy i bought if from let it sit sometime after it got a rebuild.
I've read threads on starting a rotary after sitting and im take those steps.
But the issue comes to the coolant system.
Can I and should I try to somehow clean it out without starting the car?
A friend suggested i remove thermostat and run a hose to try and remove as much as i can before doing a real cleaning.

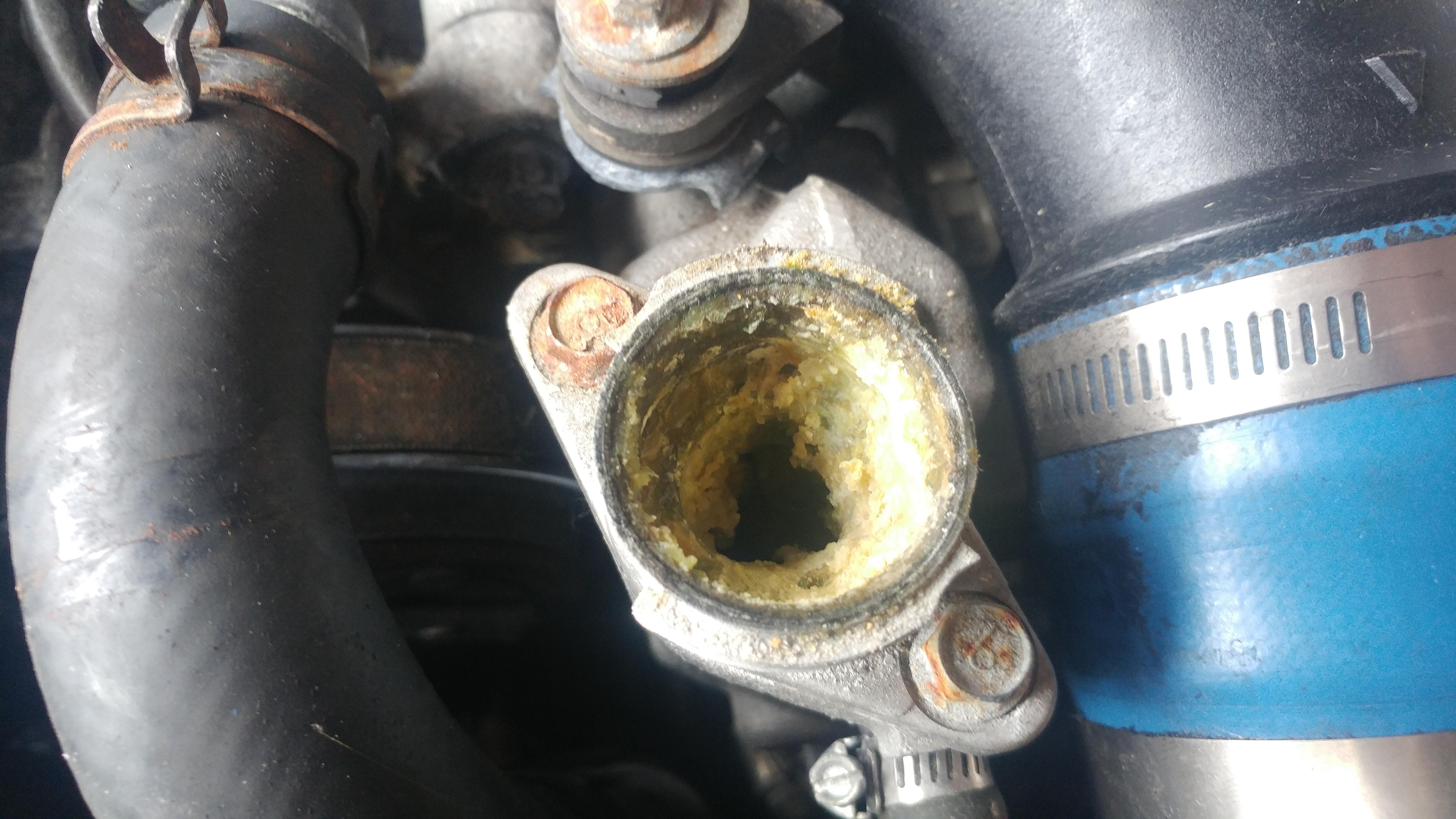

Attached Thumbnails Fd revival project- coolant-20180416_102053.jpg
Reply
Old Apr 16, 2018 | 03:03 PM
  #2
DaleClark's Avatar
RX-7 Bad Ass
Tenured Member: 20 Years
Liked
Loved
Community Favorite
iTrader: (56)

Joined: Jan 2002
Posts: 15,622
Likes: 2,725
From: Pensacola, FL
Wow, that looks terrible!

I would try and fill it with water, see if it will dilute those crystals. Then empty it out.

Read up online, there are a number of general write-ups for flushing and filling a coolant system. There is a drain plug on the bottom of the radiator and another one on the bottom of the engine - it's on the driver's side of the engine at the bottom of the middle iron housing, it's a 14mm bolt.

I hope the engine is good after sitting. If you don't have a Lisle coolant funnel, get one. Also, I would crank the motor with the EGI fuse out to build oil pressure before you start the engine for the first time.

Dale
Reply
Old Apr 16, 2018 | 05:16 PM
  #3
rattlehead's Avatar
Thread Starter
Full Member
Tenured Member 05 Years

Joined: Apr 2015
Posts: 217
Likes: 15
From: california
Thanks for reply dale
Yup well thats what $500 gets you

Ill try try filling and draining first.

So far i have poured mmo and hand turned engine a few times and replaced oil and filter

I want to clear it as best before actually trying to start it
then do a real coolant flush
Reply
Old Apr 16, 2018 | 05:27 PM
  #4
DaleClark's Avatar
RX-7 Bad Ass
Tenured Member: 20 Years
Liked
Loved
Community Favorite
iTrader: (56)

Joined: Jan 2002
Posts: 15,622
Likes: 2,725
From: Pensacola, FL
You bought the car for $500? If so, HOLY CRAP.

Dale
Reply
Old Apr 16, 2018 | 05:31 PM
  #5
rattlehead's Avatar
Thread Starter
Full Member
Tenured Member 05 Years

Joined: Apr 2015
Posts: 217
Likes: 15
From: california
Yes i kid you not
he was gonna donate the car but just decided
To sell it to me for $500
Reply
Old Apr 16, 2018 | 05:40 PM
  #6
Mr357's Avatar
Full Member
iTrader: (14)

Joined: Oct 2016
Posts: 80
Likes: 12
From: New Braunfels, TX
In a case this severe, I would definitely give the hose method a try. You're going to be spending an excruciating amount of time on trying to flush it otherwise. Then of course once you've done what you can with that technique, put the thermostat back in and run some distilled water through it with the flush additive that Prestone and probably others make. Even once the system is clean I'd be worried about the amount of corrosion that could already be present. In any case, you scored the deal of a lifetime if you really got an FD for $500.
Reply
Old Apr 16, 2018 | 06:24 PM
  #7
rattlehead's Avatar
Thread Starter
Full Member
Tenured Member 05 Years

Joined: Apr 2015
Posts: 217
Likes: 15
From: california
Mr357
i will try it then. I have thought about the possible erosion

i have a rebuild planned in the summer for sure

Thanks. It honestly is a lifetime deal
Hope i can bring this beast back to life
Reply
Old Apr 17, 2018 | 09:33 PM
  #8
neit_jnf's Avatar
Eats, Sleeps, Dreams Rotary
Tenured Member: 20 Years
iTrader: (17)

Joined: Apr 2003
Posts: 4,057
Likes: 262
From: Around
wow $500 FD what times we live in!

I'd pull the radiator out along with the thermostat and water pump housing complete out from the engine flush them clean outside and hose the engine directly from the front cover water ports and unplugging the engine drain bolt.
Reply
Old Apr 17, 2018 | 11:01 PM
  #9
rattlehead's Avatar
Thread Starter
Full Member
Tenured Member 05 Years

Joined: Apr 2015
Posts: 217
Likes: 15
From: california
Wild times. Still cant believe it myself when i walk out and see it

So to be clear take out the radiator completely
i suppsose that would make it easier

And the engine bold must be the same one dale mentioned

Hose goes into front housing and i catch all the crap from the engine drain bolt in the back?
Reply
Old Apr 18, 2018 | 08:58 AM
  #10
neit_jnf's Avatar
Eats, Sleeps, Dreams Rotary
Tenured Member: 20 Years
iTrader: (17)

Joined: Apr 2003
Posts: 4,057
Likes: 262
From: Around
not really easier, removing the radiator and water pump housing requires quite some effort and care but I think in the end you end up with a better job done. That way you can decide if reusing the radiator or getting a new one.

https://www.rx7club.com/3rd-generati...emoval-443238/

there's no coolant drain port in the back of the engine, it's on the middle plate between the spark plugs way down.

OR you could start by just removing the water pump and thermostat and do your flushing from there.

Reply
Old Apr 18, 2018 | 09:37 AM
  #11
DaveW's Avatar
Racecar - Formula 2000
Tenured Member: 20 Years

Joined: Sep 2002
Posts: 4,033
Likes: 369
From: Bath, OH
Even if you have to totally replace the engine, radiator, etc., you are way ahead of the game. Fantastic!
Reply
Old Apr 25, 2018 | 10:16 PM
  #12
nashman69g's Avatar
Boost Addict
Tenured Member 20 Years
iTrader: (3)

Joined: Nov 2001
Posts: 1,898
Likes: 13
From: Metairie, LA near new orleans
I love to see the rest of the car to see deal you got for $500!!
Reply
Old Apr 26, 2018 | 12:04 AM
  #13
rattlehead's Avatar
Thread Starter
Full Member
Tenured Member 05 Years

Joined: Apr 2015
Posts: 217
Likes: 15
From: california
This is pretty much it. the body is straight, just some moss on the back. all stock except for the exhaust. interior is pretty much complete aside from something above the stereo missing




Reply
Old Apr 26, 2018 | 08:43 AM
  #14
Hi Im Simon's Avatar
Full Member
Tenured Member 15 Years
iTrader: (6)

Joined: Oct 2004
Posts: 166
Likes: 2
From: so cal
Ooo.... I saw this one on Craigslist. He wanted way more then $500 when he listed it though. Doh! Could have swooped it up.
Reply
Old Apr 26, 2018 | 09:12 AM
  #15
rattlehead's Avatar
Thread Starter
Full Member
Tenured Member 05 Years

Joined: Apr 2015
Posts: 217
Likes: 15
From: california
Really? I never saw it on craigslist and i checked that religiously for the past 2 maybe 3 years
maybe it was way before that?
Or nrver noticed as i was lookin for an fc

Last edited by rattlehead; Apr 26, 2018 at 09:18 AM.
Reply
Old Apr 26, 2018 | 11:08 AM
  #16
MK3Brent's Avatar
I'm only asking questions
Tenured Member 05 Years
iTrader: (6)

Joined: Jul 2010
Posts: 498
Likes: 23
From: Greensboro, North Carolina
That's awesome!
Good luck on flushing everything.

Love the moss. I'd keep it.
Reply
Old Apr 26, 2018 | 12:40 PM
  #17
rattlehead's Avatar
Thread Starter
Full Member
Tenured Member 05 Years

Joined: Apr 2015
Posts: 217
Likes: 15
From: california
Haha thanks

Probably only way to "go green" with a rotary
Reply
Old Apr 26, 2018 | 04:23 PM
  #18
Hi Im Simon's Avatar
Full Member
Tenured Member 15 Years
iTrader: (6)

Joined: Oct 2004
Posts: 166
Likes: 2
From: so cal
Originally Posted by rattlehead
Really? I never saw it on craigslist and i checked that religiously for the past 2 maybe 3 years
maybe it was way before that?
Or nrver noticed as i was lookin for an fc
It was on Craigslist for a while. I think he had it up for $3 to 5k.
Reply
Old Apr 26, 2018 | 05:49 PM
  #19
rattlehead's Avatar
Thread Starter
Full Member
Tenured Member 05 Years

Joined: Apr 2015
Posts: 217
Likes: 15
From: california
Isnt that low for a complete fd?
wonder why no one picjed it up
