eccentric shaft removal problem
#1
eccentric shaft removal problem
i'm having problems removing the eccentric shaft, i cant seem to take off the second rotor housing (the one closer to the front of the engine) because the eccentric shaft is keeping it down, i've removed the first rotor housing no problem, but im stuck on the e-shaft is there a technique to taking it off? or am i missing a step?
#2
Umm the housing itself has a larger hole than the span of the E-shaft so im assuming you mean the Central Iron?

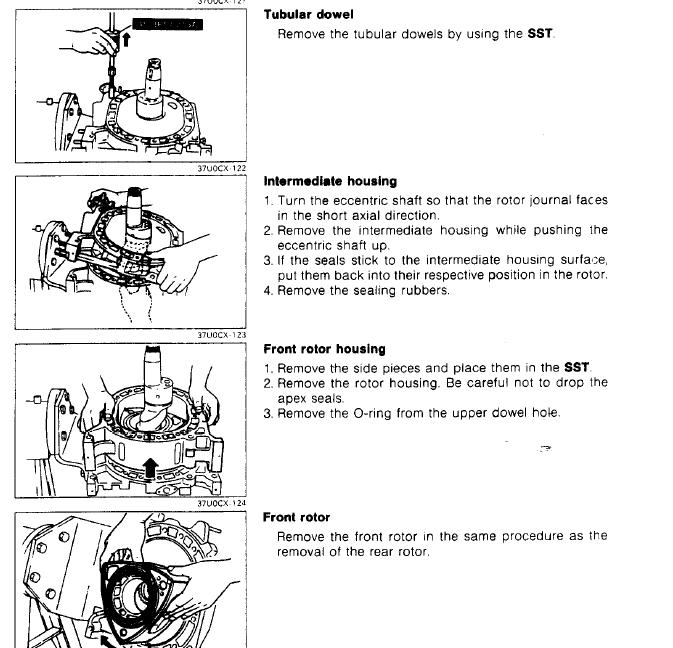

If so then yes the trick is to lift the shaft UP a bit while removing the iron, that will alow the plate to sit at an angle and then slip up the shaft!
Look at the service manual if you dont understand, its very informative
If so then yes the trick is to lift the shaft UP a bit while removing the iron, that will alow the plate to sit at an angle and then slip up the shaft!
Look at the service manual if you dont understand, its very informative
#7
Luckily when you reaseemble if you somehow manage to get the rotors out of clock, when you attemp to rotate it, it will bind up pretty fast A good indicator of misassembly.
Oh. do NOT use petroleum jelly on the O-rings UNLESS you are assembling right away. As they will EXPANT about 1-1.5" if you leave them in the jelly for a hour or more. I learned this the hard way lol!
Oh. do NOT use petroleum jelly on the O-rings UNLESS you are assembling right away. As they will EXPANT about 1-1.5" if you leave them in the jelly for a hour or more. I learned this the hard way lol!
Trending Topics
#9
I used petroleum jelly, it actually worked VERY well, but i lost one seal due to my lack of through reading prior to!
Used it on the corner seals too to keep em in place.
Used it on the corner seals too to keep em in place.
