still no spark please help me
#1
Full Member
Thread Starter
Join Date: Mar 2009
Location: iowa
Posts: 99
Likes: 0
Received 0 Likes
on
0 Posts
still no spark please help me
ok now i have changed the coils and the ecu the plugs the wires and the harnesses to the coils what else might possably be causeing me to get no spark
#3
Full Member
Thread Starter
Join Date: Mar 2009
Location: iowa
Posts: 99
Likes: 0
Received 0 Likes
on
0 Posts
i pulled a wire and i was holding the metal and the neg battery cable while someone turned it over if it worked i would have gotten one hell of a shock
Last edited by all_about_imports; 05-05-09 at 10:52 AM.
#4
Are you S4 or S5?
I had a similar situation when I connected my fuses in the wrong order. (fuse box in engine bay) Apparently S5 and S4 are different.
The S4 has 2 fuses for ign and egi, where the S5 uses a single fuse. Verify that you have them installed correctly.
Did you swap motors at all? or is your car on a factory motor? If you did a swap, maybe you missed a plug when you connect your harness down by the fire wall?
I had a similar situation when I connected my fuses in the wrong order. (fuse box in engine bay) Apparently S5 and S4 are different.
The S4 has 2 fuses for ign and egi, where the S5 uses a single fuse. Verify that you have them installed correctly.
Did you swap motors at all? or is your car on a factory motor? If you did a swap, maybe you missed a plug when you connect your harness down by the fire wall?
#5
Full Member
Thread Starter
Join Date: Mar 2009
Location: iowa
Posts: 99
Likes: 0
Received 0 Likes
on
0 Posts
no its an s4 and there is no swap all i did was charge that stupid pulsation dampener out with a banjo bolt because it was leaking gas it ran before hand and now nothing i took off the intake down to the bottom fuel rail and put it back together someone said it was a ground but couldnt tell me where this magical ground is so i tore it apart again and i didnt find anything unhooked its driving me crazy and im about to just let it go to the scrap yard
#7
They live We sleep
iTrader: (1)
Join Date: Feb 2009
Location: Dot Island
Posts: 919
Likes: 0
Received 0 Likes
on
0 Posts
I now have a silly idea.. Wonder if a Timeing Light will work with the Injector wires to pick up the signal?? That would be cool...
Just for kicks Undo the spark plug wire at the COIL and hold it back from the coil and have someone crank it over and tell me if it jumps?
Just for kicks Undo the spark plug wire at the COIL and hold it back from the coil and have someone crank it over and tell me if it jumps?
Trending Topics
#9
HAILERS
Join Date: May 2001
Location: FORT WORTH, TEXAS,USA
Posts: 20,563
Likes: 0
Received 21 Likes
on
19 Posts
Can't be fixed without using digital meter.

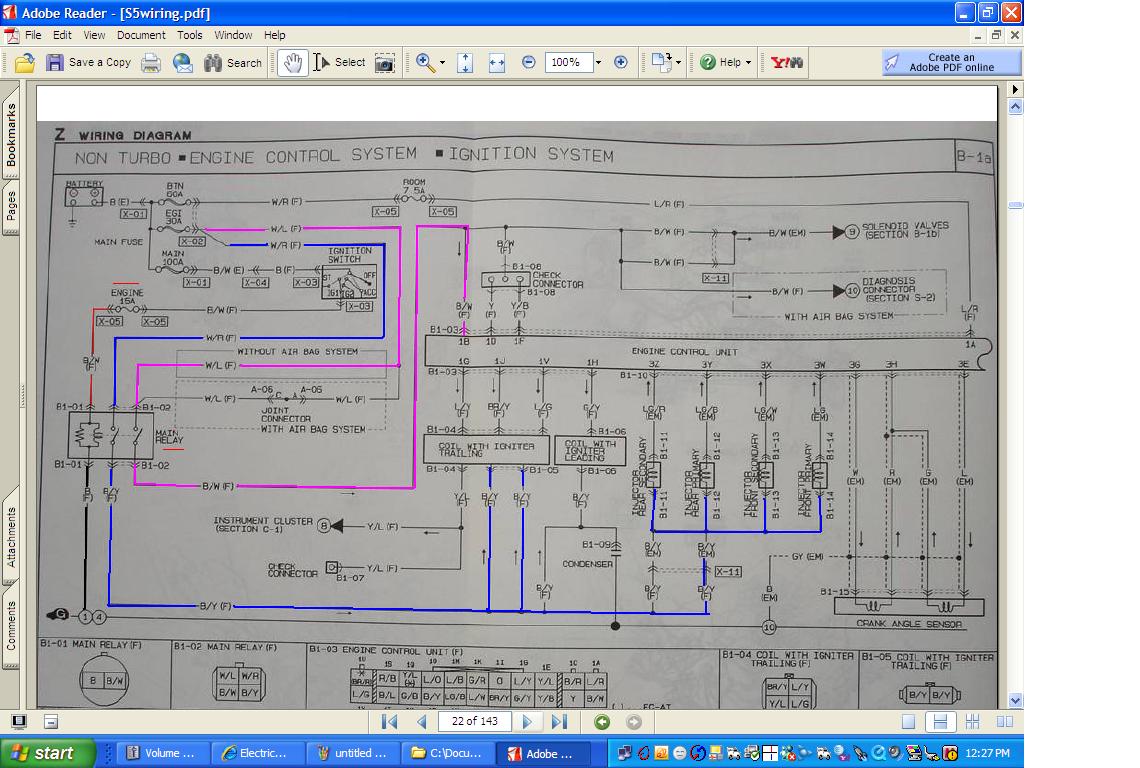

You turn the key ON......that feeds the ENGINE fuse......which in turn pulls in the MAIN RELAY......which in turn feeds power from the two EGI fuses to .........feed the ECU, injectors and lead/trail coil assy's. You then spin the engine and the CAS outputs a voltage to the ECU which sees that and pulses a gnd signal to the coils to make them fire.
The ground wires for the INTERNALS of the ECU are on a ring terminal on the rear ROTOR housing and can be seen on Aaron Cakes home site. It's *ring* terminal* with two black wires on the ring that gets bolted to the rotor housing. Only can be seen by removing the upper intake. Or verifiyed by looking at the gnd wires on the small plug of the ECU with a meter.

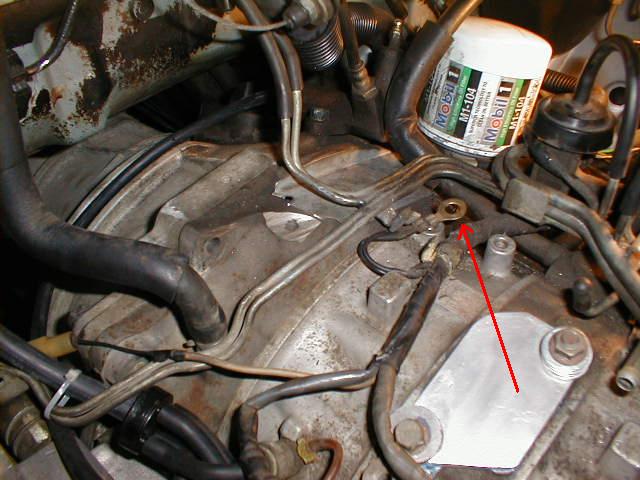

The ECU gnd is also shown in the attached jpg. It's not bolted down in that picture.
You turn the key ON......that feeds the ENGINE fuse......which in turn pulls in the MAIN RELAY......which in turn feeds power from the two EGI fuses to .........feed the ECU, injectors and lead/trail coil assy's. You then spin the engine and the CAS outputs a voltage to the ECU which sees that and pulses a gnd signal to the coils to make them fire.
The ground wires for the INTERNALS of the ECU are on a ring terminal on the rear ROTOR housing and can be seen on Aaron Cakes home site. It's *ring* terminal* with two black wires on the ring that gets bolted to the rotor housing. Only can be seen by removing the upper intake. Or verifiyed by looking at the gnd wires on the small plug of the ECU with a meter.
The ECU gnd is also shown in the attached jpg. It's not bolted down in that picture.
#13
Zoom Zoom Baby
iTrader: (1)
Join Date: Jun 2008
Location: Denver/Vegas
Posts: 436
Likes: 0
Received 0 Likes
on
0 Posts
we accidentally found a way to check.
not sure if its bad for your car or not though.
take plug wires off coils and crank.
we saw the sparks clear as day.
grounds, on our s4 n/a's not sure of yours.
are on driver's side strut tower thing.
one also closer to the driver.
and the third is back near or on the clutch slave cylinder.
i think.
not sure if its bad for your car or not though.
take plug wires off coils and crank.
we saw the sparks clear as day.
grounds, on our s4 n/a's not sure of yours.
are on driver's side strut tower thing.
one also closer to the driver.
and the third is back near or on the clutch slave cylinder.
i think.
#14
HAILERS
Join Date: May 2001
Location: FORT WORTH, TEXAS,USA
Posts: 20,563
Likes: 0
Received 21 Likes
on
19 Posts
Your not telling us what voltage your seeing at the coil (small wires held down with nuts on the coil assy) and not telling us what voltage your seeing on the small plug of the ECU. See the FSM, FUEL AND EMISSIONS SECTION, SUB SECTION CALLLED CONTROL UNIT.
Then follow the words on those pages. Match what your seeing with what is called for in the section called CONTROL unit. Just doing that small plug on the ECU should tell volumes.
I forget if it's been mentioned, but do you see small bumps of the tach needle when you spin the engine with the starter. Should. If you do, then there is spark. Can't have the tach needle bump and not have spark (at least on the Trail coil assy).
#15
Full Member
Thread Starter
Join Date: Mar 2009
Location: iowa
Posts: 99
Likes: 0
Received 0 Likes
on
0 Posts
ok so i got it fixed it was a combo of problems ecu was bad maf was bad and coil harness was bad and no that i think about it i am kinda lucky i got the stupid thing home to begin with oh well she is running now and i just gotta tune her
#17
Full Member
Thread Starter
Join Date: Mar 2009
Location: iowa
Posts: 99
Likes: 0
Received 0 Likes
on
0 Posts
well thank you but like i said it was more than just that it was also the harness and a cold solder point in the ecu i tested the maf right after you said that but it didnt work at that time
Last edited by all_about_imports; 06-01-09 at 11:03 PM.
