spark plug wiring
howdy! I got a n/a '86. I bought the car without plug wires and a leading coil. I got the coil but is the little, single blk wire suppose to be connected or is that just for testing the coil?
I don't know what wire goes to what plug. On the trailing coil I don't see it marked for #1 or #2.
It's my first rotary.
Thanks for the reply's!!
----peg's
I don't know what wire goes to what plug. On the trailing coil I don't see it marked for #1 or #2.
It's my first rotary.
Thanks for the reply's!!
----peg's
09-12-05, 02:45 PM
#2
Green Flameless
iTrader: (2)
Join Date: Feb 2002
Location: North Central PA
Posts: 2,242
Likes: 0
Received 0 Likes
on
0 Posts
I don't think they have any wires, other than the plugs, running into the coils. There should be a plastic clip there, I think there's only two or four wires going into the leading.. don't quote me on that one.
For hooking up the wires, you should have a white dot on the front rotor housing, on both the leading and the trailing coils. It should go:
Leading Coil (lower plugs), white dot to the front rotor housing, non-marked to the rear rotor housing.
Trailing Coil (top plugs), white dot to the front rotor housing, non-marked to the rear rotor housing.
For hooking up the wires, you should have a white dot on the front rotor housing, on both the leading and the trailing coils. It should go:
Leading Coil (lower plugs), white dot to the front rotor housing, non-marked to the rear rotor housing.
Trailing Coil (top plugs), white dot to the front rotor housing, non-marked to the rear rotor housing.
09-12-05, 03:00 PM
#3
Former Moderator. RIP Icemark.
with the leading coils it makes no difference with what spark plug wire goes to which rotor, just that they are connected to the leading plugs (lower-bottom-etc).
09-12-05, 03:38 PM
#5
I think I'm addicted

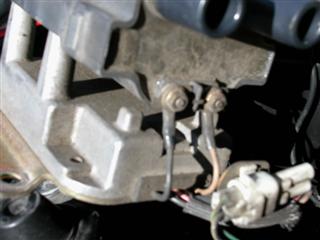

the little black wire, does it come out of the leading coil? like the one in the picture?
if it does, then u would need to re-wire it like i have in the picture
if it does, then u would need to re-wire it like i have in the picture
09-12-05, 04:08 PM
#6
Senior Member
Join Date: Aug 2005
Location: Midwest
Posts: 555
Likes: 0
Received 0 Likes
on
0 Posts
Originally Posted by captainpegs
howdy! I got a n/a '86. I bought the car without plug wires and a leading coil. I got the coil but is the little, single blk wire suppose to be connected or is that just for testing the coil?
I don't know what wire goes to what plug. On the trailing coil I don't see it marked for #1 or #2.
It's my first rotary.
Thanks for the reply's!!
----peg's
I don't know what wire goes to what plug. On the trailing coil I don't see it marked for #1 or #2.
It's my first rotary.
Thanks for the reply's!!
----peg's
Trending Topics
09-12-05, 09:30 PM
#8
Junior Member
Thread Starter
Join Date: Aug 2005
Location: Minn
Posts: 32
Likes: 0
Received 0 Likes
on
0 Posts
hey thanks for the reply's! I got the car from an older guy in Mankato, Rod something who races a 944. I got it cheap but it's really tight and has been adult owned.
09-13-05, 06:01 AM
#10
Originally Posted by captainpegs
Is that course HOK flake on that signiture picture? I'm shooting course gold on an orange v-8 pinto this winter
09-13-05, 06:05 AM
#11
Lives on the Forum
Originally Posted by captainpegs
On the trailing coil I don't see it marked for #1 or #2.
Look real good.
It does say "T1" and "T2", but it's just raised lettering.
Sometimes it's hard to tell cause it's black plastic.
-Ted
09-13-05, 08:23 AM
#12
'86 N/A Phone Dials
Join Date: Mar 2005
Location: Farmington, Minnesota
Posts: 360
Likes: 0
Received 0 Likes
on
0 Posts
I looked at that SAME Rx-7. It's like gold kind of, with faded red interior. His name was Rod Olsen i think. I stopped into look at it one time and he was asking too much for me to afford at the time, so I just hung around his shop and he showed me all his race porshe's and all that stuff. I could have looked around that place for hours.
How much did he end up selling it to you for?
How much did he end up selling it to you for?
09-13-05, 03:49 PM
#13
Junior Member
Thread Starter
Join Date: Aug 2005
Location: Minn
Posts: 32
Likes: 0
Received 0 Likes
on
0 Posts
yeah, and rod will talk your ear off, seems a pretty ok guy. I got it for 1200 with an old 13b thrown in. I had the car on a lift and the suspension and steering was so tight on it; figured it would make a nice project, it's hard to find one that hasn't been abused anymore. he's also got a buick 215 I might get from him for a future something.
09-13-05, 05:08 PM
#14
'86 N/A Phone Dials
Join Date: Mar 2005
Location: Farmington, Minnesota
Posts: 360
Likes: 0
Received 0 Likes
on
0 Posts
Yeah, I offered him $1000 about a year ago, and he said someone was allready lined up to buy it for $1500....cough...bullshit..., it sat until you just got it. I really wanted that spare 13b though. Looks like you got a really good deal. Did he give you the leading ignition coil/ignitor? It was missing when i went to buy it.
09-14-05, 06:15 PM
#15
Junior Member
Thread Starter
Join Date: Aug 2005
Location: Minn
Posts: 32
Likes: 0
Received 0 Likes
on
0 Posts
there was a kid who was going to get it for 1500. I tracked down a coil on my own. I was expecting to do a bit like belts, plugs, eng/trans oil, vaccuum lines etc but rod had it all done already. I think he's retired now but he used to work teaching and working with disadvantaged kids. he also used to run formula atlantic in the early 80's and raced against andretti at elk river. he also used to test run that car around his neighborhood in town and ticked off all the neighbors! lol
09-14-05, 07:55 PM
#16
Green Flameless
iTrader: (2)
Join Date: Feb 2002
Location: North Central PA
Posts: 2,242
Likes: 0
Received 0 Likes
on
0 Posts
Originally Posted by captainpegs
Is that course HOK flake on that signiture picture? I'm shooting course gold on an orange v-8 pinto this winter
Sorry to threadjack
