Anyone know this triangle o ring size. Its pretty skinny and slightly leaking.
Dont see any other major seal.




this seal might need replacement but doesnt seem like oil goes in.


Looks like it might also be leaking around the hose fitting.
might try to tighten those as well

I was able to find a replacement for this o ring

are hnbr o rings good enough as replacements. I know they could reach endure temps up to 300f.



It can be purchased new. N350-14-604



Anyone know where I couls purchase the triangle gasket? Is it the same size as the S4 gasket?



You can purchase OMP gaskets and o-rings from Atkins (https://www.atkinsrotary.com/Mazda-G...s-and-O-Rings/).



@Hot_Dog
thank you! Ive actually seen those but im looking for the odd shaped one. This one.



I just replaced mine a few months ago. Bought the replacement from Atkins. The o-rings are oval when new. It will conform to that odd shape once you insert it into that groove. Recommend using silicon grease to hold it in that groove.



@Hot_Dog
do you mind sending me the link. I accidentally bought the oring connecting to front cover. Atkins does have a 79-88 rebuilt kit but I have a an S5 91 oil metering pump. Does anyone know if these orings will fit the S5 o MP?



https://www.atkinsrotary.com/Mazda-G...50-14-604.html



Hey guys im bringing this back from the dead. I never try found that diamond shaped o ring.
I ordered a few sizes online and hope to finally get that weird diamond shaped o ring.

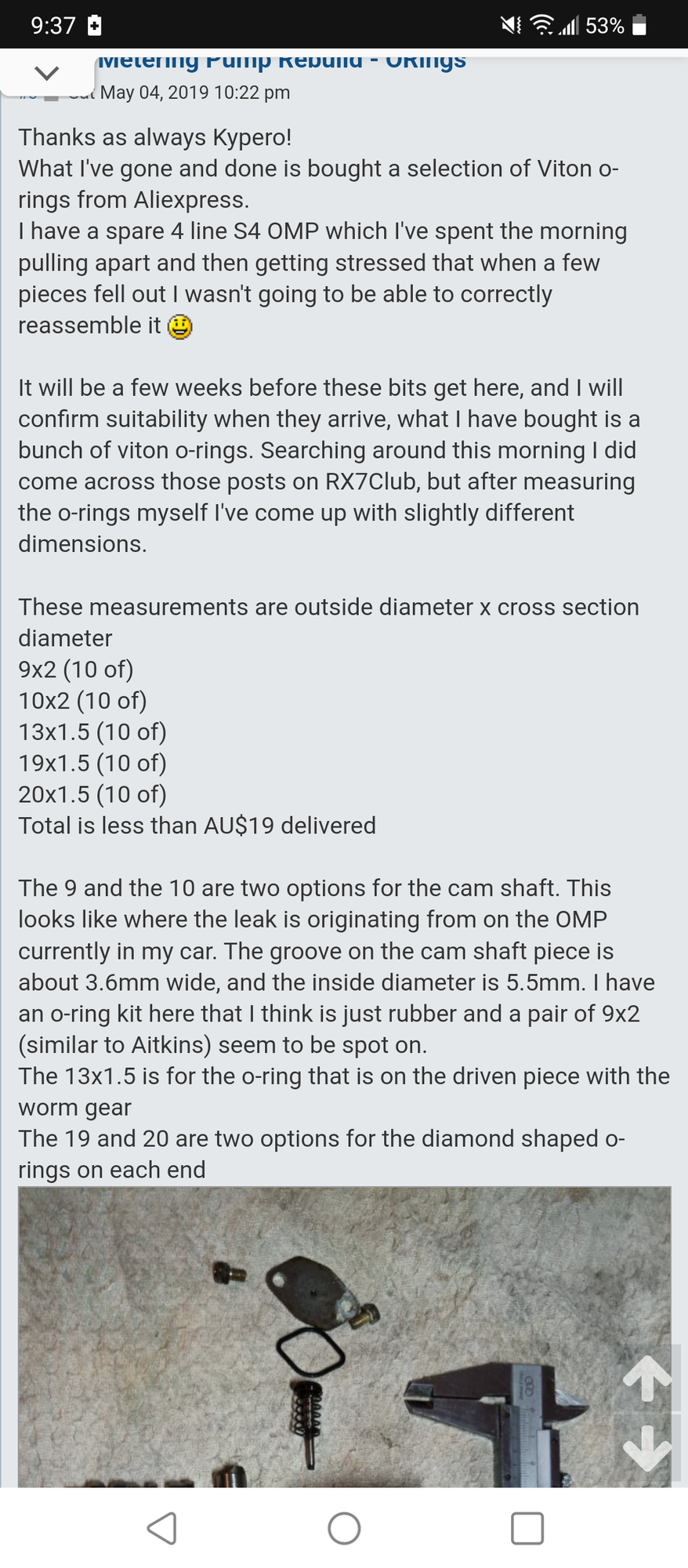

from a different forum the S4 omp uses 20mm x 1.5mm diamond shaped o ring

trying to measure the S5 diamon oring and im hoping its a 26mm-30mm OD since its dificult to measure since i dont have a cone to measure.
im pretty sure the OD is bigger on the S5 since I tried to compare 20mm on the caliper and doesnt look right.
looks like the diamond oring is bigger on the s5 version


this o ring is probably a CS 1.5mm and i only have slightly thicker o rings. Wont go in even if i force it. Using a 2.3mm cs which is the closes it have on hand does not go in at all.

If I'm missing any other o rings let me know.
The big o ring around the omp sensor is 28mm x 1.5mm or 2.0mm



Orings arrived for test fittings
this one is 15mm but cs1.5 is too thin. Might be a cs2mm or cs3mm

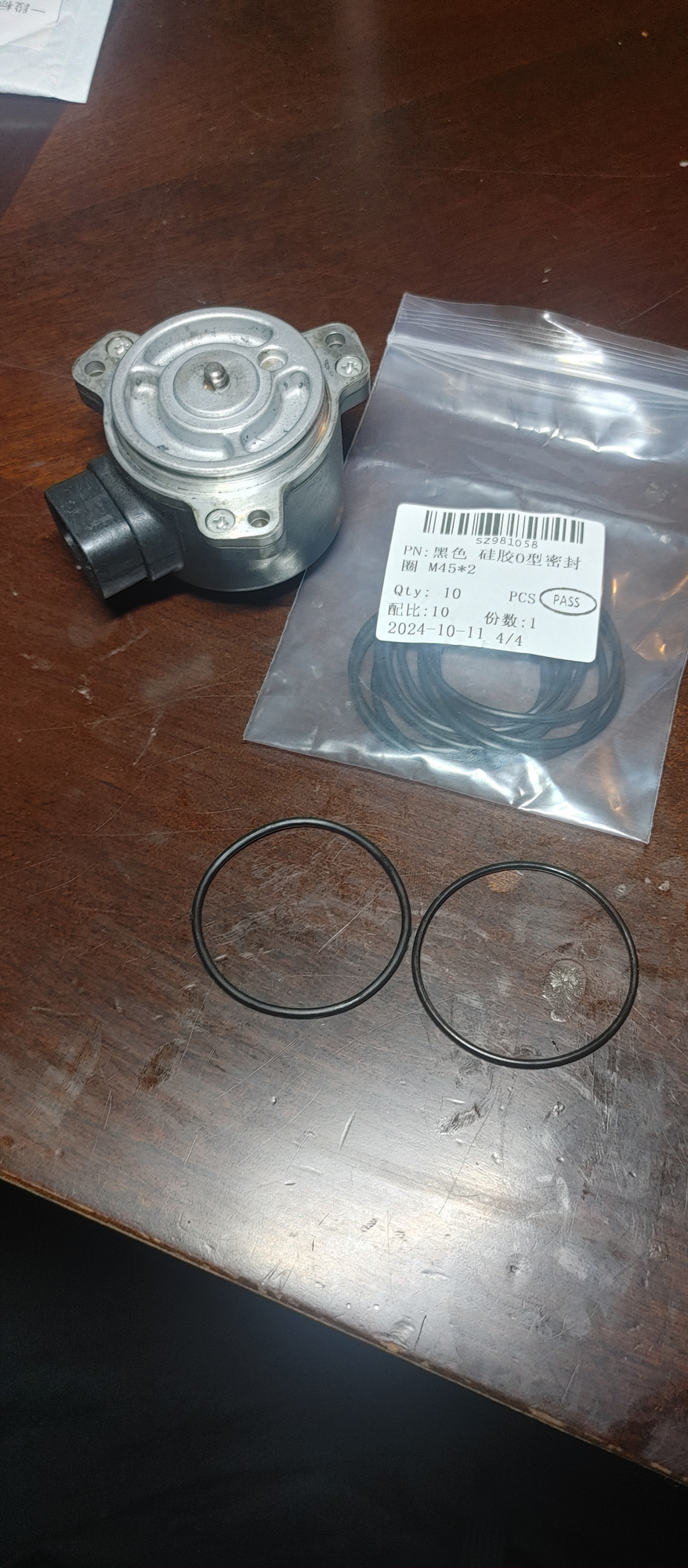

this was the correct size 45mm cs2mm
its slightly loose so maybe a 44.5mm or a 44mm will also do


the diamond shape was alot smaller. Looks to be a 25mm or a 25.5mm with a CS2mm
I ordered more o rings and im hoping to finally get all these o rings figured out to be able to rebuild the s5 omp

if anyone knows if I'm missing anymore orings let me know



Finally got the rest of the orings for the s5 orings
diamond shape oring is D26mm x cs2mm


OD15mm x cs2.5mm


The last oring is OD16mm x cs1.5mm

Now the last oring to find out would the the omp to motor.
atkins sells this. I have one and need to measure.
unless anyone else knows they size of this o ring.



When I install back will report if anything leaked.
will write a list of sizew once I get the time.
finally we could rebuild the s5 easily



Thanks for taking the time to do this! Looking forward to your results



Alright guys found the last o ring for the omp s5.
this is a 37mm x 2mm. Or
38mm x 2mm both seem to fit. If your xould find a 37.5mm it'll be inbetween both sizes.
This o ring is inbetween the motor and omp
im hoping I got all the o rings in the s5 oil metering pump.



S5 OMP O-Ring Sizes sorry for not using the proper terms. here is my contribution to the forum. I cant guarantee it wont leak since my motor is still not installed. viton orings should handle the temperature

Diamond Shaped O ring 26mm x CS2mm
Cylinder Pin 15mm x CS2.5mm
Black Box Pin 16mm x CS1.5mm
Big Circle Motor 45mm x CS2mm
Front Motor O Ring 37mm x CS2mm



Would anyone be interested in buying an o ring kit off me.
I have enough for 5 sets.
It'll be only for the s5 electrical OMP
