Rust rust rust.... bent caliper mounts, seized rotors HELP!
Hey whats up guys, I have an s4 GXL and decided to do a complete brake system overhaul and i've gotten stuck.
The rears were decently straight forward. Replaced the rear calipers, pads, rotors, lines. Came to the front. Its my belief that the rotors on the car were the original 25 year old rotors (my brakes are terrible) The screws holding the rotor on were seized so i drilled them off and tried hammering the rotor for about... 2 hours. Neither were budging at all with my hammering and prying so i came up with the idea of putting the caliper bolts on by themselves and tighten them to the point they start pushing the rotor off. That with prying and hammering i got one rotor off but when i was trying to put the new caliper on it i realized i bent the mounts slightly and they aren't going on. What can i do about that? I can't afford to buy 2 new front hubs now.... and i bet those are rusted to **** too. I'm trying to find some DIYs or something but i can't find anything for the FCs
Also does someone have a correctly loaded FC caliper picture? Some idiot RTVd my old caliper pins so they wouldn't slide out and i don't want to do that. i want to properly use the pins i got with the new calipers. Any DIYs or tips? please i want to get this taken care of ASAP because my cars currently sitting without any front calipers
Thanks in advance!
The rears were decently straight forward. Replaced the rear calipers, pads, rotors, lines. Came to the front. Its my belief that the rotors on the car were the original 25 year old rotors (my brakes are terrible) The screws holding the rotor on were seized so i drilled them off and tried hammering the rotor for about... 2 hours. Neither were budging at all with my hammering and prying so i came up with the idea of putting the caliper bolts on by themselves and tighten them to the point they start pushing the rotor off. That with prying and hammering i got one rotor off but when i was trying to put the new caliper on it i realized i bent the mounts slightly and they aren't going on. What can i do about that? I can't afford to buy 2 new front hubs now.... and i bet those are rusted to **** too. I'm trying to find some DIYs or something but i can't find anything for the FCs
Also does someone have a correctly loaded FC caliper picture? Some idiot RTVd my old caliper pins so they wouldn't slide out and i don't want to do that. i want to properly use the pins i got with the new calipers. Any DIYs or tips? please i want to get this taken care of ASAP because my cars currently sitting without any front calipers
Thanks in advance!
03-31-13, 02:28 PM
#2
Man...that stinks to hear. It sucks that the mounts bent, hard to believe the rotor didn't budge before then! IMO you will never be able to get the mounts aligned 100% perfect again, so there is no harm in attempting to "persuade" them into submission before being stuck with replacing them. I know you said you couldn't afford new hubs right now, but they can be obtained very cheaply from the classifieds forum or local part out. Good luck.
03-31-13, 02:29 PM
#3
Senior Member
Thread Starter
iTrader: (1)
Join Date: Jun 2009
Location: NYC
Posts: 371
Likes: 0
Received 0 Likes
on
0 Posts

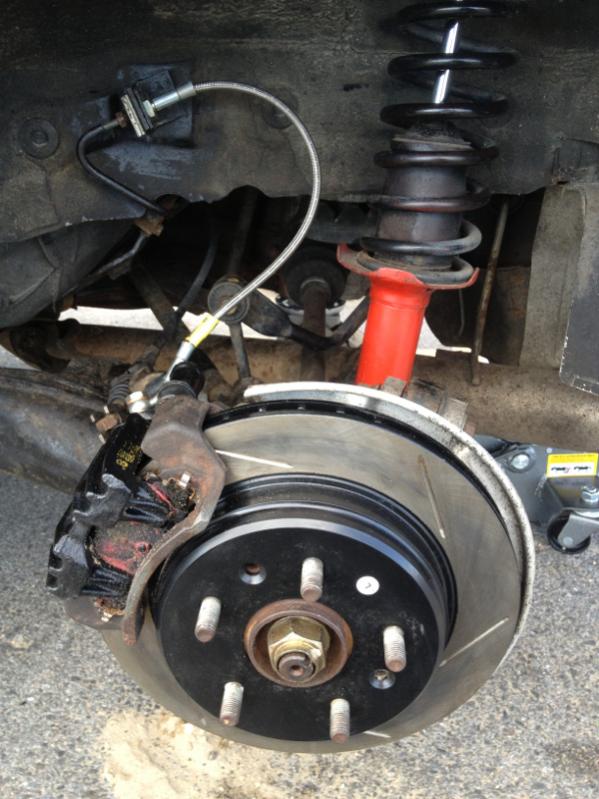

To give you the idea of how much rust i'm talking about. I spent about 10 hours total trying to get everything off

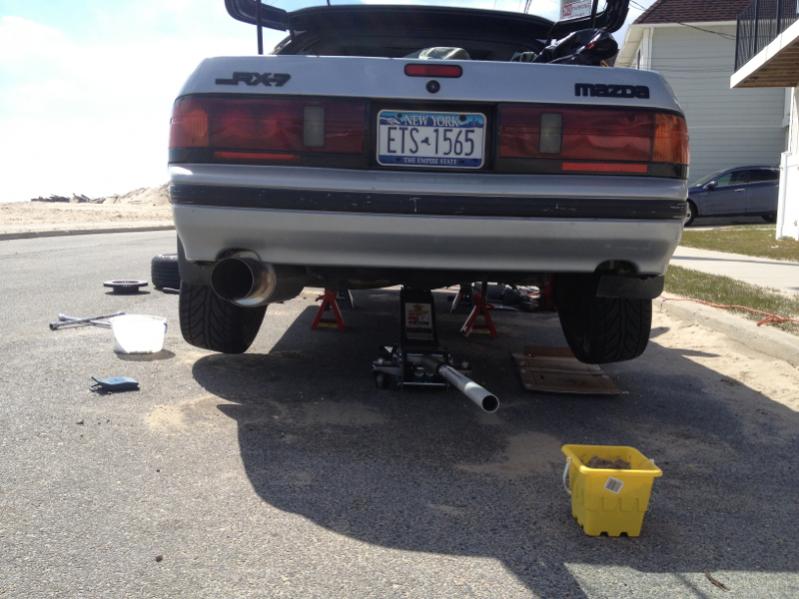

The backs came out so clean and so easy
The backs came out so clean and so easy
03-31-13, 08:46 PM
#4
Isaiah 53.7
Join Date: Mar 2013
Location: Indiana
Posts: 114
Likes: 0
Received 0 Likes
on
0 Posts
Man, I hate rust. Those knuckles are probably done now, so I'd use them as much as possible to get the rotors off. Maybe try turning in those bolts again for pressure, then peel back the rotor shroud enough to hit on the rotor with a sledge hammer if you've not done so already.
On my caliper pins on the front, I put a small bit of antiseize on them where they contact the aluminum calipers. I also lightly painted the bleeder threads with anitseize, making sure it wasn't near the inside of the screw. I didn't get carried away with the stuff; it's just to prevent dross from making stuff stick.
On my caliper pins on the front, I put a small bit of antiseize on them where they contact the aluminum calipers. I also lightly painted the bleeder threads with anitseize, making sure it wasn't near the inside of the screw. I didn't get carried away with the stuff; it's just to prevent dross from making stuff stick.
03-31-13, 08:58 PM
#5
Senior Member
Thread Starter
iTrader: (1)
Join Date: Jun 2009
Location: NYC
Posts: 371
Likes: 0
Received 0 Likes
on
0 Posts
Where can i get new knuckles from? I'm afraid if i get them off some guy parting out they'll be just as messed up. These cars are getting to be 20-25 and i'm sure everyone elses cars are rusting and seizing up and bent
03-31-13, 09:19 PM
#6
Isaiah 53.7
Join Date: Mar 2013
Location: Indiana
Posts: 114
Likes: 0
Received 0 Likes
on
0 Posts
Well, there's always custom knuckles for more steering angle if that's your thing. Those might cost a bit, though. You could find a rotary junkyard nearest you. They'd hook you up.
Just a random thought, you could try straightening them out as best you can then have a machine shop or a buddy mill the important side flat as long as it doesn't take too much material out. I can't quite remember what the knuckles look like, so I don't know if this is feasible or not. On the other hand, this is a pretty important structure of the vehicle, so maybe the cheapest way out isn't the best... up to you!
Just a random thought, you could try straightening them out as best you can then have a machine shop or a buddy mill the important side flat as long as it doesn't take too much material out. I can't quite remember what the knuckles look like, so I don't know if this is feasible or not. On the other hand, this is a pretty important structure of the vehicle, so maybe the cheapest way out isn't the best... up to you!
Trending Topics
03-31-13, 09:55 PM
#8
Isaiah 53.7
Join Date: Mar 2013
Location: Indiana
Posts: 114
Likes: 0
Received 0 Likes
on
0 Posts
There's Rhinehart's Auto Parts in Pa. I've not dealt with them, but they say they'll ship out their stuff. I found them on the Craigslist. I'd think quite a few rotary salvage yards would ship out their stuff, being a specialty market and all. Keep in mind, beggars can't be choosers; something I don't like...
03-31-13, 10:14 PM
#10
i just swapped out my old 24 year old brake lines for new SS ones and man they were rusted and fused together soo bad i had to soak them in PB blaster over night for 2 days and torched those ***** off...luckily the 10mm fittings didnt strip... well, 1 kinda did. nothing some new channel lock pliers count fix..
03-31-13, 11:41 PM
#13
i haven't actually drove it yet i just started working on it yesterday. and as clokker said it shouldn't make that much of a difference i just got them because i was gonna change my rotors and brakes i figured id change them now. plus im glad i changed them out. the old ones where looking kinda frail.
04-01-13, 12:31 AM
#14
Retired Moderator, RIP
iTrader: (142)
Join Date: Sep 2005
Location: Smiths Falls.(near Ottawa!.Mapquest IT!)
Posts: 25,581
Likes: 0
Received 131 Likes
on
114 Posts
so,just to get this correct,did this happen because the rotors were seized to the hubs and you tried to get the hub and rotor to separate by using the caliper bolts?
If your rotors are still stuck to the hubs PM me,I can tell ya how to get them off with a grinder.it's tedious but it won't wreck the hub.
If your rotors are still stuck to the hubs PM me,I can tell ya how to get them off with a grinder.it's tedious but it won't wreck the hub.
Last edited by misterstyx69; 04-01-13 at 12:41 AM.
04-01-13, 01:11 AM
#15
Senior Member
Thread Starter
iTrader: (1)
Join Date: Jun 2009
Location: NYC
Posts: 371
Likes: 0
Received 0 Likes
on
0 Posts
i haven't actually drove it yet i just started working on it yesterday. and as clokker said it shouldn't make that much of a difference i just got them because i was gonna change my rotors and brakes i figured id change them now. plus im glad i changed them out. the old ones where looking kinda frail.
so,just to get this correct,did this happen because the rotors were seized to the hubs and you tried to get the hub and rotor to separate by using the caliper bolts?
If your rotors are still stuck to the hubs PM me,I can tell ya how to get them off with a grinder.it's tedious but it won't wreck the hub.
If your rotors are still stuck to the hubs PM me,I can tell ya how to get them off with a grinder.it's tedious but it won't wreck the hub.
Yes, precisely. You sir have a PM
04-01-13, 03:49 PM
#16
Senior Member
Thread Starter
iTrader: (1)
Join Date: Jun 2009
Location: NYC
Posts: 371
Likes: 0
Received 0 Likes
on
0 Posts
So worst case scenario i'm going to find some new front knuckles
Couple questions
Is there a difference between s4 and s5 knuckles? Can i buy 4 lug knuckles and swap my 5 lug hubs onto them? The caliper mounts for them are all the same right?
Couple questions
Is there a difference between s4 and s5 knuckles? Can i buy 4 lug knuckles and swap my 5 lug hubs onto them? The caliper mounts for them are all the same right?
04-01-13, 06:25 PM
#17
Retired Moderator, RIP
iTrader: (142)
Join Date: Sep 2005
Location: Smiths Falls.(near Ottawa!.Mapquest IT!)
Posts: 25,581
Likes: 0
Received 131 Likes
on
114 Posts
they are the same.If you don't want to screw with the brake dustshields then just use yours from your 5 lug setup.
the 4 lug needs to be "massaged" a wee bit.
I put the 5 lug hubs/rotors/calipers on a 4 lug setup without any mods( other than bending the dustshield back a tad.)
the 4 lug needs to be "massaged" a wee bit.
I put the 5 lug hubs/rotors/calipers on a 4 lug setup without any mods( other than bending the dustshield back a tad.)
04-01-13, 11:51 PM
#19
Retired Moderator, RIP
iTrader: (142)
Join Date: Sep 2005
Location: Smiths Falls.(near Ottawa!.Mapquest IT!)
Posts: 25,581
Likes: 0
Received 131 Likes
on
114 Posts
If you do not get them Straight or back to the original position,then the caliper will sit all ****-eyed to your rotor and will give you Nothing but Problems.
