push buttom start.
#1
Junior Member
Thread Starter
Join Date: Jan 2008
Location: Guam
Posts: 29
Likes: 0
Received 0 Likes
on
0 Posts
push buttom start.
i need help with my push button start?
i got a relay and the button..
now from there im stuck...hahahaha
does anyone have a wire diagram of how to do this?
i got a relay and the button..
now from there im stuck...hahahaha
does anyone have a wire diagram of how to do this?
#6
Engine, Not Motor
iTrader: (1)
Join Date: Feb 2001
Location: London, Ontario, Canada
Posts: 29,789
Likes: 0
Received 108 Likes
on
91 Posts
The wiring is the same NA or TII.
As mentioned, grab your copy of the FSM or Haynes manual and look up the wiring diagrams. It is a dead simple installation. All you are doing is using the button to connect a 12V constant source to the starter solenoid wire. You'll be dealing with two wires at the ignition switch...
Starting buttons are handy...I keep debating whether to install one on my car and where to put it...
As mentioned, grab your copy of the FSM or Haynes manual and look up the wiring diagrams. It is a dead simple installation. All you are doing is using the button to connect a 12V constant source to the starter solenoid wire. You'll be dealing with two wires at the ignition switch...
Starting buttons are handy...I keep debating whether to install one on my car and where to put it...
Trending Topics
#8
10 lb. boost, 5lb. bag
iTrader: (1)
Mine has a mickey-ficked one because the start position on my keyswitch failed while I was out in the boonies. I actually hooked a jumper cable to my battery and reached under the car to poke the solenoid to start the car, and then drove to the nearest NAPA and bought some parts. Works so well that I never bothered fixing the keyswitch.
#9
HAILERS
Join Date: May 2001
Location: FORT WORTH, TEXAS,USA
Posts: 20,563
Likes: 0
Received 21 Likes
on
19 Posts

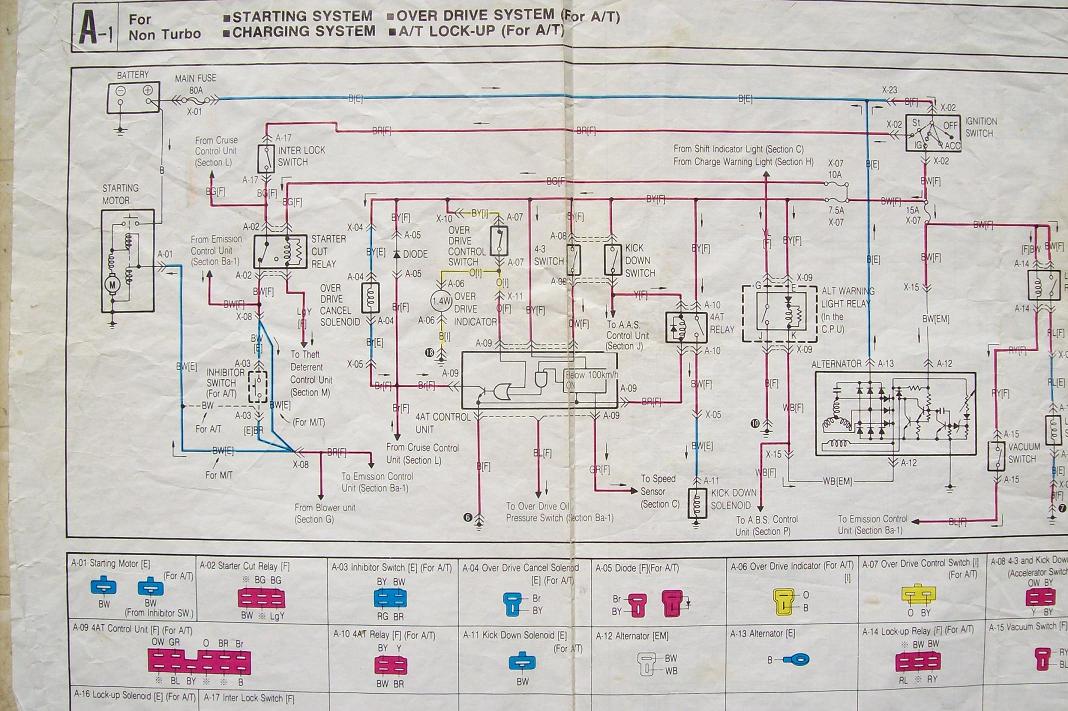

If you make a push button switch for starting, it's desireable that when it puts 12v on the starter solenoid, that at the same time puts 12v on the black/white wire shown in the attached jpg. You would do that so the ECU will see the Start signal when you go to Start.
#10
Junior Member
Thread Starter
Join Date: Jan 2008
Location: Guam
Posts: 29
Likes: 0
Received 0 Likes
on
0 Posts
thanks for your help guys...
i got the button working..
the reason i went to push start button is because im out here on a island called guam and its hard to find parts for the rx.
i got the button working..
the reason i went to push start button is because im out here on a island called guam and its hard to find parts for the rx.
#12
My Bick is Digger
iTrader: (3)
Derek
#17
Moderator
iTrader: (1)
If you require that a depressed clutch be part of the starting process you would replace the B/R wire that runs into the interlock switch, which is used to pass voltage through when the clutch pedal is depressed, with a wire that would feed into one end of your new start button and then the wire from the battery going into the other end/side of the start button.
EDIT: Disregard the statement I made about it being more involved. After looking at the wiring diagram the B/W wire which splits off to the ECU will allow the ECU to control the fuel pump upon startup so nothing else should be required, which is good!
EDIT: Disregard the statement I made about it being more involved. After looking at the wiring diagram the B/W wire which splits off to the ECU will allow the ECU to control the fuel pump upon startup so nothing else should be required, which is good!
