misprint in FSM? (engine codes)
#1
Full Member
Thread Starter
Join Date: Oct 2002
Location: Guelph, Ontario
Posts: 171
Likes: 0
Received 0 Likes
on
0 Posts
misprint in FSM? (engine codes)
so i'm doing some self diagnostic on my FC
and i tested which engine codes are brought up with the pin connector
one of them that confuses me is similar to 73 (rear secondary injector) but is missing one flash
it goes
3 long flashes
3 long flashes
3 short flashes
the FSM for code 73 is 7 long flashes, and then 3 short flashes
is the FSM wrong, or do i have another problem in the system somewhere?
and i tested which engine codes are brought up with the pin connector
one of them that confuses me is similar to 73 (rear secondary injector) but is missing one flash
it goes
3 long flashes
3 long flashes
3 short flashes
the FSM for code 73 is 7 long flashes, and then 3 short flashes
is the FSM wrong, or do i have another problem in the system somewhere?
#3
Full Member
Thread Starter
Join Date: Oct 2002
Location: Guelph, Ontario
Posts: 171
Likes: 0
Received 0 Likes
on
0 Posts
Originally Posted by Kenteth
thats a 30, and a 33, not a 63 :P
EDIT: this is one of those times you wish you could delete a thread huh?
EDIT: this is one of those times you wish you could delete a thread huh?
they go in sequence though
so i dont understand....
i'll check them out then
#4
Like Ghandi with a gun
Join Date: Mar 2003
Location: Rapid City, SD
Posts: 4,584
Likes: 0
Received 0 Likes
on
0 Posts
um... 30... 33... that would be in sequence
Its not 3 long, 3 long, 3 short
Its 3 long, 0 short, 3 long 3 short
30, 33.
EDIT:
30: Split air solenoid.
33: Port air solenoid valve.
Done.
Its not 3 long, 3 long, 3 short
Its 3 long, 0 short, 3 long 3 short
30, 33.
EDIT:
30: Split air solenoid.
33: Port air solenoid valve.
Done.
Last edited by Kenteth; 08-12-04 at 12:49 PM.
#5
Full Member
Thread Starter
Join Date: Oct 2002
Location: Guelph, Ontario
Posts: 171
Likes: 0
Received 0 Likes
on
0 Posts
Originally Posted by Kenteth
um... 30... 33... that would be in sequence
Its not 3 long, 3 long, 3 short
Its 3 long, 0 short, 3 long 3 short
30, 33.
EDIT:
30: Split air solenoid.
33: Port air solenoid valve.
Done.
Its not 3 long, 3 long, 3 short
Its 3 long, 0 short, 3 long 3 short
30, 33.
EDIT:
30: Split air solenoid.
33: Port air solenoid valve.
Done.
#6
Like Ghandi with a gun
Join Date: Mar 2003
Location: Rapid City, SD
Posts: 4,584
Likes: 0
Received 0 Likes
on
0 Posts
What are your mods, a modified intake (emissions side) will throw those codes regulary and they aren't an issue. If your car is unmodded, those codes will probaby be resulting in your cat clogging up in about a month or two... Not to mention they may indicate bigger problems. Did you pull any other codes?
And put your car info (mainly year and trim) in your sig, makes it ten times easier for someone wanting to help you, easpeically if the help is series dependant (as CEL codes are.)
And put your car info (mainly year and trim) in your sig, makes it ten times easier for someone wanting to help you, easpeically if the help is series dependant (as CEL codes are.)
#7
Full Member
Thread Starter
Join Date: Oct 2002
Location: Guelph, Ontario
Posts: 171
Likes: 0
Received 0 Likes
on
0 Posts
Originally Posted by Kenteth
What are your mods, a modified intake (emissions side) will throw those codes regulary and they aren't an issue. If your car is unmodded, those codes will probaby be resulting in your cat clogging up in about a month or two... Not to mention they may indicate bigger problems. Did you pull any other codes?
And put your car info (mainly year and trim) in your sig, makes it ten times easier for someone wanting to help you, easpeically if the help is series dependant (as CEL codes are.)
And put your car info (mainly year and trim) in your sig, makes it ten times easier for someone wanting to help you, easpeically if the help is series dependant (as CEL codes are.)
i have an 89 gxl
unmodded
could it be that my cat is plugged up then? i have the solenoids out and they look alright...
Trending Topics
#8
Like Ghandi with a gun
Join Date: Mar 2003
Location: Rapid City, SD
Posts: 4,584
Likes: 0
Received 0 Likes
on
0 Posts
Originally Posted by akademiks
my bad
i have an 89 gxl
unmodded
i have an 89 gxl
unmodded
Those two CEL codes will be tripped if either the port air solenoid or air solenoid valves are either disconnected or shortted. IRRC the port air solenoid is the white solenoid on the vac rack. The port air valve, I believe is... i dunno, I'll have to look it up.
Anyhow, The solenoids are snugged between the oil fill tube and the alternator kinda. Just make sure those are all plugged in.
EDIT: NM, solenoids you are looking for are grey and blue.
Last edited by Kenteth; 08-12-04 at 01:16 PM.
#9
Full Member
Thread Starter
Join Date: Oct 2002
Location: Guelph, Ontario
Posts: 171
Likes: 0
Received 0 Likes
on
0 Posts
Originally Posted by Kenteth
I had to check your profile.
Those two CEL codes will be tripped if either the port air solenoid or air solenoid valves are either disconnected or shortted. IRRC the port air solenoid is the white solenoid on the vac rack. The port air valve, I believe is... i dunno, I'll have to look it up.
Anyhow, The solenoids are snugged between the oil fill tube and the alternator kinda. Just make sure those are all plugged in.
Those two CEL codes will be tripped if either the port air solenoid or air solenoid valves are either disconnected or shortted. IRRC the port air solenoid is the white solenoid on the vac rack. The port air valve, I believe is... i dunno, I'll have to look it up.
Anyhow, The solenoids are snugged between the oil fill tube and the alternator kinda. Just make sure those are all plugged in.
yup
those are fine
i'll going back out to plug in the port air and air solenoids, i'll check the vac rack though
#10
Like Ghandi with a gun
Join Date: Mar 2003
Location: Rapid City, SD
Posts: 4,584
Likes: 0
Received 0 Likes
on
0 Posts

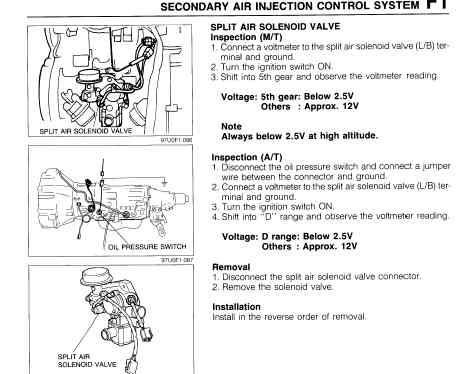

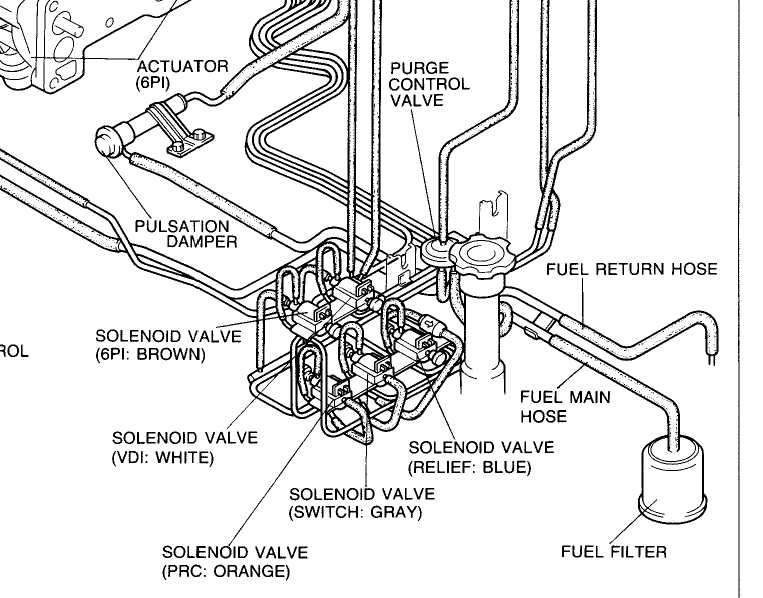

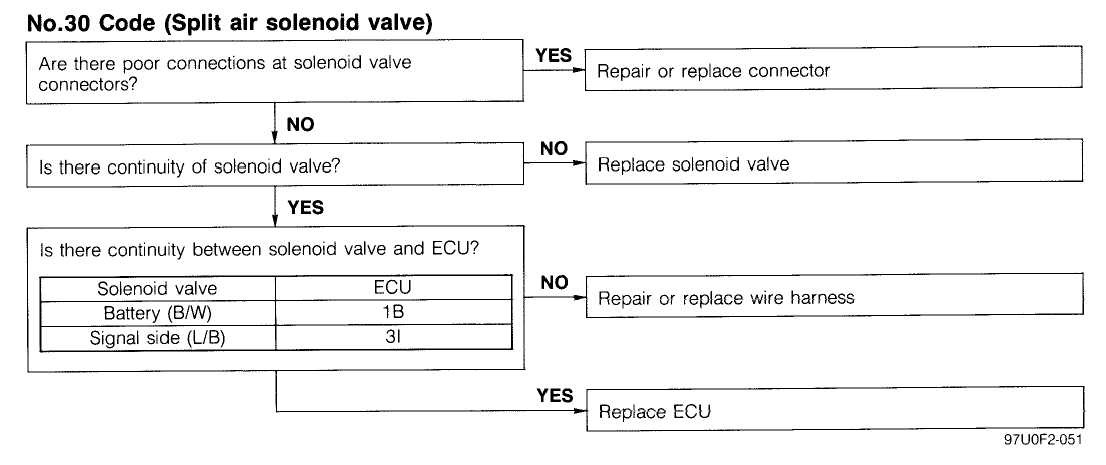

Flow charts, yay. Not super helpful though. IMO if one of these were really to go bad, I'd rip out the entire emission system... but im in the middle of nowhere were they don't care if you spew toxic fumes into little birdies lungs...
EDIT: DAMN I was wrong. Ok, all the physical rats nest solenoids should be fine in that they didn't trip. What did was the ACV. And why they don't just say ACV is beyond me, woudl be much easier. check the attatchments
EDIT: DAMN I was wrong. Ok, all the physical rats nest solenoids should be fine in that they didn't trip. What did was the ACV. And why they don't just say ACV is beyond me, woudl be much easier. check the attatchments
Last edited by Kenteth; 08-12-04 at 01:29 PM.
#11
Full Member
Thread Starter
Join Date: Oct 2002
Location: Guelph, Ontario
Posts: 171
Likes: 0
Received 0 Likes
on
0 Posts
Originally Posted by Kenteth
Flow charts, yay. Not super helpful though. IMO if one of these were really to go bad, I'd rip out the entire emission system... but im in the middle of nowhere were they don't care if you spew toxic fumes into little birdies lungs...
EDIT: DAMN I was wrong. Ok, all the physical rats nest solenoids should be fine in that they didn't trip. What did was the ACV. And why they don't just say ACV is beyond me, woudl be much easier. check the attatchments
EDIT: DAMN I was wrong. Ok, all the physical rats nest solenoids should be fine in that they didn't trip. What did was the ACV. And why they don't just say ACV is beyond me, woudl be much easier. check the attatchments
i checked that out, i have that on my computer

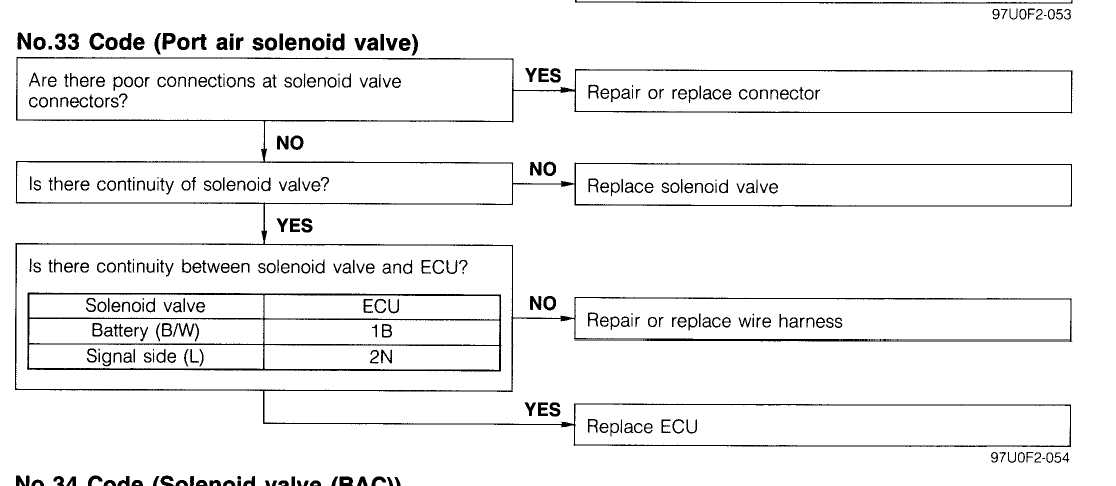

although, where it says check continuity between solenoid valve and ECU...how is that possible?
#12
Like Ghandi with a gun
Join Date: Mar 2003
Location: Rapid City, SD
Posts: 4,584
Likes: 0
Received 0 Likes
on
0 Posts
Originally Posted by akademiks
yeah
i checked that out, i have that on my computer
although, where it says check continuity between solenoid valve and ECU...how is that possible?
i checked that out, i have that on my computer
although, where it says check continuity between solenoid valve and ECU...how is that possible?
no continuity means the wire is broken/shorted somewhere along the line.
#13
Full Member
Thread Starter
Join Date: Oct 2002
Location: Guelph, Ontario
Posts: 171
Likes: 0
Received 0 Likes
on
0 Posts
Originally Posted by Kenteth
Continuity means the wire isn't broken anywhere beteen the solenoid and the ECU.
no continuity means the wire is broken/shorted somewhere along the line.
no continuity means the wire is broken/shorted somewhere along the line.
alright, so i would need a voltmeter to test both out correct?
also, what is it referring to when the FSM says battery and signal side?
#14
Like Ghandi with a gun
Join Date: Mar 2003
Location: Rapid City, SD
Posts: 4,584
Likes: 0
Received 0 Likes
on
0 Posts
Originally Posted by akademiks
gotcha
alright, so i would need a voltmeter to test both out correct?
also, what is it referring to when the FSM says battery and signal side?
alright, so i would need a voltmeter to test both out correct?
also, what is it referring to when the FSM says battery and signal side?
Where is "signal side" used in the FSM?
EDIT: nm, battery is the battery power to the ECU. Its saying, "check to make sure the ecu has power".
Signal side, is the sensor signal, which runs 12volts on some of the sensors/solenoids (mainly output) and 5 on the others (mainly input).
Last edited by Kenteth; 08-12-04 at 01:46 PM.
#15
Full Member
Thread Starter
Join Date: Oct 2002
Location: Guelph, Ontario
Posts: 171
Likes: 0
Received 0 Likes
on
0 Posts
Originally Posted by Kenteth
You wouldn't necessarily need a volt meter, but it would be ten times easier. Technicaly, a multimeter would be easier and you can use ohm-meter to check the continuity (or in the case of the meter-- resistance) much easier. Shoving 12volts into pins on the harness is a bad idea. The harness has a circuit which is a constant 5volts. If you short that 5 volts out to a sensor with a full 12v, you stand a good chance of blowing the sensor.
Where is "signal side" used in the FSM?
Where is "signal side" used in the FSM?
when asking for continuity between solenoid valve and ECU, it asks for solenoid valve, battery side, and signal side
btw, i'm reading one of your older posts concerning the same engine codes, maybe i might find something
#16
Like Ghandi with a gun
Join Date: Mar 2003
Location: Rapid City, SD
Posts: 4,584
Likes: 0
Received 0 Likes
on
0 Posts
haha, I've been fighting engine codes for awhile. However keep in mind, I have completely removed emissions system and hence trip ever CEL solenoid code. Its not unlike my car to have 5 codes sitting waiting to be pulled. they are all expected though, as being modified.
#18
Like Ghandi with a gun
Join Date: Mar 2003
Location: Rapid City, SD
Posts: 4,584
Likes: 0
Received 0 Likes
on
0 Posts
...hows driving the car?
EDIT: and rick james is dead bitch, and that saying was always stupid and overused.
anyhow, if the car drives fine the only thing you are in concern of is the catalytic converter. If its not getting enough o2, or too much, you'll kill it off... if its not already.
EDIT: and rick james is dead bitch, and that saying was always stupid and overused.
anyhow, if the car drives fine the only thing you are in concern of is the catalytic converter. If its not getting enough o2, or too much, you'll kill it off... if its not already.
#19
Full Member
Thread Starter
Join Date: Oct 2002
Location: Guelph, Ontario
Posts: 171
Likes: 0
Received 0 Likes
on
0 Posts
Originally Posted by Kenteth
...hows driving the car?
EDIT: and rick james is dead bitch, and that saying was always stupid and overused.
anyhow, if the car drives fine the only thing you are in concern of is the catalytic converter. If its not getting enough o2, or too much, you'll kill it off... if its not already.
EDIT: and rick james is dead bitch, and that saying was always stupid and overused.
anyhow, if the car drives fine the only thing you are in concern of is the catalytic converter. If its not getting enough o2, or too much, you'll kill it off... if its not already.
EDIT: true, but i havent thought of anothet title yet
#20
Like Ghandi with a gun
Join Date: Mar 2003
Location: Rapid City, SD
Posts: 4,584
Likes: 0
Received 0 Likes
on
0 Posts
Originally Posted by akademiks
alright, although i would like to look into this somehow....
EDIT: true, but i havent thought of anothet title yet
EDIT: true, but i havent thought of anothet title yet
its 30 times better than rich james ****.
#23
Lives on the Forum
I know you're trying to go by the FSM tests, and that's all well & good, but did you know you can check out every sensor (the ones that matter, anyway) from the ECU? Nice & easy, don't have to rip anything apart in the engine bay, AND you'll be checking the entire circuit, not just a sensor here, continuity there, etc... Try it ... ECU inputs are in a chart somewhere in your FSM (section 4A for the S4's).
If a sensor input voltage at the ECU is not what the FSM says it should be, THEN start start tearing apart connectors & such...
If a sensor input voltage at the ECU is not what the FSM says it should be, THEN start start tearing apart connectors & such...
Thread
Thread Starter
Forum
Replies
Last Post
