installing racing seats
03-20-05, 06:56 PM
#1
Who are you?
Thread Starter
Join Date: Mar 2003
Location: CenCal
Posts: 2,235
Likes: 0
Received 0 Likes
on
0 Posts
installing racing seats
Has someone done this before(im sure they have). I bought some mazdaspeed racing seats, Im looking for instructions on how to install theses. They came with the universal sliders. Will these just bolt on to the existing base? diagrams or pics would be nice. Thanx
VIPER
VIPER
03-20-05, 07:37 PM
#3
Rotary Enthusiast
iTrader: (9)
Join Date: Jun 2003
Location: west
Posts: 1,191
Likes: 0
Received 0 Likes
on
0 Posts

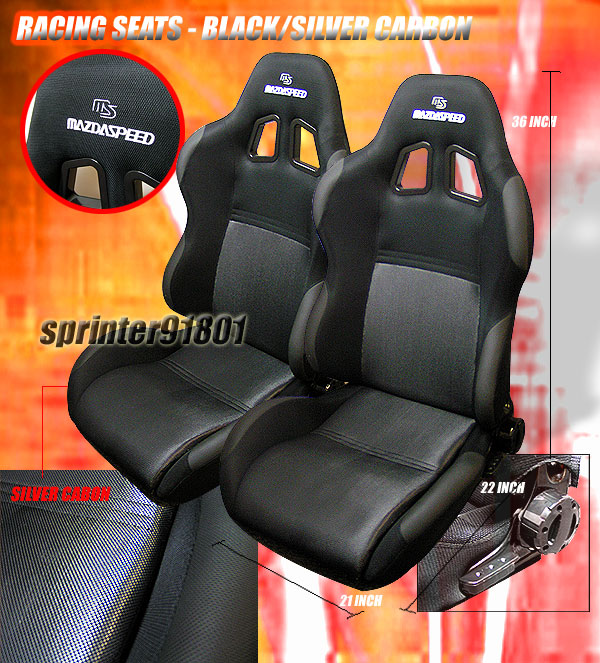

You bought knock offs or genuine Mazdaspeed?? If knock offs came with brackets and are universal, you may need to modify it to bolt it down to the base. Usually genuines does not come with sliders/brackets since it's made for a specific car.
03-20-05, 08:16 PM
#4
Like Ghandi with a gun
Join Date: Mar 2003
Location: Rapid City, SD
Posts: 4,584
Likes: 0
Received 0 Likes
on
0 Posts
Info about ebay knockoffs and how to mount them: https://www.rx7club.com/showthread.p...highlight=ebay
03-21-05, 12:12 AM
#6
Former Moderator. RIP Icemark.
The ebay Mazdaspeed knock off's would require custom brackets, to use the stock mounting holes and/or stock sliders.
Get a couple of 2"x 3/16" (or thicker) steel bars, mount the stock sliders to those, then mount the seat to the steel bars. Pretty straight forward... shouldn't take more than an hour to make.
and jgrts20 please fix your signature... 6 lines maximum... you currently have 11+ lines. Fix it before a admin sees it and deletes it without warning.
Get a couple of 2"x 3/16" (or thicker) steel bars, mount the stock sliders to those, then mount the seat to the steel bars. Pretty straight forward... shouldn't take more than an hour to make.
and jgrts20 please fix your signature... 6 lines maximum... you currently have 11+ lines. Fix it before a admin sees it and deletes it without warning.
03-21-05, 06:05 AM
#7
Who are you?
Thread Starter
Join Date: Mar 2003
Location: CenCal
Posts: 2,235
Likes: 0
Received 0 Likes
on
0 Posts
Thanx Icemark and everyone else. Sounds pretty easy. Theyre really nice and comfortable, i bought them from a guy that works at x3 racing in Calif. They cost me 138 plus 150 for shipping took about 5 days to get to Vermont. I have a oic but i dont remeber how to post pics, havent been on here since fall. I store my car in the winter here to keep it in mint condition.
Trending Topics
03-21-05, 12:13 PM
#8
Rotary Freak
Join Date: Apr 2004
Location: Rochester, NY
Posts: 1,579
Likes: 0
Received 0 Likes
on
0 Posts
here is a bunch of pics of how I mounted a sparco onto my honda, its very simple.
http://homepage.mac.com/owen_the_soy...toAlbum14.html
Ive recently done the same in my '87 Sport and it was easy enough, but the holes had to be countersunk (recessed) so that the bolt heads didnt interfere with the other parts. to make sure it was strong enough, I used thicker barstock since I had to recess the bolt heads. if you use all steel parts then you can weld onto the stock sliders and not worry about the recess for the bolt heads, it would even get the seat lower if you used a sidemounting type of bracket instead of bottom mounting like I did.

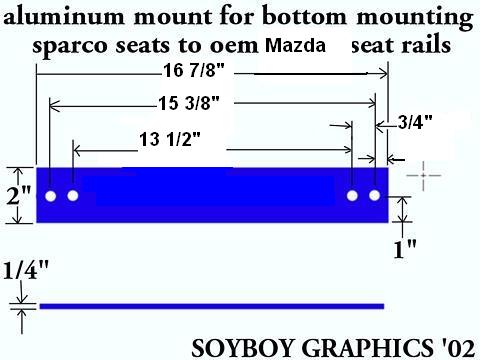

*the dimensions on that page's blueprint are for a honda civic seat setup,m do not copy those measurements for the FC setup, its longer IIRC and the bolt holes need to be in different spots to use some of the factory slider's bolts...
http://homepage.mac.com/owen_the_soy...toAlbum14.html
Ive recently done the same in my '87 Sport and it was easy enough, but the holes had to be countersunk (recessed) so that the bolt heads didnt interfere with the other parts. to make sure it was strong enough, I used thicker barstock since I had to recess the bolt heads. if you use all steel parts then you can weld onto the stock sliders and not worry about the recess for the bolt heads, it would even get the seat lower if you used a sidemounting type of bracket instead of bottom mounting like I did.
*the dimensions on that page's blueprint are for a honda civic seat setup,m do not copy those measurements for the FC setup, its longer IIRC and the bolt holes need to be in different spots to use some of the factory slider's bolts...
03-21-05, 08:21 PM
#14
Rotary Freak
Join Date: Apr 2004
Location: Rochester, NY
Posts: 1,579
Likes: 0
Received 0 Likes
on
0 Posts
Originally Posted by gerbraldy
Can't you just remove the oem sliders and brackets and bolt them to the new seat?
the base mounts are even different between recaro vs. sparco vs. corbeau vs. bride...
03-21-05, 09:28 PM
#15
Full Member
Join Date: Jun 2004
Location: new orleans
Posts: 79
Likes: 0
Received 0 Likes
on
0 Posts
Originally Posted by DoriSPL
Nice, but I like these ones more:
03-22-05, 01:12 PM
#16
Who are you?
Thread Starter
Join Date: Mar 2003
Location: CenCal
Posts: 2,235
Likes: 0
Received 0 Likes
on
0 Posts
Oem
hey guys good news, guess what............ These are true mazdaspeed seats. I just went to my storage for measurements and you know what the bolt holes are the exact to the OEM sliders(no modifications). This is great i can wait til i get them in!! peace!! Again thanx for the help.
VIPER
VIPER
03-22-05, 01:23 PM
#17
King of the Loop
Originally Posted by jgrts20
hey guys good news, guess what............ These are true mazdaspeed seats. I just went to my storage for measurements and you know what the bolt holes are the exact to the OEM sliders(no modifications). This is great i can wait til i get them in!! peace!! Again thanx for the help.
VIPER
VIPER
03-26-05, 11:13 AM
#20
Former Moderator. RIP Icemark.
Originally Posted by jgrts20
Ok guys, here the measurements for the brackets, but one problem where do i find aluminum bars?
03-31-05, 07:16 PM
#23
Former Moderator. RIP Icemark.
Originally Posted by jgrts20
ok, i have the drivers side seat in. Now how the hell do you get the pasenger seat in, one side is set higher in OEM design.
