Hi, i rebuildt a engine for my turbo 2 S5, and i am missing some of the hoses and i dont know where to put them to get it right 😉
Vakum diagram i have found, but it would be nice if someone could post some pics of a t2 s5 engine that sits in a car with just the TB and the upper intake removed so i can have it to be sure i get it right 😊

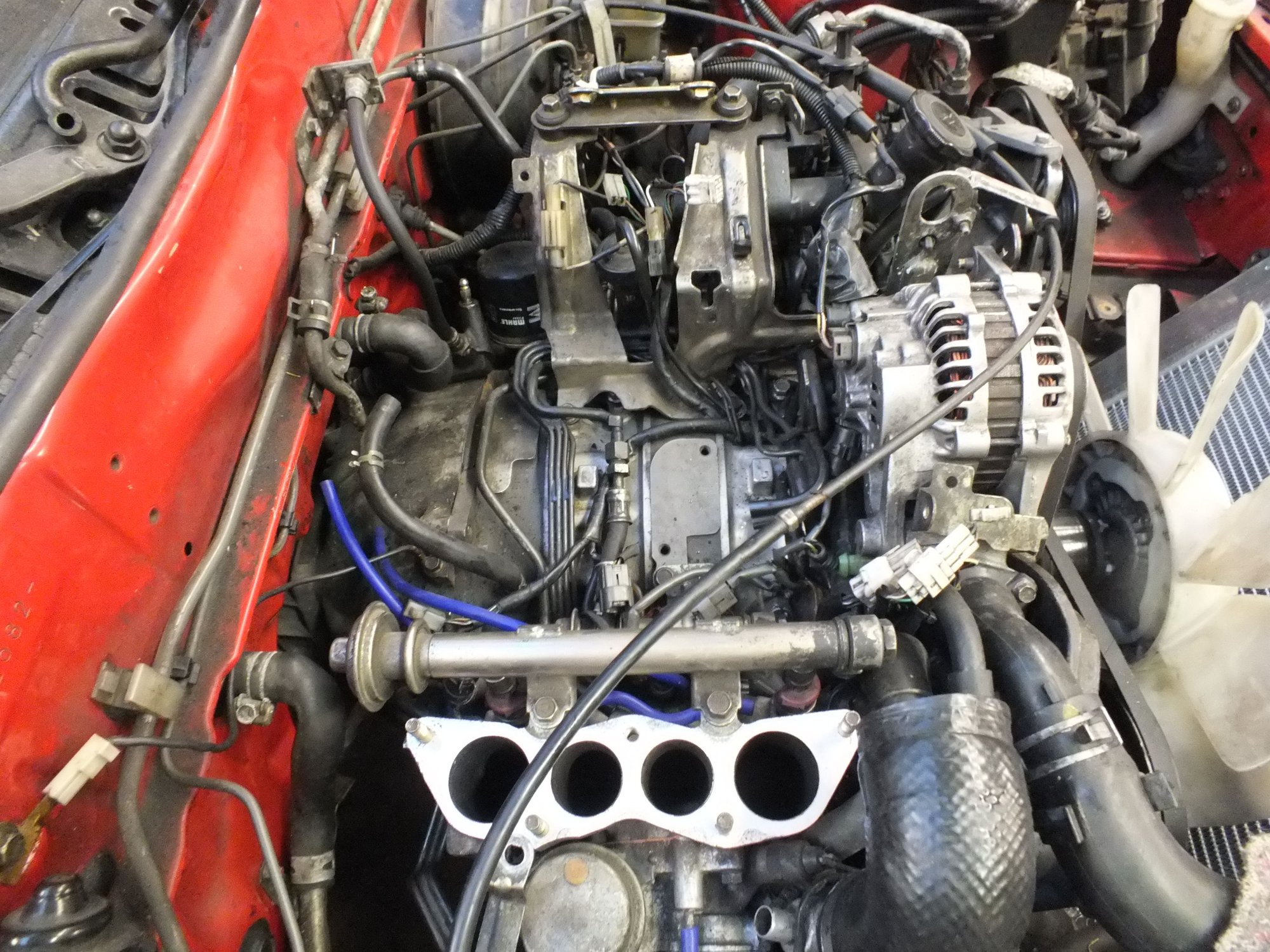

Like this?



Yes it helps for some of it 👍
But the wire thats go to your alternator, where does it comes from? Engine harness or from the harness for battery and starter? 🤔 I can not find one thats fits there.. And is it only one wire thats goes to the starter, a + wire? And the spade wire...but no - wire that goes there i mean 😊



Drivers side of the engine harness

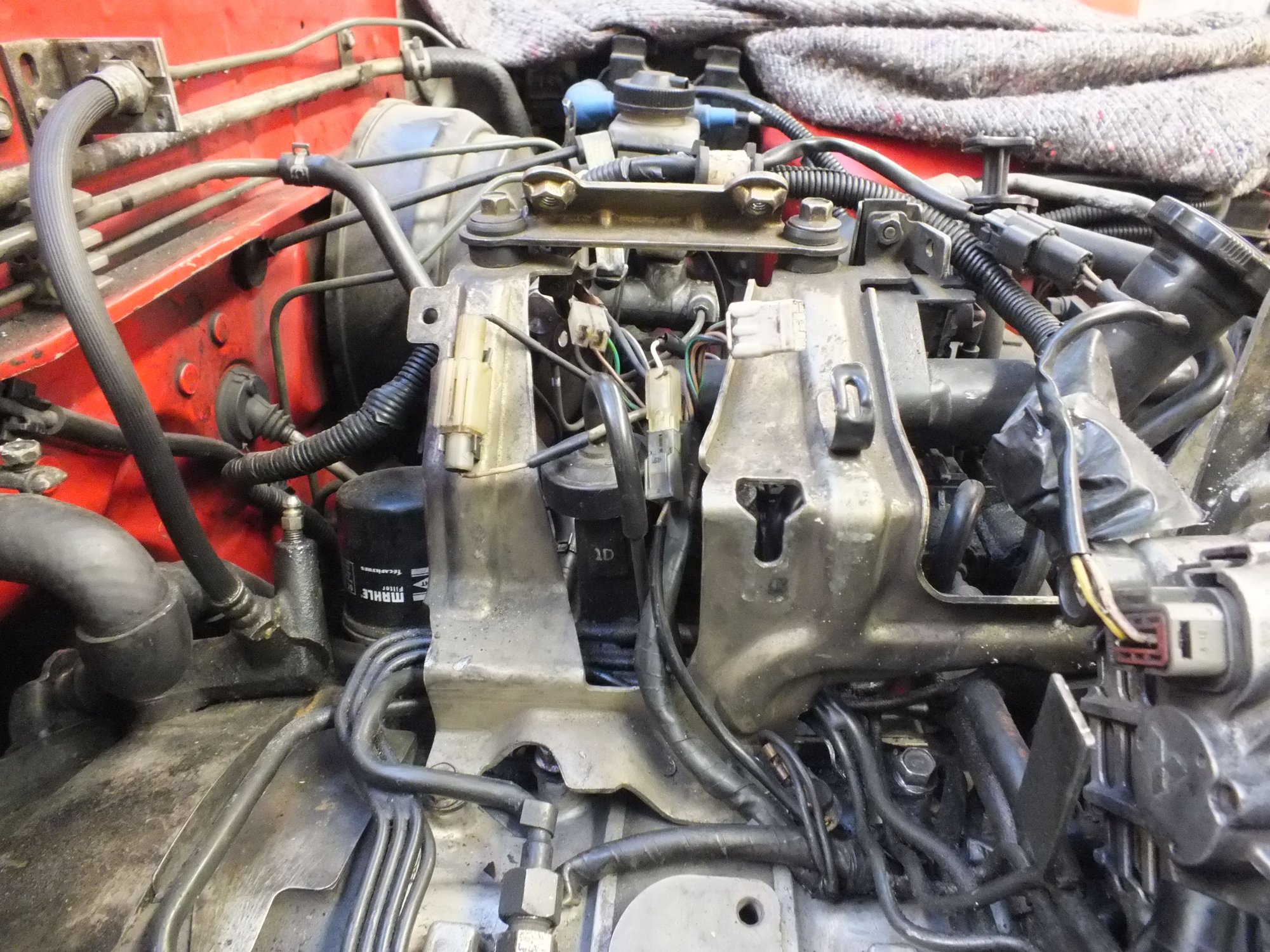

Best Image from the drivers side I could find:




What "spade wire" do you mean?

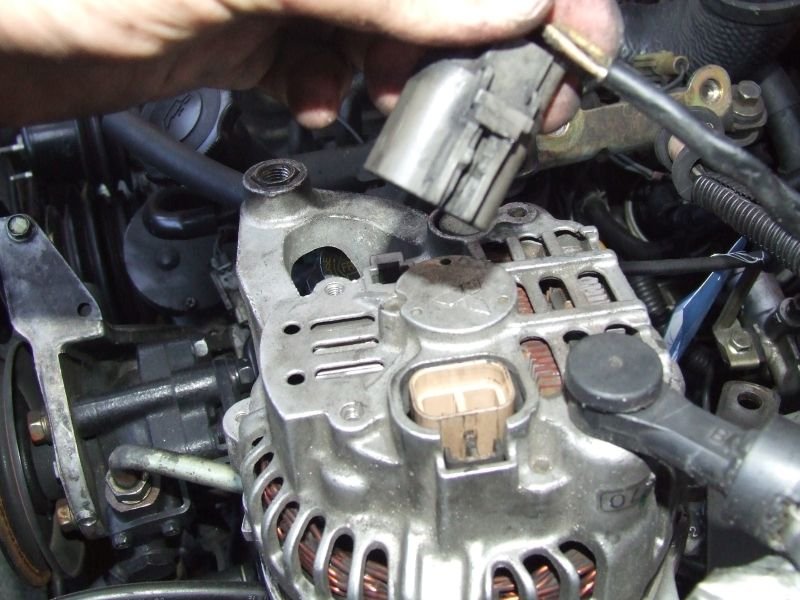

Connectors for the Alternator:

1 single thick wire and a 2 wire connector

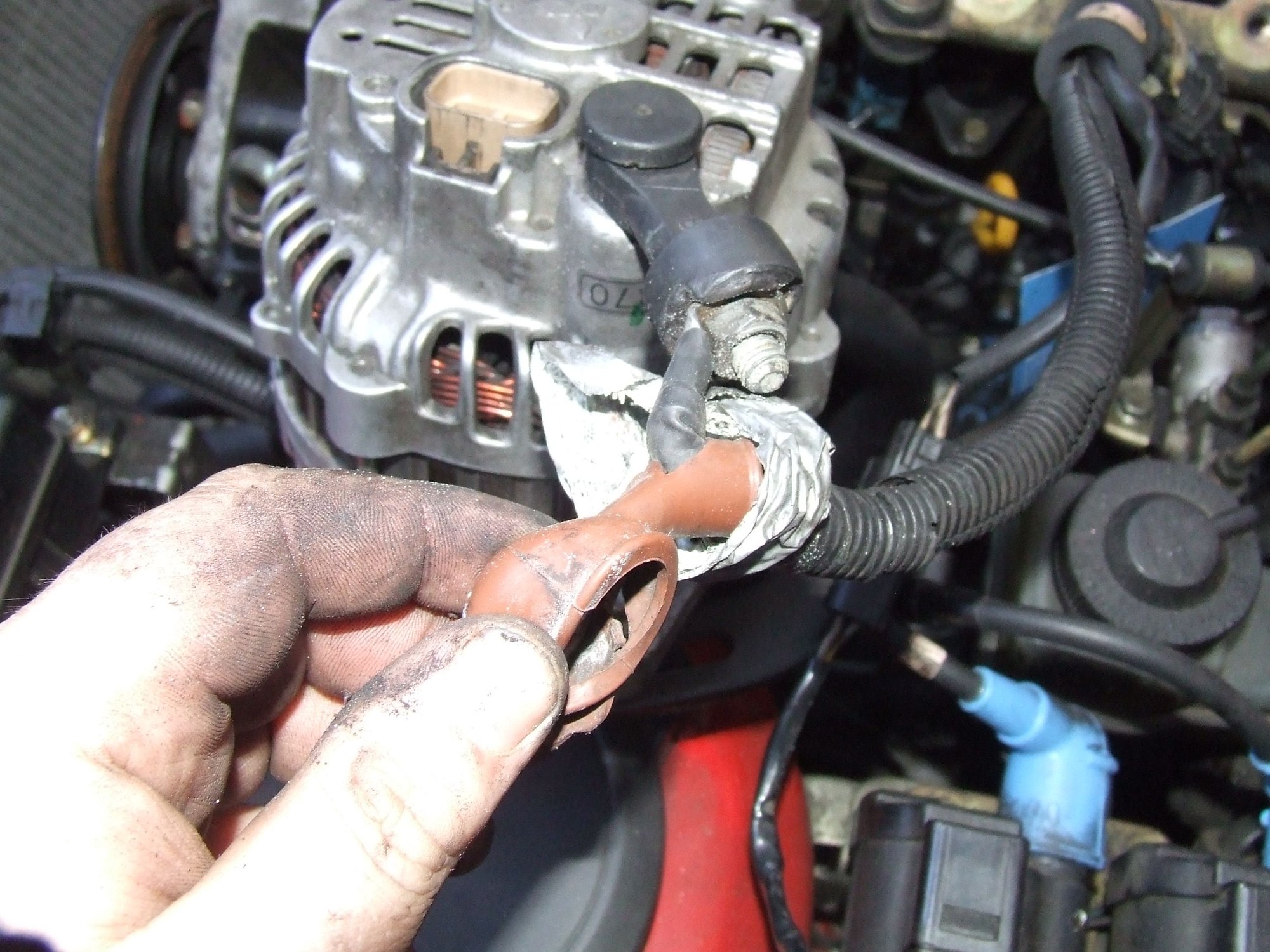

These one 😊



Theres 3 wires at the starter. Plus and minus, that are the ones under the black "hoods" in your picture and the "spade" connector for the ignition switch.

Sorry, no pictures this time.



Aha, so its there the ring contact are going then... at the - on starter 😊
Thx for big help 👍
