Help with vac lines

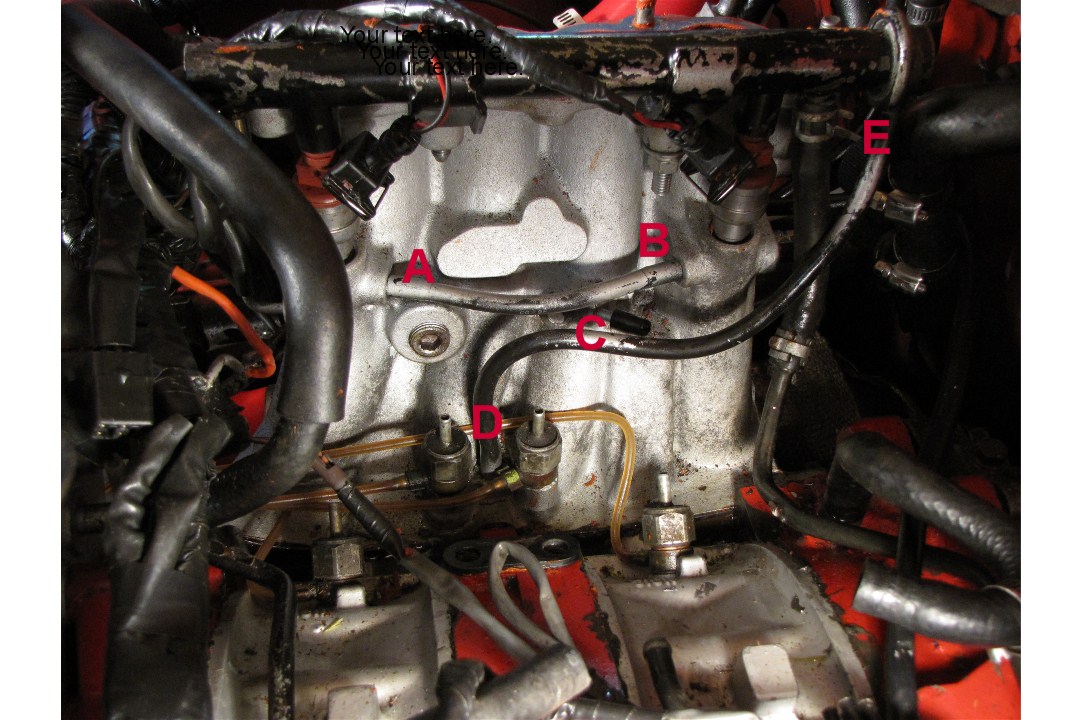

The PO did the vac line routing.
The line going from A to B doesn't actually do anything, is this OK?
The line from D goes up to point E which is the secondary injectors rail. Is this OK? I think somebody told me that port D should go to a metered port.
Vac port C is just capped off, should it be?
I do have the oil injectors tied into a port on the firewall side of the UIM.
I tried to trace the lines out on the drawing but nothing on my S5 T2 seemed to go to where it should be.
thanks
The line going from A to B doesn't actually do anything, is this OK?
The line from D goes up to point E which is the secondary injectors rail. Is this OK? I think somebody told me that port D should go to a metered port.
Vac port C is just capped off, should it be?
I do have the oil injectors tied into a port on the firewall side of the UIM.
I tried to trace the lines out on the drawing but nothing on my S5 T2 seemed to go to where it should be.
thanks
#2
Just cruising
Thread Starter
Join Date: Oct 2004
Location: Weirton, WV
Posts: 602
Likes: 0
Received 0 Likes
on
0 Posts
The PO did the vac line routing.
The line going from A to B doesn't actually do anything, is this OK?
The line from D goes up to point E which is the secondary injectors rail. Is this OK? I think somebody told me that port D should go to a metered port.
Vac port C is just capped off, should it be?
I do have the oil injectors tied into a port on the firewall side of the UIM.
I tried to trace the lines out on the drawing but nothing on my S5 T2 seemed to go to where it should be.
thanks
Attachment 464886
The line going from A to B doesn't actually do anything, is this OK?
The line from D goes up to point E which is the secondary injectors rail. Is this OK? I think somebody told me that port D should go to a metered port.
Vac port C is just capped off, should it be?
I do have the oil injectors tied into a port on the firewall side of the UIM.
I tried to trace the lines out on the drawing but nothing on my S5 T2 seemed to go to where it should be.
thanks
Attachment 464886
Line A-B ties to line D-E and then attaches to UIM vac port.
Port C attaches to port E.
#5
Just cruising
Thread Starter
Join Date: Oct 2004
Location: Weirton, WV
Posts: 602
Likes: 0
Received 0 Likes
on
0 Posts
#7
Just cruising
Thread Starter
Join Date: Oct 2004
Location: Weirton, WV
Posts: 602
Likes: 0
Received 0 Likes
on
0 Posts
Trending Topics
#8
Rotarded
iTrader: (3)
A to B is suppose to be like that for the fuel injector air bleed. If i remember correctly from deleting my rats nest there should be another hose on the other side of the rear secondary that goes to one of the 3 vac ports on the back of the uim.
Like calpico said the fpr should have its own vac source from the manifold because im about 99% sure that D is supposed to be the air bleed for the primary injectors. If C is an available vac port i'd use that for the fpr and run a line from D up to the back of the uim to one of the other ports where the other air bleed goes to.
Like calpico said the fpr should have its own vac source from the manifold because im about 99% sure that D is supposed to be the air bleed for the primary injectors. If C is an available vac port i'd use that for the fpr and run a line from D up to the back of the uim to one of the other ports where the other air bleed goes to.
