The frankenstein motor (pics inside)
#76
Originally Posted by D Walker
Get rid of that Home Depot crap, it will melt with the heat and lead to a lot of fun some night when it blows out. Use only good silicone or high-temp rubber hoses. Y0u can get high temp rubber hose from NAPA(most of the time they wont know they have it, but they do for commercial trucks etc) and silicone hose froma variety of sources. Also, dont use muffler tubing or any other mild steel tubing for the charge pipes, as the turbo compresses the air the hot/cold cycles lead to condensation, which rusts the pipes internally, which oddly enough finds its way into the motor. Stainless steel or aluminum tubing is the best answers for charge piping.
But thanks for the imput on the steel tubing, I had'ent really thought of that, if I do end up useing it I'll take it apart periodically and check the inside wall. Rust would be bad for the motor.
#77
Red Neck Tony Stark - C2
iTrader: (1)
Not much updates at the moment, he is just trying to put some miles on the motor before the MSquirt comes in. Then we will start getting it tuned. Then there will be some more videos with that good thing called boost.
Also i am working on a way to control the aux ports with a simple choke cable
Also i am working on a way to control the aux ports with a simple choke cable
#78
Rotary Enthusiast
iTrader: (1)
Join Date: Oct 2005
Location: Raleigh, NC
Posts: 1,017
Likes: 0
Received 0 Likes
on
0 Posts
Originally Posted by Rx7_Nut13B
Also i am working on a way to control the aux ports with a simple choke cable
Why not just T them into a boosted line and run them off the turbo pressure? Turbo hits 4.5 psi, aux ports open, under 4.5 they close.
BC
#79
The mystery of the prize.
Originally Posted by anewconvert
Why not just T them into a boosted line and run them off the turbo pressure? Turbo hits 4.5 psi, aux ports open, under 4.5 they close.
BC
BC
Look at the photos, there is no room for the stock actuators... he's gonna have fun making a simple mechanical cable arrangement fit in there.
It's a NA lower intake manifold witout 6PI actuators, and a turbo butted right up against it.
#80
Red Neck Tony Stark - C2
iTrader: (1)
Just like pengarufoo said the big problem is that the turbo doesnt allow the actuators to fit anymore, with all these turbo NA's you must remove the actuators.
So it is mech or nothing at all, and this is pointless if you want to keep the ports working with the bridges.
So it is mech or nothing at all, and this is pointless if you want to keep the ports working with the bridges.
#83
The mystery of the prize.
Originally Posted by philiptompkins
maybe we can relocate the actuators? The idea of having them boost activated is a good one. IDK though, we'll probably stick with plan A
I would continue on the cable actuation route, if you get that working it's trivial to automate it. You can do something as simple as rig a cruise control vacuum actuator which is already prepared to drive a cable, just put a RPM activated switch in for controlling it.
#84
Rotary Enthusiast
iTrader: (1)
Join Date: Oct 2005
Location: Raleigh, NC
Posts: 1,017
Likes: 0
Received 0 Likes
on
0 Posts
Originally Posted by pengarufoo
I would continue on the cable actuation route, if you get that working it's trivial to automate it. You can do something as simple as rig a cruise control vacuum actuator which is already prepared to drive a cable, just put a RPM activated switch in for controlling it.
Or use a wastegate actuator...
BC
#88
What's the point??
iTrader: (6)
Join Date: Oct 2005
Location: Omaha, NE
Posts: 995
Likes: 0
Received 0 Likes
on
0 Posts

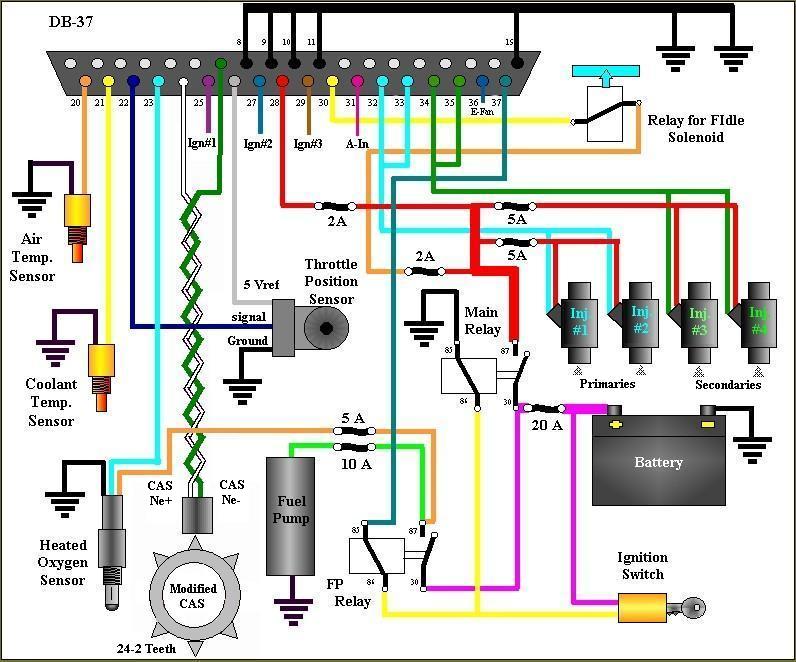

Philip, I just made my own harness and used the attached image as a guide. I took the connector out of the ECU and hacked up the old harness to use for the ign, +12V, and fuel pump. Basically my harness can be swapped with a stock one, and vice versa if need be.
#89
Rotors still spinning
iTrader: (1)
It's easy to set up the auxiliary ports to work without having the actuators in their original locations. You actually only need one of them. Run a bicycle brake cable between both rods and run it through the actuator itself. It can be anywhere you need it to be. Just make sure your cable routing will allow it to pull. You will need to make a small plate that has a vacuum nipple on it and bolt the actuator to it. Run a vacuum line to the manifold. If the sleeves do not rotate back to their closed position, set up a set of small return springs like on a carburator. Just get creative. It'll work. It wouldn't be the first time someone moved an actuator and kept the sleeves working.
#90
Rotary Enthusiast
iTrader: (1)
Join Date: Oct 2005
Location: Raleigh, NC
Posts: 1,017
Likes: 0
Received 0 Likes
on
0 Posts
PHil,
are you planning on being at DGRR this year? Im considering stripping apart a blown S5 TII to turbo my Aux bridge NA and would like to get a ride in your car to see what my impressions of it are. Would be great to take a look at the car while I was at it.
BC
are you planning on being at DGRR this year? Im considering stripping apart a blown S5 TII to turbo my Aux bridge NA and would like to get a ride in your car to see what my impressions of it are. Would be great to take a look at the car while I was at it.
BC
#91
Red Neck Tony Stark - C2
iTrader: (1)
Well the motor has about 750 miles on it, still running no boost on the Stock NA ECU.
Soon we will get the MS installed and see what we can do.
Also i have made another set of Bridge Ported 6 Port Irons (Front and Rear only) that i am wanting to sell, i am thinking about 350 plus 25 shipping for the two Irons.
I dont think that is to much for the Irons, hell normal street porting costs is like 300 without the Irons
But i am up for offers!!!
Here is a Video of the ports Close to Open http://www.youtube.com/watch?v=eC037P88VGE
Soon we will get the MS installed and see what we can do.
Also i have made another set of Bridge Ported 6 Port Irons (Front and Rear only) that i am wanting to sell, i am thinking about 350 plus 25 shipping for the two Irons.
I dont think that is to much for the Irons, hell normal street porting costs is like 300 without the Irons
But i am up for offers!!!
Here is a Video of the ports Close to Open http://www.youtube.com/watch?v=eC037P88VGE
#92
Originally Posted by anewconvert
PHil,
are you planning on being at DGRR this year? Im considering stripping apart a blown S5 TII to turbo my Aux bridge NA and would like to get a ride in your car to see what my impressions of it are. Would be great to take a look at the car while I was at it.
BC
are you planning on being at DGRR this year? Im considering stripping apart a blown S5 TII to turbo my Aux bridge NA and would like to get a ride in your car to see what my impressions of it are. Would be great to take a look at the car while I was at it.
BC
#93
Rotary Enthusiast
iTrader: (1)
Join Date: Oct 2005
Location: Raleigh, NC
Posts: 1,017
Likes: 0
Received 0 Likes
on
0 Posts
Deals Gap Rotary Rally. Its in April, late april. 310 turns in an 11 mile stretch of road. i swear to you it is worth any drive, especially if you are in flat as the ocean Houston.
See the event forum for details.
BC
See the event forum for details.
BC
#95
Engine, Not Motor
iTrader: (1)
Join Date: Feb 2001
Location: London, Ontario, Canada
Posts: 29,789
Likes: 0
Received 108 Likes
on
91 Posts
Originally Posted by fidelity101
so... the s4 turbo mani and s4 NA manifold have no clearance issues with each other? fantastic! I was told otherwise but now that I see it, boss
#96
Rallye RX7
iTrader: (11)
Originally Posted by Aaron Cake
The S4 turbo and stock exhaust manifold will not fit on the NA block with the stock NA lower intake. Even if you shave the lower intake, it still will not have enough clearance. It will have to be spaced out with either an exhaust spacer or custom manifold.
sweet build though, get some videos after its broken in!
#97
Originally Posted by Aaron Cake
The S4 turbo and stock exhaust manifold will not fit on the NA block with the stock NA lower intake. Even if you shave the lower intake, it still will not have enough clearance. It will have to be spaced out with either an exhaust spacer or custom manifold.
#100
Red Neck Tony Stark - C2
iTrader: (1)
Well we tried to get the Mega Squirt to work with no luck, I have no clue what is going wrong, i am a big time Power FC guy so i thought i could figure out what is going wrong......NOT
Phil needs some one that nows what is going on. PM me or Phil and i will give you a phone number to call so we can talk.
We are trying to hook the MegaSquirt with Spark up to a CAS that we modded with the 2 missing teeth setup. Just can get the MS to see any RPM off the CAS
PLEASE HELP!!!! US
Well anyways i had to take some time for my own project, got this far in about 4 hours
Phil needs some one that nows what is going on. PM me or Phil and i will give you a phone number to call so we can talk.
We are trying to hook the MegaSquirt with Spark up to a CAS that we modded with the 2 missing teeth setup. Just can get the MS to see any RPM off the CAS
PLEASE HELP!!!! US
Well anyways i had to take some time for my own project, got this far in about 4 hours
