I decided to buy some bins so I could convert from a 2+2 to a 2 seater with bins... I figured this to be a simple task but cant seem to figure out how to put these things in... I placed some pictures below... These show everything I got with the bins... Please let me know if anything is missing... If everything is there, please explaine how to put these things in... Thank you for your help...

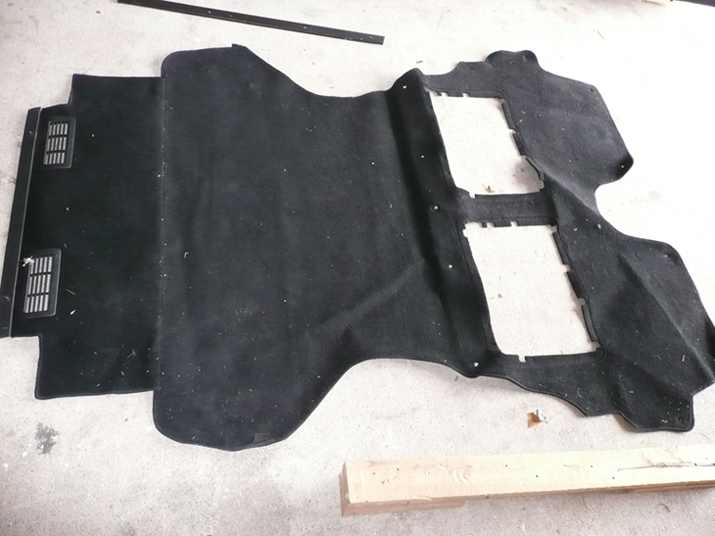

Here is the carpet:

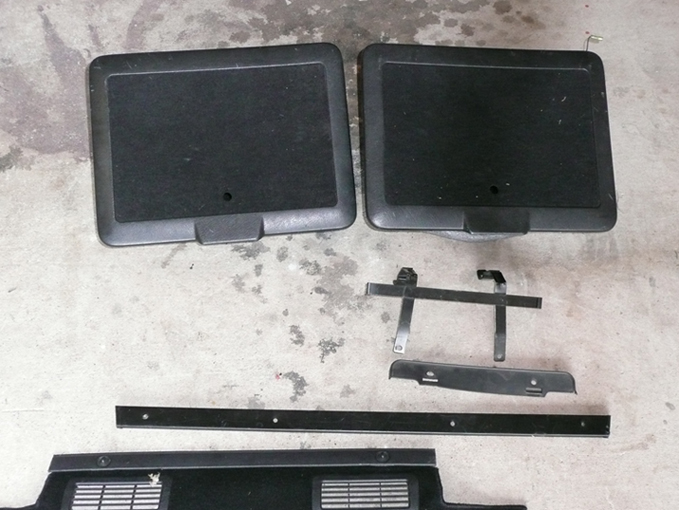

And here is the bins and the hardware:


I also have a mess load of screws...

Thanks again...



you're missing some fiberglass parts that hold the bins, don't know what they're called, but do know what they look like.



There is a fiberglass panel that covers the front half of the hatch floor and covers the bin area- it makes the bin area flat and provides the structure for the covers to bolt to.
You don't seem to have one.



this is what you need



i have all this stuff. could you still hook it up with advice on how to install them?



Wanna sell it?



how to install.

1. take old seats out.
2. put fiberglass holder peices in with hardware. (Mounting holes are already there)
3.put carpet on starting with the fiberglass part working to the back.
4. put in bins



since you did the conversion would you mind sellin me your seats?? =]



I have one for sale. $40(obo)+shipping.



here you go.
http://forum.teamfc3s.org/showthread.php?t=31952
enjoy.



Actually I am keeping them for when/if I sell my car... That way the next person gets the choice... And it is some what rare... There is some black leather ones on ebay... I think the guys name was RX7 restoration or something like that...



do u have the bag things that go in the bins to hold the stuff?
