US spec SA side light query
Hi, as most will know our UK spec 80's have the two colour side light lens. I'd like to change them to the full orange ones like US or AUS spec - my question is do you still have two lamps within the backplate or do they run some funky setup to make the one lamp flash if the side lights are lit?
#6
life's a drag*)
iTrader: (5)
Join Date: Jan 2012
Location: greenville,sc
Posts: 813
Likes: 0
Received 0 Likes
on
0 Posts
Yeah that sounds good to me, you can pm me the details.
As far has how the one us ones work, when you turn the park lights on it lights up, so when you use your turn signal on it starts flashing. As far as wiring from all I've read they should interchange a just be plug and play.
As far has how the one us ones work, when you turn the park lights on it lights up, so when you use your turn signal on it starts flashing. As far as wiring from all I've read they should interchange a just be plug and play.
#7
Waffles - hmmm good
iTrader: (1)
I don't think the side markers in the US flash when the turn signal is activated. You can do a mod
to the wiring to make that happen but by default they don't flash and theres only a single bulb
in there.
to the wiring to make that happen but by default they don't flash and theres only a single bulb
in there.
Trending Topics
#10
79 w 13B4port
iTrader: (5)
But wait, isnt that why the european cars have the round light in front of the Rx-7 logo behind the front wheel??
I have been thinking about adding the one behind the wheel ever since I was almost hit in Atlanta traffic because the other driver didnt see my signal. In my case its worse because I removed the front sidelight when I installed my front air dam.
Captainbizzaro, do the UK cars have the round sidelight? If so how easy are they to come by?
I have been thinking about adding the one behind the wheel ever since I was almost hit in Atlanta traffic because the other driver didnt see my signal. In my case its worse because I removed the front sidelight when I installed my front air dam.
Captainbizzaro, do the UK cars have the round sidelight? If so how easy are they to come by?
#11
What's that smell?
Thread Starter
Join Date: Jul 2007
Location: Dorset, England
Posts: 217
Likes: 0
Received 0 Likes
on
0 Posts

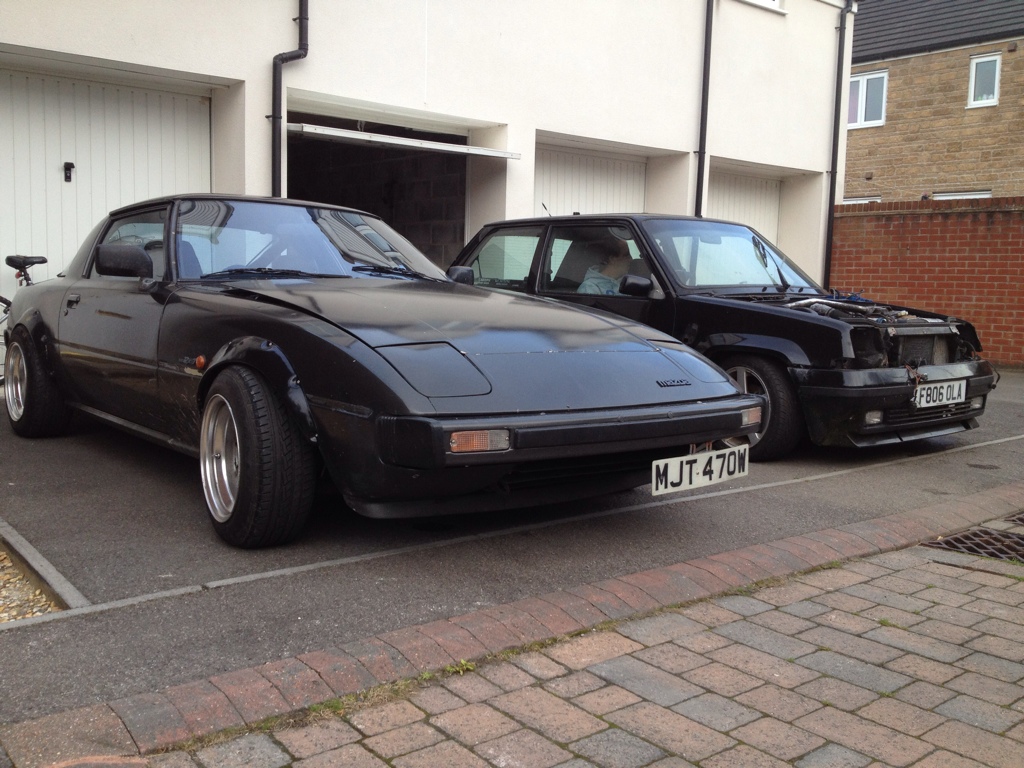

Yes sorry we're talking about the units in the front bumper, ours are like this...
All UK spec cars have the repeater lens on the front wing, assuming the looms are pretty similar from country to country then the cable goes up and over the inner arch liner and through a hole just behind the headlight where it plugs in to a connector.
So from our point of view here, the two lamps work independently and is a simple setup. Yours has one lamp doing two tasks.........
All UK spec cars have the repeater lens on the front wing, assuming the looms are pretty similar from country to country then the cable goes up and over the inner arch liner and through a hole just behind the headlight where it plugs in to a connector.
So from our point of view here, the two lamps work independently and is a simple setup. Yours has one lamp doing two tasks.........
#13
What's that smell?
Thread Starter
Join Date: Jul 2007
Location: Dorset, England
Posts: 217
Likes: 0
Received 0 Likes
on
0 Posts
Cheers dude, they're only 8's all round but negative offset, -28 or something. I can't recall exactly...
Thanks for the positive comment though.
Thanks for the positive comment though.
#14
RX HVN
iTrader: (2)
So Capt. did we answer your Q about how our bumper lights work?
Its a SINGLE bulb with a dual filament (so 3 wire harness). So it is illuminated with the normal lights "on", then blinks brighter when signaling. I would think if you just swap over the lens cover, you will get a similar effect to what we actually have in BOTH markets: your white-lensed bulb will now just illuminate 1/2 the lens, but it will glow yellow, instead of white. And the signal side will only (??) illuminate when actuating the signal switch, otherwise stay dark....
Inner housings are diff, yours having a metal shield btw the 2 bulbs. But the lens is the same fit, obv.
Stu Aull
80GS
Alaska
Its a SINGLE bulb with a dual filament (so 3 wire harness). So it is illuminated with the normal lights "on", then blinks brighter when signaling. I would think if you just swap over the lens cover, you will get a similar effect to what we actually have in BOTH markets: your white-lensed bulb will now just illuminate 1/2 the lens, but it will glow yellow, instead of white. And the signal side will only (??) illuminate when actuating the signal switch, otherwise stay dark....
Inner housings are diff, yours having a metal shield btw the 2 bulbs. But the lens is the same fit, obv.
Stu Aull
80GS
Alaska
#15
What's that smell?
Thread Starter
Join Date: Jul 2007
Location: Dorset, England
Posts: 217
Likes: 0
Received 0 Likes
on
0 Posts
^^hey dude, well to be honest I was still in the dark until your post. Makes perfect sense now though - I never even considered it being a dual filament lamp. Well I am still gonna transplant the entire housing in as I like the look of the whole lens lit.
Cheers for the input.
Cheers for the input.
#18
Sin City Rotary
Yes sorry we're talking about the units in the front bumper, ours are like this...
All UK spec cars have the repeater lens on the front wing, assuming the looms are pretty similar from country to country then the cable goes up and over the inner arch liner and through a hole just behind the headlight where it plugs in to a connector.
So from our point of view here, the two lamps work independently and is a simple setup. Yours has one lamp doing two tasks.........
All UK spec cars have the repeater lens on the front wing, assuming the looms are pretty similar from country to country then the cable goes up and over the inner arch liner and through a hole just behind the headlight where it plugs in to a connector.
So from our point of view here, the two lamps work independently and is a simple setup. Yours has one lamp doing two tasks.........
and I want your front Lens lol
