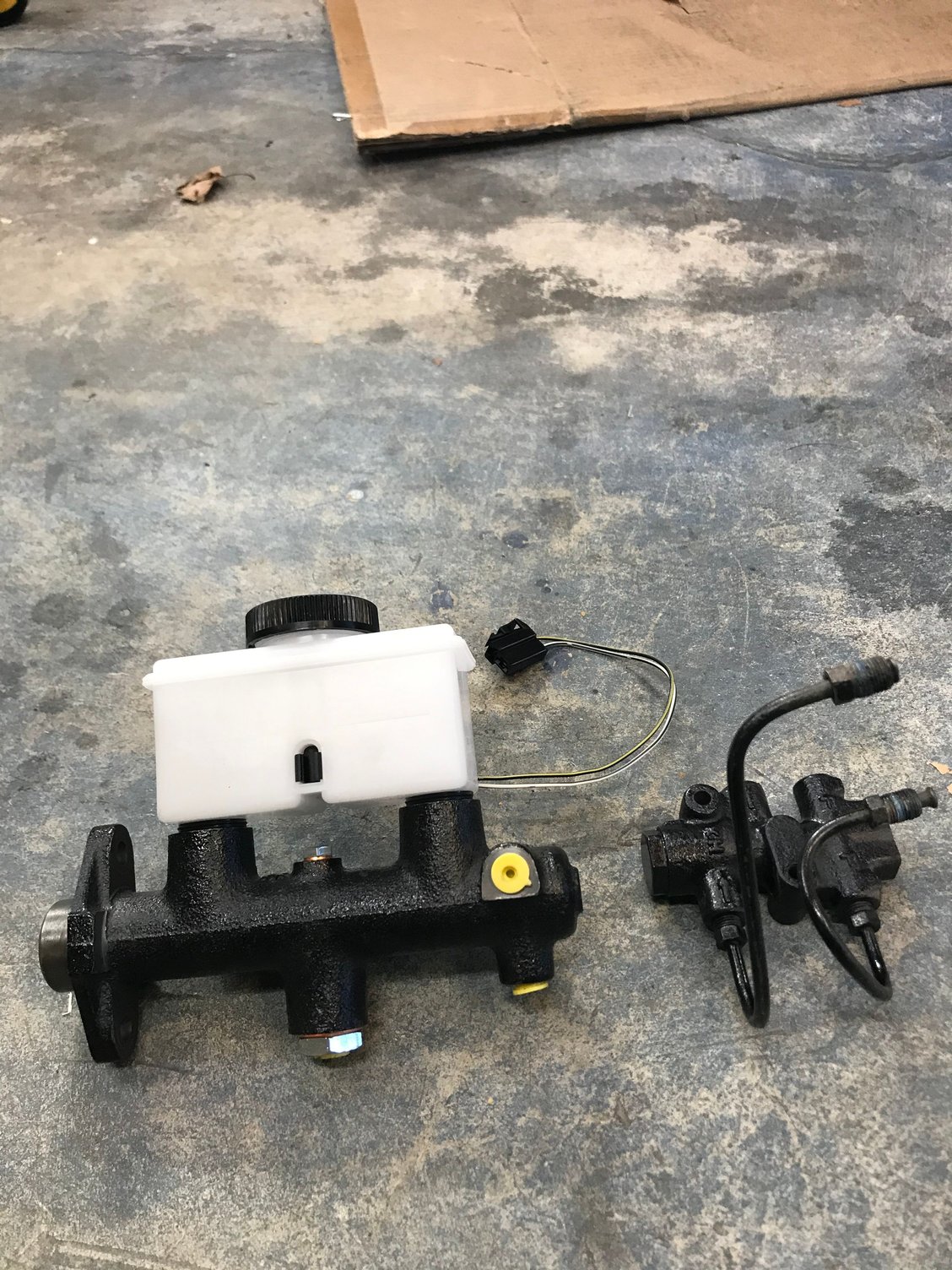

Hey guys, after many many months I’m finally starting reassembly of my 79. Got new master from mazdatrix. Yeah shoulda took pics, but can someone post pics of exactly how the proportioning valve attaches to the master, and what line goes where?
Haynes shows one bolt to attach valve, no bolt hole on master I can see.
Thanks in advance!



https://www.rx7club.com/1st-generati...-valve-963266/



Thanks that helps. Still can’t see how valve attaches to the master. Is there a bracket I’m missing?

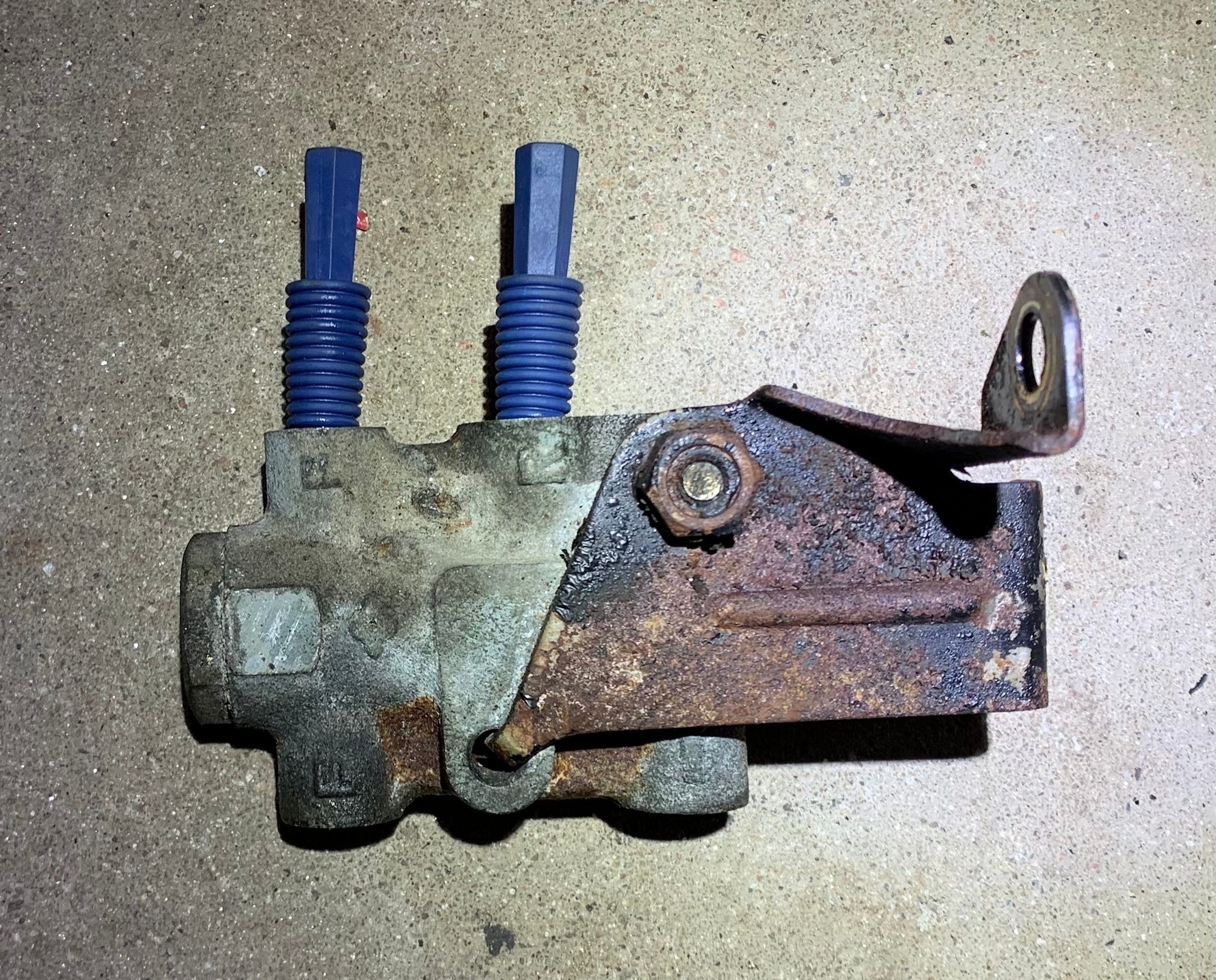

Yes, theres a bracket that attaches to the bolts for t he master that runs alongside the master to attach the valve to. I'll see if I can find a pic of it.



Shoot that’s Why it’s not making sense. Thanks for the help







Now to find an extra from someone.



If you can't find one. If you want I could perhaps remove mine and use it to make one.



I found one thanks !
