ReSpeed Crossmember and Rack Kit
08-08-07, 10:58 AM
#1
ReSpeed Crossmember and Rack Kit
Well it has been a long road. We went through so many versions and designs its not even funny. The final design has been released.
We ended up with a rack that is sure to make everyone happy. This system is front steer with a Ford "Fox" chassis steering rack. 20:1 stock and 15:1 quick ratios. Power racks are available. There is not allot of clearance around the engine and rack. So power rack guys will be responsible for mounting power steering pumps and such.
You can start with the crossmember and upgrade to the rack kit at a later date as well.

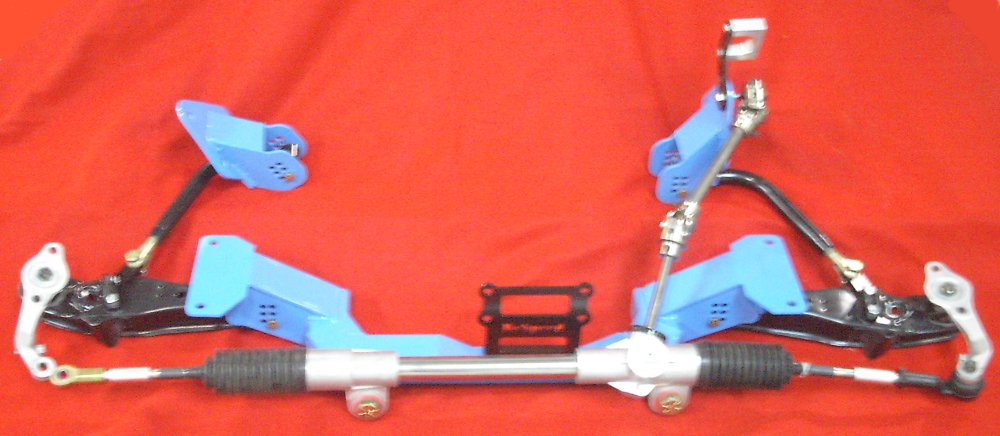

Crossmember Highlights:
* Adjustable lower control arm pivot points
* Urethane lower "A" arm bushings
* Urethane engine mounting. (Aluminum engine mounting option)
* 99% bolt in. Mounts without modification to the chassis.
* Designed to fit both 12A and 13B engines.
* Lighter than the stock
Full Kit Highlights:
* Convert suspension to a lower "A" arm setup
* Over 36 forms of suspension adjustment
* Flaming River brand steering u joints
* Does not hinder the operation of the collapsibility of the stock steering shaft
* Added angle designed into the lower steering linkage for 2 more points of collapsibility.
* Available quick ratio rack that will transform the vehicle into a pleasure to drive.
* Uses stock outer tie rods (Rod End Tie Rod Kit Option).
Here is the link to the listings in our catalog
-billy
We ended up with a rack that is sure to make everyone happy. This system is front steer with a Ford "Fox" chassis steering rack. 20:1 stock and 15:1 quick ratios. Power racks are available. There is not allot of clearance around the engine and rack. So power rack guys will be responsible for mounting power steering pumps and such.
You can start with the crossmember and upgrade to the rack kit at a later date as well.
Crossmember Highlights:
* Adjustable lower control arm pivot points
* Urethane lower "A" arm bushings
* Urethane engine mounting. (Aluminum engine mounting option)
* 99% bolt in. Mounts without modification to the chassis.
* Designed to fit both 12A and 13B engines.
* Lighter than the stock
Full Kit Highlights:
* Convert suspension to a lower "A" arm setup
* Over 36 forms of suspension adjustment
* Flaming River brand steering u joints
* Does not hinder the operation of the collapsibility of the stock steering shaft
* Added angle designed into the lower steering linkage for 2 more points of collapsibility.
* Available quick ratio rack that will transform the vehicle into a pleasure to drive.
* Uses stock outer tie rods (Rod End Tie Rod Kit Option).
Here is the link to the listings in our catalog
-billy
08-08-07, 12:04 PM
#5
That is absolutely amazing
One question:
I currently have a 12a-powered 84GS. Let's say I bought and installed the full kit and absolutely loved it (a distinct possibility). Then Let's say that in two years time I decided to drop a 13b into my car. Is that front mount adjustable between the 84-85 12a front cover mounting location and the 84-85 GSL-SE 13b front cover mounting location? (which of course includes later 13b engines with the GSL-SE front cover).
And out of curiosity, does anyone know the ratio of the stock rack? I'd like to know where the stock rack falls compared to the 20:1 and 15:1 ratios available here.
Jon
One question:
I currently have a 12a-powered 84GS. Let's say I bought and installed the full kit and absolutely loved it (a distinct possibility). Then Let's say that in two years time I decided to drop a 13b into my car. Is that front mount adjustable between the 84-85 12a front cover mounting location and the 84-85 GSL-SE 13b front cover mounting location? (which of course includes later 13b engines with the GSL-SE front cover).
And out of curiosity, does anyone know the ratio of the stock rack? I'd like to know where the stock rack falls compared to the 20:1 and 15:1 ratios available here.
Jon
08-08-07, 12:11 PM
#7
Yes, we replace the lower half of the internal steering with a new manufactured part. This involved cutting one thin strip of metal and using a drill bit to make sure a few holes line up. This is all done outside the car before the steering shaft is bolted back in.
That is absolutely amazing
One question:
I currently have a 12a-powered 84GS. Let's say I bought and installed the full kit and absolutely loved it (a distinct possibility). Then Let's say that in two years time I decided to drop a 13b into my car. Is that front mount adjustable between the 84-85 12a front cover mounting location and the 84-85 GSL-SE 13b front cover mounting location? (which of course includes later 13b engines with the GSL-SE front cover).
And out of curiosity, does anyone know the ratio of the stock rack? I'd like to know where the stock rack falls compared to the 20:1 and 15:1 ratios available here.
Jon
One question:
I currently have a 12a-powered 84GS. Let's say I bought and installed the full kit and absolutely loved it (a distinct possibility). Then Let's say that in two years time I decided to drop a 13b into my car. Is that front mount adjustable between the 84-85 12a front cover mounting location and the 84-85 GSL-SE 13b front cover mounting location? (which of course includes later 13b engines with the GSL-SE front cover).
And out of curiosity, does anyone know the ratio of the stock rack? I'd like to know where the stock rack falls compared to the 20:1 and 15:1 ratios available here.
Jon
Yes the engine mount fits ALL 12A and 13B engines with front mount front cover. BTW, you can re-use your 12A front cover on your new 13B. You do not need a GSL-SE specific part.
Stock ratio depends on what manual you look in. 20:1 seems to be the consensus among a most of them.
-billy
Last edited by Re-Speed.com; 08-08-07 at 12:17 PM.
