Rear View Mirror Disassembly
#1
Senior Member
Thread Starter
Rear View Mirror Disassembly

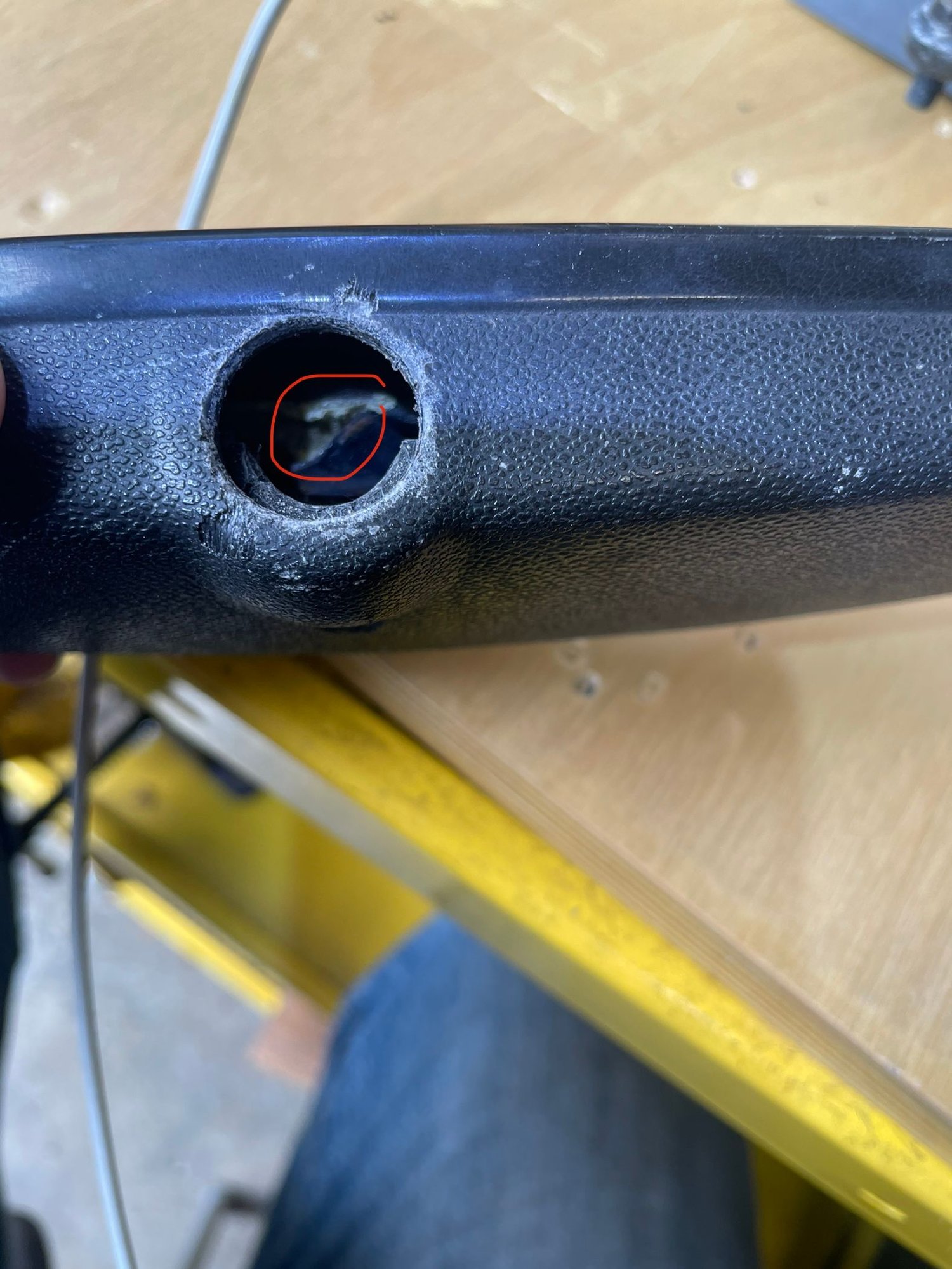

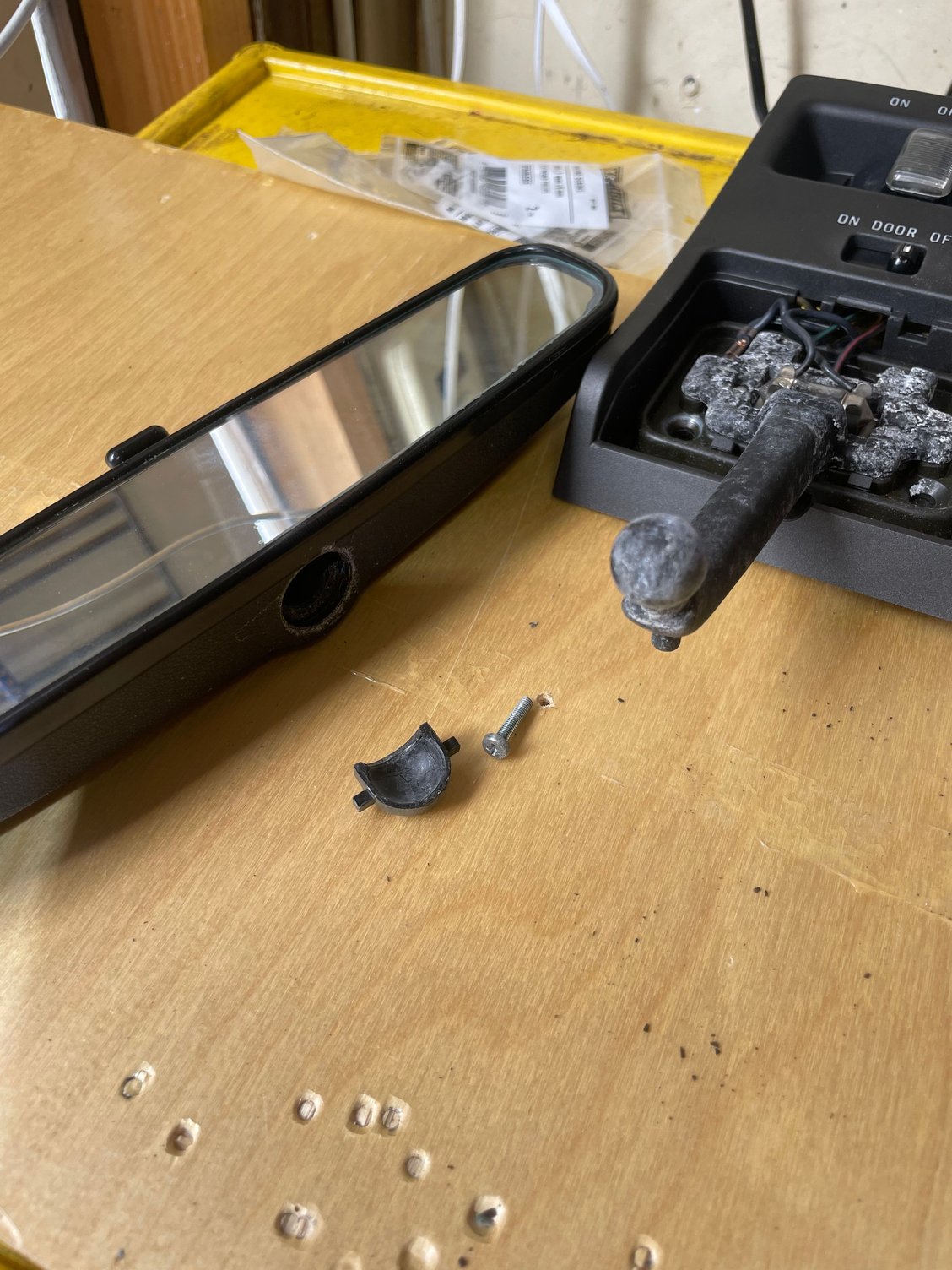

Did I take apart something I wasn’t supposed to. Taking apart rear view mirror for painting, and cannot work how it goes back together. I have been able to remove the ball part of the joint, and half of the ball socket. However the metal plate that cups the plastic socket has slipped deep inside the mirror and is well and truly jammed in there.
Is there a way to remove the plastic tab that ‘dips’ the mirror when lights behind are too bright, and will doing so release the tension that is jamming the metal piece?
Or am I buying a new used assembly?
Is there a way to remove the plastic tab that ‘dips’ the mirror when lights behind are too bright, and will doing so release the tension that is jamming the metal piece?
Or am I buying a new used assembly?
#2
Happy Rotoring!
iTrader: (13)
You'll need to carefully pry the lens from the housing. Start in the middle where its more pliable. This will give you access to the inside. You can paint it then and reassemble the stem and clamp before snapping the lens back in place. If you break it, then, you'll be shopping for another.
The following users liked this post:
Toruki (02-24-24)
#5
What keeps the mirror from being so wobbly when it’s mounted back in the car? Took mine down to have the headliner replaced and now it’s very wobbly. It was loose before but not how it is now.
#6
Happy Rotoring!
iTrader: (13)
If you did not have the standoff before dropping the headliner, and it moves more now, then I'd say something was re assembled wrong. Not sure what that could be, its only 2 screws. The stands offs are still available, or I know some have used a small piece of vacuum hose cut to the right length.
#7
Senior Member
Thread Starter
If the mirror is wiggling in its stall, maybe tighten the screw on the back of the mirror which clamps the socket side of the ball and socket assembly together.
if the stalk is wiggling in the interior light assembly, maybe it is not clipped all the way back in. It clicks into the interior light assembly via two tabs, circled in the pics.
Oddly enough my stand off that Banzai mentions is missing, but mirror doesn’t wiggle.
Just happen to have mine apart right now, and learning as I go.
if the stalk is wiggling in the interior light assembly, maybe it is not clipped all the way back in. It clicks into the interior light assembly via two tabs, circled in the pics.
Oddly enough my stand off that Banzai mentions is missing, but mirror doesn’t wiggle.
Just happen to have mine apart right now, and learning as I go.
Last edited by Slow_sevens; 02-24-24 at 07:39 PM.
Trending Topics
#8
Chances are, you're missing the small standoff that sits on a peg on the mirror stem and wedges the mirror against the inside of the windshield. The mirror isn't a rigid mounted item. It's meant to have some play and to break free its mount in case of an impact. (an occupants head hitting it in a crash scenario) The standoff keeps it from flopping while still allowing a "soft" mounting.
If you did not have the standoff before dropping the headliner, and it moves more now, then I'd say something was re assembled wrong. Not sure what that could be, its only 2 screws. The stands offs are still available, or I know some have used a small piece of vacuum hose cut to the right length.
If you did not have the standoff before dropping the headliner, and it moves more now, then I'd say something was re assembled wrong. Not sure what that could be, its only 2 screws. The stands offs are still available, or I know some have used a small piece of vacuum hose cut to the right length.
#10
#11
Full Member
Looks like it would be about $41.50 USD with the current exchange rate from PAC Performance right now. For that much money I think it makes sense to find an OEM part state side that isn't a reproduction item.
#12
Happy Rotoring!
iTrader: (13)
I'm not sure you'll find it stateside at the dealer. The original P/N is 8871-69-232. I'm sure it was used on other vehicles, but not sure of those Prefix's. There are some things that are only found in Japan or Australia. Phils Rotary sells em too, but yes, they are expensive. I usually buy a few things from Phill's at a time, so that shipping makes better sense.
https://www.ebay.com/itm/25305422707...0AAOSwpjRZcBpn
https://www.ebay.com/itm/25305422707...0AAOSwpjRZcBpn
#14
#15
Rotary Enthusiast
Just make one! It's a little plastic tube, and mine was installed due to a recall (lol) to fix mirror vibrations. I would just cut a short piece of plastic tubing, long enough to apply a bit of pressure. You could even attach a self adhesive bumper to the end that rests against the windshield.
