RE-Speed : Updates on Fuel Tanks! I also need some feed back from you guys :)

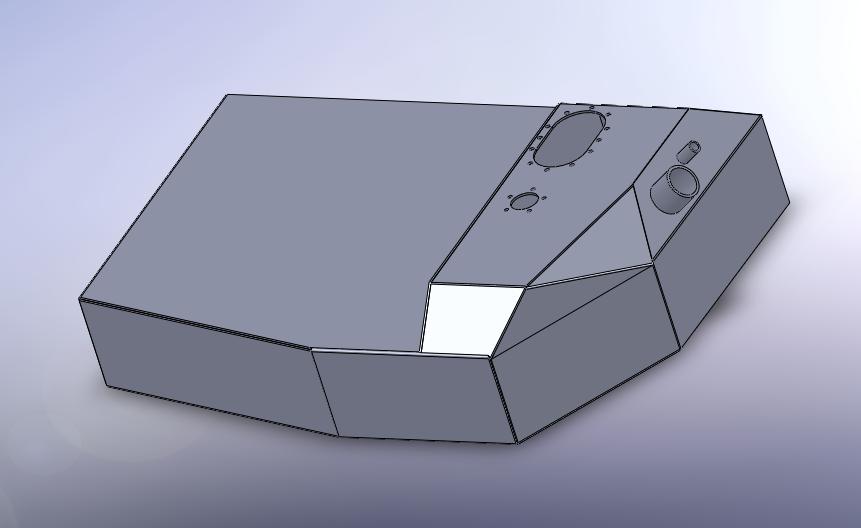

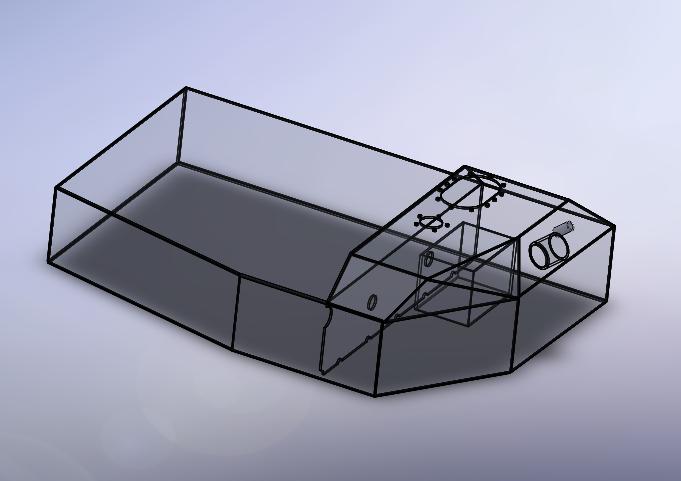

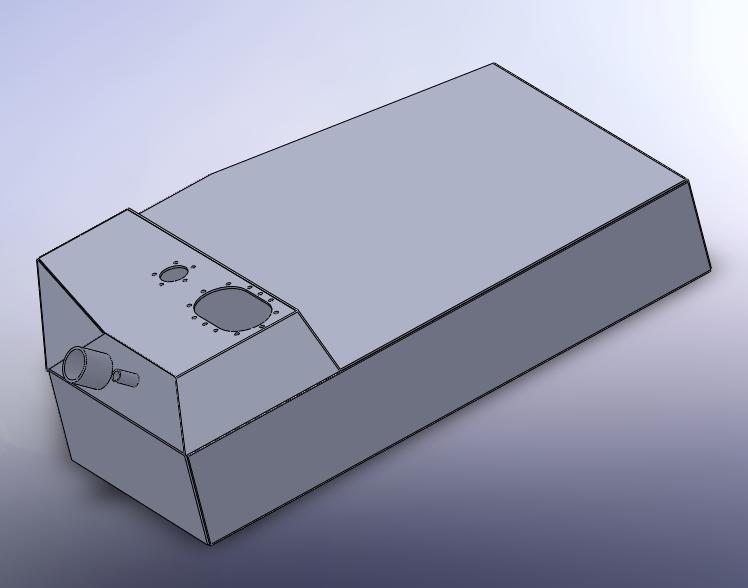

Well the tanks are in the final stages of being done and ready to be built! Yay!
I know we've been dragging a bit on those.
Now I was able to source out a new fuel level sending unit, with integrated low level light. These units will be calibrated to stock resistance to enable usage of stock guages if needed. There will also be other units that bolt directly into those unit for using a specific aftermarket fuel guage if your stock one doesn't currently work. That will be a bit more for that to include the price of the guage with it (most likely another 50$ or so).
The tanks will be one size fits all first gens. Proper spacers will be provided to snugly fit later model from the SA models which is the skinniest of the lot.
Having said all that, what would you guys like to see as far as inlet/outlet sizes? Also what internal pumps would you like to be able to adapt if any?
If you guys any questions, or suggestions please feel free to add them in here also.
Sam
I know we've been dragging a bit on those. Now I was able to source out a new fuel level sending unit, with integrated low level light. These units will be calibrated to stock resistance to enable usage of stock guages if needed. There will also be other units that bolt directly into those unit for using a specific aftermarket fuel guage if your stock one doesn't currently work. That will be a bit more for that to include the price of the guage with it (most likely another 50$ or so).
The tanks will be one size fits all first gens. Proper spacers will be provided to snugly fit later model from the SA models which is the skinniest of the lot.
Having said all that, what would you guys like to see as far as inlet/outlet sizes? Also what internal pumps would you like to be able to adapt if any?
If you guys any questions, or suggestions please feel free to add them in here also.
Sam
08-14-11, 01:14 AM
#2
Awesome!!! Whats the ballpark price range gonna be for one??? Someday I would love to get one. For us turbo guys -6 inlet/outlet would be nice atleast!!! Or 3/8.. Even larger for some applications.
Just to confirm these will have fuel baffles to prevent fuel starvation and slosh cups correct???
Also, drain plugs on all tanks!!!!!!
Just to confirm these will have fuel baffles to prevent fuel starvation and slosh cups correct???
Also, drain plugs on all tanks!!!!!!
08-14-11, 01:22 AM
#3
The price still needs to be worked out.
All the tanks will have a drain plug, as well as a slosh cup.
There will be different levels of baffling available though. I know some people just want a stock replacement due to the old one rusting and what not, while others want one more track focused. So to keep things cheaper for the other guys, theres that.
All the tanks will have a drain plug, as well as a slosh cup.
There will be different levels of baffling available though. I know some people just want a stock replacement due to the old one rusting and what not, while others want one more track focused. So to keep things cheaper for the other guys, theres that.
08-14-11, 03:14 AM
#5
Full Member
Join Date: Sep 2005
Location: O-Town
Posts: 57
Likes: 0
Received 0 Likes
on
0 Posts
Awesome! As far as inlet and oulet sizes, I'm sure most of us would like to see atleast GSL-SE, this way it's not too big of a step up from a 12A fuel system for those guys and it'll still be right for the GSL-SE/13B swaps.
As far as in-tank pumps, the standard Walbro 255 would be ideal given how popular and common it is.
As far as in-tank pumps, the standard Walbro 255 would be ideal given how popular and common it is.
08-14-11, 03:17 AM
#6
Jolly Green Giant
iTrader: (1)
Join Date: Feb 2008
Location: San Antonio, TX
Posts: 509
Likes: 0
Received 0 Likes
on
0 Posts
Awesome! As far as inlet and oulet sizes, I'm sure most of us would like to see atleast GSL-SE, this way it's not too big of a step up from a 12A fuel system for those guys and it'll still be right for the GSL-SE/13B swaps.
As far as in-tank pumps, the standard Walbro 255 would be ideal given how popular and common it is.
As far as in-tank pumps, the standard Walbro 255 would be ideal given how popular and common it is.
, didn't realize my buddy was logged in, this would be my post
08-14-11, 08:07 AM
#7
Waffles - hmmm good
iTrader: (1)
Excellent! Sounds like your making headway. I'm one of those just wants a good
replacement tanks sorts, so the drain plug and slosh cup are more than sufficient.
Icing on the cake to have a sender thats compatible with the stock gauge. I would
also like to keep my current external pump just to keep the swap cost down.
Just a tank please
replacement tanks sorts, so the drain plug and slosh cup are more than sufficient.
Icing on the cake to have a sender thats compatible with the stock gauge. I would
also like to keep my current external pump just to keep the swap cost down.
Just a tank please
Trending Topics
08-14-11, 02:27 PM
#9
Just thinking some more about this, I think I know a solution to meet most peoples demands. I think that I will just put some -6 AN 90 degree bulkhead fittings on there. Like these:
You can easily get -6 AN fittings to 3/8" Barb from any local sped shop so if you with to go that route.
And for the people wanting 1/2" since this will be a removable plate anyways where the fittings sit, you can take it out, drill out the holes a bit more to make the same fitting as the one pictured but in - 8 AN to fit in there and from there you can get -8 AN to 1/2" barb if needed.
Good idea?
You can easily get -6 AN fittings to 3/8" Barb from any local sped shop so if you with to go that route.
And for the people wanting 1/2" since this will be a removable plate anyways where the fittings sit, you can take it out, drill out the holes a bit more to make the same fitting as the one pictured but in - 8 AN to fit in there and from there you can get -8 AN to 1/2" barb if needed.
Good idea?
08-14-11, 05:25 PM
#11
Gm sender units seem to be the most popular when you go to after market senders and gauges. 0 ohm empty 90 ohm full. Even though a lot of people will want stock I would appreciate the option of a different sender.
Also I would be all over being able to put a intank fuel pump in my first gen for fuel injection.
Let me know when they are in. I can even come down n test one for ya!
Also I would be all over being able to put a intank fuel pump in my first gen for fuel injection.
Let me know when they are in. I can even come down n test one for ya!
08-14-11, 07:33 PM
#13
It won't be that hard to make other configurations work just like they do in stock second and third gen tanks.
08-14-11, 08:11 PM
#14
死*神*
iTrader: (4)
Join Date: Apr 2008
Location: Delaware
Posts: 728
Likes: 0
Received 0 Likes
on
0 Posts
with mine I just want it to have a drop down sump in the rear with a mail -10an fitting back there and a -6an fitting on top for the return. and since it will be sumped no need for a slosh cup, lol. I am running the A1000 fuel pump to support my high needs.
08-15-11, 12:48 PM
#19
死*神*
iTrader: (4)
Join Date: Apr 2008
Location: Delaware
Posts: 728
Likes: 0
Received 0 Likes
on
0 Posts

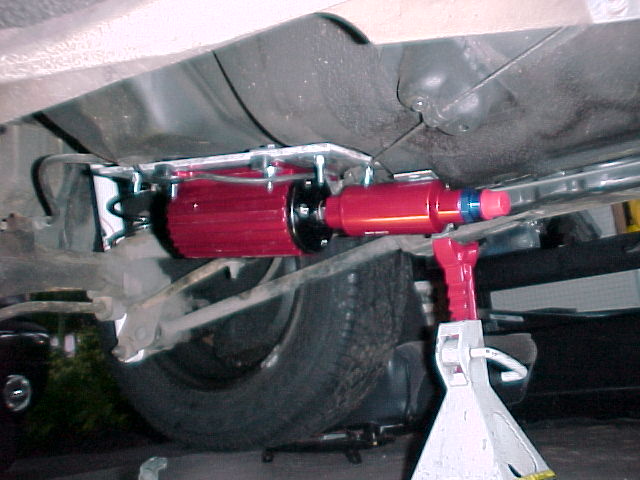

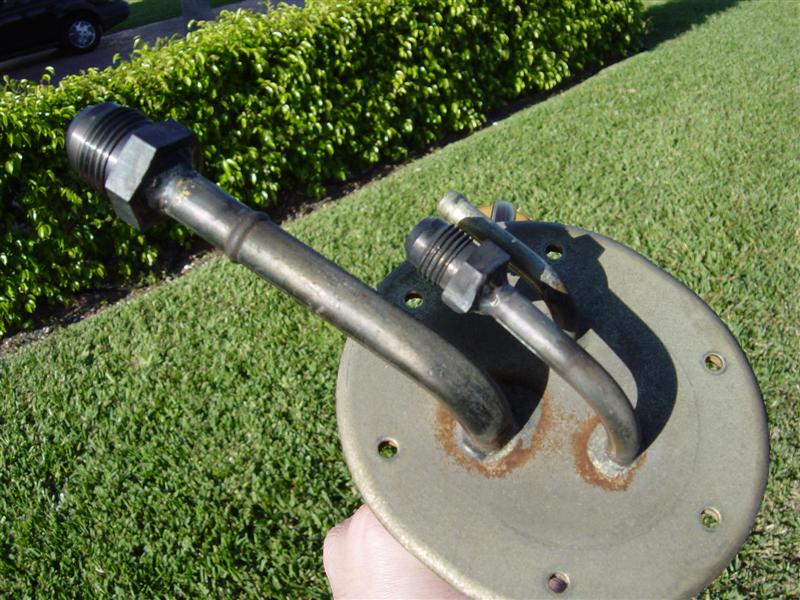

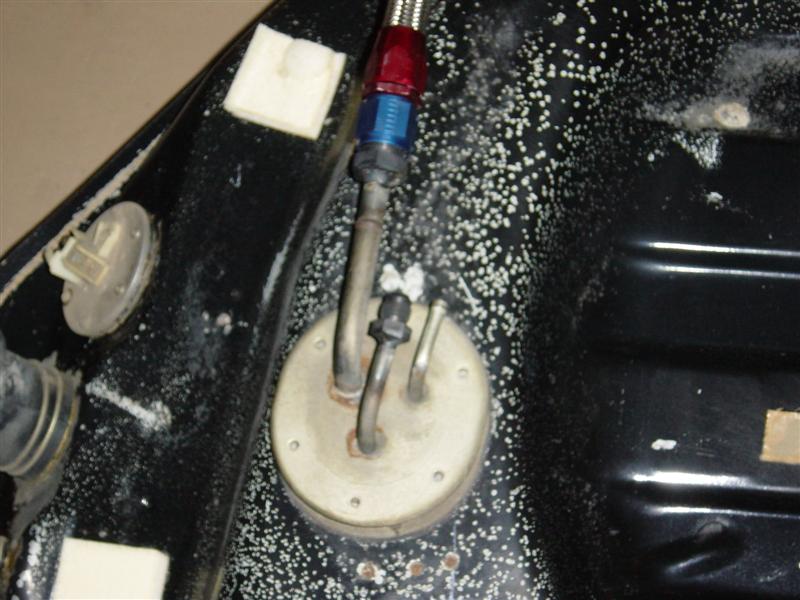

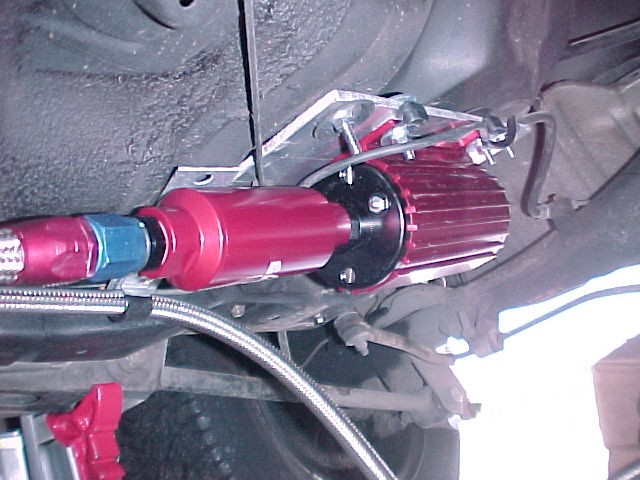

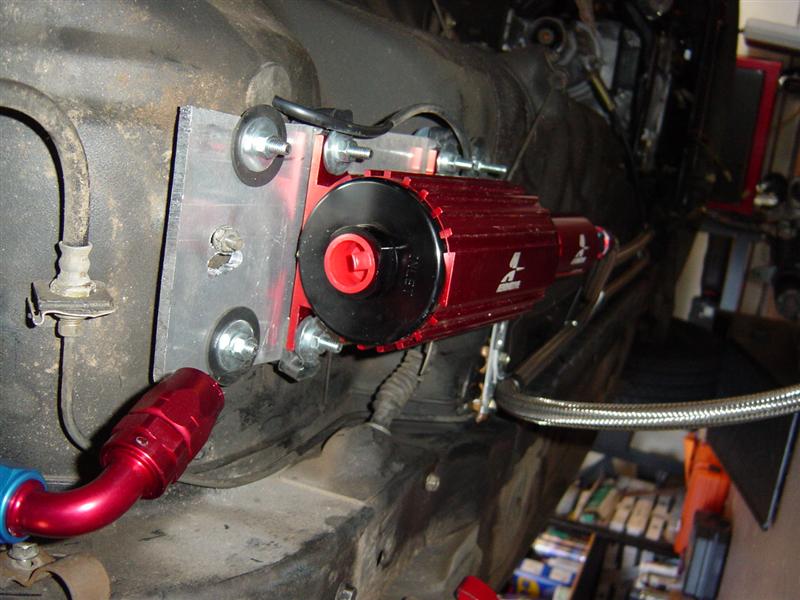

do you mind posting pics of how your fuel lines come in out of your tank? are you using any kind of pre pump? I know you are running the a1000 like me, I just dont like the idea of the hose routing up over the tank
09-16-11, 07:17 AM
#23
So, a fuel tank that fits a stock 79 rx7 with all stock parts will be built?
How much gas do they hold, stock, more or less (would like to see more)?
Also if your gauge has never correct on how much fuel you have is it the gauge itself or is it the gauge in the tank that is the problem?
How much gas do they hold, stock, more or less (would like to see more)?
Also if your gauge has never correct on how much fuel you have is it the gauge itself or is it the gauge in the tank that is the problem?
09-16-11, 07:34 AM
#24
That is correct on all the above-mentioned.
So, a fuel tank that fits a stock 79 rx7 with all stock parts will be built?
How much gas do they hold, stock, more or less (would like to see more)?
Also if your gauge has never correct on how much fuel you have is it the gauge itself or is it the gauge in the tank that is the problem?
How much gas do they hold, stock, more or less (would like to see more)?
Also if your gauge has never correct on how much fuel you have is it the gauge itself or is it the gauge in the tank that is the problem?
