I know this will seem like a Noob question but, can anyone explain to me what a panhard bar is? How it works? why its so bad for a streetcar? or provide a link to such information?
#2
Senior Member
Think of it this way. When your car turns, what stops your rear axle from moving side to side? On a stock RX7, it is the Watts Link.
On most cars with a solid rear axle and coil springs, a panhard rod (or panhard bar - same thing) is used. A panhard rod runs parallel to the rear axle. One end is attached to the axle housing on one side, as far as possible to the outer end of the axle. The other end attached to the "frame" or unibody of the vehicle, as far as possible to the outside of the car.
Visualize your rear axle and tires planted to the ground and the body of the car leaning to the right or left. The Panhard rod is what keeps the rear axle (and tires) in proper relation to the rest of the car.
It is not bad at all, per se, for a street car. With the first gen RX7, it is usually criticized because the aftermarket panhard bars availavble have metal bushings which equates to noise for day to day driving.
Purchase "How to Make Your Car Handle" by Fred Puhn for details.
On most cars with a solid rear axle and coil springs, a panhard rod (or panhard bar - same thing) is used. A panhard rod runs parallel to the rear axle. One end is attached to the axle housing on one side, as far as possible to the outer end of the axle. The other end attached to the "frame" or unibody of the vehicle, as far as possible to the outside of the car.
Visualize your rear axle and tires planted to the ground and the body of the car leaning to the right or left. The Panhard rod is what keeps the rear axle (and tires) in proper relation to the rest of the car.
It is not bad at all, per se, for a street car. With the first gen RX7, it is usually criticized because the aftermarket panhard bars availavble have metal bushings which equates to noise for day to day driving.
Purchase "How to Make Your Car Handle" by Fred Puhn for details.
#3
is noise the only major complaint when on the street - i am familar with panhards on other cars such as my firebird - does anyone have a pic of the setup on a first gen. ie, where the welding takes place?
#4
Airflow is my life
http://www.rpmnet.com/techart/panhard.shtml
Its the noise, and wear/maintenance of rod end bearings.
Its the noise, and wear/maintenance of rod end bearings.
#6
Airflow is my life
You mean using the long link from the watts? Its too short. But you might be able to scavange something from the junkyard. Like off an F body chevrolet. They used panhard bars.
Trending Topics
#9
Originally posted by inittab
What exactly makes all the noise?
What exactly makes all the noise?
#10
so for a street car your better off just sticking with the watts, how hard is it to replace the stock bushings? what would you look for as far as knowing if they need to be replaced.
#11
sold the FD...kept the FB

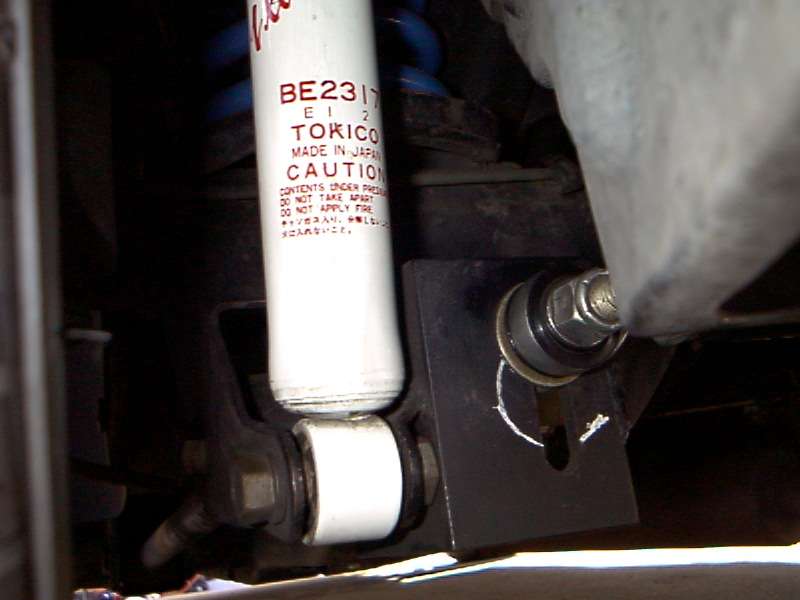

I love my panhard for the street! One thing I did do, which pratically eliminated all the noises, was to get super high quality teflon rod ends and used rubber rod end seals. The teflon rod ends have a lot less play...you can barely move them with your hands...it really eliminated the slapping and clunking it had with the regular rod ends that came with the kit. The rubber rod end seals not only keep the dirt and grime out of the rod end, they also eliminate the metal-to-metal contact (slapping noise) that occurs when the bar moves around. Heres a pic of the panhard...check out the seals:
