Paging all you Nikki carb gods
#1
Senior Member
Thread Starter
Paging all you Nikki carb gods
Fixing a accelerator pump ‘cause car dies when accelerator blipped. I think the ball bearing is stuck? If I blow air in this hole in the pump it should come out this hole? Pretty sure I see the bearing in there, and all that came out was the weight. Any tricks for getting that out? Spraying with WD40 and hitting it with the air gun but no luck so far.
#3
Slowly getting there...
iTrader: (1)
When I rebuilt my stock nikki I did the full emissions strip and mechanical secondary mod, and I made extra gaskets to increase the volume of fuel being pumped in (I had a new RB full exhaust too). This doesn't apply to you since you have emissions inspection, but I don't remember any issues with the weights and *****. Just take pics of everything as you go.
PS - I just wanted to post these pics I took 4 years ago.
PS - I just wanted to post these pics I took 4 years ago.
#4
Senior Member
Thread Starter
The ***** were just stuck in there. Kept at it with carb cleaner and a needle and eventually got ‘em loose and out.
and.... as expected already broke something. Need to replace one of the 160 jets that screws into the inside of the float chamber. Got a little heavy handed with the screwdriver. Where would I source such a thing? A search here seems to indicate these are commonly available as plenty of people taking about trying different sizes. I will be staying stock, but want to be sure I am ordering the correct specs of thread etc.
and.... as expected already broke something. Need to replace one of the 160 jets that screws into the inside of the float chamber. Got a little heavy handed with the screwdriver. Where would I source such a thing? A search here seems to indicate these are commonly available as plenty of people taking about trying different sizes. I will be staying stock, but want to be sure I am ordering the correct specs of thread etc.
#5
keep it original!!
iTrader: (3)
I think I recently saw Rotary Response in Tuscon they might have some Nikki carb parts. Soak the carb in parts cleaner like Berryman chem dip. https://rotaryresponse.com/Rotary%20VMRP.htm
#6
Waffles - hmmm good
iTrader: (1)
Got em here last time I needed em: https://mazdatrix.com/product/carb-j...i-carburetors/
#7
Senior Member
Thread Starter
That the correct one? Looks more like the jets that sit in top of the carb rather than the ones that sit inside the float chamber. On MazdaMatrix I see a SKU for the 160 jet as 73801.160 and a Google image of that SKU shows a different shape

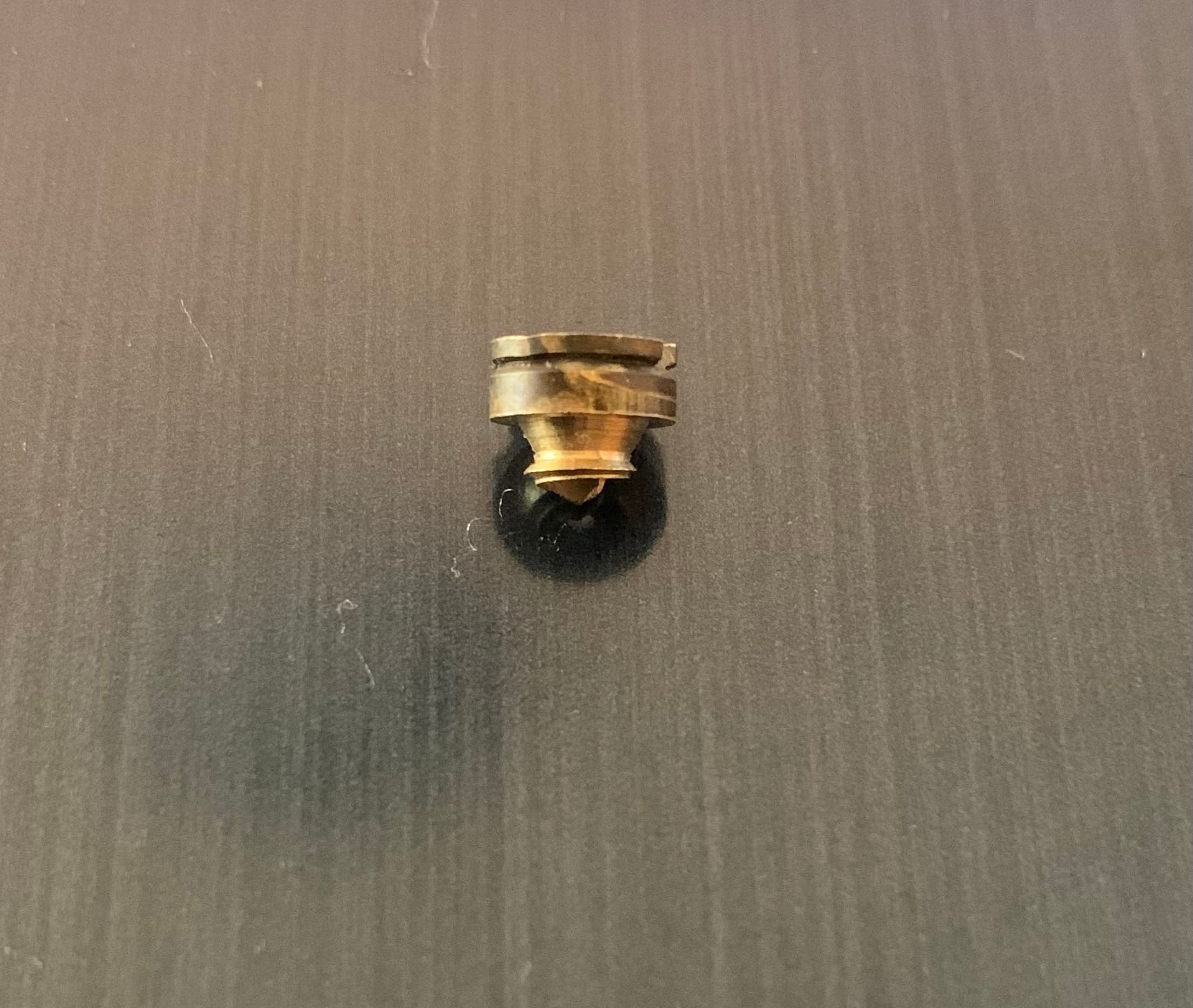

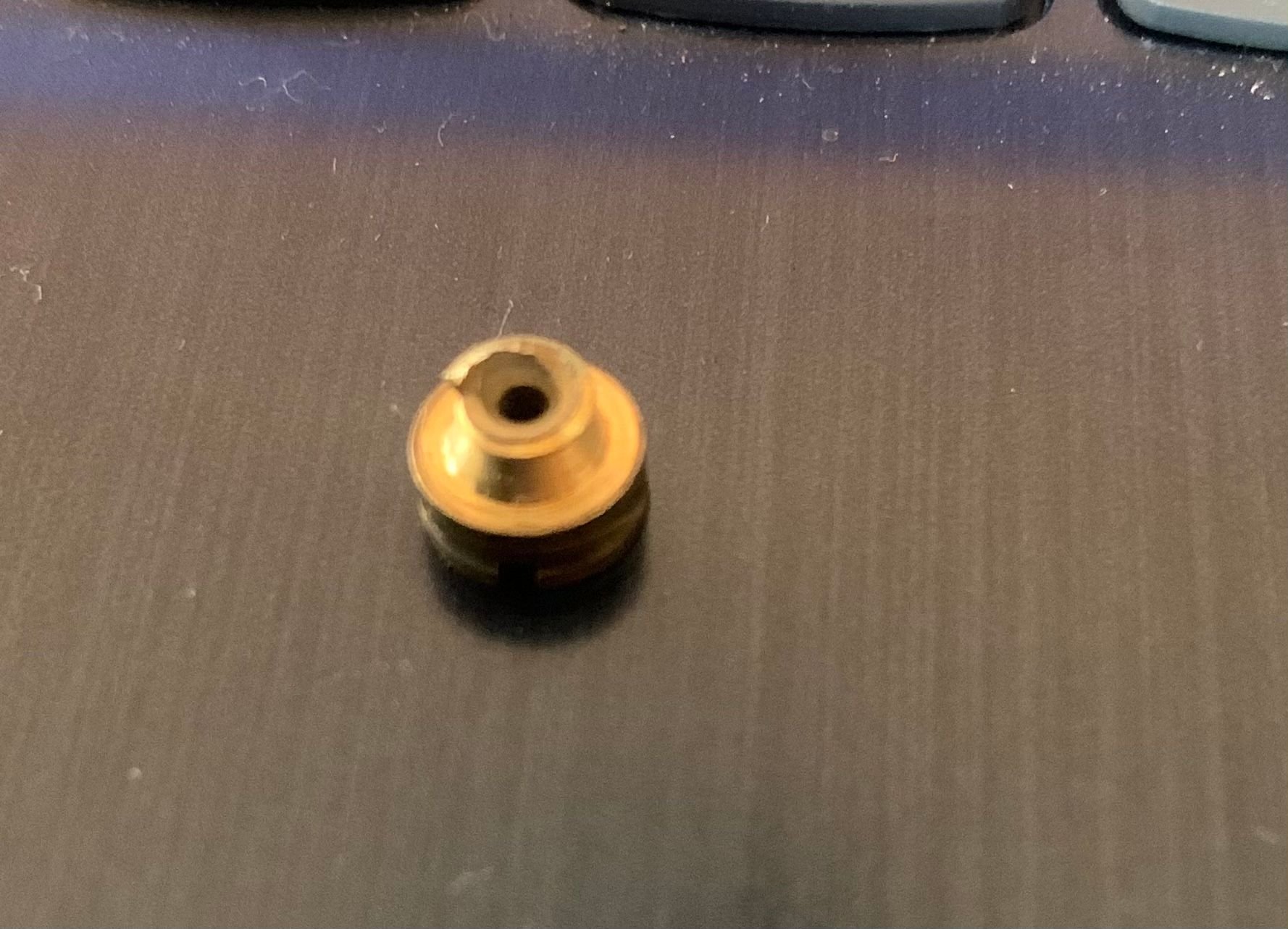

to the one I have. Pics with black background are the broken jet I have. Pic with white background is a Google search for the SKU MazdaMatrix provides.
to the one I have. Pics with black background are the broken jet I have. Pic with white background is a Google search for the SKU MazdaMatrix provides.
Trending Topics
#8
Fixing a accelerator pump ‘cause car dies when accelerator blipped. I think the ball bearing is stuck? If I blow air in this hole in the pump it should come out this hole? Pretty sure I see the bearing in there, and all that came out was the weight. Any tricks for getting that out? Spraying with WD40 and hitting it with the air gun but no luck so far.
#9
Senior Member
Thread Starter
The following users liked this post:
850rotary (01-21-23)
