Hatch latch differences
I have a 79 rx7 that is mainly gutted. I put the glass from my 84 parts car in the back. I bought a latch assembly off an 80. The latch appears t have electric release. As my car is not equipped for that, I drilled the spot welds and removed that panel from it. The latch still does not seem to fit. The bolt holes don't seem right, and if I get the latch lined up at all, the latch on the glass does not line up to the slot by a good inch or 2. Do I need to find the latch from a car without power release, is the latch on the glass different on the 80, or am I just doing something wrong?
#2
Moderator
iTrader: (3)
Join Date: Mar 2001
Location: https://www2.mazda.com/en/100th/
Posts: 30,841
Received 2,605 Likes
on
1,848 Posts
the glass and catch hardware are all the same, so you must be doing something wrong
#3
Full Member
Thread Starter
iTrader: (1)
Join Date: Nov 2015
Location: MI
Posts: 67
Likes: 0
Received 0 Likes
on
0 Posts

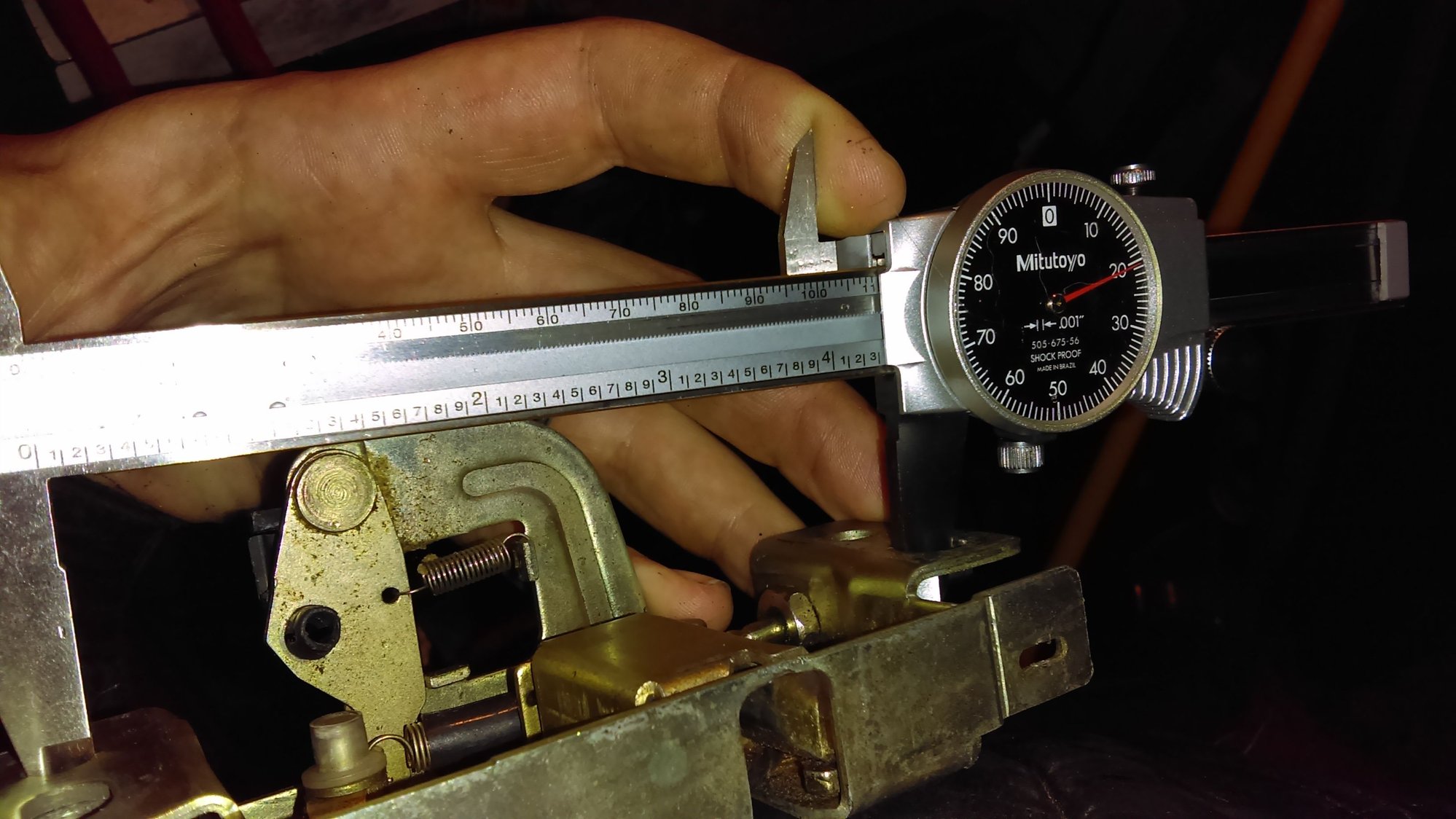

If the inside to inside measurement of the mounting points is over .200 off, the outside points of the mount holes won't barely meet the inside points of the holes in the latch.
Last edited by Lucky777; 12-13-15 at 05:00 PM.
#5
Full Member
Thread Starter
iTrader: (1)
Join Date: Nov 2015
Location: MI
Posts: 67
Likes: 0
Received 0 Likes
on
0 Posts

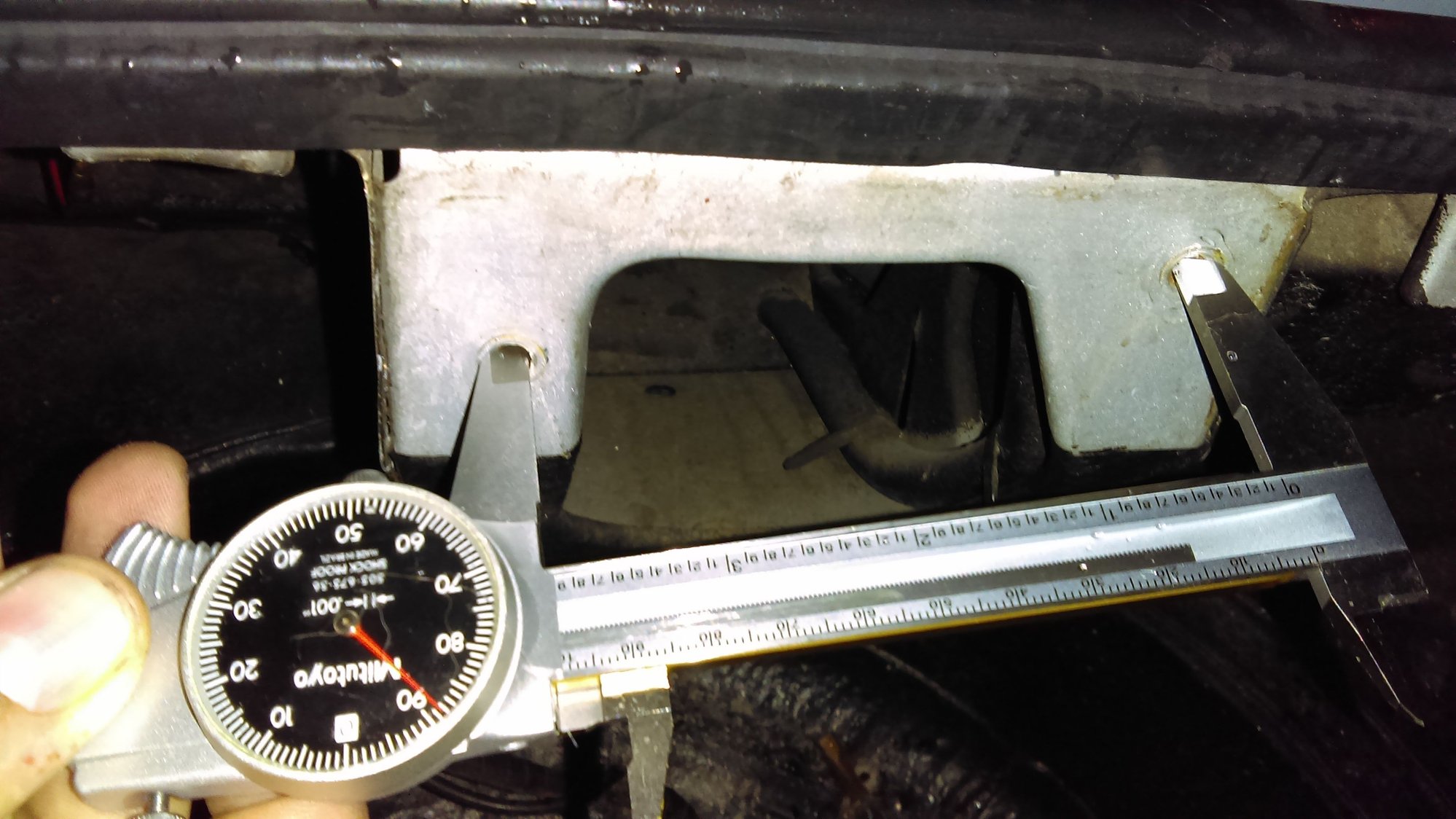

The bolts on the 79 are physically much closer together by significant amount, and all the latches I can find for sale all have evidence of only the top oblong bolt holes being used. To attach to a 79 they should be staggered. I really think there's something more to this than just "I did something wrong," but without the ability to look into several different cars and see, I can't tell what it is. If any one of the mounts align, the other side ends up far clear of the mounting nut entirely.
Trending Topics
#9
Moderator
iTrader: (3)
Join Date: Mar 2001
Location: https://www2.mazda.com/en/100th/
Posts: 30,841
Received 2,605 Likes
on
1,848 Posts
for the latch, 79 gets 8871-62-310B
in 1980 you have a choice of power, 8341-62-310 or manual 8346-62-310. 81+ they are all power, FA01-62-310, or the S model gets manual FA02-62-310.
the rear end sheetmetal panel is new after the start of 1980 production, and then again for 81, as the exterior part was changed, and they come together
#10
Old [Sch|F]ool
Basically if you own an SA, you end up doing a lot of research because a lot of FB owners don't realize that SAs are practically two different generations. It's of little coincidence that SA fans end up being the Keepers of Obscure RX-7 Knowledge.
(My first RX-7 was an '80, on purpose )
