hey guys, i got an elford turbo car from the uk.
looking to make her a bit quicker, it uses a draw through su carb and a t3 turbo with no intercooler.
as a stock car it runs 4-5psi (ithink) i was hoping to up the pressure using water and methanol as charge cooling.
the car has a completly stock bolck, with underdrive pulleys and double belts.
was unsure if lowering the back pressure would help move things along? at the moment it is using an elford header with the stock back section. would going striaght through help?
thanks Ollie
looking to make her a bit quicker, it uses a draw through su carb and a t3 turbo with no intercooler.
as a stock car it runs 4-5psi (ithink) i was hoping to up the pressure using water and methanol as charge cooling.
the car has a completly stock bolck, with underdrive pulleys and double belts.
was unsure if lowering the back pressure would help move things along? at the moment it is using an elford header with the stock back section. would going striaght through help?
thanks Ollie
#6
You should retard the ignition a few degrees to be safe. Sounds like you have a pretty good idea about everything though. Should be a pretty solid setup once you get it running.
-Marques
-Marques
Trending Topics
#8
Full Member
Thread Starter
Join Date: Nov 2005
Location: england
Posts: 52
Likes: 0
Received 0 Likes
on
0 Posts
ok the plot thickens!
the oil temps are slightly higher than i would like due to the combination of 'beehive' and air cooled turbo combo!
have just acquired an fc oil cooler and am about to follow this mod
https://www.rx7club.com/1st-generation-specific-1979-1985-18/how-install-fc-oil-cooler-1st-gen-write-up-pics-462460/
this guy is a genius! but i use the oil passage at bottom of block below the oil filter to supply the turbo with oil, what is the best way to have an oil cooler and a turbo feed?
I thought oil from outlet below oil filter to feed the cooler and then the return from the cooler to the turbo??
the turbo drains to the sump via a baffle.
any help greatly appreciated!
Ollie
the oil temps are slightly higher than i would like due to the combination of 'beehive' and air cooled turbo combo!
have just acquired an fc oil cooler and am about to follow this mod
https://www.rx7club.com/1st-generation-specific-1979-1985-18/how-install-fc-oil-cooler-1st-gen-write-up-pics-462460/
this guy is a genius! but i use the oil passage at bottom of block below the oil filter to supply the turbo with oil, what is the best way to have an oil cooler and a turbo feed?
I thought oil from outlet below oil filter to feed the cooler and then the return from the cooler to the turbo??
the turbo drains to the sump via a baffle.
any help greatly appreciated!
Ollie
#9
Old Fart Young at Heart
iTrader: (6)
Originally Posted by borgue
ok the plot thickens!
the oil temps are slightly higher than i would like due to the combination of 'beehive' and air cooled turbo combo!
have just acquired an fc oil cooler and am about to follow this mod
https://www.rx7club.com/showthread.php?t=462460
this guy is a genius! but i use the oil passage at bottom of block below the oil filter to supply the turbo with oil, what is the best way to have an oil cooler and a turbo feed?
I thought oil from outlet below oil filter to feed the cooler and then the return from the cooler to the turbo??
the turbo drains to the sump via a baffle.
any help greatly appreciated!
Ollie
the oil temps are slightly higher than i would like due to the combination of 'beehive' and air cooled turbo combo!
have just acquired an fc oil cooler and am about to follow this mod
https://www.rx7club.com/showthread.php?t=462460
this guy is a genius! but i use the oil passage at bottom of block below the oil filter to supply the turbo with oil, what is the best way to have an oil cooler and a turbo feed?
I thought oil from outlet below oil filter to feed the cooler and then the return from the cooler to the turbo??
the turbo drains to the sump via a baffle.
any help greatly appreciated!
Ollie
After looking at the oil flow diagram in the FSM, if you routed the oil cooler directly to the turbo, a good portion of the oil supply would by pass the engine and none of the cooled oil would go to the engine, internally, it would be returned to the sump to be picked up again. Not a good idea if your oil temps are running high now.
#10
Full Member
Thread Starter
Join Date: Nov 2005
Location: england
Posts: 52
Likes: 0
Received 0 Likes
on
0 Posts
ah i c! the supply for the turbo is quight small (not sure of evact size!) but i think you might have just hit the nail on the head!
ill have a look as soon as i get a chance! ill try to post some pics up to show problem and remedy.
are the the banjo bolts m18? i think my turbo feed pipe is 1/4bsp? so i might be ok!?
so the oil would be split between the turbo and the cooler? would the pressure at the turbo drop?
Cheers Ollie
ill have a look as soon as i get a chance! ill try to post some pics up to show problem and remedy.
are the the banjo bolts m18? i think my turbo feed pipe is 1/4bsp? so i might be ok!?
so the oil would be split between the turbo and the cooler? would the pressure at the turbo drop?
Cheers Ollie
#11
Old Fart Young at Heart
iTrader: (6)
Since the original feed is coming off of the rear iron, there should be no pressure change for the feed. The critical part will be the amount of oil going to the turbo. 1/4" bsp is not that much different than our npt threads and the banjo bolt will accept a tap of that size. Just don't tap the fitting too deep as to interfere with the flow through the banjo bolt.
Use as much of the original oil feed lines that you can to simplify installation. Can you post a pic of the fitting at the bottom of the rear iron?
I've been called professor and MacGuyver before before, I'm a few points short of 'genius', but thanks anyway. Glad you found the write up usefull. My engine now runs too cool in the winter weather, probably need to change to a 190* thermostat.
Use as much of the original oil feed lines that you can to simplify installation. Can you post a pic of the fitting at the bottom of the rear iron?
I've been called professor and MacGuyver before before, I'm a few points short of 'genius', but thanks anyway. Glad you found the write up usefull. My engine now runs too cool in the winter weather, probably need to change to a 190* thermostat.
#12
be careful...
I used to run the first version Cartech drawthough carburated turbo setup. First off be careful with the boost on a non-intercooled turbo... I was running ~6 # of boost and by the time the small IHI turbo fried the first time at 15K miles I had already flattened the apex springs and completely burned (as in no evidence they existed!) the rubber part of the 2-piece corner seals from excess heat. The only reason I knew was I got bored waiting for the turbo to be rebuilt and pulled the engine to port it. After that some of the changes I did were:
* solid corner seals
* 8 # boost
* high volume fuel pump
* 50% ethyl alcohol injection, boost & rpm controlled (methyl alcohol attacks plastic & rubber...)
* filtered turbo oil feed using Racing Beat's gauge adaptor block under the oil filter.
Tapping oil from the oil cooler line banjo bolt is before the filter...
BTW I have previously scanned the Elford sales brouchure.
Good Luck and have fun.
* solid corner seals
* 8 # boost
* high volume fuel pump
* 50% ethyl alcohol injection, boost & rpm controlled (methyl alcohol attacks plastic & rubber...)
* filtered turbo oil feed using Racing Beat's gauge adaptor block under the oil filter.
Tapping oil from the oil cooler line banjo bolt is before the filter...
BTW I have previously scanned the Elford sales brouchure.
Good Luck and have fun.
#13
Cant be bothered anymore
Join Date: Aug 2004
Location: Norwich UK
Posts: 465
Likes: 0
Received 0 Likes
on
0 Posts
Out of interest how much water/methanol do you run and how did you work it out the ratio. i presume the wi is virtually direct port. If you have any pics of you install it would be great
Scott
sorry for all the questions trying to achieve a greater understanding
Scott
sorry for all the questions trying to achieve a greater understanding
#14
Hunting Skylines
Join Date: Apr 2001
Location: Brisbane, Queensland, Australia.
Posts: 3,431
Likes: 0
Received 2 Likes
on
2 Posts
Originally Posted by borgue
I thought oil from outlet below oil filter to feed the cooler and then the return from the cooler to the turbo??
Ollie
Ollie
Another good way is to use an early tall style oil filter pedestal and tap that for the turbo. That way you're feeding it filtered oil.
#15
Originally Posted by sdminus
Out of interest how much water/methanol do you run and how did you work it out the ratio. i presume the wi is virtually direct port. If you have any pics of you install it would be great
Scott
sorry for all the questions trying to achieve a greater understanding
Scott
sorry for all the questions trying to achieve a greater understanding
The whole setup added an "interesting" oder to the exhaust. I remember a co-worker commenting upon returning from lunch after I put away his supercharged Thunderbird that the exhaust had a funny smell when I got on the boost...
If you still want a picture I have to dig around...
#16
Full Member
Thread Starter
Join Date: Nov 2005
Location: england
Posts: 52
Likes: 0
Received 0 Likes
on
0 Posts

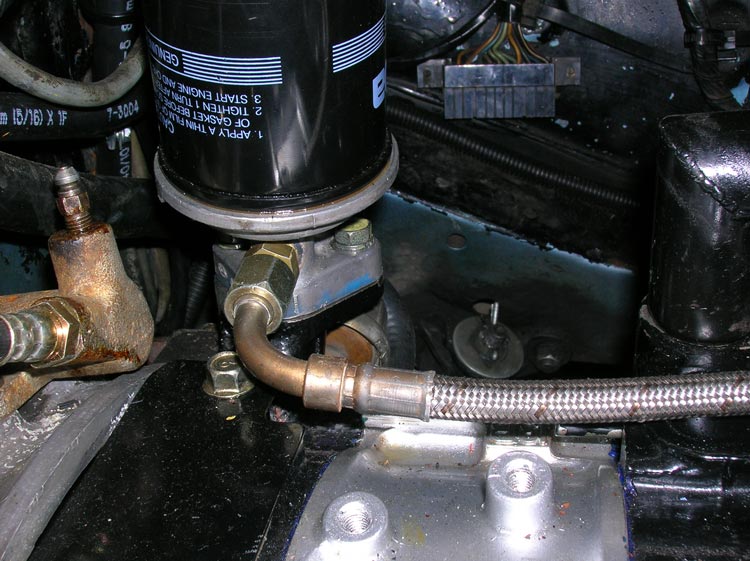

ok the cooler is in but not connected. gotta decide between the filter neck method and the rear banjo for oil to the turbo!
drove her to the workshop with only a header and it came onto boost so fast! bit of creap though! haha. got a wideband o2 in now so its all go for tuning!
any hints with SU carbs? got a couple of books but must admit im more used to fuel injection!?
picks to folow, just got to blag a camera! lol
on another note removing the diff to weld tomorrow! just got to get the driveshafts out.
have a good holiday!
Ollie
