Hey guys... I bought a 3 row aluminum radiator for my 82 GSL and I'm having a little trouble finding a electric fan an shroud that fits.
I found one that is 2 ...10 inch fans and aluminum shroud but I found out thru a friend that they are not good..also I don't want to strap the fan directly to the radiator and mess up the fins...
So..for you guys that are using an aluminum radiator on your FB...what e-fan setup are you using?
Any suggestions for me will be really appreciated.....
Thanks....
I found one that is 2 ...10 inch fans and aluminum shroud but I found out thru a friend that they are not good..also I don't want to strap the fan directly to the radiator and mess up the fins...
So..for you guys that are using an aluminum radiator on your FB...what e-fan setup are you using?
Any suggestions for me will be really appreciated.....
Thanks....
#2
Rotary Enthusiast
iTrader: (1)
I used a modified Dorman 620-101, pulled from a 1994 Mercury Sable, fitted to a koyo tall rad. See the link below for more details.
https://www.rx7club.com/1st-gen-gene.../#post12448132
There are probably better fans and slimmer fans but that's what I have. I don't expect this to work if I ever go 13b without more mods as its pretty tight now.
https://www.rx7club.com/1st-gen-gene.../#post12448132
There are probably better fans and slimmer fans but that's what I have. I don't expect this to work if I ever go 13b without more mods as its pretty tight now.
#3
3D Printed

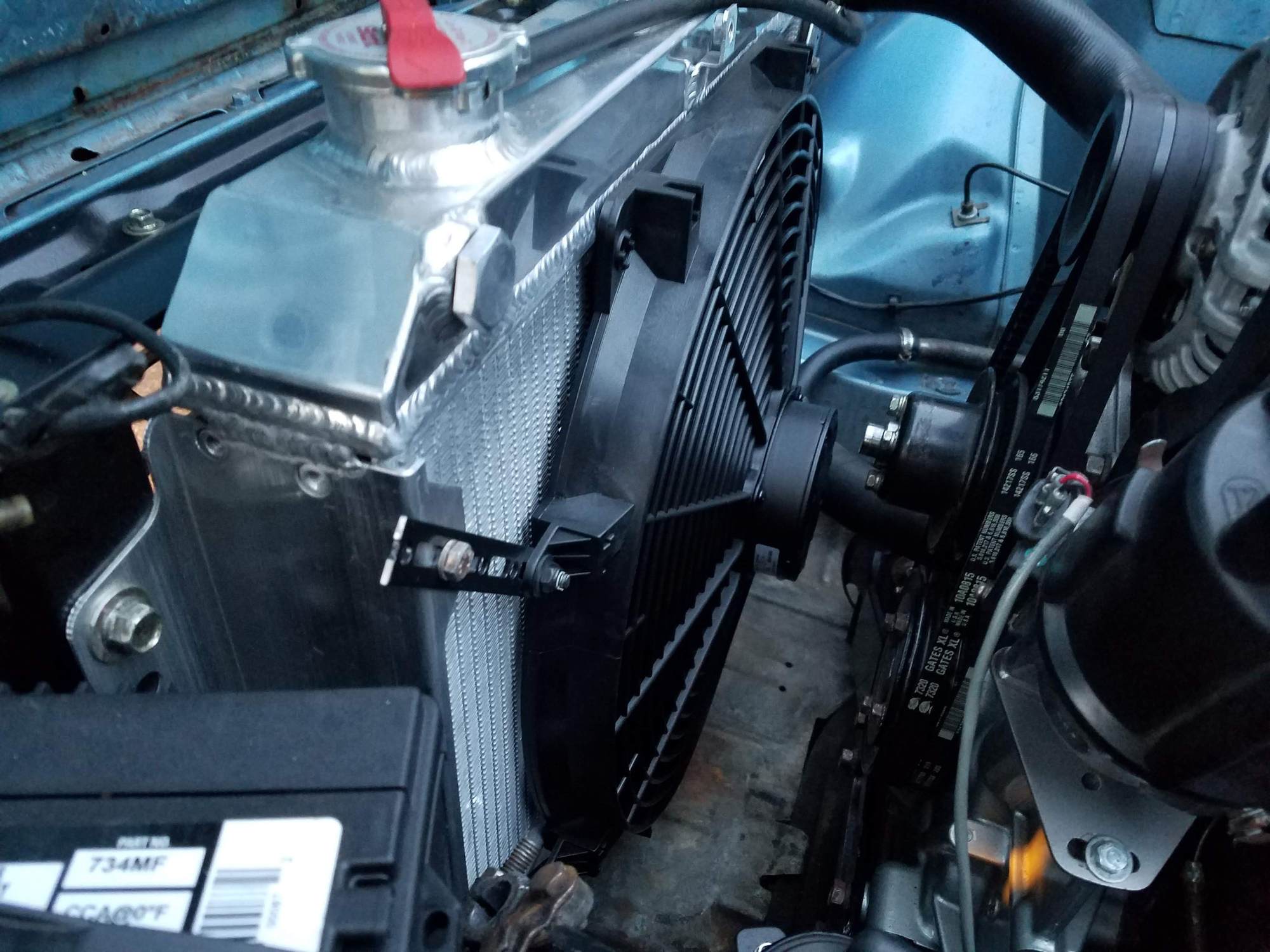

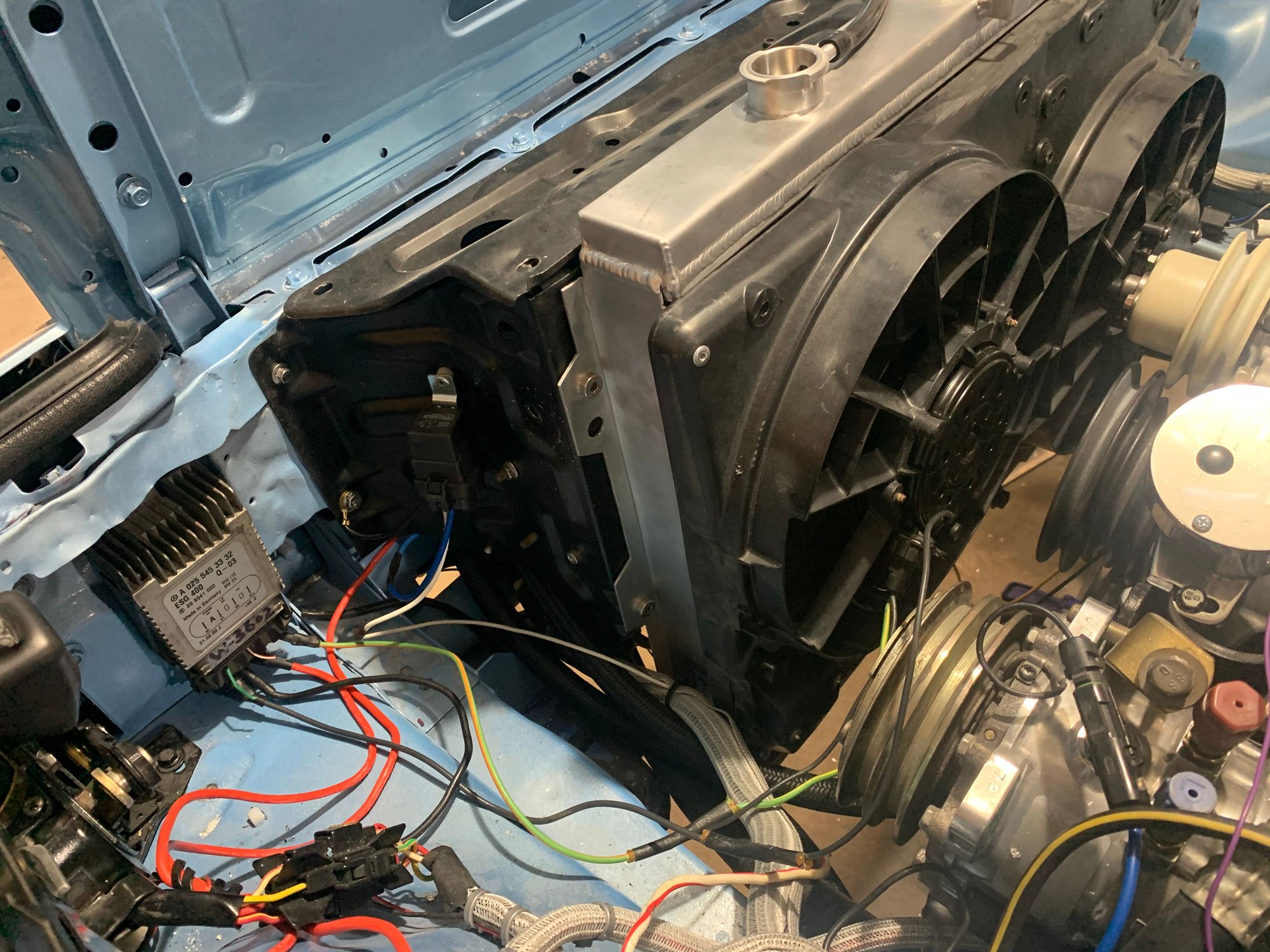

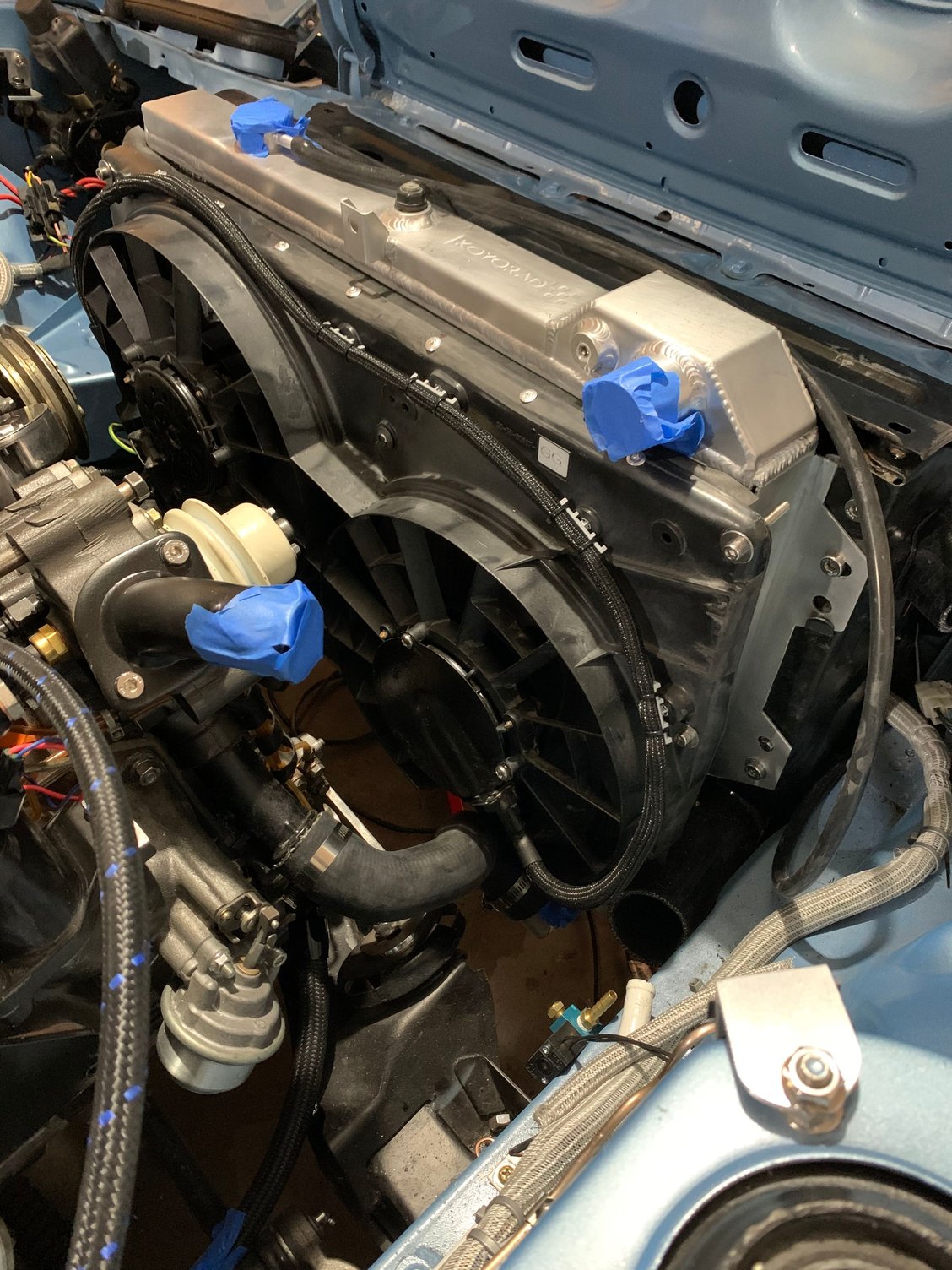

A couple months ago I installed a Flex-A-Lite FLX-238 on my aluminum eBay short radiator. I haven't gotten to test it in any major heat yet, but so far it's doing wonderfully with the highest ambient temp encountered thus far at ~60F. It's paired with a Derale DER-16759 controller and it almost never needs to turn on, although it is still rather cool here in Oregon. When it does finally kick on temps drop fast, faster than the thermostat can keep up with.
