NotMrButts

Hi guys I found this hose unconnected to anything. I did some searching and found some threads about hoses for draining the moon roof but I don't have a moon roof so I was hoping someone could confirm what this is for me and where is should be connected! Thanks a bunch




The tube goes up into the drivers side just behind the door.





A close up of the tube





As you can see it's quite long.




This a a view of the end of the tube.

KansasCityREPU

iTrader: (9)

That's the hose that drains the vent that faces the rear triangle window in the hatch.

NotMrButts

Cool thanks. Any idea where the end goes?

KansasCityREPU

iTrader: (9)

Not sure

NotMrButts

Alright thanks anyways I'll do some research and repot back

NotMrButts

sp I looked through the body section of the fsmand didn't find anything :/ so if anybody knows what's up my ears are open

j9fd3s

iTrader: (3)

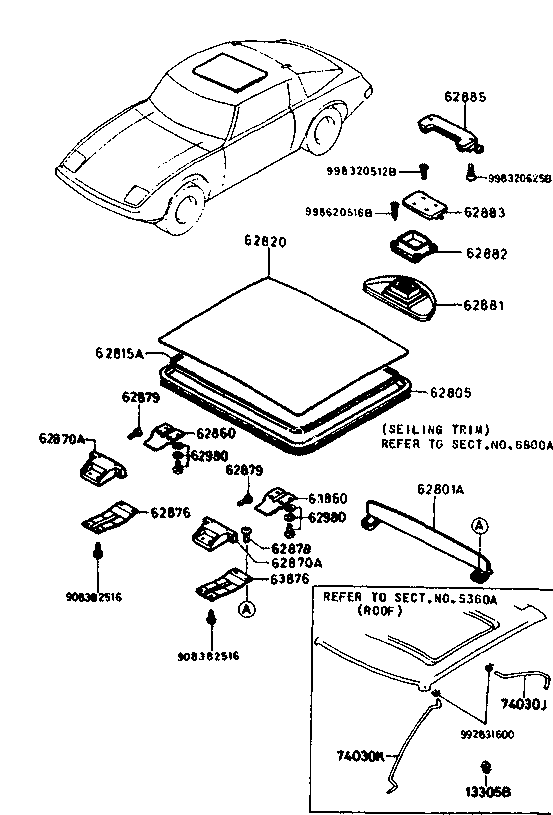

here is the picture from the parts catalog, not much help

NotMrButts

Thanks for the reply. What i ended up doing is routing the hose through one of the holes on the rear bumper for now. Its next to the the drain tubes for the rear hatch. If I come across a better solution i will post

t_g_farrell

iTrader: (1)

Dammit! Now I have to yank my interior and take a look at where it goes.

DivinDriver

iTrader: (15)

I *think* it exits the body through a hole that leads inside the frame rail... I don't recall ever seeing an exit underneath for it.

JSmall

The rear sunroof drain hoses go to the vent like thing at the rear, next to the triangle piece of glass.. The front sunroof drain hoses go down behind the front wings somewhere

NotMrButts

Confusing part is that I have no sunroof :/

Haro2488

What about the rear washer? Do you have a rear washer sprayer?

Haro2488

I believe on the cars with a wiper on the rear hatch have a spray nozzle on the body in the location between where the moonroof would be and the rear hatch glass. I will have to double-check my gsl parts car when I get home.

KansasCityREPU

iTrader: (9)

Only the GSL and GSL-SE have a rear wiper and as such, the spray nozzle. The OP does not have a sunroof.

Haro2488

I don't see where he specifies what model his car is, nor do I insist that he has a sunroof. Just trying to offer up some suggestions.

JSmall

Yeah that's what I was confused about also. Could be what Haro mentioned. Other than that I have no idea

KansasCityREPU

iTrader: (9)

Just noticed the OP is from Canada. I wonder if they got a model that has rear wiper and no sunroof?They do have those cool bumper mounted headlight sprayers so I guess it's possible.

Haro2488

Haha perhaps. I also noticed he had power mirrors it looks like.

NotMrButts

sorry for the confusion! I have a gsl (non se) 1985. No sun roof. It did have a rear glass sprayer and wiper, however both have been deleted so what was mentioned may be my case, in which case I no longer need this tube? Thanks a lot all!

Haro2488

Glad we could help!

j9fd3s

iTrader: (3)

that explains it, its probably the hose for the rear washer

TimWilbers

iTrader: (1)

Just checked.
The hoses for the rear washer are about 5/6" OD.
The hoses for the rear hatch drain are closer to 1/2" OD.

NotMrButts

Yup 5/16 makes sense! Case solved! Thanks for the help all
