Best on-line place to go to get 1979 parts
I need a flasher relay for my 1979 RX-7. Problem is that I want to buy the part before I take it out. I also need to know what it looks like. My distant mechanic is saying that it is a 3 prong relay. But most sites are telling me it is two prong. Any good parts places out there on the web?
08-25-18, 08:54 AM
#4
Moderator
iTrader: (3)
Join Date: Mar 2001
Location: https://www2.mazda.com/en/100th/
Posts: 30,796
Received 2,574 Likes
on
1,830 Posts
all the aftermarket is 2 prong, this is kind of why the Rx7 people have bought OEM stuff, the aftermarket is usually pretty crap.
in ye olde times, you could look up a 3 pin flasher in a parts book, but this hasn't made it to the internet, and you're stuck with year, make, model, submodel
in ye olde times, you could look up a 3 pin flasher in a parts book, but this hasn't made it to the internet, and you're stuck with year, make, model, submodel
08-26-18, 03:49 PM
#5
Third pin on the OEM unit is ground.
Per the 79 wiring diagram, GW (green w/white stripe) is 12VDC in, GB (Green w/Black stripe) is switched 12VDC out which goes to power the lights (via the combo switch), and Black is ground.
From what I can find online, the more modern 2-prong types don't use ground - they only have power in, and load out.
It might be possible to substitute a 2-prong unit in, as it appears the ground may only be needed to make the stock flasher work. Hard to tell for sure without seeing the guts of each, though.
The modern 3-prong units have a separate output "P" for "pilot light" that being the dash indicator.
Per the 79 wiring diagram, GW (green w/white stripe) is 12VDC in, GB (Green w/Black stripe) is switched 12VDC out which goes to power the lights (via the combo switch), and Black is ground.
From what I can find online, the more modern 2-prong types don't use ground - they only have power in, and load out.
It might be possible to substitute a 2-prong unit in, as it appears the ground may only be needed to make the stock flasher work. Hard to tell for sure without seeing the guts of each, though.
The modern 3-prong units have a separate output "P" for "pilot light" that being the dash indicator.
08-26-18, 05:18 PM
#6
Moderator
iTrader: (3)
Join Date: Mar 2001
Location: https://www2.mazda.com/en/100th/
Posts: 30,796
Received 2,574 Likes
on
1,830 Posts
you know you might try to take the old one apart, chances are its not working due to something dumb, like a dirty contact or broken solder joint
Trending Topics
08-27-18, 10:59 AM
#8
Junior Member
Thread Starter
Join Date: Oct 2002
Location: Dallas/Ft. Worth
Posts: 48
Likes: 0
Received 0 Likes
on
0 Posts
08-27-18, 11:14 AM
#9
Waffles - hmmm good
iTrader: (1)

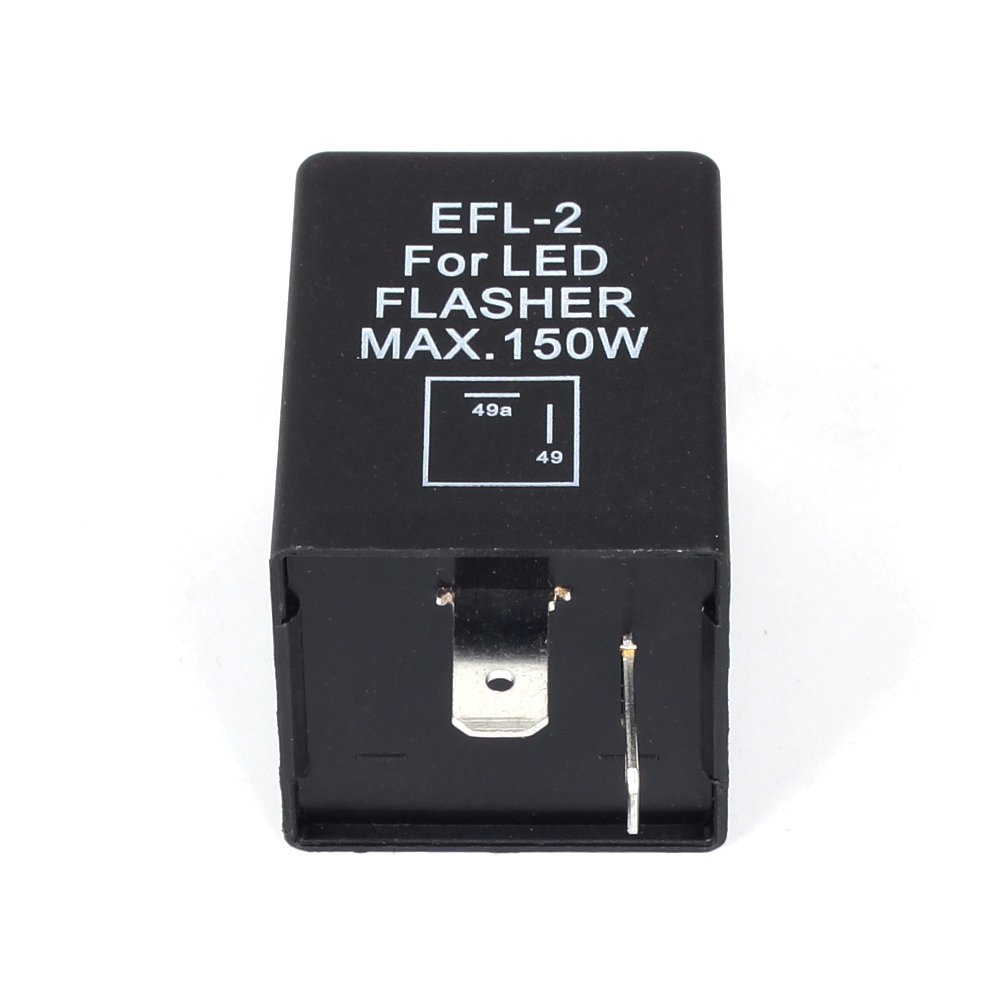

When I went to LEDs I had to bypass my 80 flasher with a modern digital one. I lost the click click noise but otherwise it worked fine. Heres the one I used:
https://www.amazon.com/gp/product/B018HARZD4/ref=oh_aui_detailpage_o01_s00?ie=UTF8&psc=1
The wiring wasn't that difficult, just used the existing harness and made some jumpers for the 2 leads to the new flasher which only had + and L (load) on it. Works like a charm.
https://www.amazon.com/gp/product/B018HARZD4/ref=oh_aui_detailpage_o01_s00?ie=UTF8&psc=1
The wiring wasn't that difficult, just used the existing harness and made some jumpers for the 2 leads to the new flasher which only had + and L (load) on it. Works like a charm.
08-27-18, 12:59 PM
#10
Moderator
iTrader: (3)
Join Date: Mar 2001
Location: https://www2.mazda.com/en/100th/
Posts: 30,796
Received 2,574 Likes
on
1,830 Posts
google comes up with this https://www.rockauto.com/en/moreinfo.php?pk=1324296&cc=1190809&jsn=12
and this https://www.rockauto.com/en/moreinfo...=1190809&jsn=8
08-27-18, 03:58 PM
#11
Junior Member
Thread Starter
Join Date: Oct 2002
Location: Dallas/Ft. Worth
Posts: 48
Likes: 0
Received 0 Likes
on
0 Posts
its 3992-66-830A, its NLA from Mazda, $47.50 is dealer cost, $79.18 list
google comes up with this https://www.rockauto.com/en/moreinfo...1190809&jsn=12
and this https://www.rockauto.com/en/moreinfo...=1190809&jsn=8
google comes up with this https://www.rockauto.com/en/moreinfo...1190809&jsn=12
and this https://www.rockauto.com/en/moreinfo...=1190809&jsn=8
08-27-18, 04:03 PM
#12
Junior Member
Thread Starter
Join Date: Oct 2002
Location: Dallas/Ft. Worth
Posts: 48
Likes: 0
Received 0 Likes
on
0 Posts
When I went to LEDs I had to bypass my 80 flasher with a modern digital one. I lost the click click noise but otherwise it worked fine. Heres the one I used:
https://www.amazon.com/gp/product/B018HARZD4/ref=oh_aui_detailpage_o01_s00?ie=UTF8&psc=1
The wiring wasn't that difficult, just used the existing harness and made some jumpers for the 2 leads to the new flasher which only had + and L (load) on it. Works like a charm.
https://www.amazon.com/gp/product/B018HARZD4/ref=oh_aui_detailpage_o01_s00?ie=UTF8&psc=1
The wiring wasn't that difficult, just used the existing harness and made some jumpers for the 2 leads to the new flasher which only had + and L (load) on it. Works like a charm.
