door hinge restoration
02-14-18, 09:52 PM
#1
Damn, it did start!
Thread Starter
door hinge restoration
one of my nagging head scratchers is the door hinges. The bushings seized and was worn down. Has anyone had experience with this?
02-15-18, 08:19 AM
#2
Waffles - hmmm good
iTrader: (1)
I think some generic hinge pins in the Dorman HELP section of the autoparts stores can be used to remedy this. I swear I have read of someone doing this in the past. I'll see if I can find it.
The following users liked this post:
Richard Miller (02-15-18)
02-15-18, 08:28 AM
#3
Waffles - hmmm good
iTrader: (1)
Heres the topic in the what did you do FB thread: https://www.rx7club.com/1st-gen-gene.../#post12154557
Also these 2 threads that talk about the same Nissan replacement hinge parts:
https://www.rx7club.com/1st-generati...inges-1063473/
https://www.rx7club.com/1st-generati...hinges-955864/
Sounds like theres an 80s Nissan part # that works. See the links and read up on it.
Also these 2 threads that talk about the same Nissan replacement hinge parts:
https://www.rx7club.com/1st-generati...inges-1063473/
https://www.rx7club.com/1st-generati...hinges-955864/
Sounds like theres an 80s Nissan part # that works. See the links and read up on it.
The following users liked this post:
Richard Miller (02-15-18)
02-15-18, 11:01 AM
#4
Damn, it did start!
Thread Starter
awesome, Apparently I was not using the right verbiage for searching.
02-15-18, 05:50 PM
#5
ancient wizard...
I did this job last year and posted here about it with pics,but darned if i can find the post...still have pics,part#s on pc so short rewrite up.

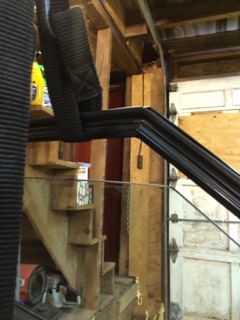

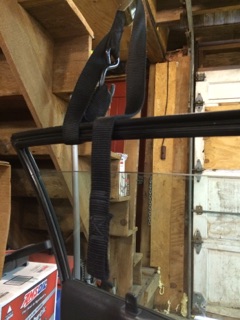

I have an SE and wanted to remove hinges by myself,without removing fender and so on,didn't want to disconnect harness for power window/mirror. Opened window about 3" and used m/c tiedown straps thru door frame to ceiling of garage and plastic milk crate and block of wood with a fender cover on top of it to sit door on.
Before i unbolted door hinge i put tape in 4 places between door/fender and door/1/4 panel,drew a line across middle of tape with a sharpie then cut tape in gaps between fender and 1/4 to give me alignment marks to get the door right back where it was(not a bodyman).
Next unbolt door side of hinge,door can be swung out 90 degrees to car to allow getting your hands in to remove hinge assly from door pillar.

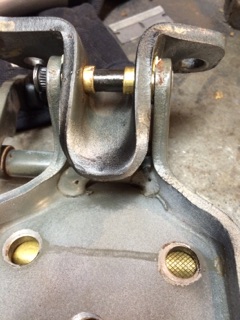

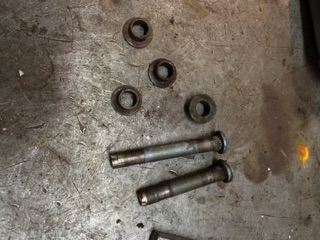

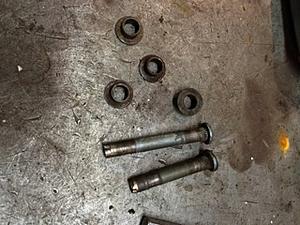

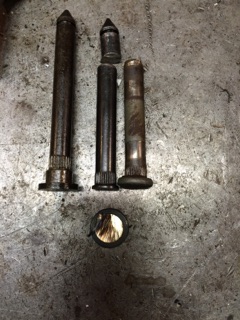

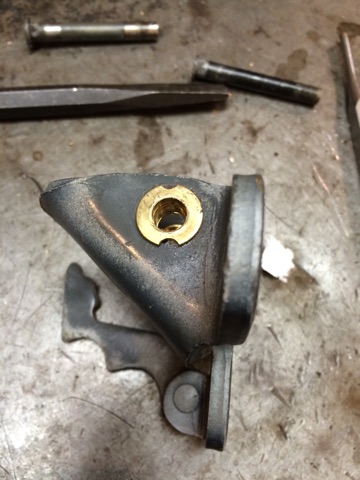

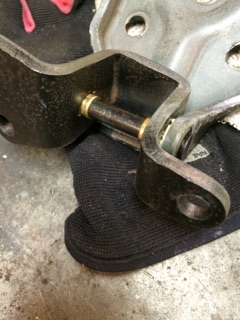

Top hinge easy to disassemble,drive out old bushings and press in new,was hoping to reuse oe pin but it's od slightly smaller than pin from kit. Using oe pin as template,i modified replacement pin to same dimensions as original,greased bushings and pin and pressed together. Pics pretty clear on how to.
Lower hinge little more complicated as detent spring (under tension) has to be removed. I bought a tool off ebay for $10 for compressing detent springs on GM cars and it worked fine,disassembled hinge and rebuilt like top one and put all back together.
Driver's door with an easy push,closes with the same thunk pass door closes,sounds so much better.
Of note: there was no paint between either hinge and door pillar. I was surprised to see shiny metal(no rust) like brand new. Suppose doors were hung and fitted on assembly line,door removed,hinge left in place and car painted. I primed and painted that area before reinstalling the hinges. Glad i had door suspended as it was as it took me a couple days to source correct color paint.
Pics...
I have an SE and wanted to remove hinges by myself,without removing fender and so on,didn't want to disconnect harness for power window/mirror. Opened window about 3" and used m/c tiedown straps thru door frame to ceiling of garage and plastic milk crate and block of wood with a fender cover on top of it to sit door on.
Before i unbolted door hinge i put tape in 4 places between door/fender and door/1/4 panel,drew a line across middle of tape with a sharpie then cut tape in gaps between fender and 1/4 to give me alignment marks to get the door right back where it was(not a bodyman).
Next unbolt door side of hinge,door can be swung out 90 degrees to car to allow getting your hands in to remove hinge assly from door pillar.
Top hinge easy to disassemble,drive out old bushings and press in new,was hoping to reuse oe pin but it's od slightly smaller than pin from kit. Using oe pin as template,i modified replacement pin to same dimensions as original,greased bushings and pin and pressed together. Pics pretty clear on how to.
Lower hinge little more complicated as detent spring (under tension) has to be removed. I bought a tool off ebay for $10 for compressing detent springs on GM cars and it worked fine,disassembled hinge and rebuilt like top one and put all back together.
Driver's door with an easy push,closes with the same thunk pass door closes,sounds so much better.
Of note: there was no paint between either hinge and door pillar. I was surprised to see shiny metal(no rust) like brand new. Suppose doors were hung and fitted on assembly line,door removed,hinge left in place and car painted. I primed and painted that area before reinstalling the hinges. Glad i had door suspended as it was as it took me a couple days to source correct color paint.
Pics...
The following 2 users liked this post by GSLSEforme:
7aull (02-17-18),
Richard Miller (02-15-18)
02-16-18, 07:40 AM
#6
Waffles - hmmm good
iTrader: (1)
I did this job last year and posted here about it with pics,but darned if i can find the post...still have pics,part#s on pc so short rewrite up.
I have an SE and wanted to remove hinges by myself,without removing fender and so on,didn't want to disconnect harness for power window/mirror. Opened window about 3" and used m/c tiedown straps thru door frame to ceiling of garage and plastic milk crate and block of wood with a fender cover on top of it to sit door on.
Before i unbolted door hinge i put tape in 4 places between door/fender and door/1/4 panel,drew a line across middle of tape with a sharpie then cut tape in gaps between fender and 1/4 to give me alignment marks to get the door right back where it was(not a bodyman).
Next unbolt door side of hinge,door can be swung out 90 degrees to car to allow getting your hands in to remove hinge assly from door pillar.
Top hinge easy to disassemble,drive out old bushings and press in new,was hoping to reuse oe pin but it's od slightly smaller than pin from kit. Using oe pin as template,i modified replacement pin to same dimensions as original,greased bushings and pin and pressed together. Pics pretty clear on how to.
Lower hinge little more complicated as detent spring (under tension) has to be removed. I bought a tool off ebay for $10 for compressing detent springs on GM cars and it worked fine,disassembled hinge and rebuilt like top one and put all back together.
Driver's door with an easy push,closes with the same thunk pass door closes,sounds so much better.
Of note: there was no paint between either hinge and door pillar. I was surprised to see shiny metal(no rust) like brand new. Suppose doors were hung and fitted on assembly line,door removed,hinge left in place and car painted. I primed and painted that area before reinstalling the hinges. Glad i had door suspended as it was as it took me a couple days to source correct color paint.
Pics...
I have an SE and wanted to remove hinges by myself,without removing fender and so on,didn't want to disconnect harness for power window/mirror. Opened window about 3" and used m/c tiedown straps thru door frame to ceiling of garage and plastic milk crate and block of wood with a fender cover on top of it to sit door on.
Before i unbolted door hinge i put tape in 4 places between door/fender and door/1/4 panel,drew a line across middle of tape with a sharpie then cut tape in gaps between fender and 1/4 to give me alignment marks to get the door right back where it was(not a bodyman).
Next unbolt door side of hinge,door can be swung out 90 degrees to car to allow getting your hands in to remove hinge assly from door pillar.
Top hinge easy to disassemble,drive out old bushings and press in new,was hoping to reuse oe pin but it's od slightly smaller than pin from kit. Using oe pin as template,i modified replacement pin to same dimensions as original,greased bushings and pin and pressed together. Pics pretty clear on how to.
Lower hinge little more complicated as detent spring (under tension) has to be removed. I bought a tool off ebay for $10 for compressing detent springs on GM cars and it worked fine,disassembled hinge and rebuilt like top one and put all back together.
Driver's door with an easy push,closes with the same thunk pass door closes,sounds so much better.
Of note: there was no paint between either hinge and door pillar. I was surprised to see shiny metal(no rust) like brand new. Suppose doors were hung and fitted on assembly line,door removed,hinge left in place and car painted. I primed and painted that area before reinstalling the hinges. Glad i had door suspended as it was as it took me a couple days to source correct color paint.
Pics...
08-27-18, 03:10 PM
#7
Can Post Only in New Member Section
Join Date: Aug 2018
Location: USA
Posts: 3
Likes: 0
Received 0 Likes
on
0 Posts
replacement door hinge for 1981 RX&
So am i reading this correctly. theres a nissan drivers side door hinge that i can use to replace the original one i have on my rx7?
Trending Topics
08-27-18, 03:40 PM
#8
ancient wizard...

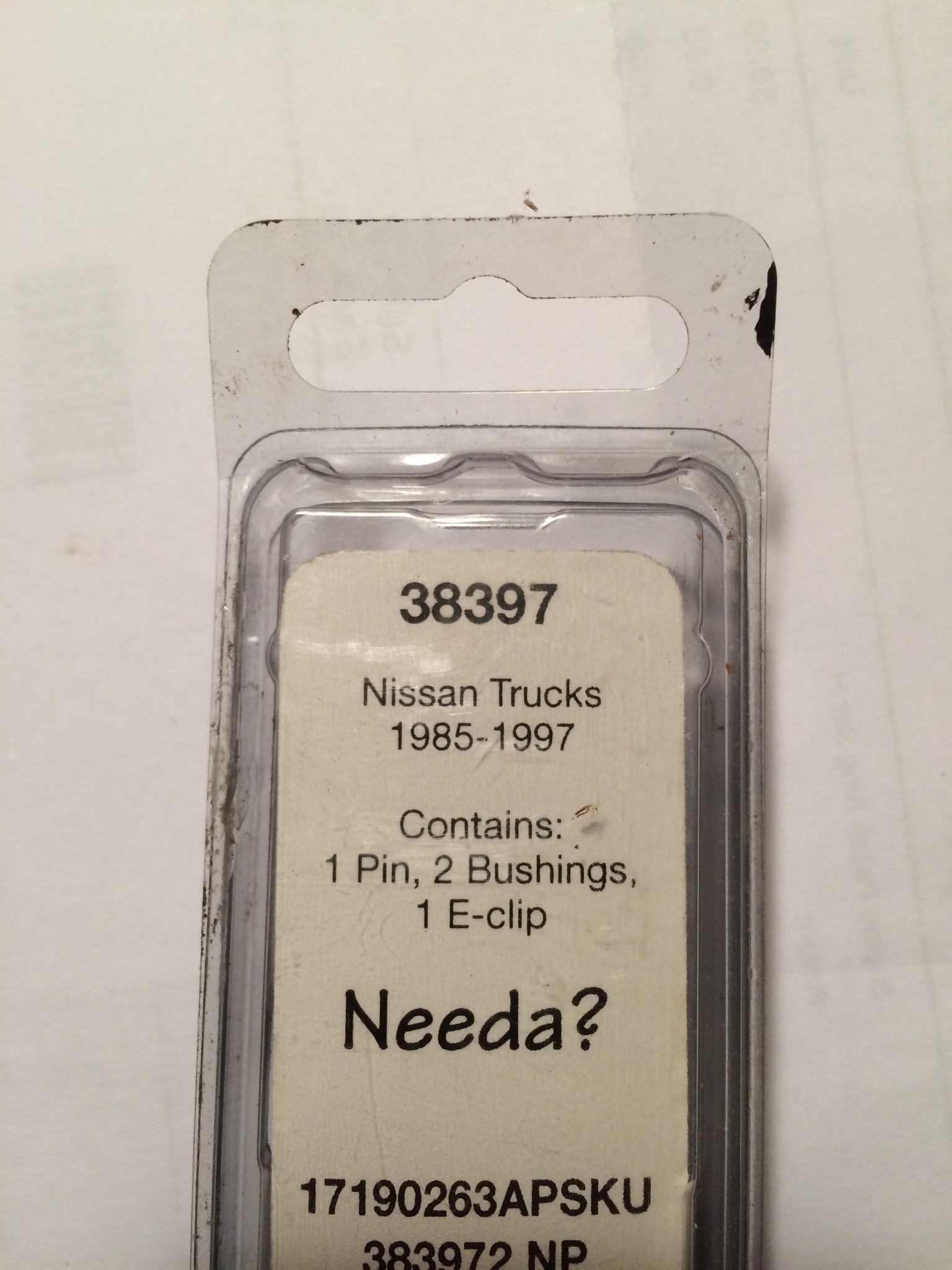

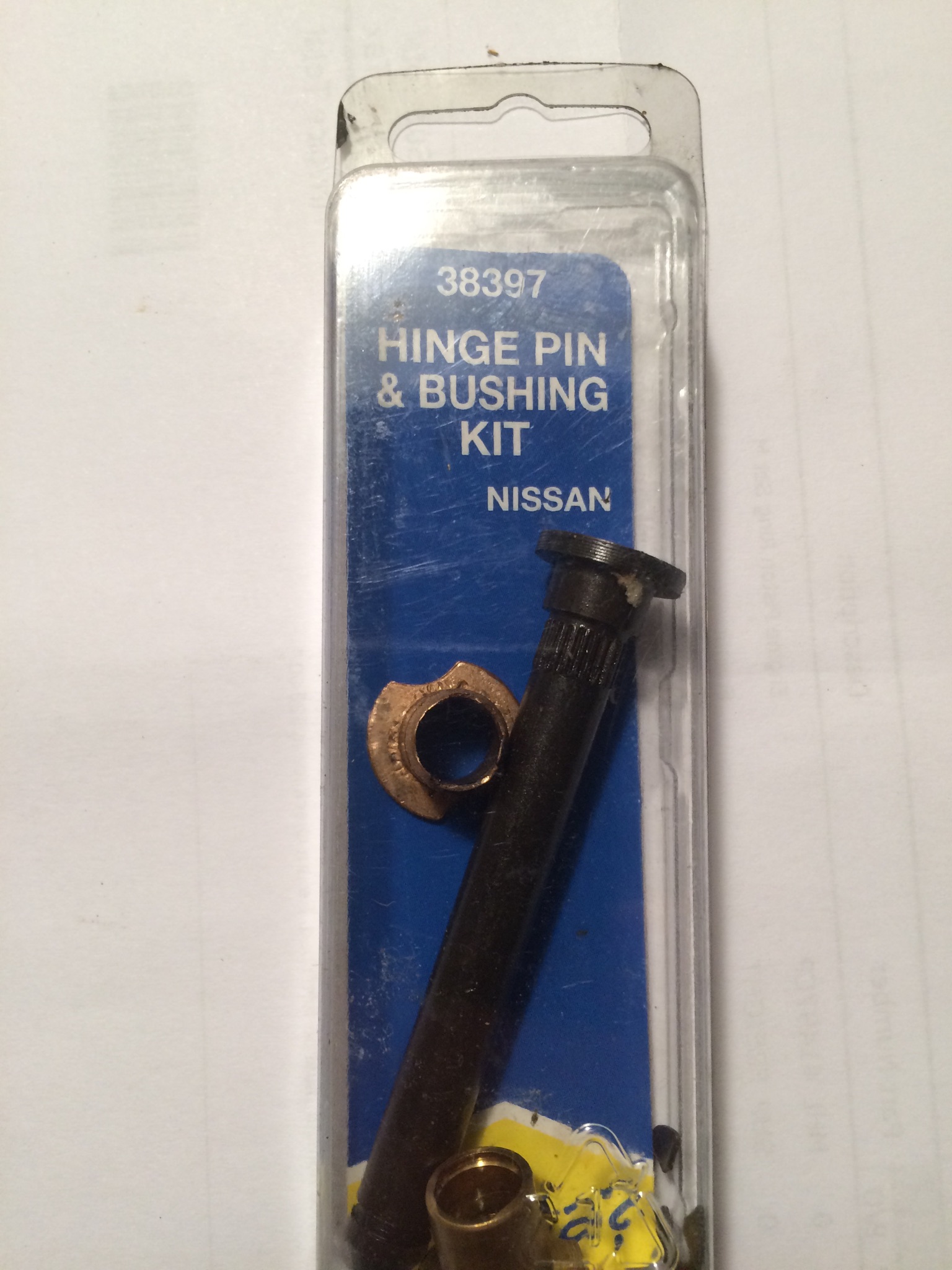

Not a hinge,the #38397 Dorman hinge pin repair kit is the closest in dimension to FB hinge pin/bushing. Also not a bolt in,the pin supplied in kit needs to be modified like what is shown in pics,everything else straightforward.
Replacement door hinge assemblies have been NLA from Mazda for some time.
Always possibility of finding hinges on parts or scrapped cars but likely these will have same amount of wear as your existing hinge.
Replacement door hinge assemblies have been NLA from Mazda for some time.
Always possibility of finding hinges on parts or scrapped cars but likely these will have same amount of wear as your existing hinge.
08-27-18, 05:13 PM
#10
ancient wizard...
Rebuild what you have. Get several hinge pin kits,you need two,one for top and one for lower hinge on door. They are inexpensive,i went through a couple as i attempted to modify hinge pin as shown in thread.
More convenient to have an extra on hand to finish job without having to go source more.
More convenient to have an extra on hand to finish job without having to go source more.
08-27-18, 09:05 PM
#11
Moderator
iTrader: (3)
Join Date: Mar 2001
Location: https://www2.mazda.com/en/100th/
Posts: 30,792
Received 2,571 Likes
on
1,828 Posts
on the post FB's the bolts that hold the door to the hinge are unpainted. since the SA and FB are painted there, i'm not 100% certain what they did, but its probably not too different than the later stuff
its pretty neat, dash swings in on an arm, but besides that, its basically built the same as any one of us would do it, by hand
08-28-18, 07:43 AM
#12
Rotary Enthusiast
i'm not 100% sure with the FB, but everything after this, the hinges are bolted to the body, and its painted, and then the doors aren't installed until almost last. the carpet, dash, etc go in, and then the doors.
on the post FB's the bolts that hold the door to the hinge are unpainted. since the SA and FB are painted there, i'm not 100% certain what they did, but its probably not too different than the later stuff
its pretty neat, dash swings in on an arm, but besides that, its basically built the same as any one of us would do it, by hand
on the post FB's the bolts that hold the door to the hinge are unpainted. since the SA and FB are painted there, i'm not 100% certain what they did, but its probably not too different than the later stuff
its pretty neat, dash swings in on an arm, but besides that, its basically built the same as any one of us would do it, by hand
