302/T5 FC Issue

Old 04-03-19, 07:10 PM
  #1
Junior Member
Thread Starter

Join Date: Sep 2017
Location: British Columbia
Posts: 18
Likes: 0
Received 0 Likes on 0 Posts
302/T5 FC Issue



I bought a swap kit from grannyís last year and finally got around to putting the engine and transmission into the car. The engine mounts bolted to the cradle ok but when I install the transmission crossmember it forces the transmission to sit way too far to the drivers side of the tunnel. The transmissions also seems to not be sitting level when looking through the shifter tower in the cab. Iíve tried loosening the engine mounts at the block and cradle to wiggle things around to no avail.

Short of hogging out the transmission mount holes in the crossmember to slide it over, Iím at a loss here. Iíve called and emailed grannyís a few times over the past 2 weeks but havenít gotten a response.

Any help would be greatly appreciated.

Myles
Greener is offline
Old 04-03-19, 09:23 PM
  #2
Junior Member

Join Date: Jan 2018
Location: long island NY
Posts: 25
Likes: 0
Received 0 Likes on 0 Posts
Is it possible you have the grannys adapter mounts backwards? I can tell you on the SA the heads are almost against the fire wall when the mounts are in right and the transmission is only off about an inch in the opening.
twan374 is offline
Old 04-03-19, 09:38 PM
  #3
Junior Member
Thread Starter

Join Date: Sep 2017
Location: British Columbia
Posts: 18
Likes: 0
Received 0 Likes on 0 Posts
Thanks for the reply. I’m not too sure what you mean by adapter mounts. The cradle, trans crossmember and engine mounts can only be installed one way. The transmission mount could be flipped around but it puts the trans in the same spot.

After reading through 2 fc 302 swap threads it seems I’m not the only one to have a problem with the transmission crossmember.
Greener is offline
Old 04-03-19, 10:48 PM
  #4
Senior Member

Yolo7's Avatar

Join Date: Oct 2014
Location: winters, ca
Posts: 254
Likes: 0
Received 2 Likes on 2 Posts
Iím building an SA/302/T5 swap and had the same exact issue (still do). After checking my work over Iíve concluded itís just the way it is. I suspect that the Mustang bell housing orients the transmission that way.

If my memory serves me right, fox bodyís Iíve driven always had the shifters really far over to the left. This seems to be a bigger deal on the SA with the smaller car. The shifter pretty much hits the parking brake lever.

The post purchase support from Granny's doesnít seem to be there unfortunately. Iíve tried contacting them to get my tach modified as part of what I purchased but got nothing.

If you ready through my thread youíll see similar pictures.
Yolo7 is offline
Old 04-04-19, 07:26 PM
  #5
Junior Member
Thread Starter

Join Date: Sep 2017
Location: British Columbia
Posts: 18
Likes: 0
Received 0 Likes on 0 Posts
Yolo,

I had a look through your thread. After you hogged out the right side engine mount did that straighten the transmission at all? You also said that some engine mounts were too wide where they bolt to the cradle. I could get a washer between my mount and cradle. Was yours worse than that? I really think something is off either in the cradle, mounts or transmission crossmember.
Greener is offline
Old 04-05-19, 04:53 PM
  #6
Junior Member

Join Date: Jan 2018
Location: long island NY
Posts: 25
Likes: 0
Received 0 Likes on 0 Posts
Ok. On the SA the motor mount adapters can be put on wrong, Forward of the original mount. The adapters need to go behind the original mount on the chassis. Your latter car may use different parts from Granny's. I can see that the trans mount for your FC is totally different than the mount for the SA. I would guess the front mount may be different.

Last edited by twan374; 04-05-19 at 04:56 PM. Reason: add info
twan374 is offline
Old 04-15-19, 10:23 PM
  #7
Senior Member

Yolo7's Avatar

Join Date: Oct 2014
Location: winters, ca
Posts: 254
Likes: 0
Received 2 Likes on 2 Posts
Originally Posted by Greener View Post
Yolo,

I had a look through your thread. After you hogged out the right side engine mount did that straighten the transmission at all? You also said that some engine mounts were too wide where they bolt to the cradle. I could get a washer between my mount and cradle. Was yours worse than that? I really think something is off either in the cradle, mounts or transmission crossmember.
Sorry for the delayed response. It's been some time since I was at this step in the build. I don't know how the FC mounts look, but I am confident that I installed the adapters correctly. I played around with the mounts a little. In the end I lower the RH side by elongating the mount holes for the cross pin (aporx 1/8"), and on the left side, added 1 washer between the block and engine mount. After doing this, my shifter was still looking a lot the same (angled to the left). After looking it over and over, I determined the block sat pretty straight in the car (did not take a level to it). So I am assuming its just the way it is. Your comment makes me feel better about that.

As for the bracket on the right side being too wide, it was. I added one washer to the rear I believe. Which slightly angled the engine forward on the right side.

I might troll the Fox Body Mustang sites. Something make me think they naturally sit this way.

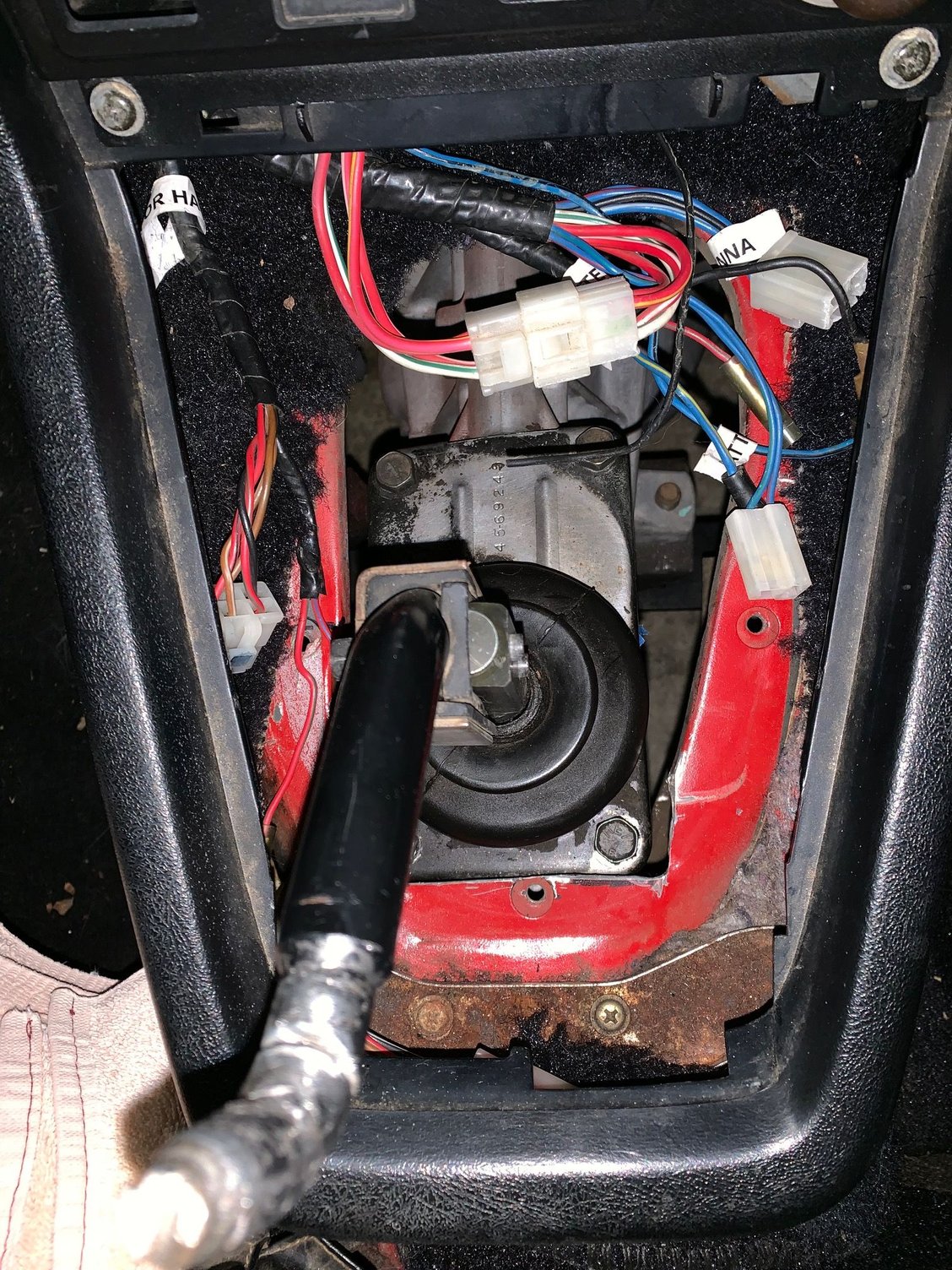

Here's a picture as it sits today. Its a ;little hard to tell with the trim around the shifter. The car still doesn't drive yet to tell you how right or wrong it is.



Yolo7 is offline
Old 04-16-19, 07:20 AM
  #8
Junior Member
Thread Starter

Join Date: Sep 2017
Location: British Columbia
Posts: 18
Likes: 0
Received 0 Likes on 0 Posts
From the naked eye the block in my car looks pretty straight as well. I think I’m just going to keep moving forward and see how it turns out. Thanks for getting back to me and good luck the rest of the way.
Greener is offline
Old 04-17-19, 06:38 PM
  #9
Senior Member

Maxwedge's Avatar

Join Date: Jun 2018
Location: SE PA
Posts: 275
Received 16 Likes on 12 Posts
Can you mount the shifter handle on the passenger side of the shifter base?
Maxwedge is offline
Old 04-18-19, 07:02 AM
  #10
Junior Member
Thread Starter

Join Date: Sep 2017
Location: British Columbia
Posts: 18
Likes: 0
Received 0 Likes on 0 Posts
That’s the only way the shifter handle will fit.
Greener is offline
