Just Got Back From The Dyno

hey guys just got back and from what i hear from GOTBANNED? and 20b-3Rotor something wasnt done right!

its a 1989 GX with 80 K engine with Monsa Headers to Gutted Cat so single 2 1/2' Piping to single exhuast 2 1/2'

1st Pull: 99 RWHP - 170 TRQ!!
2nd Pull: 100 RWHP - 115 TRQ
3rd Pull : 101 RWHP - 116 TRQ

im hoping something was done wrong...

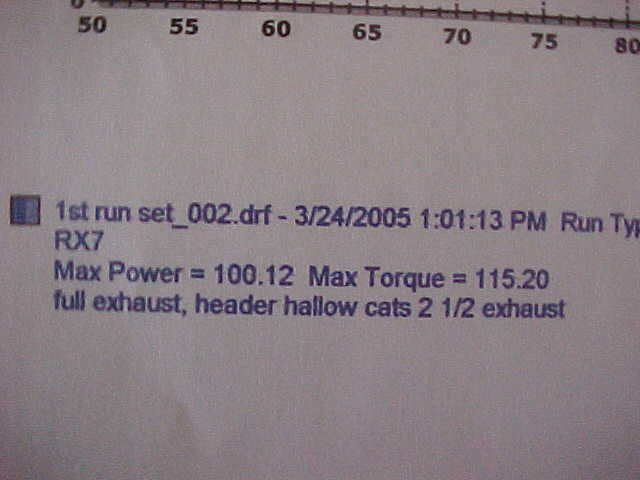

Attached Thumbnails Just Got Back From The Dyno-mvc-013s.jpg   Just Got Back From The Dyno-mvc-014s.jpg
Old 03-24-05, 02:01 PM
  #2
Rotary Enthusiast


Dom_C's Avatar

Join Date: Feb 2004
Location: Freeport, Maine
Posts: 1,225
Likes: 0
Received 0 Likes on 0 Posts
that's fucked up, what kind of compression numbers do you have? i'd say there's something fishy about the dyno. Do you get walked by civics? if your numbers really are that low you would.
Old 03-24-05, 02:04 PM
  #3
Banned. I got OWNED!!!
Thread Starter

Z-Rated's Avatar

Join Date: Mar 2005
Location: Ontario
Posts: 53
Likes: 0
Received 0 Likes on 0 Posts
listen to this, its a new garage so they said they cant let me in there to look at anything. from what i saw there was not even a fan there. i asked if they could tape the monitor for me for the last run they said no u should have brought a tripod. i had to watch the dyno from out side with the garage door open! in their pamflet it says customers are encouraged to bring cameras and all this **** but than they wont let you in the garage. some bullshit... he said compression was fine but didnt give me any other info... also i dont get beat by civics... lol... it pulls nice, i mean its my winter beater but i was curious to see the #'s....
Old 03-24-05, 05:33 PM
  #4
All out Freak!


rx7roller02's Avatar

Join Date: Aug 2004
Location: in a little box on a stick
Posts: 2,300
Likes: 0
Received 12 Likes on 9 Posts
something must be wrong with such a difference in TQ on those runs....why would you pull 170 and then drop right to 115? Makes no sense to me. I would try a different shop next time.
Old 03-24-05, 08:42 PM
  #5
Rotary Power

iTrader: (15)

wthdidusay82's Avatar

Join Date: Sep 2004
Location: Dinwiddie, Va
Posts: 3,706
Received 4 Likes on 4 Posts
Originally Posted by Dom_C
that's fucked up, what kind of compression numbers do you have? i'd say there's something fishy about the dyno. Do you get walked by civics? if your numbers really are that low you would.
i agree with dom here, if you have only 100 hp at the wheels, then that means you only have 120 hp at the flywheel which is pretty bad when considering a stock 89 is rated at 160hp
Old 03-24-05, 08:50 PM
  #6
Rotary Enthusiast


Dom_C's Avatar

Join Date: Feb 2004
Location: Freeport, Maine
Posts: 1,225
Likes: 0
Received 0 Likes on 0 Posts
Maybe the tac input was fucked up or something. . but that's definetly not right. . I ******* hate dyno's the one i go to is fucked up too. I mean they let me in there and watch and **** but the numbers are inconsistant
Old 03-26-05, 05:33 AM
  #7
just dont care.

iTrader: (6)

jacobcartmill's Avatar

Join Date: Jul 2002
Location: Nashville, TN
Posts: 9,387
Likes: 0
Received 4 Likes on 4 Posts
make sure those aux ports/vdi are working

yeah i agree that the dyno is super-effed. and i wouldnt go back there if i'm not the one who gets to ream the car on the dyno... strange.
Old 04-08-05, 02:24 PM
  #8
slower than granny


Green_Streak's Avatar

Join Date: Dec 2004
Location: In Your Dreams
Posts: 288
Likes: 0
Received 0 Likes on 0 Posts
those numbers look about right. the major issue with this dumbass shop is they ran in 4th gear. look at the speeds, no way they reached 12x or 13x mph in 3rd gear. and on the 170 tq number, perhaps they reved it out a bit in 1st or 2nd, that would get 170 tq to the wheels and then shifted to another gear. all in all these idiots don't have any ******* clue what they are doing and you should go elsewhere
Old 04-14-05, 09:46 PM
  #9
just dont care.

iTrader: (6)

jacobcartmill's Avatar

Join Date: Jul 2002
Location: Nashville, TN
Posts: 9,387
Likes: 0
Received 4 Likes on 4 Posts
you're supposed to dyno in 4th gear. 4th gear is 1:1
Old 04-24-05, 12:08 AM
  #10
you are missed

iTrader: (2)

nillahcaz's Avatar

Join Date: Dec 2001
Location: St. Louis
Posts: 987
Likes: 0
Received 1 Like on 1 Post
When i had mine on the dyno I pulled 113.2HP @ 5900 and 114.1 ft-lb @ 4200 - 4500, S4 intake and stuck axu ports. so..... somthings not right.
Old 04-24-05, 05:07 PM
  #11
Kai
Rotorphile.


Kai's Avatar

Join Date: Mar 2002
Location: Richmond/NoVA
Posts: 1,296
Likes: 0
Received 0 Likes on 0 Posts
When I dyno'd a car with aux ports stuck closed, it put down 96hp/108ft-lbs. Your aux ports are stuck.
